INSTRUCTIONS
HID Post Top LED Series
RAB Lighting is committed to creating high-quality, aff ordable, well-designed and energy-effi cient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
SAFETY PRECAUTIONS
WARNINGS:
Please read the instructions carefully and observe installation details. Mainly apply for post top, street light, garden light
and other suitable light fixtures. When using electrical equipment, basic safety precautions should always be followed
including:
• Make certain power is OFF before installing or maintaining fi xture.
• Operating temperature: -30°C to 60°C (-22°F to 140°F).
• These LED Lamps require all ballasts, capacitors, and ignitors to be bypassed or removed. Do not operate lamps on
existing ballasts.
• RISK OF FIRE OR ELECTRIC SHOCK. Luminaire wiring and electrical parts may be damaged when drilling for installation
of LED retrofi t kit. Check for enclosed wiring and components. LED Retrofi t lamp installation requires knowledge of
luminaires electrical systems. If not qualifi ed, do not attempt installation. Contact a qualifi ed electrician.
FOR USE IN ENCLOSED FIXTURES
PRODUCT IS NOT DIMMABLE
NOT FOR EMERGENCY LIGHTING
When using in portable table luminaires, ensure the distance from the bottom of the base to the top of the lampholder does not
exceed three (3) times the base diameter.
PRODUCT FEATURES
·
UL certifi ed
·
Product applications: mainly apply for post top, street light,
garden light and other suitable light fixtures
INSTALLATION INSTRUCTIONS

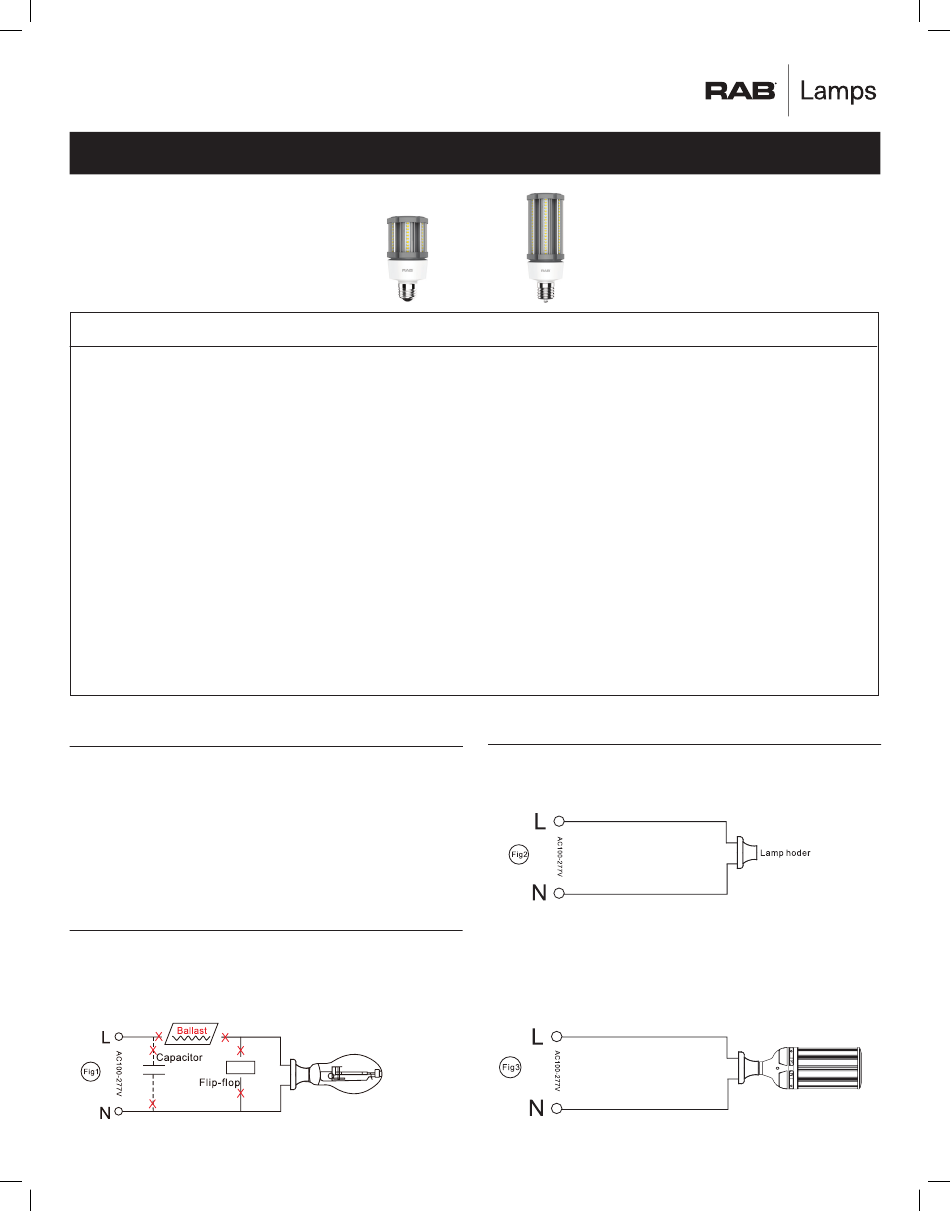

1. Remove old ballast or disconnect from existing lamp holder.
Remove and dispose of ballast in correct manner.
Shown as Figure 1. (North America 100-277VAC)
INSTALLATION INSTRUCTIONS
2. Reconnect directly to the existing lamp holder. Shown as Figure 2.
(North America 100-277VAC)
3. Install new LED replacement lamp. Shown as Figure 3.
Please make sure the old fitting is correctly earth.
(North America 100-277VAC)
(cont' d )
