RAB SAGE MUSHROOM Instructions

INSTRUCTIONS
SAGE™ MUSHROOM INSTALLATION
RAB Lighting is committed to creating high-quality, aff ordable, well-designed and energy-effi cient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fi xtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fi xture. No user serviceable parts inside.
CAUTION: For proper weatherproof function all gaskets must be seated properly and all screws inserted and tightened fi rmly.
Apply weatherproof silicone sealant around the edge of the mounting surface and/or Junction Box. This is especially important
with an uneven surface.
Suitable for Wet locations.
WALL MOUNT
1. Loosen (2) Fixing Screws on Fixture (Fig 1).
2. Attach the Mounting Plate and Gasket to Junction Box (by others) with provided Screws.
3. Connect the Fixture to the power supply per wiring diagram, Fig. 8. Make electrical connections as shown in wiring diagram. Use
approved wiring connectors and wire to local NEC codes.
4. Position Fixture onto Mounting Plate, use caution not to pinch wires. Secure with Fixing Screws.
1

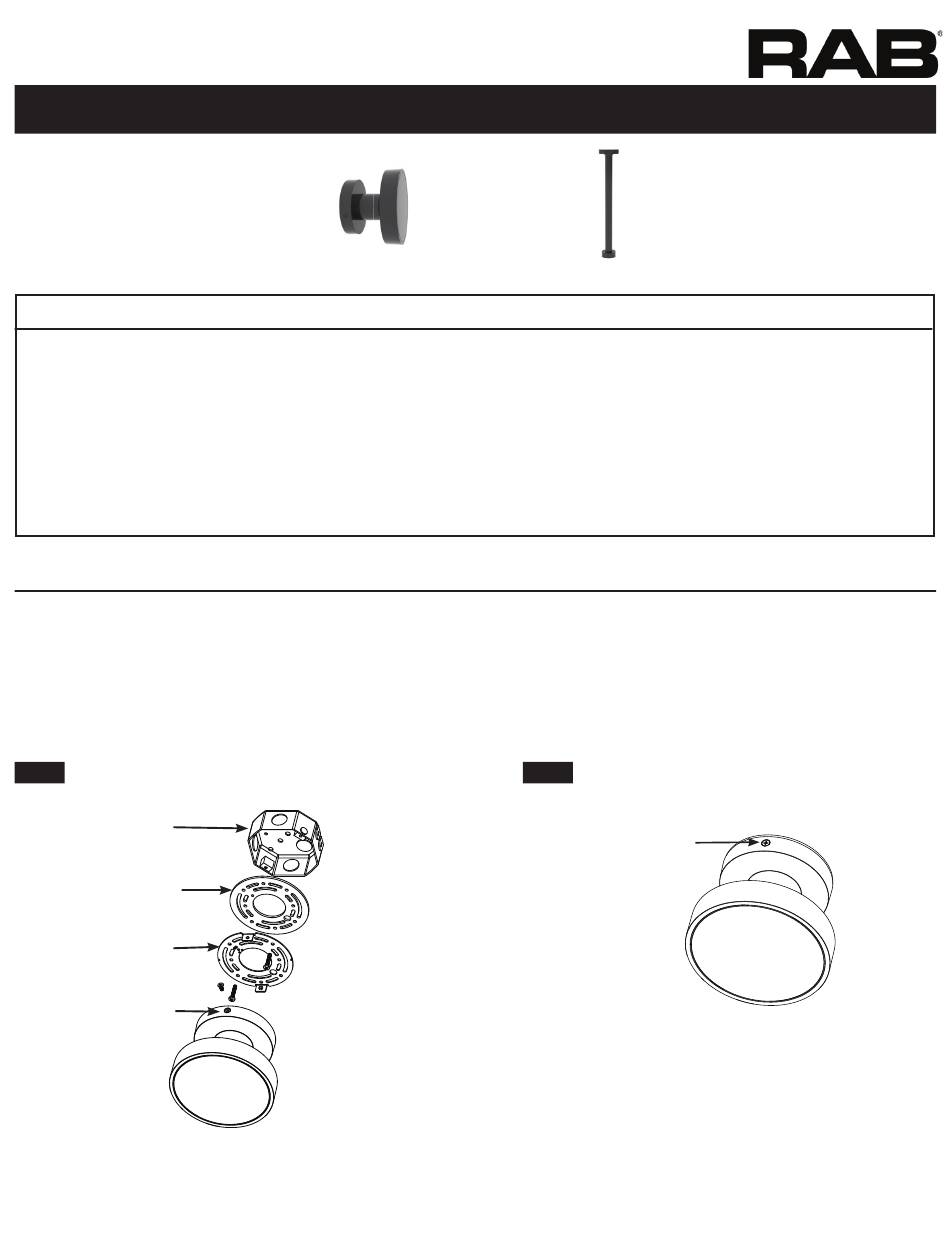

FIG. 1
Junction Box
(by others)
Gasket
Mounting Plate
Fixing Screws (2)
Wall Pack
FIG. 2
Bollard
Fixing Screws (2)
