INSTRUCTIONS
A17™ AREA LIGHT INSTALLATION
RAB Lighting is committed to creating high-quality, affordable, well-designed and energy-efficient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fi xtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining xture. No user serviceable parts inside.
WARNING: Do not use an electric generator to test LED xtures.
WARNING: Min 75°C SUPPLY CONDUCTORS.
Suitable for wet locations.

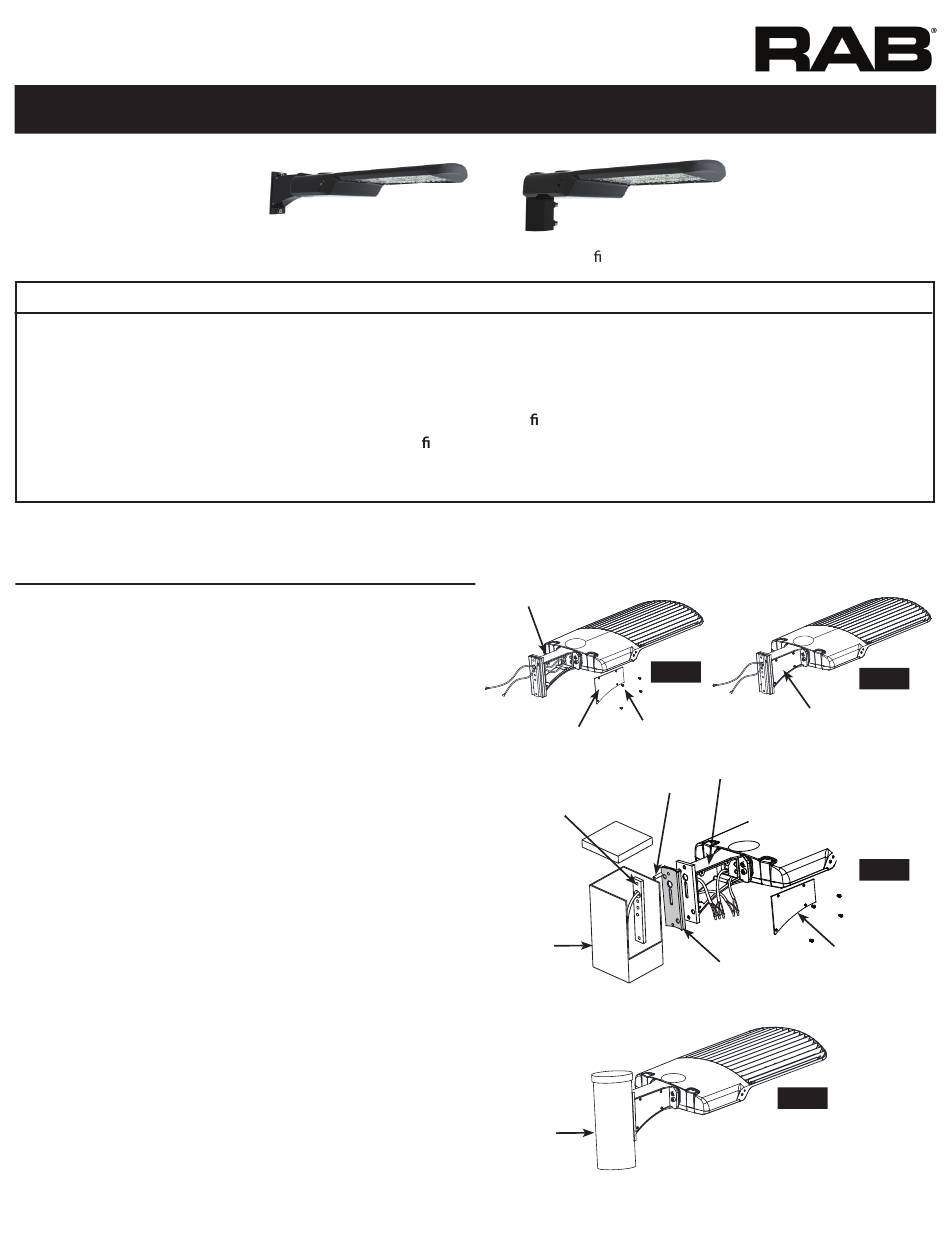

MOUNTING THE UNIVERSAL ARM
ON THE FIXTURE
1. Remove the Arm Cover from the Arm by loosening Arm
Cover Screws as shown in Fig. 1.
Feed wires from fi xture into Arm.
2.
3. Line up Arm and fi xture. Tighten screws inside the Arm and
tighten securely to housing.
4. Replace the Arm Cover and secure with Screws as shown in Fig. 2.
Note: See Pole Drilling Pattern Detail (Fig. 8).
Square Pole Mount
1. Place the Bolster Plate inside the Pole as shown in Fig. 3.
2. Remove the Round Pole Adaptor Plate.
3. Fix Arm to Square Pole with Bolt.
4. Open the Arm Cover and pull the wires into the junction box.
Feed supply wires from the Pole to connect to the Arm.
5.
Make appropriate wire connections per NEC in an approved
enclosure (Fig. 7).
6. Use bolts to tighten to the Pole.
Round Pole Mount
1. Place the Bolster Plate inside the Pole as shown in Fig. 3.
2. Fix Arm to Round Pole with Bolt.
3. Open the Arm Cover and pull the wires into the junction box.
4. Feed supply wires from the Pole to connect to the Arm.
Make appropriate wire connections per NEC in an approved
enclosure (Fig. 7).
5. Use bolts to tighten to the Pole.
A17 Universal Pole
A17 Slip tter
Arm
FIG. 1
Screws
Arm Cover
Bolt
Bolster Plate
Pole
Pole
FIG. 2
Arm
Arm
FIG. 3
Arm Cover
Round Pole
Adaptor Plate
FIG. 4
