RAB LFLED 4LV Instructions

INSTRUCTIONS
LFLED® 4LV INSTALLATION
RAB Lighting is committed to creating high-quality, affordable, well-designed and energy-efficient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.
CAUTION: For proper weatherproof function all gaskets must be seated properly and all screws inserted and tightened
firmly. Apply weatherproof silicone sealant around the edge of the wall cover plate or junction box. This is especially
important with an uneven surface. Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.

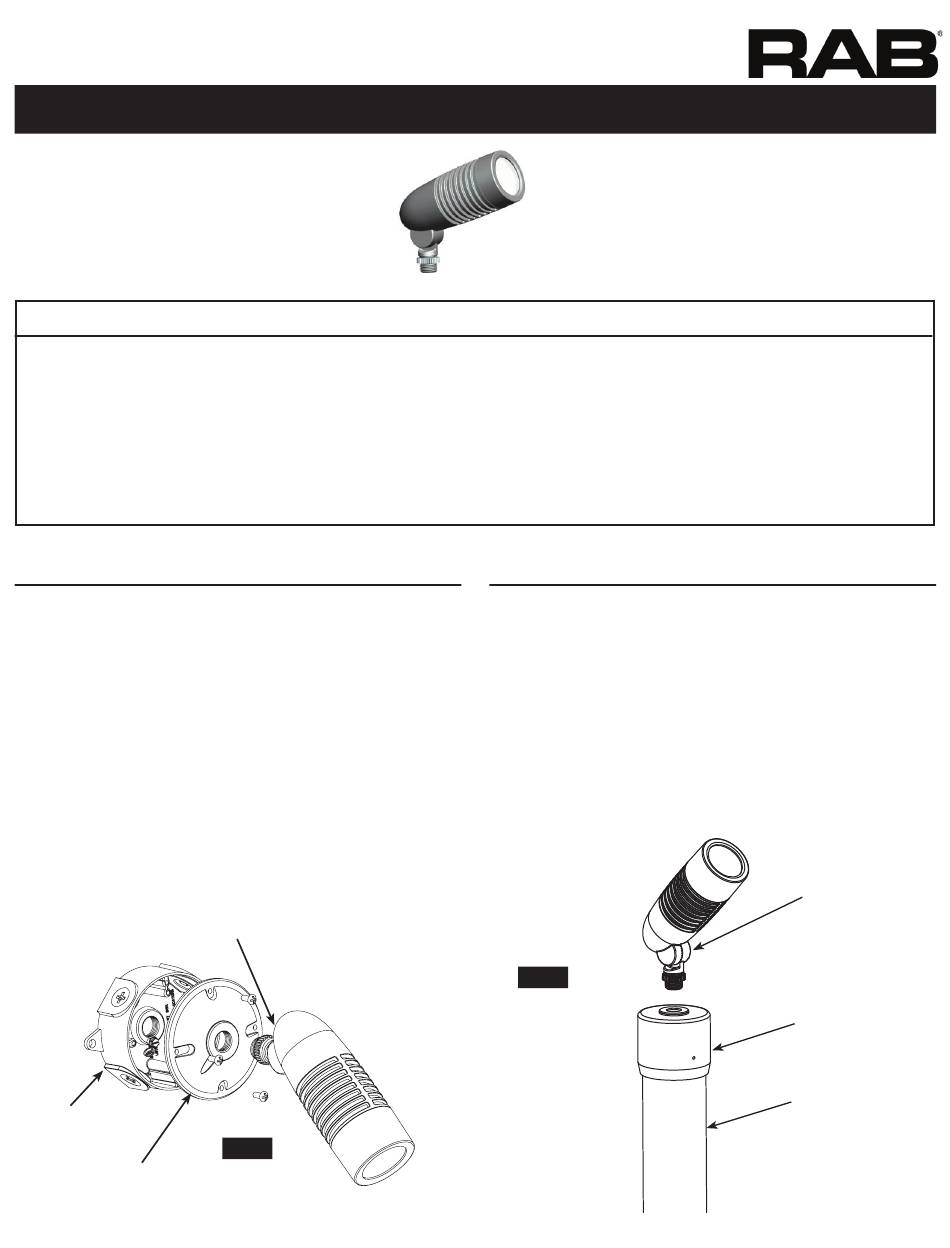

WALL MOUNTING
Mount to a weatherproof junction box and cover plate (not
provided) as shown in Fig. 1. To ensure weatherproof seal, apply
weatherproof silicone sealant around the edge of the wall
cover plate or surface box. This is especially important with an
uneven wall surface.
1. Seal arm thread using Teflon® tape or silicone sealant.
2. Thread fixture into Cover Plate (sold separately).
3. Connect wires as shown in the wiring diagram (Fig. 3).
4. Attach Cover Plate to Junction Box (sold separately).
5. Aim floodlight in the direction desired and tighten Locknut
and Arm Screw.
Arm Screw
Junction Box
(sold separately)
Cover Plate
(sold separately)
Fig: 1
GROUND MOUNTING
Mount to a Mighty Post (RAB Cat# MP19) as shown in Fig. 2.
1. Thread fixture into Mighty Post Cap.
2. Connect wires as shown in the wiring diagram (Fig. 3) and
place inside the Mighty Post.
3. Place Mighty Post Cap on the Mighty Post.
4. Aim floodlight in the direction desired and tighten Locknut
and Arm Screw.
Fig: 2
Arm Screw
Mighty Post Cap
Mighty Post
