INSTRUCTIONS
L2X INSTALLATION
RAB Lighting is committed to creating high-quality, aff ordable, well-designed and energy-effi cient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
IMPORTANT
CAUTION: All wiring MUST comply with local electrical codes and should be installed by qualifi ed electrician. Read entire Installation
Manual before proceeding. TURN OFF POWER BY REMOVING POWER FUSE OR TURNING OFF CIRCUIT BREAKER BEFORE
INSTALLATION.
• These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during
installation, operation or maintenance.
WARNING: RISK OF ELECTRICAL SHOCK
• Turn off electrical power at fuse or circuit breaker box before wiring fi xture to the power supply.
• Verify that the supply voltage is correct. Connect fi xture to a 120 volt, 60 Hz power source.

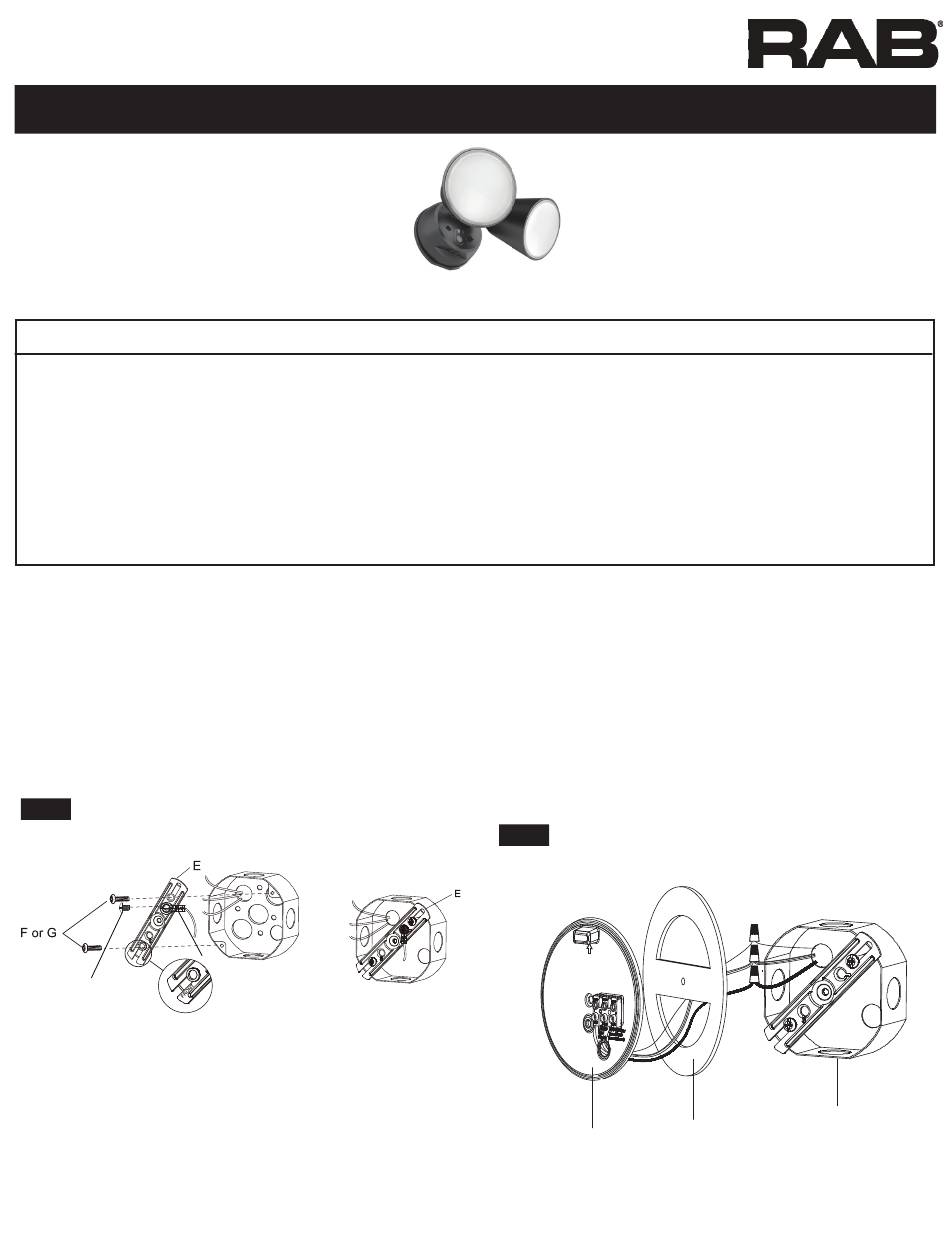

Step 1: Installing the Mounting Bracket (see parts list on last page)
1.
Line up the holes on the Mounting Bracket with the holes on
Junction Box (by others). Using the two Mounting Screws (F or
G).
2.
Attach the Ground wire to the Mounting Bracket (E), using
Ground Screw (K).
Fig: 1
K
J
Step 2: Making Electrical Connections.
1.
Connect the fi xture wires through Gasket to the Junction Box
wires with wire nuts as shown in Fig 2.
2.
White to Neutral
Black to Line
Green ground wire to ground
Fig: 2
Mounting Plate
Junction Box
(by others)
Gasket
