Summary of Contents for Amphenol Temposonics E Series

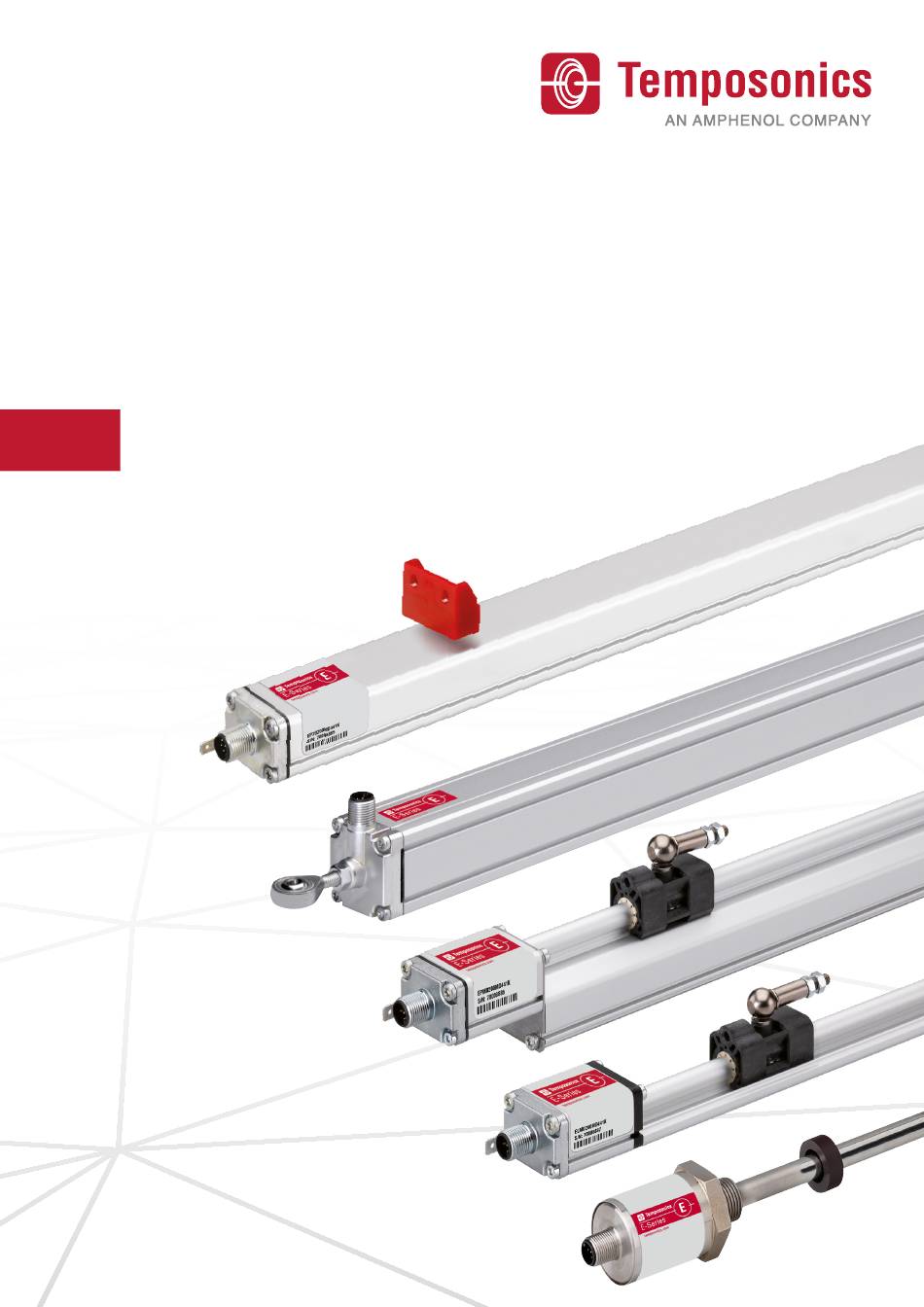

Page 1
Operation Manual E-Series IO-Link Magnetostrictive Linear Position Sensors...
Page 2
Temposonics E-Series IO-Link ® Operation Manual Table of contents 1. Introduction ..............................3 1.1 Purpose and use of this manual ................................3 1.2 Used symbols and warnings ..................................3 2. Safety instructions ............................. 3 2.1 Intended use ......................................3 2.2 Forseeable misuse ..................................... 3 2.3 Installation, commissioning and operation ..............................
Page 3
Temposonics E-Series IO-Link ® Operation Manual 1. Introduction 2.2 Forseeable misuse Foreseeable misuse Consequence 1.1 Purpose and use of this manual Wrong sensor connection The sensor will not work Before starting the operation of Temposonics position sensors, ® properly or can be damaged read this documentation thoroughly and follow the safety Operate the sensor out of the No signal output –...
Page 4
Temposonics E-Series IO-Link ® Operation Manual 2.3 Installation, commissioning and operation 2.5 Warranty The position sensors must be used only in technically safe condition. Temposonics grants a warranty period for its position sensors and To maintain this condition and to ensure safe operation, installation, supplied accessories relating to material defects and faults that oc- connection and service, work may be performed only by qualified cur despite correct use in accordance with the intended application.
Page 5
Temposonics E-Series IO-Link ® Operation Manual 3. Identification 3.1 Order code of Temposonics ® optional a Sensor model d Connection type H Rod 4 M12 male connector (4 pin) b Design e Operating voltage EH rod-style sensor with housing material 1.4305 (AISI 303) 1 +24 VDC (±25 %) and rod material 1.4301 (AISI 304) K Threaded fl ange M18×1.5-6g, Ø...
Page 6
Temposonics E-Series IO-Link ® Operation Manual 3.2 Order code of Temposonics EP/EL ® optional a Sensor model P Ultra low profi le L Compact profi le b Design 0 Without position magnet c Stroke length X M 0050…2540 mm Standard stroke length (mm) Ordering steps 50…...
Page 7
Temposonics E-Series IO-Link ® Operation Manual 3.3 Order code of Temposonics ® optional a Sensor model 2 Smooth profi le b Stroke length X M 0050…2540 mm Standard stroke length (mm) Ordering steps 50… 500 mm 25 mm 500…2540 mm 50 mm U 002.0…100.0 in.
Page 8
Temposonics E-Series IO-Link ® Operation Manual 3.4 Order code of Temposonics ® optional a Sensor model R Aluminum cylinder with a guided driving rod b Design M Inside thread M6 at end of rod (For metric stroke length measurement) Inside thread ¼"-28 UNF at end of rod (For US customary stroke length measurement) c Stroke length X M 0050…1500 mm...
Page 9
Temposonics E-Series IO-Link ® Operation Manual 3.5 Nameplate 3.7 Scope of delivery EH (rod sensor): • Sensor • O-ring EP (compact profile sensor): • Sensor • 2 mounting clamps up to 1250 mm (50 in.) stroke length + 1 mounting clamp for each 500 mm (20 in.) additional stroke length E-Series EL (ultra low profile sensor): temposonics.com...
Page 10
Temposonics E-Series IO-Link ® Operation Manual 4. Product description and commissioning 4.1 Functionality and system design Position magnet (Magnetic fi eld) Product designation Sensing element (Waveguide) • Position sensor Temposonics E-Series ® Sensor model • Temposonics E-Series EH (rod sensor) ®...
Page 11
Temposonics E-Series IO-Link ® Operation Manual 4.2 Installation and design of Temposonics ® EH with threaded fl ange M18×1.5-6g or ¾"-16 UNF-3A Stroke length Sensor electronics housing Null zone Dead zone 50…2540 63.5 (2…100) (0.51) (1.89) (2.01) (2.5) A/F 34 Flange »K«, »M«, »W«: M18×1.5-6g Sensor rod: Ø...
Page 12
Temposonics E-Series IO-Link ® Operation Manual Notice for metric threaded fl anges Hydraulics sealing Thread Z° Seal the flange contact surface via O-ring in the undercut (Fig. 6). ×P) For threaded flange (¾"-16 UNF-3A) »F«/»L«/»S«: +0.1 +0.4 ±1° O-ring 16.4 × 2.2 mm (0.65 × 0.09 in.) (part no. 560 315) EH-K (Ø...
Page 14
Temposonics E-Series IO-Link ® Operation Manual 4.4 Installation and design of Temposonics ® Null zone Stroke length Dead zone 50…2540 (2.87) (2…100) (2.87) Mounting support 3 ±2 (0.12 ±0.08) 8 ±2 (0.31 ±0.08) (0.51) 14.6 35.6 (1.40) Mounting clamps Sensing element (0.57) inside the sensor 50 (1.97)
Page 15
Temposonics E-Series IO-Link ® Operation Manual 4.5 Installation and design of Temposonics ® (0.12) Stroke length 35.5 132.5 + stroke length 50…1500 (1.40) 17.8 (2…60) (5.22 + stroke length) (0.7) Optional: Optional: (1.97) Adjustable Adjustable Optional: rod end M6 / rod end M6 / Mounting clamps (2.68)
Page 16
Temposonics E-Series IO-Link ® Operation Manual 4.6 Magnet installation Typical use of magnets Air gap: 1.75 ±1 Magnet Typical sensors Benefi ts Ring magnets Rod model • Rotationally symmetrical (EH) magnetic fi eld U-magnets Profi le & • Height tolerances can be rod models compensated, because the U-magnet...
Page 17
EH with ring magnet/U-magnet 51 (2.01) 63.5 (2.5) Start position End position EH with ring magnet/U-magnet 51 (2.01) 63.5 (2.5) Start position End position EH with block magnet 51 (2.01) 63.5 (2.5) Temposonics E-Series IO-Link ® Operation Manual Start position End position EH with block magnet 48.5 (1.91)
Page 18
Temposonics E-Series IO-Link ® Operation Manual Multi-position measurement NOTICE The minimum distance between the magnets is 75 mm (3 in.). Use magnets of the same type for multi-position measurement. EH with ring magnets/U-magnets Do not go below a minimal distance of 75 mm (3 in.) between the magnets for multi-position measurement.
Page 19
Temposonics E-Series IO-Link ® Operation Manual 4.7 Electrical connections Placement of installation and cabling have decisive influence on the sensor‘s electromagnetic compatibility (EMC). Hence correct installation of this active electronic system and the EMC of the entire system must be ensured by using suitable metal connectors, shield- cables and grounding.
Page 25
Temposonics E-Series IO-Link ® Operation Manual 5. Commissioning IO-Link IO-Link is an open standard according to IEC 61131-9. It is a serial, bi-directional point-to-point connection for signal transmission and energy supply. The bi-directional communication enables consistent communication between sensors and the controller as well as consistent diagnostic information down to the sensor level.
Page 26
Temposonics E-Series IO-Link ® Operation Manual 5.1 Identification parameter These parameters are used to identify the sensor when connected to an IO-Link master. Index Subindex Parameter Data type Attribute Value 0x10 0x00 Vendor name string Temposonics GmbH and Co. KG 0x11 0x00 Vendor text...
Page 27
Temposonics E-Series IO-Link ® Operation Manual 5.3 Measuring parameter These parameters allow the sensor to be adapted to the application. The resolution, a filter of the measured value and the measuring direction can all be configured. Index Subindex Parameter Data type Attribute Length Default Value...
Page 28
Temposonics E-Series IO-Link ® Operation Manual 5.4 Offset The offset is added to the current position value. This leads to a shift in the start of the measurement range (Fig. 27). How the offset works Example 1: Example 2: 1. Offset: 0 1.
Page 29
Temposonics E-Series IO-Link ® Operation Manual Index Subindex Parameter Data type Attribute Length Value Description 0x70 0x00 Offset integer 4 bytes Value in µm Write and read offset position (for standard single-position measurement) 0x01 Magnet 1 0x02 Magnet 2 Write or read offset position of magnet n (n = subindex (magnet number)) integer Value in µm …...
Page 30
Temposonics E-Series IO-Link ® Operation Manual Enter switch point 1 and switch point 2 via the graphical user interface of the IO-Link master • Enter position for switch point 1 via index 0x7B subindex 0x01 • Enter position for switch point 2 via index 0x7B subindex 0x02 In addition you can teach switch point 1 and switch point 2: Teach switch points for standard single-position measurement For the teach procedure move the position magnet to the required position.
Page 31
Temposonics E-Series IO-Link ® Operation Manual 5.6 Set measurement range You can set the start and end position of the measurement to customize the measuring range (Fig. 30). Factory setting Start position End position The default value of start position and end position are the Warning Warning Stroke length...
Page 32
Temposonics E-Series IO-Link ® Operation Manual 5.7 Error/warning messages If any issues happen, the following warnings and error messages will be issued: Code Mode Type Message 0x8CA1 (Dis)appear Error More than one magnet/Too many magnets (for multi-position measurement only) 0x8CA2 (Dis)appear Error No magnet/Too few magnets (for multi-position measurement only)
Page 33
Temposonics E-Series IO-Link ® Operation Manual 5.8 Data storage mechanism The data storage mechanism enables to save the parameters of an IO-Link device on a connected IO-Link master. Table 11 lists the parameters of the E-Series IO-Link which are buffered by the data storage mechanism: Index Subindex Parameter 0x18...
Page 34
Temposonics E-Series IO-Link ® Operation Manual 5.9 Device access lock The parameter “Device access lock” allows the user to activate or deactivate data storage mechanism. Set bit 1 to “0” to unlock the data storage mechanism of the IO-Link device; so the IO-Link master can read the data storage of the IO-Link device and write to the data storage of the IO-Link device.
Page 35
Temposonics E-Series IO-Link ® Operation Manual 8. Technical data 8.1 Technical data of Temposonics ® Output Interface Digital Transmission protocol IO-Link V1.1 Data format Standard single-position measurement: 32 bit signed (position in μm) Advancded single-position measurement and multi-position measurement: 8 × 32 bit signed (position in µm, velocity in µm/s) Data transmission rate COM3 (230.4 kBaud)
Page 36
Temposonics E-Series IO-Link ® Operation Manual Electrical connection Connection type M12 male connector (4 pin) Operating voltage +24 VDC (±25 %); The EH sensors must be power supplied via an external Class 2 power source in accordance with the UL approval Ripple ≤...
Page 37
Temposonics E-Series IO-Link ® Operation Manual 8.2 Technical data of Temposonics EP/EL ® Output Interface Digital Transmission protocol IO-Link V1.1 Data format Standard single-position measurement: 32 bit signed (position in μm) Advancded single-position measurement and multi-position measurement: 8 × 32 bit signed (position in µm, velocity in µm/s) Data transmission rate COM3 (230.4 kBaud)
Page 38
Temposonics E-Series IO-Link ® Operation Manual Electrical connection Connection type M12 male connector (4 pin) Operating voltage +24 VDC (±25 %); The EP/EL sensors must be power supplied via an external Class 2 power source in accordance with the UL approval Ripple ≤...
Page 39
Temposonics E-Series IO-Link ® Operation Manual 8.3 Technical data of Temposonics ® Output Interface Digital Transmission protocol IO-Link V1.1 Data format Standard single-position measurement: 32 bit signed (position in μm) Advancded single-position measurement and multi-position measurement: 8 × 32 bit signed (position in µm, velocity in µm/s) Data transmission rate COM3 (230.4 kBaud)
Page 40
Temposonics E-Series IO-Link ® Operation Manual Electrical connection Connection type M12 male connector (4 pin) Operating voltage +24 VDC (±25 %); The EP2 sensors must be power supplied via an external Class 2 power source in accordance with the UL approval Ripple ≤...
Page 41
Temposonics E-Series IO-Link ® Operation Manual 8.4 Technical data of Temposonics ® Output Interface Digital Transmission protocol IO-Link V1.1 Data format Standard single-position measurement: 32 bit signed (position in μm) Advancded single-position measurement: 8 × 32 bit signed (position in µm, velocity in µm/s) Data transmission rate COM3 (230.4 kBaud) Process data device –...
Page 42
Temposonics E-Series IO-Link ® Operation Manual Electrical connection Connection type M12 male connector (4 pin) Operating voltage +24 VDC (±25 %); The ER sensors must be power supplied via an external Class 2 power source in accordance with the UL approval Ripple ≤...
Page 43
9. Appendix – Safety declaration Dear Customer, If you return one or several sensors for checking or repair, we need you to sign a safety declaration. The purpose of this declaration is to ensure that the returned items do not contain residues of harmful substances and/or that people handling these items will not be in danger. Temposonics order code: Sensor model(s): Serial number(s):...
