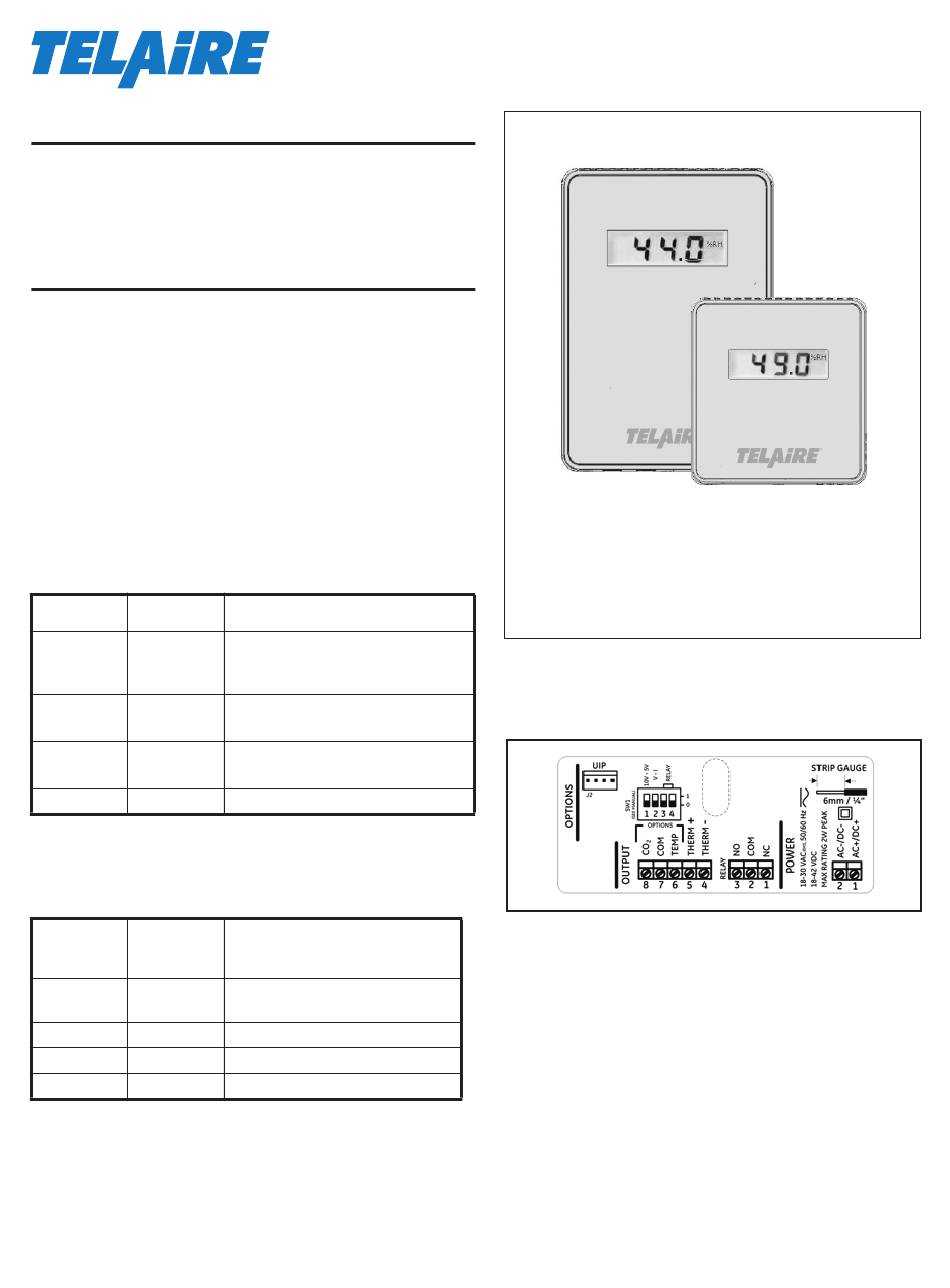

Installing the Sensor
!WARNING!
Before performing service or maintenance
operations on the systems, turn OFF main power
switches to the unit. Electric shock can cause
personal injury. Please read and follow the wiring
instructions precisely; mis-wiring may cause
permanent damage to the product
Basic Installation
1. Separate the case into its front and rear sections.
2. Secure the rear section of the case to the wall or junction box using
the supplied screws, and make necessary wire connections.
3. Select Voltage or Current output option and Voltage range (0-10 V
or 0-5 V) using the SW1, switches #1 and #2 as shown on the
internal label (Figure 1 and Table 1).
Note:
SW1 controls both CO
simultaneously.
Factory default setting is Voltage outputs 0-10V.
Table 1: Voltage and Current Output Options
Switch #1
Switch #2
Down, Low
Down, Low
Up, High
Down, Low
Down, Low
Up, High
Up, High
Up, High
4. Select CO
relay threshold settings using SW1, switches #3 and #4.
2
Table 2: Relay Settings
Switch #3
Switch #4
Down, Low
Down, Low
Down, Low
Up, High
Up, High
Down, Low
Up, High
Up, High
Customizable settings available via UIP software T2090
Amphenol
Advanced Sensors
®
.
and Temperature outputs
2
Configuration
Factory default setting
CO2 0-10 V/0 - measuring range
Temperature 0-10 V/ 0 - 50°C
CO
0-5V/0 - measuring range
2
Temperature 0-5 V/ 0 - 50°C
CO
4-20 mA/0 - measuring range
2
Temperature 4-20 mA/ 0 - 50°C
RESERVED
CO
Relay Threshold and
2
Hysteresis
Factory default setting
800 ppm, 100 ppm
1000 ppm, 100 ppm hysteresis
1200 ppm, 100 ppm hysteresis
1500 ppm, 100 ppm hysteresis

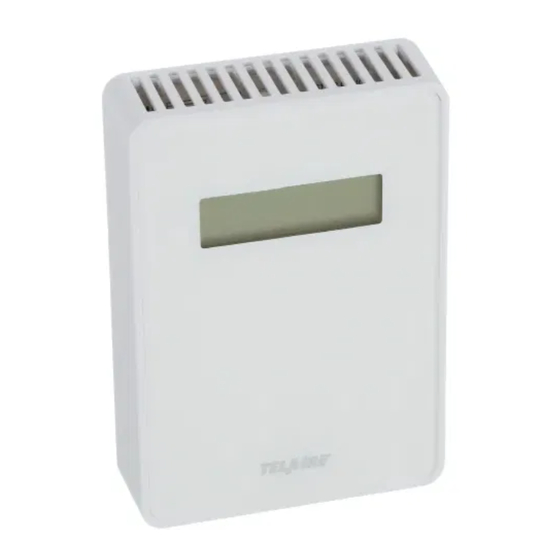

Telaire Ventostat. 8000-R Series
CO2 and Temperature Sensor with Relay
Amphenol Advanced Sensors
6860 Cortona Dr., Suite B
Goleta, CA 93117
www.amphenol-sensors.com
5. Mount the Controller on the base by aligning the top clips and then
securing to the bottom clips. Secure the Ventostat with the supplied
set screw. A one-minute stabilization warmup will take place.
Figure 1: Internal Label
User Instructions
T63378-003
March 2024
Page 1 of 4
