- Page 1 Doc Ref: M204 Issue 4.0 Sep 2018 ® User, Installation & Servicing Manual Issue 4.0 September 2018 ErP COMPLIANT S E P T E M B E R 2 0 1 8 w w w . p o w r m a t i c . c o . u k...
- Page 2 1. The appliance type and serial number. 2. The original commissioning documentation. As much detail as possible on the fault. 3. Your supplier, or installer, will then contact Powrmatic to make a guarantee claim on your behalf. Conditions of Guarantee 1.
- Page 3 We appreciate you buying one of our high quality products and know that you have made the best choice. By choosing Powrmatic, you are investing in UK manufacturing & its workforce. We pride ourselves by manufacturing products that provide clean, comfortable and safe working environ- ments worldwide together with the personal &...
- Page 4 TE 31, 41 & 61 The start gas valves will be opened and a start gas flame TE heaters are designed for the main air fans to run established. When a start gas flame is established the continuously thereby continually circulating the air in the main gas valves will be energized and the start gas flame building.
- Page 5 * An approved class of person listed on the gas register. PUSH MAN PULL AUTO White H o n e y w e l l button TE Powrmaster Heater Range Issue 4.0 March 2015 Page 5...

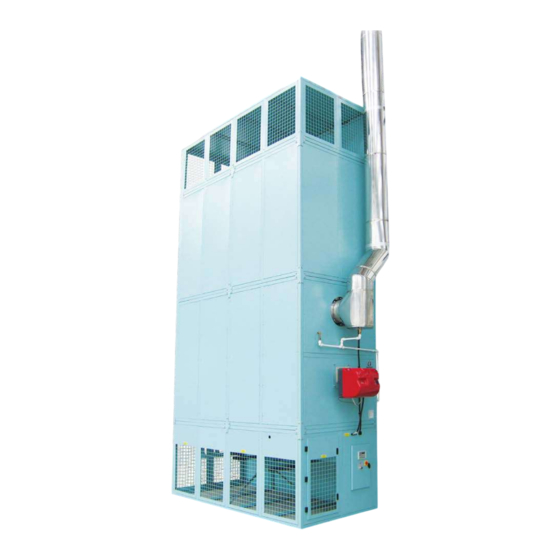

- Page 6 Technical Department. The heaters are for floor mounting, freeblowing applica- tions only. TE heaters are also available as /EA variants which are suitable for siting externally. TE heaters have a double axial fan assembly fitted upstream of the combustion chamber / heat exchanger...
- Page 7 An existing meter should be checked, preferably by the gas undertaking, to ensure that the meter is adequate to deal with the total rate of gas supply required. TE Powrmaster Heater Range Issue 4.0 March 2015 Page 7...
- Page 8 WARNING: Always switch off and disconnect electricity supply and close the gas service valve before carrying out any servicing work or replacement of failed components. Access doors on TE units are fitted with electrical interlocks however these alone must not be relied upon to prevent equipment operation during maintenace or servicing work.
- Page 9 In buildings having a design air change rate of less than Any combustible material adjacent to the air heater and 0.5 /h, and where TE heaters are to be installed in heated spaces having a volume less than 4.7 m3 /kW of total the flue system must be so placed or shielded as to ensure that its temperature does not exceed 65 °C.
- Page 10 The condensation pipe from the collection tray to the disposal point should be of non-corrodible material of not less than 22mm (3/4") size. Page 10 TE Powrmaster Heater Range Issue 4.0 March 2015...
- Page 11 - serve only the heater(s). TE heaters require a 400V - 3N, 50Hz supply. The method of - have a contact separation of at least 3mm in all poles. See connection to the main electricity supply must facilitate the the wiring diagram for the heater electrical connections.
- Page 12 7. Measure the CO2 content of the flue gases. If it is necessary to adjust the combustion air ratio controls, to obtain a reading of 9.0 - 9.5%, refer to the Burner Manual. Page 12 TE Powrmaster Heater Range Issue 4.0 March 2015...
- Page 13 4. (TE 41 & 61 only) Remove the fixings of the second Remove fan and bush. section (from the floor) rear panel and hinge panel down to expose the heat exchanger clean out access plate.
- Page 14 (situated in the slot between the two terminals). This MUST be removed, by breaking the link off using a pair of thin nose pliers, before the replacement thermostat is installed. Page 14 TE Powrmaster Heater Range Issue 4.0 March 2015...
- Page 15 3.3 Short List of Parts Refer to the burner supplement supplied with the heater. Refer to Powrmatic Ltd for the details of other parts quoting the serial number of the heater. TE Powrmaster Heater Range Issue 4.0 March 2015 Page 15...
- Page 16 4 x throughbolts or equivalent (not supplied). This will prevent any movement brought about by vibration whilst the heater is in operation. Page 16 TE Powrmaster Heater Range Issue 4.0 March 2015...
- Page 17 Use the M8x25 bolts & washers Use the section joining brackets to connect the separate (supplied). sections together. TE Powrmaster Heater Range Issue 4.0 March 2015 Page 17...
- Page 18 4.0.4 Mounting the extension module (if required) The extension section should be aligned on top of the heat exchanger section and secured using section joining brackets. Page 18 TE Powrmaster Heater Range Issue 4.0 March 2015...
- Page 19 The air outlet section should be aligned on top of the extension section and secured using section joining brackets. 3. Remove panel and w 4. Reassemb TE Powrmaster Heater Range Issue 4.0 March 2015 Page 19 wiring diagr Important: link betwee terminal (sit...
- Page 20 Page 20 TE Powrmaster Heater Range Issue 4.0 March 2015 to ensure correct wiring location. placement fan/limit thermostat will have a brass e bottom fan terminal and the bottom limit...
- Page 21 4.0.7 Connect the Burner Burner cable plugs will need to be connected to the burner cable sockets attached to the burner. TE Powrmaster Heater Range Issue 4.0 March 2015 Page 21...
- Page 22 Other wiring (e.g. controls) side of the heat exchanger section. Ensure all cable may be required and should only be wired according to colours are matched. the supplied wiring diagram. Page 22 TE Powrmaster Heater Range Issue 4.0 March 2015...
- Page 23 4.0.9 Check operation Fully commission the heater and check for full operation. NB. Control panel may differ from that shown, depending on the choice of controls. TE Powrmaster Heater Range Issue 4.0 March 2015 Page 23...
- Page 24 Energy Association Powrmatic pursues a policy of continues improvement in both design and performance of its products and therefore reserves the right to change, amend or vary specifications without notice. Whilst the details contained herein are believed to be correct they do not form the basis of any contract and interested parties should contact the Company to confirm whether any material alterations have been made since publication of this brochure.
