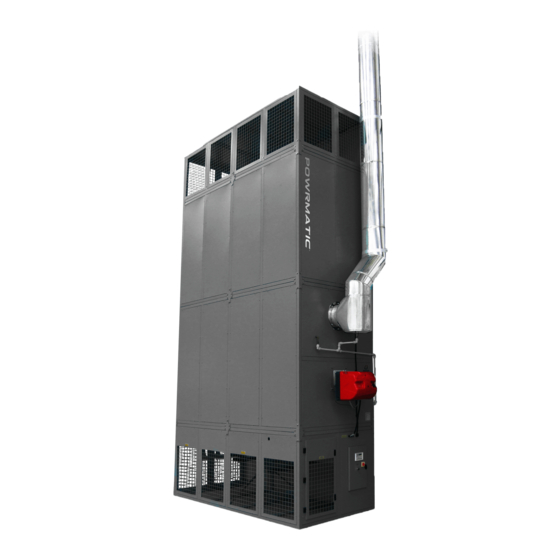

Summary of Contents for Powrmatic TE Series

  • Page 1 The TE Range Installation and Servicing Instructions WARNING: THIS APPLIANCE MUST BE EARTHED £2.50 When supplied separately. TE Range Issue 3 March 2000...
  • Page 2: Table Of Contents

    CONTENTS Section Title Page Introduction Technical Data General Requirements Installation Control Thermostat Siting Commissioning & Testing Servicing Fault Finding Short List of Parts Tables Title Page Dimensions (S.I. Units) Figure Title Page Belt Tension Adjustment White Rodgers 5F464 Appendix Title Page Calculation of Flue System Equivalent Resistance...
  • Page 3: Introduction

    1. INTRODUCTION The Powrmatic TE range of gas fired forced draught, closed flue, fanned circulation air heaters cover a heat output range of 220 kW (75000 Btu/h) to 806 kW (2750000 Btu/h) and are intended primarily for heating commercial or industry premises.
  • Page 4: Technical Data

    2 Technical Data 2.1 Dimensions Table 1. Dimensions (S.I. Units) Model TE41 1518 2991 1213 1975 1899 300/350 TE61 2026 4058 1721 2534 2432 1365 Specifications, Burner Pressures and Electrical Data. TE heaters are designed to suit individual applications. Please refer to the enclosed specification sheet for the data specific to the heater supplied.
  • Page 5: General Requirements

    3. General Requirements the above Code. The complete installation must be tested for soundness as described in BS 6230. 3.1 Related Documents 3.3.4. Boosted Supplies The installation of the air heater(s) must be in accordance Where it is necessary to employ a gas pressure booster with the rules in force and the relevant requirements of the the controls must include a low pressure cut off switch at Gas Safety Regulations, Building Regulations and the...
  • Page 6: Installation

    Draughty areas, areas subjected Advice in these instances may be obtained from Powrmatic to direct heat e.g. from the sun, and areas where the air Ltd.
  • Page 7: Commissioning & Testing

    to minimise contact bounce. Ignition spark is heard. For electrical connections of external controls see the iii) Start gas valves open. wiring diagram accompanying these instructions. Start gas flame is established. 4. Check that the start gas pressure agrees with that in 6.
  • Page 8: Belt Tension Adjustment

    Heat Exchanger Cleaning 7.5.4 Main Air Fan(s) 1. Disconnect the gas supply at the inlet to the gas controls Should it be necessary to replace one or both of the fans assembly. proceed as follows. 2. Unplug the electrical connections from the heater 1.
  • Page 9: Fault Finding

    3. Fan contactor failed - replace 4. Door interlock faulty 9. Short List of Parts Refer to the burner supplement supplied with the heater and the enclosed short list of parts. Refer to Powrmatic Ltd for the details of any parts not listed.
  • Page 10 BSI Registered Firm FM 414 Ind. & Comm. Air Heaters; Air Moving Equipment; Flues & Chimneys; Natural Smoke & Heat Ventilators; Powered Supply & Extract Fans & Systems. HEATING DIVISION Winterhay Lane Ilminster, Somerset TA19 9PQ Tel: 01460 53535 Fax: 01460 52341 Every effort is made to ensure accuracy at time of going to press.
