SDS43

-Inspector

OE-Level Diagnostic Tablet

Need help?

Do you have a question about the SDS-Inspector and is the answer not in the manual?

Questions and answers

Summary of Contents for Innova SDS-Inspector

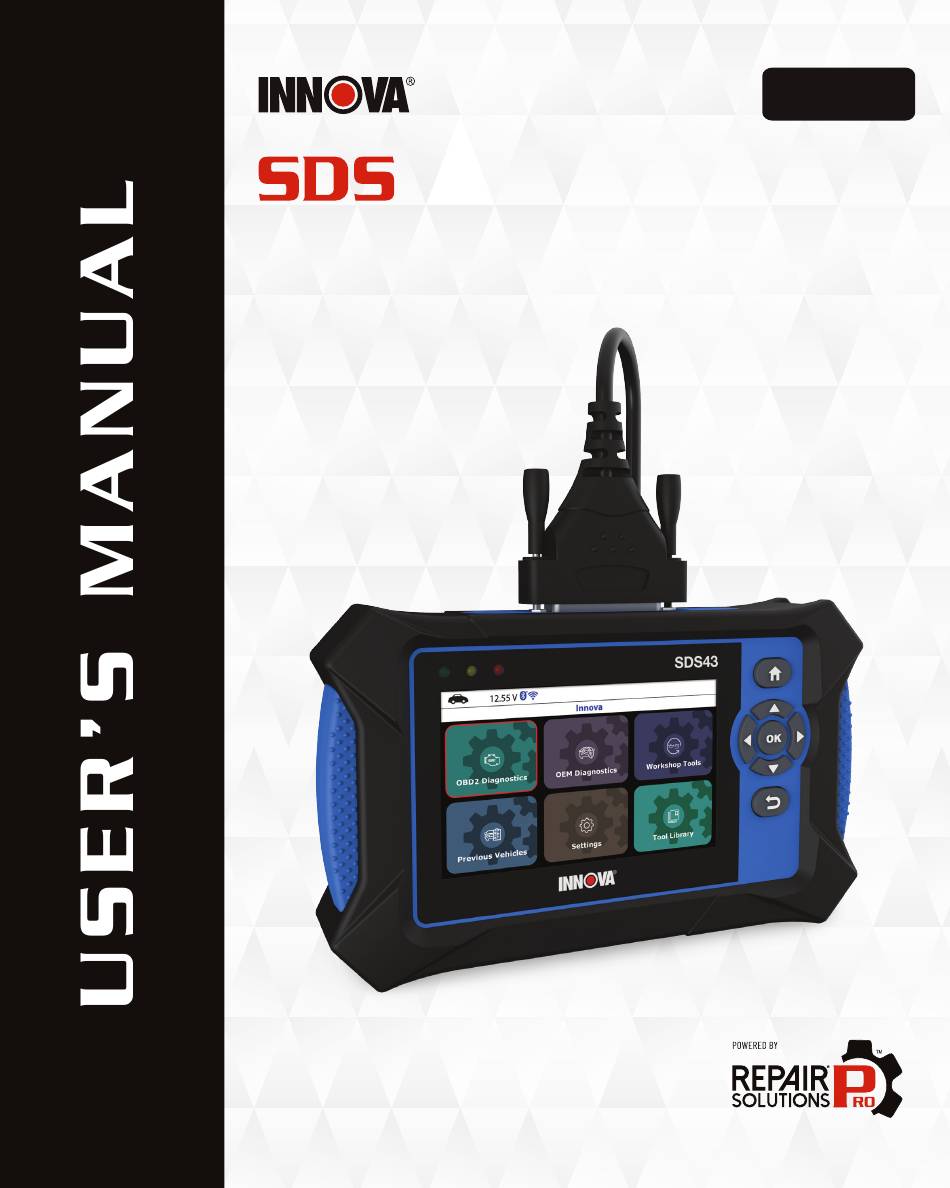

Page 1 SDS43 -Inspector OE-Level Diagnostic Tablet...
Page 2 WELCOME TO THE INNOVA FAMILY! Hello... On behalf of everyone at INNOVA, we want to welcome you and thank you for purchasing the SDS Inspector! Every automotive diagnostic scan tool we make includes tons of INNOVA ® pro-level features designed to help maximize, and simplify, your OBD2 diagnostic routine. In this manual, we will guide you on how to access your tablet’s intuitive functions including:...
Page 3 TABLE OF CONTENTS LEGAL INFORMATION � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 1 FCC Compliance Statement � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �1 Trademarks �...
Page 4 TABLE OF CONTENTS Using the RSPRO App � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 13 Initial Tablet Setup (Personal Settings) 14 USING THE TABLET �...
Page 5 TABLE OF CONTENTS Battery Initialization (Audi / Volkswagen,, BMW, Ford, Volvo) � � � � � � � � � � � � � � � 46 Steering Angle Sensor (SAS) Calibration � � � � � � � � � � � � � � � � � � � � � � � � � � 47 Electronic Parking Brake (EPB) Reset �...
Page 6 TABLE OF CONTENTS Tool Library� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �61 Icon Definition �...
Page 7 Licensee and End Users acknowledge such ownership, confidential information, and intellectual property rights and will not take any action to jeopardize, limit or interfere in any manner with Innova’s or its licensors’ or other suppliers’ ownership of or rights with respect to the Products and Services. The Products and Services may be protected by Patent, Trademark, Copyright and/or other intellectual property laws and by international treaties.
Page 8 LEGAL INFORMATION Patents PATENTS Innova Electronics Corp. protects its intellectual property with numerous U.S. patents, which were used to research, design and manufacture this product. Please visit https://www.innova.com/pages/patents for additional information. VERSION INFORMATION Please note that the images and functions in this manual may differ based on the current Version Information of your tablet.
Page 9 SAFETY PRECAUTIONS Safety First! SAFETY PRECAUTIONS SAFETY FIRST! It is important that every user of this product read all instructions and warnings included in this manual to ensure your safety, the safety of others, and to prevent damage to this product and vehicles being diagnosed and repaired. This manual describes common test procedures used by experienced service technicians.
Page 10 SAFETY PRECAUTIONS Safety Alert Icons SAFETY ALERT ICONS Color-coded icons are used through this manual to identify safety alerts and warnings. These are provided to help prevent serious injury to you, injury to bystanders, and damage to property or equipment. The meanings of these icons are as follows: Yellow Icon –...
Page 11 GLOSSARY OBD2 Terminology GLOSSARY OBD2 TERMINOLOGY The following terms and their definitions are related to OBD2 systems. Powertrain Control Module (PCM) - The PCM is the OBD2 accepted term for the vehicle’s “on-board computer.” In addition to controlling the engine management and emissions systems, the PCM also participates in controlling the powertrain (transmission) operation.
Page 12 GLOSSARY OBD2 Monitors requirements vary from one model of vehicle to another. Vehicle manufacturers set these procedures. Consult your vehicle’s service manual for OBD2 Drive Cycle procedures. NOTE: Do not confuse a “Trip” Drive Cycle with an OBD2 Drive Cycle. A “Trip” Drive Cycle provides the “Enabling Criteria”...
Page 13 GLOSSARY Additional Terminology + Acronyms = Oxygen Sensor Monitor = Oxygen Sensor Heater Monitor = Catalyst Monitor = Heated Catalyst Monitor = EGR (Exhaust Gas Recirculation) System Monitor = EVAP System Monitor = Secondary Air System Monitor NOTE: The following Monitors became standard beginning in 2010. The majority of vehicles produced before this time will not support these Monitors.
Page 14 GLOSSARY Additional Terminology + Acronyms OEM = Original Equipment Manufacturer PID = Parameter Identification Data PM = Particulate Matter SDC = Since DTCs Cleared SRS = Safety Restraint System TDC = This Drive Cycle TPMS = Tire Pressure Monitoring System TSBs = Technical Service Bulletins...
Page 15 INTRODUCTION Tablet Controls and Indicators INTRODUCTION TABLET CONTROLS AND INDICATORS See Figure 1 for the locations of items 1 through 11, below. 4.3-inch LCD Screen – Color LCD display shows menus sub-menus, test results, tablet functions and vehicle status information. Diagnostic Port –...
Page 16 When visible, the Tablet is communicating with the computers. If the Link icon is not visible, the Tablet is not communicating with the vehicle’s computers. Battery Voltage – Displays the current voltage of the vehicle’s battery. Bluetooth Icon – Indicates communication status with a compatible INNOVA mobile application. A solid ®...
Page 17 INTRODUCTION Home Screen 10. Code Type – Indicates the type of code being displayed: Confirmed, Pending, Permanent. 11. Code Number Sequence - The Tablet assigns a sequence number to each DTC that is present in the computer’s memory, starting with “1”. This helps keep track of the number of DTCs present in the computer’s memory. Code number ”1”...
Page 18 Included Accessories *Manufacturer reserves the right to change technical specifications at any time. THE RepairSolutionsPRO™ APP Innova’s RepairSolutionsPRO (RSPRO) app is a web-based service created to assist Professional technicians simplify and augment their vehicle diagnostic process. In essence, it helps you decode the diagnostic data collected by your...
Page 19 If you have not yet established an account, you must register for a FREE account before proceeding. Follow the screen prompts to pair your INNOVA Tablet. Be sure your mobile device is connected to an available Wi-Fi network. Begin the pairing process by selecting your handheld tablet from the list.
Page 20 In this next screen, a QR code to RepairSolutionsPRO (RSPRO) is provided. Using any mobile device, scan the code to download and install the free RSPRO app. The app offers additional information including Most Likely Component/System Cause for DTC, Repair Tip, and much more. [See page Enjoy your INNOVA Smart Diagnostic System!
Page 21 USING THE TABLET Connecting The Tablet USING THE TABLET CONNECTING THE TABLET Turn the vehicle’s ignition OFF. Locate the vehicle’s 16-pin Data Link Connector (DLC). NOTE: Some DLCs have a plastic cover that must be removed before connecting the tablet. Connect the tablet to the vehicle’s DLC.
Page 22 USING THE TABLET OBD2 Diagnostics Choose Relink to try again or select OBD2 Menu to return to the OBD2 Menu. ━ If the tablet cannot link to the vehicle’s computer after two attempts, the message “Start the engine and try again” message displays. Start the engine and try again.
Page 23 USING THE TABLET OBD2 Diagnostics I/M READINESS STATUS - PIDS $01 & $41 The vehicle’s computer stores a record of monitor status upon completion of a full diagnostic check of all monitored components and systems since the computer’s memory was last cleared. The I/M Readiness Status - PIDs $01 &...
Page 24 USING THE TABLET OBD2 Diagnostics Follow the Auto-Link Connection steps. [See page If the tablet can decode the Vehicle Identification Number (VIN) for the vehicle under test, the OBD2 results screen displays. Proceed to Step 2. If the tablet cannot decode the Vehicle Identification Number (VIN) for the vehicle under test, the Vehicle Selection screen displays.
Page 25 USING THE TABLET OBD2 Diagnostics Yellow LED – Indicates one of the following conditions: [A] A PENDING CODE IS PRESENT – If the yellow LED is illuminated, it may indicate a Pending code is present. Check the display for confirmation. A Pending code is confirmed by the presence of a numeric code and the word Pending.
Page 26 USING THE TABLET OBD2 Diagnostics NOTE: DTCs that start with “P0”, “P2” and some “P3” are considered Generic (Universal). All Generic DTC definitions are the same on all OBD2 equipped vehicles. The Tablet automatically displays the code definitions (if available) for Generic DTCs.
Page 27 Innova’s RepairSolutionsPRO (RSPRO) reports offer a fix, which is cross referenced for accuracy against a database of millions of verified fixes. It is real-world data that has been collected for over 25 years by Innova’s network of ASE Master Technicians across the U.S. (For the RSPRO App,...
Page 28 USING THE TABLET OBD2 Diagnostics The tablet verifies that it has a registered RSPRO account. If not, the screen displays a message requesting that the tablet be registered with an RSPRO account. Follow the steps to create your account. The tablet also verifies if its connected to a Wi-Fi Network. [See page If the tablet fails to establish communication, the screen shows a notification.
Page 29 USING THE TABLET OBD2 Diagnostics If a Fix is not available for the retrieved DTC, an advisory message displays. Press the Back button to return to the OBD2 Diagnostic screen. Select Repair Tip and press OK. If a DTC Repair Tip is not available, an advisory message displays. Press the Back button to return to the Fix for DTCs screen.
Page 30 USING THE TABLET OBD2 Diagnostics If the tablet fails to establish communication, a notification is displayed. Select Cancel, then press OK to return to the OBD2 Diagnostic screen or select Try Again, then press OK to try again. A “Submitting data…” message displays. If the report creation fails, the screen displays a notification and returns to the OBD2 Diagnostics screen after 3 seconds.
Page 31 USING THE TABLET OBD2 Diagnostics If you are sure you want to proceed, choose Erase DTCs to continue. Proceed to Step 3. If you do not want to proceed, press Back button to return to the OBD2 Menu. A “One moment please...” message displays while the erase function is in progress. If the vehicle’s engine is running, an advisory message shows: “Please stop the vehicle and place transmission in Park or Neutral then press “Erase DTCs”...
Page 32 USING THE TABLET OBD2 Diagnostics LIVE DATA - MODE $01 The tablet lets you view “real-time” Live Data. This information includes values (volts, rpm, temperature, speed etc.) and system status information (open loop, closed loop, fuel system status, etc.) generated by the various vehicle sensors, switches, and actuators.
Page 33 USING THE TABLET OBD2 Diagnostics If communication with the vehicle is lost while viewing Live Data, an advisory message displays. Select and press OK to view expanded definition and description for the selected PID. Press the Back button to return to the Live Data – Mode $01 screen after you have finished viewing.
Page 34 USING THE TABLET OBD2 Diagnostics With the tablet in Live Data mode, select Live Data Menu to access the Live Data menu, then select Custom Live Data and press the OK button. If the tablet fails to establish communication with the vehicle, a “Communication Error” message displays.
Page 35 USING THE TABLET OBD2 Diagnostics When you are finished making your selection(s), choose Done to continue. If no PIDs have been selected, an advisory message display. Press OK to return to the Custom Live Data menu. The tablet is now in “Custom Live Data” mode. Only the PIDs you selected are shown.
Page 36 USING THE TABLET OBD2 Diagnostics To deselect a PID, highlight the PID, then press OK. The check-mark is removed. When you are finished making your selections, choose Done to continue. If DTCs are presently stored in the vehicle’s computer, an advisory message displays. ━...
Page 37 USING THE TABLET OBD2 Diagnostics ━ Ensure your vehicle is OBD2 compliant. Verify the connection at the DLC, and verify the ignition is ON. ━ Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer. ━ ━...
Page 38 USING THE TABLET OBD2 Diagnostics NOTE: When you select Yes from the Record Live Data confirmation screen, the tablet enters the “Live Data Playback” mode, and the Playback Live Data menu displays. Select Continuous Playback or Frame by Frame, as desired, then press OK. The display shows the recorded Live Data, beginning with the “trigger”...
Page 39 USING THE TABLET OBD2 Diagnostics NOTE: Service Mode $05 is not supported in ISO 15765-4 (CAN) applications, which includes the majority of 2008 and older vehicles. For CAN applications, the functionality of Service Mode $05 was revised and implemented in Service Mode $06. From the OBD2 Menu, select O2 Sensor Monitor - Mode $05, then press OK.
Page 40 USING THE TABLET OBD2 Diagnostics Component ID number Min, Max test limit Test Value and status NOTE: Status is calculated by the diagnostic tablet by comparing the Test Value against the displayed test limit (either Min or Max). Status is shown as either Low, High, or OK.
Page 41 USING THE TABLET OBD2 Diagnostics From the OBD2 Menu, select Request Control On-Board System - $08. The Request Control On-Board System - $08 screen displays. NOTE: The EVAP Test is used for Spark Ignition vehicles, and the Particulate Filter Regeneration and Inducement System Reinitialization is used for Compression Ignition vehicles.
Page 42 USING THE TABLET OBD2 Diagnostics Viewing Vehicle ID NOTE: The Vehicle ID function is applicable to model year 2000 and newer OBD2- compliant vehicles. The tablet can retrieve a list of information (provided by the vehicle’s manufacturer), unique to the vehicle under test, from its on-board computer.
Page 43 USING THE TABLET OEM Diagnostics From the OBD2 Menu, select Vehicle Information - Mode $09, then press OK. The Vehicle Information - Mode $09 menu displays. Select In-Use Performance Tracking then press OK. When the retrieval process has completed, the In-use Performance Tracking statistics for the vehicle under test display.
Page 44 USING THE TABLET OEM Diagnostics A “Linking…” message displays while the tablet scans all available modules. When the scan completes, the <Module> screen displays. The screen shows the number of DTCs recorded for each available module. The results window lists all tested control modules with their corresponding results: Fault –...
Page 45 USING THE TABLET OEM Diagnostics No Fault – Indicates that no DTCs were found. Available – Indicates that the module is part of the system but does not report DTCs. The results screen also allows too either: Erase All DTCs - Erases all the vehicle’s retrieved ━...
Page 46 USING THE TABLET OEM Diagnostics ━ Stop the vehicle. Place the transmission in Park or Neutral. ━ Press Try Again to continue. ━ A “One moment please…” message displays while the tablet is scanning. The tablet retrieves and displays DTCs stored in the vehicle’s computer for the currently selected module. NOTE: If no DTCs for the selected module are currently stored in the vehicle’s computer, the message “No ‘modules’...
Page 47 USING THE TABLET OEM Diagnostics Performing Active Test for a Selected Module The Active Test function lets you perform active tests for various vehicle actuators and systems. The specific tests available depend on the vehicle year, make, and model. Select the module for which you wish to perform the Active Test, then press OK. The individual module menu screen displays.
Page 48 USING THE TABLET OEM Diagnostics Reading ECU Information This function retrieves and displays the specific information for the tested control unit, including Protocol, ECU ID, version number and other specifications. Select the module for which you wish to view ECU Information, then press OK. The individual module menu screen displays.
Page 49 FCA SECURE GATEWAY (FIAT, CHRYSLER, ALFA ROMEO, DODGE, RAM, JEEP) Innova has partnered with FCA and AutoAuth® to grant authentic access to FCA’s Secure Gateway (SGW). Our partnership allows us to offer SGW-unlocking solutions. This feature applies only to Fiat, Chrysler, Dodge, RAM, Jeep, and Alfa Romeo (FCA) models from 2018 and above.
Page 50 Go to Version Information under Settings to view and copy your tool’s GUID. [See page On your AutoAuth account, navigate to Manage Tools and select Add Tool. Select Innova Electronics as the manufacturer. Under model, select All Models. Enter, or paste, your tool’s GUID.
Page 51 USING THE TABLET Workshop Tools Select Secure Gateway Access to log in to the AutoAuth account. A login screen appears. Enter your AutoAuth login credentials and tap Login. The “Unlocking Secure Gateway...” message displays while the process is in progress. After completion, a “Successful”...
Page 52 USING THE TABLET Workshop Tools When the reset process has competed, a confirmation message displays. Select Back to return to the Workshop Tools screen. If the Oil Maintenance Reset was not successful, an advisory message display. To perform the Oil Maintenance Reset by procedure, choose Yes to continue. An “instructional”...
Page 53 USING THE TABLET Workshop Tools Follow the instructions provided to prepare the vehicle for battery reset OBD service. When all necessary procedures have been performed, choose Next to continue. A “Live Data” screen displays, if applicable. Choose Next to continue. A “One moment please…”...
Page 54 USING THE TABLET Workshop Tools Select Steering Angle Sensor Calibration on the Workshop Tools screen, then press OK. For some vehicles, a sub-menu displays. Select the desired option, then press OK. Proceed to step 2. NOTE: If SAS calibration is not supported by the vehicle under test, an “advisory” message display.
Page 55 USING THE TABLET Workshop Tools DPF RESET Use this function to initialize the regeneration of the vehicle’s diesel particulate filter, or DPF, to prevent it from causing damage because of stuck of soot and ash in the vehicle’s exhaust system. It also initializes the sensor and DPF component after they are replaced, when the DPF warning light came on, or when replacing the DPF pressure sensor.
Page 56 USING THE TABLET Workshop Tools ABS BLEEDING The ABS Bleeding procedures vary between vehicle makes and models. NOTE: If an error occurs while performing ABS bleeding procedures, an “advisory” message display. Choose Exit or Back, as necessary, to return to the Workshop Tools screen.
Page 57 USING THE TABLET Workshop Tools BATTERY/ALTERNATOR TEST The tablet can perform a check of the vehicle’s battery and alternator system to ensure the system is operating within acceptable limits. Follow these steps to perform a battery check only, or an alternator system (battery and alternator) check.
Page 58 USING THE TABLET Workshop Tools Start the vehicle’s engine. Allow the engine to run for several seconds, then turn the engine off. Repeat for a total of three “start/stop” cycles. NOTE: If the tablet did not detect “cranking status” for the vehicle’s engine, an advisory message shows.
Page 59 USING THE TABLET Previous Vehicles View Alternator Live Data If the EV/HEV/PHEV Battery Health, Battery/Alternator Test is selected from the Workshop Tools screen and the vehicle is not an electric or hybrid vehicle, the Battery/Alternator Monitor menu displays. Proceed to step 2. From the Workshop Tools screen, select Battery/Alternator Test, then press OK.
Page 60 USING THE TABLET Settings SETTINGS The tablet lets you make several adjustments and settings to configure it to your particular needs. The following functions can be performed: Vehicle Inspection Setup † AutoLink Setting † Wifi Setting † Adjust Brightness † Audible Tone †...
Page 61 USING THE TABLET Settings Select Save to save your changes and auto-return to the Report Selection screen. To exit and not proceed, select Cancel to return to the Report Selection screen. AUTOLINK SETTING Select AutoLink Setting in the Settings menu, then press OK. The AutoLink Setting screen displays.
Page 62 USING THE TABLET Settings ENABLING/DISABLING THE AUDIBLE TONE Select Audible Tone in the Settings menu, then press OK. The Audible Tone screen displays. Select On or Off as desired, the tablet automatically saves your changes. NOTE: To return to the Settings menu without making changes, press the Back button.
Page 63 USING THE TABLET Settings VIEWING THE APP QR CODE - RepairSolutionsPRO™ Select QR RSPRO App in the Settings menu, then press OK. The QR RSPRO App screen displays. Press UP and DOWN to navigate through the options. Using a mobile device, scan the QR Code to download the RepairSolutionsPRO App.
Page 64 NOTE: To return to the Settings menu without making changes, press the Back button. TOOL FIRMWARE UPDATES The following provides detailed instructions on how to download the INNOVA® OBD Tool Updater application and update your INNOVA OBD2 diagnostic tablet. DOWNLOAD & INSTALL APPLICATION Windows OS...
Page 65 USING THE TABLET Tool Firmware Updates Follow the prompts to complete the installation. See Updating Your Tablet section to proceed. MacOS From your Mac, download the software by clicking on this link: DOWNLOAD The file “RS2UpdaterMac_V1.0.4_Live.zip” begins downloading to your Mac. Locate the downloaded application on your Downloads folder.
Page 66 USING THE TABLET Tool Firmware Updates Wait a few seconds for the software to detect it. NOTE: If using a USB charging cable, and not a USB data cable, you will get the ‘Disconnected’ message. Charging Cables: Can only charge devices, but cannot transfer data.
Page 67 USING THE TABLET Tool Library Tool is connected, but do not see “Update my tool now” button. That means your tool is up to date and there are no new updates for your tool. The update is stuck at 1% (or 5%) and not progressing. Please install the latest updater for your tool.
Page 68 USING THE TABLET Tool Library The Select Library screen displays. Select OBD2 Library, then press OK. The Select Manufacturer screen displays. Select the desired vehicle manufacturer, then press OK. A confirmation message shows. If the correct manufacturer is not shown, choose No to return to the list of vehicle ━...
Page 69 USING THE TABLET Tool Library USING THE DLC LOCATOR Select DLC Locator in the Tool Library menu, then press OK. The Select Vehicle Model Year screen displays. Select the desired vehicle model year, then press OK. The Select Vehicle Manufacturer screen displays. Select the desired vehicle manufacturer, then press OK.
Page 70 Common Questions COMMON QUESTIONS What can the tablet do for my vehicle? Please check the coverage on our Coverage Checker website. https://pro.repairsolutions.com/Support/ CoverageChecker What should I do if a communication error occurs? Please follow these steps to troubleshoot the issue: Check if the tablet DLC cable is securely plugged into the vehicle’s DLC port.
Page 71 CUSTOMER SERVICE Our ASE Certified technical staff is here to help if you have any questions or require service. For information on UPDATES and OPTIONAL ACCESSORIES, please contact your local store, distributor or Innova’s Service Center. USA & Canada: (800) 544-4124...
