Innova 3361 User Manual

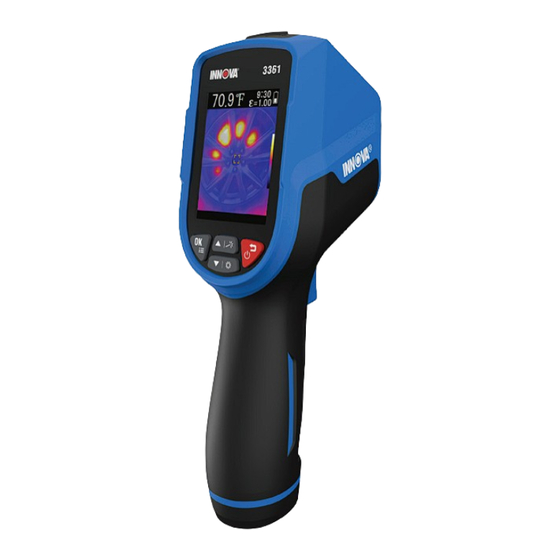

Multi-purpose infared thermal imaging camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
3361
Multi-Purpose Infared
Thermal Imaging Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3361 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Innova 3361

Summary of Contents for Innova 3361

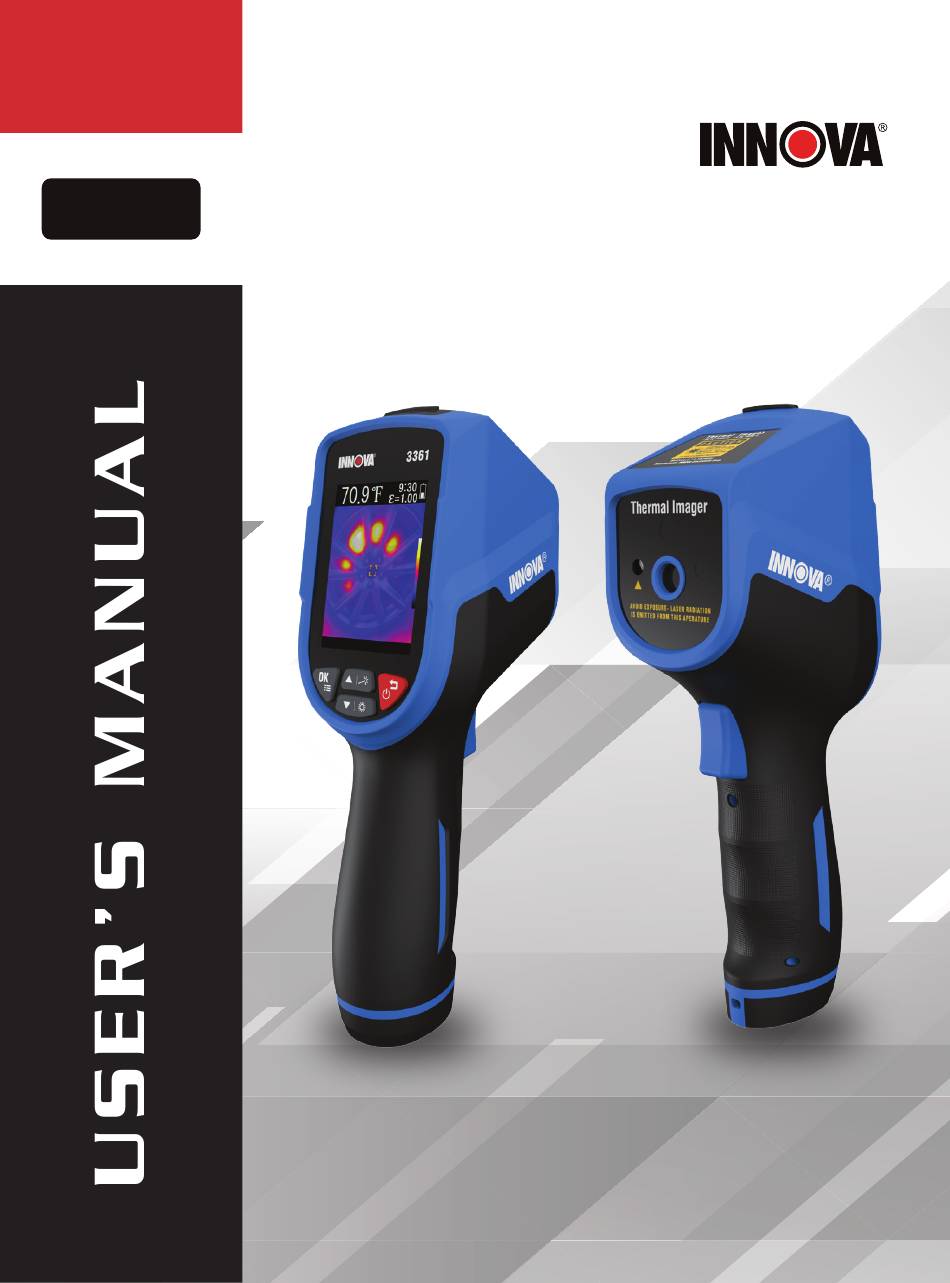

  • Page 1 3361 Multi-Purpose Infared Thermal Imaging Camera...
  • Page 3 WELCOME TO THE INNOVA FAMILY! On behalf of everyone at INNOVA, we want to welcome you and thank you for purchasing the INNOVA Multi- ® Purpose 3361 Infrared Thermal Imaging Camera! Every automotive diagnostic tool we make includes tons of pro-level features designed to help maximize, and simplify, your vehicle diagnostic routine.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS LEGAL INFORMATION ......1 SAFETY PRECAUTIONS ..... . .2 APPLICATION SCOPE .
  • Page 5 TABLE OF CONTENTS Auto Shut-off ........12 Storage Setting .

  • Page 6: Legal Information

    Patent, Trademark, Copyright and/or other intellectual property laws and by international treaties. All trademarks used in connection with the Products and Services are owned by Innova, its affiliates or its licensors and other suppliers, and no license to use any such trademarks is provided hereunder. Licensee and...

  • Page 7: Safety Precautions

    SAFETY PRECAUTIONS WARNING! SAFETY PRECAUTIONS WARNING! BE SURE to read and understand all instructions in this manual before using this product. Failure to follow all instructions may result in hazardous radiation exposure, electric shock, and/or bodily injury. Do not attempt to modify the performance of the laser device in any way. This may result in dangerous exposure to laser radiation.
  • Page 8 SAFETY PRECAUTIONS Safety Alert Icons Do not attempt to repair or disassemble the laser measuring tool. If unqualifed persons attempt to repait this product, serious injury may occur. Any repair required on this laser should only be performed by authorized service personnel. Do not use the instrument in flammable, explosive, humid or corrosive environments.

  • Page 9: Application Scope

    APPLICATION SCOPE APPLICATION SCOPE Temperature Readings Temperature Readings APPLICATION SCOPE APPLICATION SCOPE An infrared thermometer is widely used in building inspection, vehicle maintenance inspection, An infrared thermometer is widely used in building inspection, vehicle maintenance inspection, floor heating detection, electrical inspection applications to detect issues such as distribution floor heating detection, electrical inspection applications to detect issues such as distribution box fault detection, floor heating hot water pipe detection, vehicle fault detection, and motor box fault detection, floor heating hot water pipe detection, vehicle fault detection, and motor...

  • Page 10: Graph Presentation

    METER COMPONENTS Graph Presentation GRAPH PRESENTATION Iron Red, Rainbow, Gray Color Palette 0% (full thermal imaging), 15%, 25%, 50%, Infrared Visible Light Fusion 75%, 100%, All visible light. Display Type 2.4-inch TFT LCD Display Resolution 240 x 320 pixels IMAGE CAPTURE AND DATA STORAGE Image Capture Freeze images to allow viewing before saving 8 MB Built-in memory (7.8 MB usable) / Stores...

  • Page 11: Using The Meter

    USING THE METER Setup - Battery Installation USING THE METER SETUP - BATTERY INSTALLATION THE METER DOES NOT INCLUDE BATTERIES. Please insert three (3) AAA batteries. NOTE: This device is not designed to use rechargeable batteries. The included USB port and cable is only intended to transfer images to a computer.

  • Page 12: Capturing Photos

    USING THE METER Capturing Images CAPTURING IMAGES The tool can store up to 52 BMP images (expandable with optional Micro SD Card). While viewing the main interface, pull the trigger to take the image. To save the image, press the button.

  • Page 13: View & Delete History Records

    USING THE METER View & Delete History Records VIEW & DELETE HISTORY RECORDS On the main interface, short press the button to view stored history records. Press the keys as necessary to scroll up and down. Press the button twice to delete the current record, or to return to viewing record.

  • Page 14: Adjusting Emissivity Values

    USING THE METER Settings Menu Many common objects and materials (such as painted metal, wood, water, skin, fabrics, etc.) obtain relatively accurate measurements. For surfaces that emit energy easily (high emissivity), the emissivity is more than 90% (0.90). This simplified approach does not apply to glossy surfaces or painted metals because their emissivity is less than 60% (0.60).

  • Page 15: Color Palette

    USING THE METER Settings Menu Asphalt = 0.9 ~ 0.98 Ice = 0.96 ~ 0.98 Black Cloth = 0.98 Iron Oxide = 0.78 ~ 0.82 Black Rubber = 0.94 Marble = 0.94 Brick = 0.93 ~ 0.96 Matte Paint = 0.97 Bubble = 0.75 ~ 0.8 Mortar = 0.89 ~ 0.91 Cement = 0.96...

  • Page 16: Focus Adjustment (Far/Near)

    USING THE METER Settings Menu very small, the red and green boxes will bounce on the display. Press the button again to enter the Signs sub-menu. Brown box represents the middle position. Green box represents the lowest temperature point. Red box represents the highest temperature point. Press the keys as necessary.

  • Page 17: Time/Data Settings

    USING THE METER Settings Menu TIME/DATA SETTINGS Short press the button to enter Settings menu. Press the keys to scroll up and down to select the Time/ Data category. Press the button again to enter the Time/Data sub-menu. The Hour field will be highlighted first. Press the keys to select correct Hour.

  • Page 18: Storage Setting

    USING THE METER Settings Menu STORAGE SETTING Short press the button to enter Settings menu. Press the keys to scroll up and down to select the Storage category. Press the button again to enter the Storage sub-menu. Internal - all images are stored to the meter’s internal memory SD Card - all images are stored to the memory card NOTE: If SD card is selected, but an SD card is not inserted, the...

  • Page 19: Alarm Settings

    USING THE METER SD Card Installation ALARM SETTINGS This function allows you to set an audible alarm warning whenever an object reaches a certain pre-determined temperature (high or low). Short press the button to enter Settings menu. Press the keys to scroll up and down to select the Alarm category.

  • Page 20: Storing Images/Usb Connection To Computer

    For internally stored images, navigate to your computer’s File Explorer and locate the 3361 Drive. From here, you can copy images to your computer. For SD card images, unplug the SD card and directly insert the card reader into the computer or an external card reader for image transfers.

  • Page 21: Warranty + Customer Service

    CUSTOMER SERVICE Our ASE Certified technical staff is here to help if you have any questions or require service. For information on UPDATES and OPTIONAL ACCESSORIES, please contact your local store, distributor or Innova’s Service Center. USA & Canada: (800) 544-4124...
  • Page 22 Innova Electronics Corp. 17352 Von Karman Ave. Irvine, CA 92614 Copyright © 2024 IEC. All Rights Reserved.
