Baxton Studio SW 8598 Assembly Instruction Manual

SW 8598 - Q/K

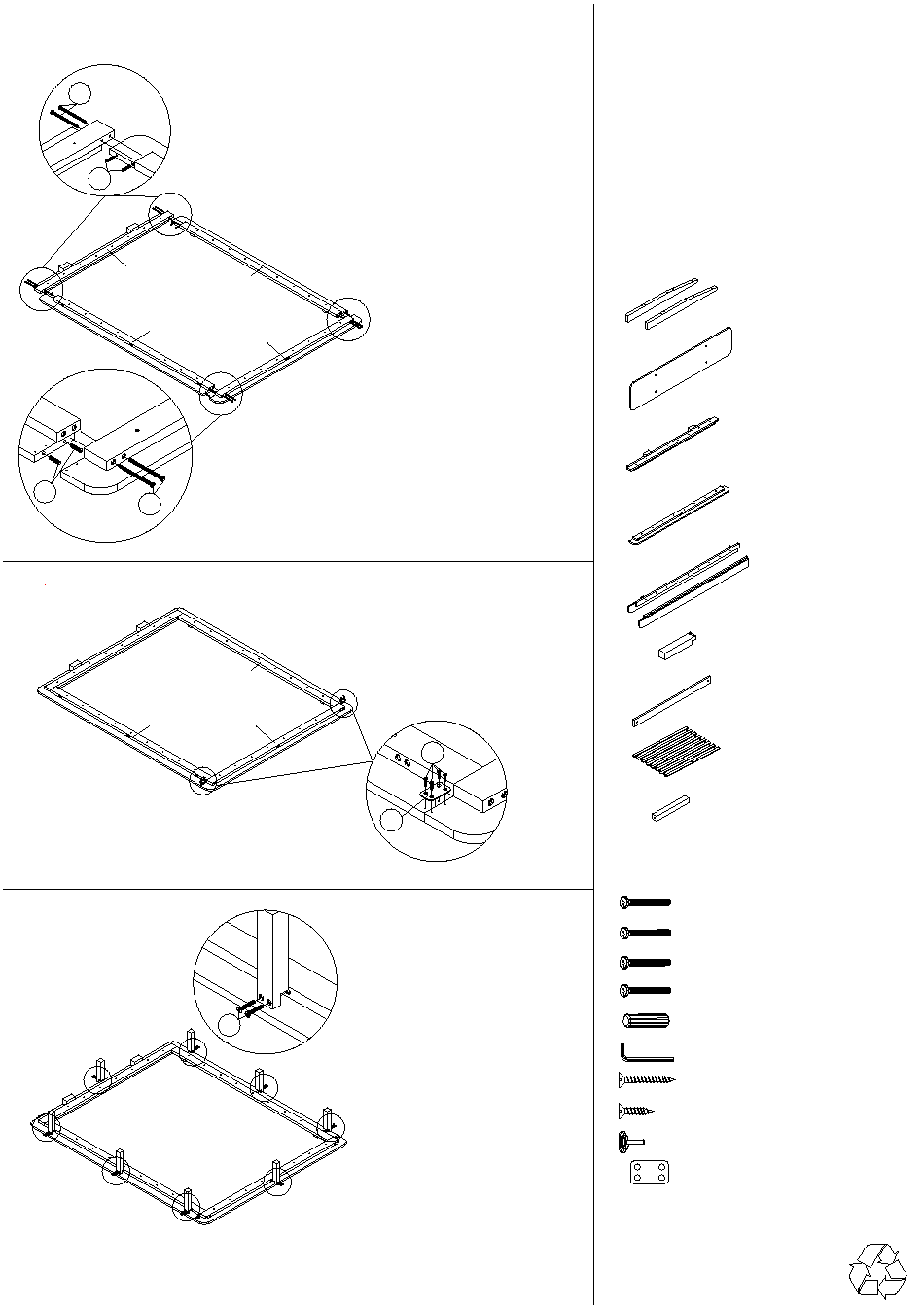

1.
A
E
P3
P5
E
A
2.
P5
3.
Attach the headboard rail (P3) to the
side rail (P5) using hardware:
A = 4pcs
E = 4pcs
F = 1pc
P5
P4
After,attach the footboard rail (P4) to
the side rail (P5) using hardware:
A = 4pcs
E = 4pcs
F = 1pc
Attach the side rail (P5) to the
footboard rail (P4) using hardware:
H = 8pcs
J = 2pcs
P5
P4
J
Attach the post (P6) to the headboard
rail (P3), footboard rail (P4) and side
rail (P5) using hardware:
D = 16pcs
F = 1pc
D
H
A
B
C
D
E
F
G
H
J
WARNING!!
· Remove hardware from box and sort by size.
· Please check to see that hardware and parts are
present prior start of assembly.
· Please follow attached instruction in the same
sequence numbered to ensure fast and
easy assembly.
· Do not use this bed if any part is broken,torn
or missing.
· The assembly of this product requires two
people.
· Do not use any power tools as this may damage
the frame and will invalidate any claim.
PART LIST
P1
Headboard Post
Headboard Panel
P2
Headboard Rail =
P3
P4
Footboard Rail =
Side Rail
P5
Post
P6
P7 Center Rail
Bed Slats
P8
P9 Support Leg
HARDWARE LIST
M6 X 100MM JCBC
M6 X 70MM JCBC
M6 X 50MM JCBC
M6 X 40MM JCBC
WOOD DOWEL M8 X 30MM
ALLEN KEY M4
M4 X 25MM SCREW =
M3.5 X 16MM SCREW =
I
ADJUSTER
PLATE
= 2pcs
= 1pc
1pc
1pc
= L-1pc
= R-1pc
= 8pcs
= 2pcs
= 14pcs
= 4pcs
= 12pcs
= 2pcs
= 4pcs
= 18pcs
= 8pcs
= 1pc
8pcs
8pcs
= 4pcs
= 2pcs
PAGE 1
19/1/2024
