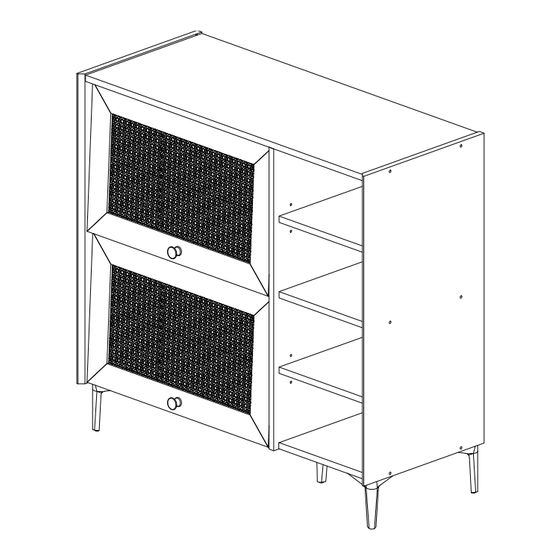

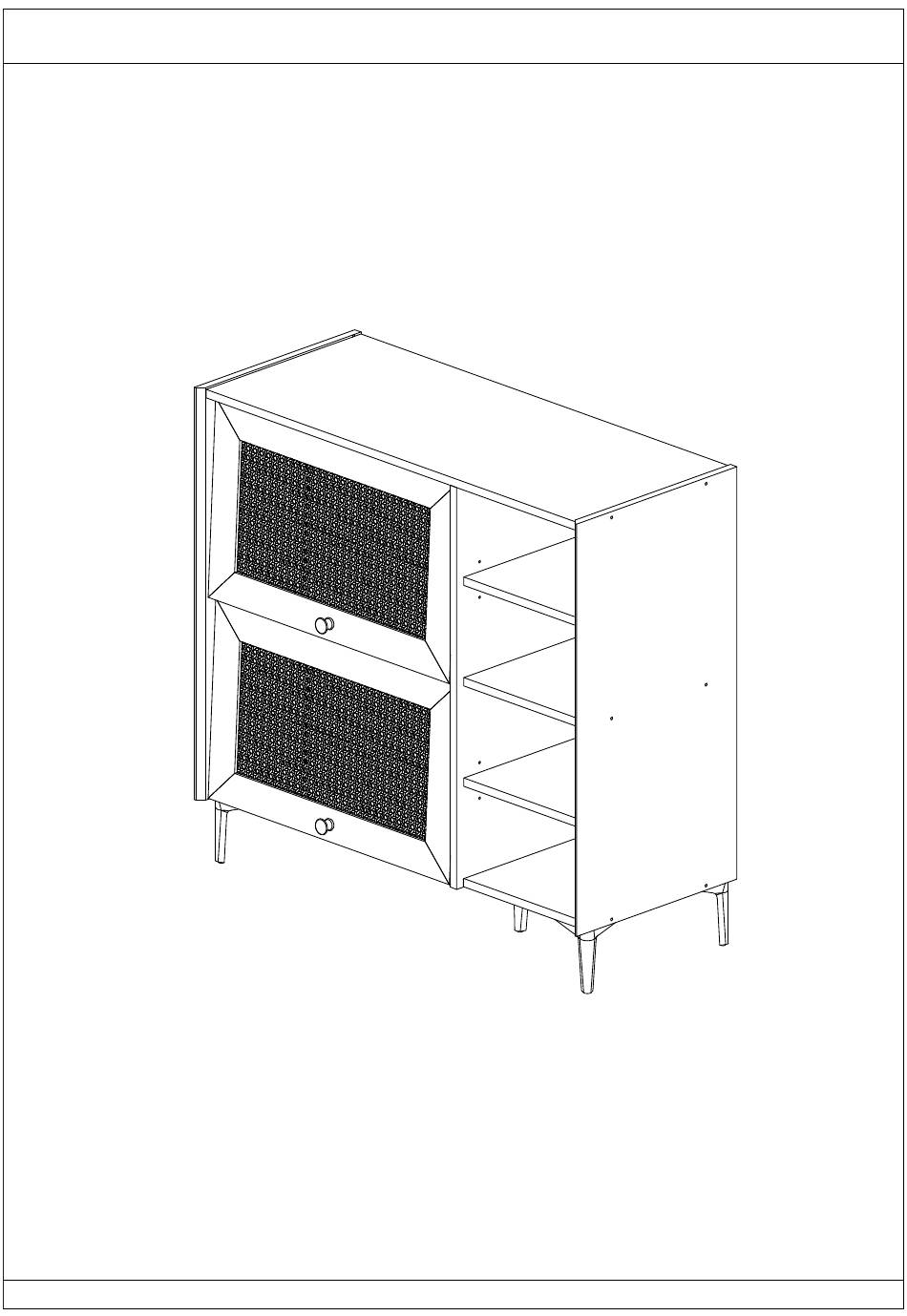

- Page 1 Assembly Instruction WI14024 1 of 13...
- Page 2 Assembly Instruction Part List Part List Qty. Top Panel 1 Pc 1 Pc B Bottom Panel-B 1 Pc C Side Panel-L 1 Pc D Side Panel-R 1 Pc E Partition Panel-B F Adjust Panel-B 2 Pcs 2 Pcs G Door 2 Pcs H Back Panel-B 1 Pc...
- Page 3 Assembly Instruction Shelf Support 16 Pcs Hardware List Door Support Metal 4 Pcs Qty. No. SHAPE DESCRIPTION 2 Pin Stopper 4 Pcs 8x25mm Wood Dowel 16 Pcs Nail 9 Pcs 14 Pcs M5x40mm Screw HD8015 / Handle OS-9200 2 Pcs 15MM 2 Sets M4x30mm Screw...
- Page 4 Assembly Instruction STEP 2 *Install 8x50mm Wood Dowel (4) into (E) panel as shown. STEP 3 *Install minifix bolt (3) to panel (A) as shown. STEP 4 *Attach 2 Pin Stopper (12) to panel (C) & (I) as shown. 4 of 13...
- Page 5 Assembly Instruction STEP 5 *Assemble Top Panel (A) to Stand Panel (I) secure with Minifix (3) as shown. STEP 6 *Assemble Partition Panel-B (E) & Partition Panel-S (K) secure with Minifix (5) as shown. 5 of 13...
- Page 6 Assembly Instruction STEP 7 *Assemble Bottom Panel (B) secure with Screw (2) as shown. STEP 8 *Insert Back Panel-S (M) as shown. 6 of 13...
- Page 7 Assembly Instruction STEP 9 *Assemble Side Panel-R (D) secure with Screw (2) as shown. STEP 10 *Insert Back Panel-B (H) as shown. 7 of 13...
- Page 8 Assembly Instruction STEP 11 *Install Door Support Metal (11) into Door (G) as shown. *Install Handle (14) with Screw (15) as shown. STEP 12 *Insert Door (G) as shown. 8 of 13...
- Page 9 Assembly Instruction STEP 13 *Assemble Side Panel-L (C) secure with Screw (2) as shown. STEP 14 *Install all Metal Leg (8) with 20pcs screw (9) as shown. 9 of 13...
- Page 10 Assembly Instruction STEP 15 *Install all Z Bracket (6) with 12pcs screw (7) as shown. *Install Nail (13) to Back Panel (H) & (M) as shown. STEP 16 *Attach Shelf Support (10) to all panels as shown. *Attach Screw Cap (16) as shown. 10 of 13...
- Page 11 FURNITURE TIPPING RESTRAINT 1.First mark the wall with pencil as in diagram. (1.57") 3. Insert plastic wall plug (18). 18 x2 11 of 13...
- Page 12 FURNITURE TIPPING RESTRAINT 4. Add safety strap (20), washer (21) using 3.5x15mm screw (17) 21 17 to back of cabinet. 17 x2 20 x2 21 x2 M3.5x15mm 5. Finally, attach safety strap (20) and washer (21) using 4x30mm screw (19) to the wall. 19 x2 21 x2 M4x30mm...
- Page 13 ANTI-TIPPING KIT is provided with the products and it is required for assembly, any accident occurs due to failing to fix the product with Anti-tipping is at your own risk Anti-Topple hardware included for added safety and stability 13 of 13...
