About the i83 GNSS Receiver
The i83 GNSS receiver incorporates a GNSS engine, GNSS antenna, internal Rx/Tx UHF radio, Cellular modem, Bluetooth,
Wi-Fi and large internal batteries in a ruggedized case that is easy to deploy and use.
The bright LCD panel enables you to check satellite-tracking, internal battery charge status, Wi-Fi, working mode, data
logging status and basic receiver information. Bluetooth and Wi-Fi radios provide cable-free communication between
the receiver and a data collector / controller.
You can change many of the basic settings of the receiver with the two front panel buttons and LCD panel. Additional
configuration settings can be made via the web interface using Wi-Fi or with a Bluetooth connected data collector.
The UM980 GNSS engine is incredibly fast, accurate and operates under canopy.

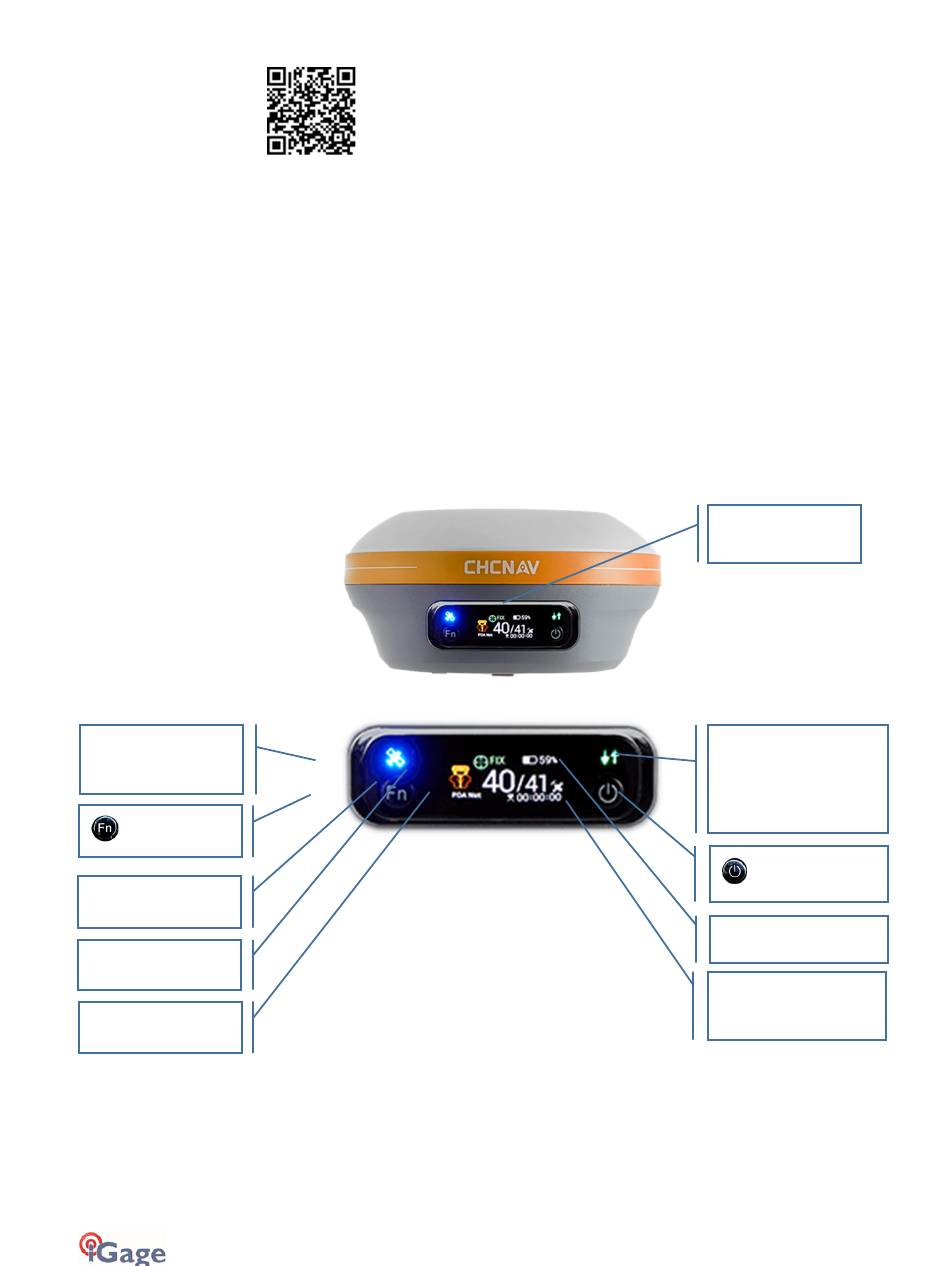

Front Panel
The Front Panel has a bright LCD screen, two indicator LED's and two pushbuttons.
Satellite LED (Blue)
Fn / Next
Mode description
Solution type
SV Used/Tracking
Satellite LED
i83
A19318-980901-070002
NONE
SY4-A02033
Indicates the number of satellites that the receiver is tracking:
When the receiver is searching and not tracking satellites it blinks
Blue once every 5-seconds.
7
Front Panel
Correction LED
Rover: Amber FLOAT
Rover: Green FIXED
Base: Amber Tx
Power / Enter
Battery charge
Current observation
recording time
