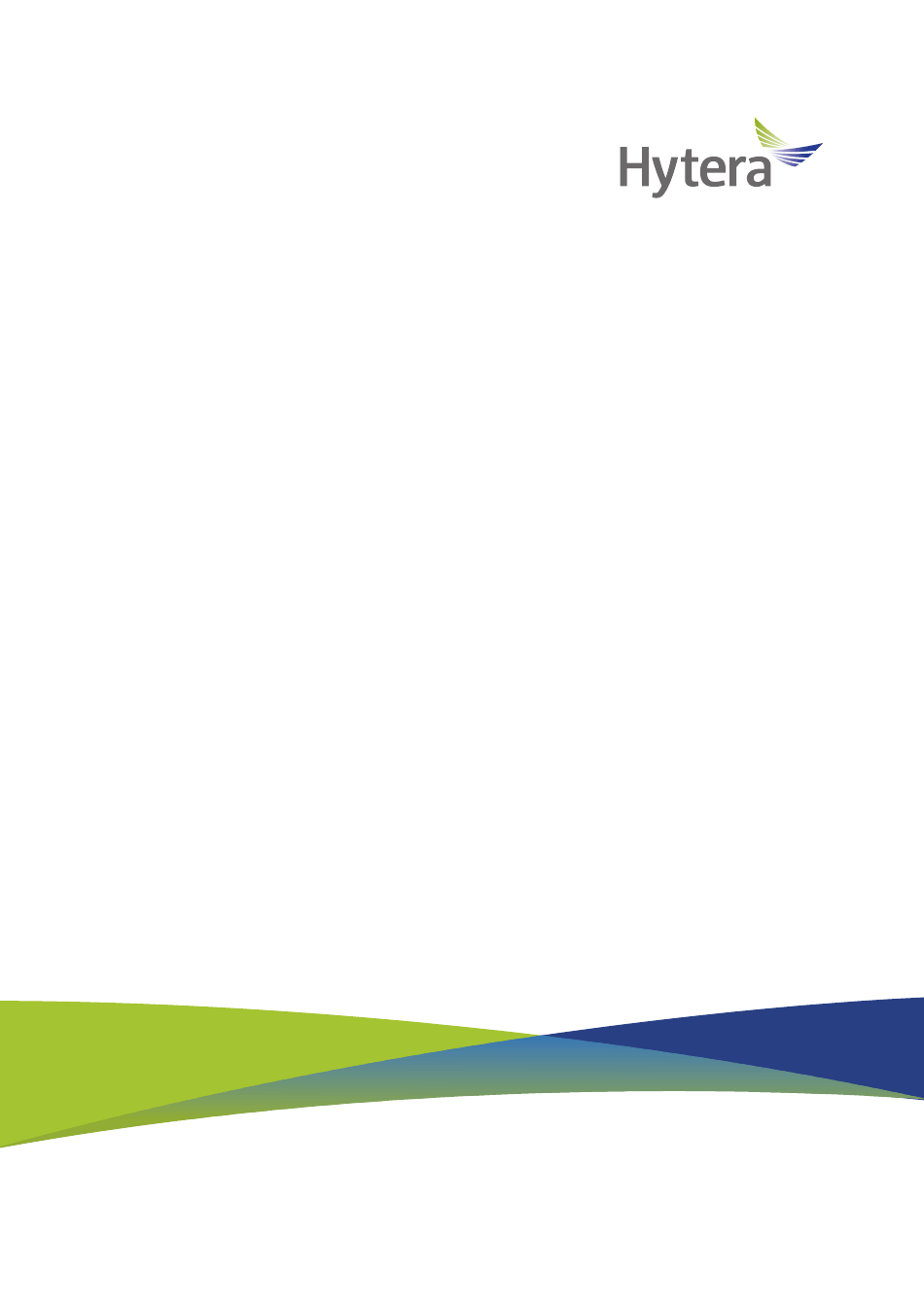

HP50X Intrinsically Safe Digital
Portable Radio
User Manual
Hytera Communications Corporation Limited

Advertisement

loading
Need help?

Need help?

Do you have a question about the HP50X and is the answer not in the manual?

Questions and answers

Related Manuals for Hytera HP50X

Summary of Contents for Hytera HP50X

  • Page 1 HP50X Intrinsically Safe Digital Portable Radio User Manual Hytera Communications Corporation Limited...
  • Page 2 Preface Welcome to the world of Hytera and thank you for purchasing this product. This manual includes a description of the functions and step-by-step procedures for use. To avoid bodily injury or property loss caused by incorrect operation, please carefully read the Safety Information Booklet before use.
  • Page 3 Copyright Information Hytera is the trademark or registered trademark of Hytera Communications Corporation Limited (the Company) in the People's Republic of China (PRC) and/or other countries or areas. The Company retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners.
  • Page 4 Operation is subject to the following two conditions: This device may not cause harmful interference.  This device must accept any interference received, including interference that may cause undesired operation.  Note: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 5 Contact your local dealer for the product's optional accessories.  ISEDC Statement The device has been tested and complies with SAR limits, users can obtain Canadian information on RF exposure and compliance. Après examen de ce matériel aux conformité aux limites DAS et/ou aux limites d’intensité de champ RF, les utilisateurs peuvent sur l’exposition aux radiofréquences et la conformité...
  • Page 6 International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998.  FCC Regulations Federal Communication Commission (FCC) requires that all radio communication products should meet the requirements set forth in the above standards before they can be marketed in the U.S, and the manufacturer shall post a RF label on the product to inform users of operational instructions, so as to enhance their occupational health against exposure to RF energy.
  • Page 7 The radio is stored improperly;  The radio is faulty;  The radio works with overload;  The radio's operational error or threshold value is out of allowed range;  The radio is damaged during transportation;  The radio's housing is obviously damaged or cracked; ...
  • Page 8 Renseignements l’homologation endroits dangereux Normes de conformité UL 913, 5th Ed. February 21, 1997  CAN/CSA C22.2 No. 157-92 (R2016) +Upd1 +Upd2  ANSI/TIA-4950-A, Rev. May 13, 2014  UL 121201, 9th Ed., Rev. September 15, 2017  CAN/CSA C22.2 No.213, 3rd Ed. April 2021 ...
  • Page 9 N’utilisez que la batterie Ex BL2301-Ex spécifiée par l’Entreprise. L’utilisation d’autres batteries peut entraîner  une défaillance de la protection Ex (sûreté intrinsèque). Chargez uniquement la batterie dans une zone ne présentant aucun risque, à l’aide du chargeur prévu à cet effet. ...
  • Page 10 User Manual Contents Contents Documentation Information ........................1 1. Packing List .............................. 2 2. Product Overview ............................. 3 2.1 Product Layout ............................. 3 2.2 Model Description ..........................4 3. Before Use ..............................5 3.1 Charge the Battery ..........................5 3.2 Attach the Antenna ..........................6 3.3 Attach the Belt Clip ..........................
  • Page 11 Contents User Manual 8.1.2 Turn on AI-based Noise Cancellation ..................17 8.2 Positioning ............................17 8.2.1 GPS Report ..........................18 8.3 BT ............................... 18 8.3.1 Turn on BT ..........................18 8.3.2 Connect to a BT Device ......................18 8.3.3 Switch BT Audio ........................19 9.
  • Page 12 User Manual Documentation Information Documentation Information Icon Conventions Icon Description Indicates references that can further describe the related topics. Indicates situations that could cause data loss or equipment damage. Notation Conventions Item Description Example To save the configuration, click Apply. Denotes menus, tabs, parameter names, window names, dialog names, and hardware The Log Level Settings dialog appears.
  • Page 13 Packing List User Manual 1. Packing List Unpack carefully and check that you have received the following items. If any item is missing or damaged, contact your dealer. Item Quantity (PCS) Item Quantity (PCS) Radio Antenna Battery Belt Clip Charger Strap Power Adapter Documentation Kit...
  • Page 14 User Manual Product Overview 2. Product Overview 2.1 Product Layout Part Name Part Name Part Name Push-to-Talk (PTT) Key LED Indicator Belt Clip SK1 Key* Antenna Battery SK2 Key* Microphone USB Type-C Port Channel Selector Knob Battery Latch Charging Contacts On-Off/Volume Knob Strap Hole Speaker...
  • Page 15 The asterisk symbol (*) indicates the programmable key. To assign features to programmable keys, contact your dealer. 2.2 Model Description HP 50X XX Description HP indicates Hytera portable radio. ① 50X indicates the products series. ② XX indicates the frequency range such as UHF 1, or VHF.
  • Page 16 User Manual Before Use 3. Before Use 3.1 Charge the Battery  Do not charge the radio in hazardous area.  Read the Safety Information Booklet before charging.  The remaining lithium-ion battery power is limited to 30% pursuant to the new lithium battery shipment regulation approved by the International Air Transport Association (IATA).
  • Page 17 Before Use User Manual 3.2 Attach the Antenna  Do not install or remove the antenna in hazardous area.  Do not hold the radio by the antenna and swing it. This may affect the antenna performance and shorten the life span of the antenna.
  • Page 18 User Manual Before Use 3.4 Attach the Battery  Do not attach or remove the battery in hazardous area.  Use the approved battery to avoid the risk of explosion.  Dispose of the used battery according to "Precautions for Disposal" in the Safety Information Booklet. Align the battery with the battery slot.
  • Page 19 Before Use User Manual Insert the audio accessory plug into the accessory connector. Tighten the screw on the audio accessory plug.
  • Page 20 User Manual Basic Operations 4. Basic Operations 4.1 Turn On or Off the Radio 4.2 Adjust the Volume 4.3 Select a Zone A zone is a group of channels within the same operational area. To select a zone, press the preprogrammed Zone Up or Zone Down key. 4.4 Select a Channel The radio receives and transmits voice and data on the selected channel.
  • Page 21 Basic Operations User Manual Rotate the Channel Selector knob.  Press the preprogrammed Channel Up or Channel Down key.  Press the preprogrammed Preset Channel key.  With Voice Broadcast turned on, the radio audibly notifies the current channel when you switch channels or turn on the radio.
  • Page 22 User Manual LED Indicator 5. LED Indicator You can learn about the radio status through the LED indicator. LED Indicator Radio Status The radio is being turned on. Flashes green The radio is receiving. Glows green The radio is transmitting. Glows red The radio is scanning or roaming.
  • Page 23 Call Services User Manual 6. Call Services To ensure optimal voice quality on the receiving radio, keep the microphone 2.5 cm to 5 cm away from your mouth during speaking. 6.1 Call on Digital Channel On the digital channel, you can initiate the following calls to the preset contacts: Call Type Description Group Call...
  • Page 24 User Manual Call Services 6.2.1 Call Without Signaling On an analog channel without signaling, you can initiate a call to all the other users on the channel. Select an analog channel according to 4.4 Select a Channel. Press and hold the PTT key. 6.2.2 Call with Signaling On an analog channel with signaling, you can initiate a call to a specific contact on the channel.
  • Page 25 Safety and Security User Manual 7. Safety and Security 7.1 Emergency The Emergency feature allows you to seek help from your companion or the control center in case of an emergency. You can initiate an emergency call with the highest priority even when your radio is transmitting or receiving. In emergency mode, the radio transmits at high power level by default.
  • Page 26 User Manual Safety and Security 7.1.3 End an Emergency Call Calling party  Press the preprogrammed Emergency Off key.  Turn off the radio.  Called party  Switch the channel.  Turn off the radio.  With Send Emergency Exit Message preprogrammed by your dealer, if you accidently initiate an emergency alarm or emergency call, you can send an emergency exit message to the called party upon exiting emergency mode.
  • Page 27 Safety and Security User Manual 7.3.2 Set Encryption To use the encryption services, both the transmitting radio and the receiving radio must turn on Encryption simultaneously with matching encryption key. The encryption key is preprogrammed by your dealer. 7.4 Radio Disable and Enable Radio Disable ...
  • Page 28 User Manual Basic Settings 8. Basic Settings 8.1 Audio Settings 8.1.1 Switch the Audio Routing You can set audio routing for voice transmitting or receiving. With the audio accessory connected, you can switch the audio options. Option Description Operation When you press the PTT key on the radio to transmit ...
  • Page 29 Basic Settings User Manual 8.2.1 GPS Report GPS Report allows the radio to report its location information to the control center. Manual Press the preprogrammed GPS Report key. Automatic You can consult your dealer to configure the GPS trigger conditions. After configuration, the radio can automatically report the GPS data upon power-on/off, at the preset time, or at specified distance interval.
  • Page 30 User Manual Basic Settings 8.3.3 Switch BT Audio With the BT device connected, press the preprogrammed BT Audio Switch key to switch the audio output device between BT earpiece and the radio.
  • Page 31 PMR Features User Manual 9. PMR Features To pre-configure features in this chapter, contact your dealer. 9.1 Power Level Power Level allows you to set the TX power level to high or low. High: The radio can support long-distance communications while consuming more battery power. ...
  • Page 32 User Manual PMR Features Initiate an Alert Call, Radio Check,  Remote Monitor, Radio Disable, or Radio Enable service to a private contact. 9.4 Roam Roam allows you to enjoy seamless communication across sites or networks. To turn on or off Roam, press the preprogrammed Roam key. 9.5 Talk Around Talk Around allows you to continue communication in direct mode when the repeater malfunctions or the radio is out of the coverage of the repeater.
  • Page 33 PMR Features User Manual Auto Priority Interrupt Triggered When You… All Call Priority Interrupt Initiate an all call. 9.8 Scrambler Scrambler allows the radio to invert the frequency spectrum of transmitted audio signals. Only the receiving radio with the same Scrambler settings can restore the audio signals. This prevents eavesdropping and ensures communication privacy.
  • Page 34 User Manual Troubleshooting 10. Troubleshooting Phenomena Analysis Solution The battery may be installed Remove and reattach the battery. improperly. The radio cannot be turned The battery power may have run out. Recharge or replace the battery. The battery may suffer from poor contact caused by dirtied or damaged Clean the battery contacts.
  • Page 35 Troubleshooting User Manual Phenomena Analysis Solution The frequency or signaling type may Set your TX/RX frequency and signaling be inconsistent with that of other to the same as that of other members. members. The radio fails to communicate with group The channel type (digital/analog) may Make sure all members are on the same members.
  • Page 36 User Manual Product Care 11. Product Care 11.1 Radio If the product comes in contact with liquid, do not turn it on. Contact your local dealer or service center in time. To ensure optimal performance and maximize product lifespan, follow these instructions: Do not disassemble the product.
  • Page 37 Product Care User Manual Keep the product turned off during charging.  Do not use the product during charging.  Charge the battery at the temperature from 0°C to 40°C .  When the low battery alert appears, replace or charge the battery in time. ...
  • Page 38 User Manual Product Care 11.4 Sterilizing  Before sterilizing, turn off the product, remove the battery, and disconnect the cable, antenna, and accessory.  Do not directly spray the alcohol on the product.  Keep the product away from the power supply and fire source. ...
  • Page 39 Optional Accessories User Manual 12. Optional Accessories Use the accessories approved by the Company only. Otherwise, we will not be liable for any loss or damage arising out of the use of unauthorized accessories. Contact your local dealer for the optional accessories used with the radio.
  • Page 40 User Manual Specifications 13. Specifications Item Description  136–174 MHz Frequency Range  400–470 MHz Channel Capacity Channel Spacing 12.5 kHz/20 kHz/25 kHz Operating Voltage 7.4 V DC Class I, Division 1, Groups C-D, T4;  Class II, Class III, Division 1, Groups E-G, T135°C; ...
  • Page 41 Specifications User Manual All specifications are subject to changes without notice.
  • Page 42 User Manual Abbreviations 14. Abbreviations Abbreviation Full Name Global Positioning System Light-Emitting Diode Push-To-Talk Serial Number Side Key...
  • Page 43 Hytera Communications Corporation Limited. © 2024 Hytera Communications Corporation Limited. All Rights Reserved. Address: Hytera Tower, Hi-Tech Industrial Park North, 9108# Beihuan Road, Nanshan District, Shenzhen, People's Republic of China Postcode: 518057 https://www.hytera.com...
