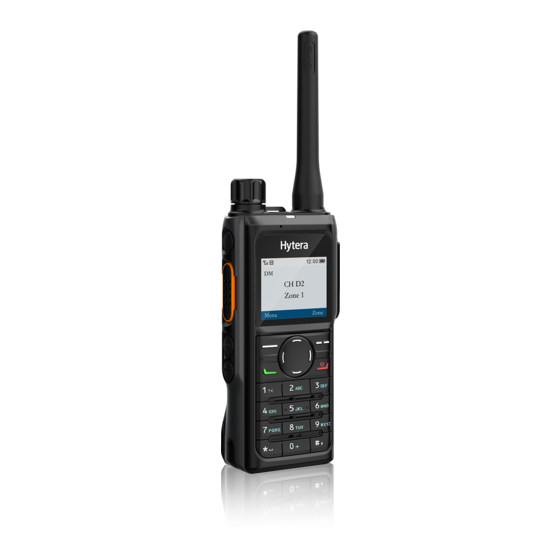

Hytera HP68X User Manual
  1. Manuals
  2. Brands
  3. Hytera Manuals
  4. Portable Radio
  5. HP68X
  6. User manual

Hytera HP68X User Manual

Hide thumbs Also See for HP68X:
Table of Contents

Advertisement

Quick Links

User Manual
HP 6 8 X DIGITAL PORTABLE RADIO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HP68X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hytera HP68X

Summary of Contents for Hytera HP68X

  • Page 1 User Manual HP 6 8 X DIGITAL PORTABLE RADIO...
  • Page 2 Preface Welcome to the world of Hytera and thank you for purchasing this product. This manual includes a description of the functions and step-by-step procedures for use. To avoid bodily injury or property loss caused by incorrect operation, please carefully read the Safety Information Booklet before use.
  • Page 3 Copyright Information Hytera is the trademark or registered trademark of Hytera Communications Corporation Limited (the Company) in the People's Republic of China (PRC) and/or other countries or areas. The Company retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners.
  • Page 4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: · This device may not cause harmful interference. · This device must accept any interference received, including interference that may cause undesired operation. Note: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 5 ISEDC Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada licence-exempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,including interference that may cause undesired operation of the device.
  • Page 6 Quand portés sur le corps, toujours place de la radio dans un étui, hytera approuvé titulaire, ou un harnais ou par l'utilisation de la vidéo pour ce produit.utilisation des accessoires non approuvés peuvent entraîner des fac qui dépassent les niveaux d'exposition professionnelle et environnementale contrôlée des limites d'exposition aux rf.
  • Page 7 SAR tests are conducted using standard operating positions accepted by the FCC/ISEDC with the device transmitting at its highest certified power level in all tested frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value.

  • Page 8: Table Of Contents

    Contents 1. Packing List ............................5 2. Product Overview ..........................6 2.1 Product Layout ..........................6 2.2 Programmable Keys ........................7 3. Before Use ............................8 3.1 Charging the Battery ........................8 3.2 Attaching the Belt Clip ........................8 3.3 Attaching the Antenna ........................9 3.4 Attaching the Battery ........................
  • Page 9 6.5.1 Call Without Signaling ......................18 6.5.2 Call with Signaling ......................19 7. Message Services ..........................20 7.1 Sending a Message ........................20 7.2 Replying to a Message ......................... 21 7.3 Editing a Message ........................21 8. Supplementary Features ........................22 8.1 Settings ............................
  • Page 10 8.11 Emergency ..........................34 8.11.1 Initiating an Emergency Call ..................... 34 8.11.2 Receiving an Emergency Call ................... 35 8.11.3 Ending an Emergency Call ....................35 8.12 Emergency Erase Data ....................... 35 8.13 Radio Disable/Enable ......................... 35 9. Troubleshooting ..........................36 10.
  • Page 11 说明书 Documentation Conventions Icon Conventions Icon Description Indicates references that can further describe the related topics. Indicates situations that could cause data loss or equipment damage. Indicates situations that could cause major personal injury or even death. Notation Conventions Item Description Example To save the configuration, click Apply.

  • Page 12: Packing List

    1. Packing List Please unpack carefully and check that you have received the following items. If any item is missing or damaged, contact your dealer. Item Quantity (PCS) Item Quantity (PCS) Radio Antenna Battery Belt Clip Charger Strap Power Adapter Documentation Kit ...

  • Page 13: Product Overview

    2. Product Overview 2.1 Product Layout Part Name Part Name Side Key 1 (SK1) Antenna Push-to-Talk (PTT) Key Microphone Side Key 2 (SK2) Back Key Side Key 3 (SK3) On-Off/P2 Key Smart Knob Navigation Key LCD Display Battery Latch OK/Menu Key Strap Hole P1 Key Accessory Connector...

  • Page 14: Programmable Keys

    2.2 Programmable Keys For enhanced convenience, you can request your dealer to program the following keys as shortcuts to radio features: SK1, SK2, SK3, P1 key, P2 Key, Up key, and Down key. For details, consult your dealer.

  • Page 15: Before Use

    3. Before Use 3.1 Charging the Battery  Use the approved charger to charge the battery.  Read the Safety Information Booklet before charging.  The remaining lithium-ion battery power is limited to 30% pursuant to the new lithium battery shipment regulation approved by the International Air Transport Association (IATA).

  • Page 16: Attaching The Antenna

    3.3 Attaching the Antenna Do not hold the radio by the antenna and swing it. This may affect the antenna performance and shorten the life span of the antenna. 3.4 Attaching the Battery  Use the approved battery to avoid the risk of explosion. ...
  • Page 17 Insert the audio accessory plug into the accessory connector. Tighten the screw on the audio accessory plug.

  • Page 18: Basic Operations

    4. Basic Operations 4.1 Turning the Radio On or Off To turn the radio on or off, press and hold 4.2 Adjusting the Volume To increase or decrease the volume, rotate the Smart knob clockwise or counter-clockwise. 4.3 Locking or Unlocking the Keypad When the keypad is not in use, it is recommended that you lock it to avoid unintended operations.

  • Page 19: Selecting A Zone

    4.5 Selecting a Zone A zone is a group of channels within the same operational area. To select a zone, do either of the following: Go to Menu > Zone, select the zone, and then select Set Default.  Press the preprogrammed Zone Up or Zone Down key. ...

  • Page 20: Status Indications

    5. Status Indications 5.1 LCD Icons Icon Radio Status The fuller the battery bar is, the stronger the battery power remains. The battery power is low. The battery power runs out. Recharge or replace the battery. The radio detects no signal. The number of bars indicates the signal strength.

  • Page 21: Led Indications

    Icon Radio Status The radio operates in silent mode. The radio operates in profile 1. The radio operates in profile 2. The radio operates in profile 3. There is/are new/unread message(s). The inbox is full. There is/are missed call(s). The Call Divert feature is enabled. 5.2 LED Indications LED Indicator Radio Status...

  • Page 22: Call Services

    6. Call Services When you are speaking during a call, keep the microphone about 2.5 cm to 5 cm away from your mouth. This ensures optimal voice quality on the receiving radio. 6.1 Group Call A group call is a call from an individual user in a group to all the other members in the group. 6.1.1 Initiating a Group Call Through Preset Contact Press and then rotate the Smart knob to select the group contact preset for the digital channel, and then press and...

  • Page 23: Receiving A Group Call

    Through One Touch Call/Menu With the One Touch Call/Menu feature enabled by your dealer, press the preprogrammed One Touch Call/Menu key, and then press and hold the PTT key. 6.1.2 Receiving a Group Call You can answer a group call without any operation. 6.1.3 Ending a Group Call A group call ends when the call hang time expires.

  • Page 24: Receiving A Private Call

    Through Call Logs Go to Menu > Call Logs, select the private call record, and then press and hold the PTT key. Through One Touch Call/Menu With the One Touch Call/Menu feature enabled by your dealer, press the preprogrammed One Touch Call/Menu key, and then press and hold the PTT key.

  • Page 25: Ending An All Call

    6.3.3 Ending an All Call An all call ends when the calling party releases the PTT key. 6.4 Phone Call A phone call is a call between a radio and a phone. After a repeater accesses the PSTN/PABX system through a PSTN/PABX gateway, the radio can communicate with the phone through the repeater.

  • Page 26: Call With Signaling

    On the home screen, press and then rotate the Smart knob to select the analog channel, and then press and hold the PTT key. 6.5.2 Call with Signaling On an analog channel with signaling, you can initiate a call to a specific contact on the channel. Do as follows: Go to Menu >...

  • Page 27: Message Services

    7. Message Services The radio can send and receive short messages, which are classified into the following types: Text message: a message containing text or numbers.  Quick text message: a frequently used text message that can be created, edited, or deleted through the menu. ...

  • Page 28: Replying To A Message

    7.2 Replying to a Message To reply to a message, do as follows: Go to Menu > Message > Msg. Select a conversation. Select Reply. Enter the message content, or select Insert to add the quick text. Select Send. 7.3 Editing a Message To edit a message, do as follows: Go to Menu >...

  • Page 29: Supplementary Features

    8. Supplementary Features 8.1 Settings Go to Menu > Settings, and then set radio parameters including Basic Settings, Call Settings, and Security. 8.1.1 Basic Settings Language Go to Basic Settings > Language, and then select the display language. Display Go to Basic Settings > Display, and then set any of the following: Backlight ...
  • Page 30 Select Time Set, and then modify the Hour/Minute/Second/Year/Month/Day to be displayed.  Select Time Format, and then set the format to 24 Hour or 12 Hour.  Select Time Zone, and then set the time zone.  Keypad Mode With the Keypad Mode feature enabled by your dealer, go to Basic Settings > Keypad Mode, and then do any of the following: Select On to enable the manual dialing on the home screen.

  • Page 31: Call Settings

    8.1.2 Call Settings Power Level You can set the TX power level to high or low. Go to Call Settings > Power Level, and then select High Power or Low Power. The VOX feature allows the voice to trigger transmission. When the voice detected by the microphone reaches the value to trigger the transmission, the radio automatically transmits the voice without the PTT key pressed.

  • Page 32: Security

    Go to Call Settings > Compandor, and then enable or disable the feature. 8.1.3 Security Power-on Password This feature allows you to set the power-on password of the radio. If the password is entered incorrectly for the preset consecutive times, the radio cannot be used normally. Contact your dealer to reset the password. Go to Security >...

  • Page 33: Checking The Product Information

    Man Down The Man Down feature allows the radio to automatically enter the emergency mode in either of the following scenarios: The radio is inclined by an angle greater than the preset angle.  The radio keeps motionless (including moving at a constant speed) longer than the preset time. ...

  • Page 34: Contacts

    8.2 Contacts 8.2.1 Creating a Contact Through Contact Menu Go to Menu > Contact > Contact > New Contact. Enter the alias and private ID/phone number. Press the OK/Menu key. The alias and ID/number of each contact must be unique. Through Call Logs You can save a private ID to the contact list from the call logs.

  • Page 35: Switching The Profile

    8.3.1 Switching the Profile Go to Menu > Profiles, and then select the profile.  Press the preprogrammed Profiles Switch key.  8.3.2 Setting the Alert Tone To enable or disable the alert tone, go to Menu > Profiles > Settings > Tone > On/Off. ...

  • Page 36: Setting The Scan List

    If you do not want to hear activities on the channel, press the preprogrammed Nuisance Temporary Delete key to remove the channel from the scan list temporarily. 8.4.2 Setting the Scan List The scan list is a list of up to 32 channels that the radio scans, which includes analog channels and digital channels. Go to Menu >...

  • Page 37: Viewing The Position

    8.5.3 Viewing the Position Local Position  Go to the Menu > Position > Position, and then view the position information of your radio (including longitude, latitude, time, date, and the number of satellites). Contact Position  Go to Menu > Position > Query Location, and then view the location information of a nearby private contact (including alias, direction, and distance).

  • Page 38: Gps Report

    8.5.6 GPS Report The GPS Report feature allows the radio to report its location information to the control center. To report the location information, do either of the following: Press the preprogrammed GPS Report key.  Request your dealer to configure the GPS Report trigger as power-on/off, preset time, or distance interval. ...

  • Page 39: Bt Audio Switch

    Go to Menu > BT > Auto Search, and then select the BT device from the detected device list.  After the radio is connected to the BT device, the LED indicator of the radio flashes blue every 1.5 seconds. 8.6.2 BT Audio Switch With the BT device connected, you can press the preprogrammed BT Audio Switch key to switch the audio output device between BT earpiece and the radio.

  • Page 40: Quick Dial

    8.8 Quick Dial The Quick Dial feature allows you to enable or disable a feature or switch to a function menu by manual dialing. This feature is available only when the keypad input is enabled. On the home screen, press a numeric key (0–9) and then the OK/Menu key to adjust the power level, set the backlight, check the radio information, or enable/disable the alert tone.

  • Page 41: Emergency

    Press and hold the PTT key.  Initiate an emergency call.  Initiate an all call.  Send a message.  Send the Radio Disable command.  8.11 Emergency The Emergency feature allows you to seek help from your companion or the control center in case of emergency. You can initiate an emergency call with the highest priority even when your radio is transmitting or receiving.

  • Page 42: Receiving An Emergency Call

    If the Alarm w/Call To Follow feature is enabled by your dealer, you can speak into the microphone without pressing and holding the PTT key. If the preset voice cycles expire, you can press and hold the PTT key to initiate the emergency call again.

  • Page 43: Troubleshooting

    9. Troubleshooting Phenomena Analysis Solution The battery may be installed improperly. Remove and reattach the battery. The battery power may have run out. Recharge or replace the battery. The radio cannot be turned The battery may suffer from poor contact caused by dirtied or damaged Clean the battery contacts.
  • Page 44 Phenomena Analysis Solution The LCD does not display The LCD may fail to function Restart the radio. any information. temporarily. The keys may fail to function The keys do not work. Restart the radio. temporarily. The GPS cannot locate The radio may be at an unfavorable Move to an open and flat area, and try your position.

  • Page 45: Care And Cleaning

    10. Care and Cleaning To guarantee optimum performance as well as a long service life of the product, please follow the tips below. 10.1 Product Care Do not pierce or scrape the product.  Keep the product away from substances that can corrode the circuitry. ...

  • Page 46: Optional Accessories

    11. Optional Accessories Use the accessories approved by the Company only. Otherwise, we will not be liable for any loss or damage arising out of the use of unauthorized accessories. Contact your local dealer for the optional accessories used with the product.

  • Page 47: Abbreviations

    12. Abbreviations Abbreviation Full Name Automatic Gain Control DTMF Dual-tone Multi-frequency Global Positioning System Liquid-Crystal Display Light-Emitting Diode PABX Private Automatic Branch Exchange PSTN Public Switched Telephone Network Push-To-Talk Radio Registration Services Side Key...
  • Page 48 Hytera Communications Corporation Limited. 2020 Hytera Communications Corporation Limited. All Rights Reserved. Address: Hytera Tower, Hi-Tech Industrial Park North, 9108# Beihuan Road, Nanshan District, Shenzhen, People's Republic of China Postcode: 518057 http:// www.hytera.com...
