Tempest CW-D 300TX

08989

Need help?

Do you have a question about the Tempest CW-D 300TX and is the answer not in the manual?

Questions and answers

Summary of Contents for SIP Tempest CW-D 300TX

Page 1 Tempest CW-D 300TX SIP Industrial Products Limited Gelders Hall Road Shepshed 08989 Loughborough Leicestershire LE12 9NH United Kingdom For help or advice please contact your distributor, or sip directly on: Tel.: 01509 500400 Email:sales@sip-group.com or technical@sip-group.com www.sip-group.com...
Page 3 CONTENTS Page No. Description Safety Instructions Guarantee Your item Technical Specifications Assembly Instructions Operating Instructions Maintenance Trobuleshooting Exploded Drawing Spare Parts List Wiring Diagram UK - Declaration Of Conformity EU - Declaration Of Conformity...
Page 4 SAFETY INSTRUCTIONS Danger / Caution: This picture indicates risk of personal injury and/ or the possibility of damage. Warning: This picture indicates risk of electrical injury or damage! Note: This picture indicates supplementary information. Important: Please read the following instructions carefully, failure to do so could lead to serious personal injury and / or damage to the item.
Page 5 • USE ONLY RECOMMENDED ACCESSORIES: Consult this user manual, your distributor or SIP directly for recommended accessories. Follow the instructions that accompany the accessories. The use of improper accessories may cause hazards and will invalidate any warranty you may have.
Page 6 SAFETY INSTRUCTIONS of ignition. Should any fuel make contact with your clothes; change and wash them immediately. If any fuel makes contact with your skin wash with soap and water immediately. • Always operate this Pressure washer in a well ventilated area to reduce the risk of suffocation.
Page 7 GUARANTEE This item is covered by a 24 month parts and labour warranty covering failure due to manufacturers defects. This does not cover failure due to misuse or operating the item outside the scope of this manual - any claims deemed to be outside the scope of the warranty may be subject to charges Including, but not limited to parts, labour and carriage costs, failure to regularly clean your item will shorten its working life and reduce performance.

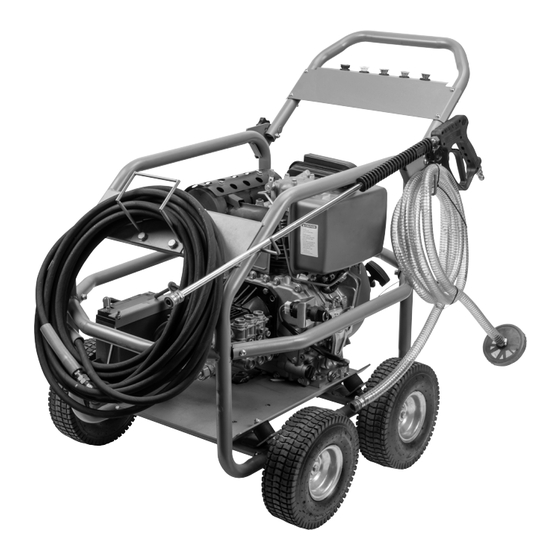

Page 8 YOUR ITEM Ref. Description Ref. Description High Pressure Hose Suction Hose Battery Air Filter Exhaust system Recoil Frame Key Set & Ignition Set of Nozzles Pump Pistol Wheel Chromed Lance...
Page 9 TECHNICAL SPECIFICATION Model 08989 SIP Tempest CW- D 300TX Diesel Pressure Washer Engine Power Engine Type Single cylinder; 4 stroke; air cooled; Direct injection; Euro V Fuel Type Diesel Fuel Tank Capacity 5.5Litres Engine Oil 10W30 / 10W40 Engine Oil Qty 1.7Litres...
Page 10 ASSEMBLY INSTRUCTIONS CONNECTING TERMINALS TO THE BATTERY Make sure you connect the positive terminal first, then the negative terminal. Positive (+) - Red Negative (-) - Black Fig.1 WATER SUPPLY AND HOSE FITTING Connect the mains water supply to the inlet of the water pump (A) and attach the hose to the outlet of the pump (B).
Page 11 ASSEMBLY INSTRUCTIONS PUSH HANDLE Attach the push handle to the frame with the two plastic knobs provided and the two dome nuts. Fig.3...
Page 12 OPERATING INSTRUCTIONS Danger / Caution: Before you operate the pressure washer ALWAYS check that no damage is present and that everything that should be, is tight and secure. Danger / Caution: Hot Surfaces. Always ensure that the pressure washer is turned off and allowed to fully cool before any refuelling or maintenance procedures are carried out.
Page 13 OPERATING INSTRUCTIONS ADDING FUEL • Turn the pressure washer off and let it cool for at least two minutes before removing the fuel cap. Loosen the fuel cap slowly to release pressure. • Clean the area around the fuel cap. •...
Page 14 OPERATING INSTRUCTIONS NOTE: Ensure that the trigger is in the “off” position & locked when changing nozzles. The low pressure (black) nozzle should be fitted to when starting the engine. Pull back on the quick coupler connection at the end of the lance (see Fig. A). Push the nozzle into the quick coupler connection and allow the connector to spring back;...
Page 15 OPERATING INSTRUCTIONS Fig.4 Fig.5 Fig.6 Fig.7 Fig.8 Fig.9 NOTE: Always set the lance to low pressure and hold the pistols trigger ‘open’ every time the engine is started. This will ensure that the operator is not trying to start the engine against back pressure NOTE: When changing the nozzles, always switch off the machine, release the pressure and point to a safe direction.
Page 16 The pressure washer's warranty does not cover items that have been subjected to operator abuse or negligence. NOTE: For help or advice on this product please contact with SIP customer service. • Some adjustments will need to be made periodically to properly maintain your pressure washer.
Page 17 ENGINE MAINTENANCE Regular checks and maintennce are very importante for normal operation of the machine. This will allow the machine to work under specifications and extend the product life cycle. For any further assistance, please contact SIP. Daily Check Maintenance •...
Page 18 TROUBLESHOOTING Problem Possible reason Solution 1. Throttle lever on/off switch in OFF position. Engine will not start. 1. Turn throttle lever to ON position. 2. No fuel in engine. Units with Oil Alert or Oil 2. Fill fuel tank or turn on fuel supply. 3.
Page 19 TROUBLESHOOTING 1. Check supply hose, faucet and inlet water filter. Must be connected to water source which provides 20 l/ 1. Restricted or insufficient water min. Check chemical/soap injection supply, or pump sucking air. system. 2. Nozzle in low pressure mold, or 2.
Page 20 EXPLODED DRAWING *For full exploded drawing & parts list for pump and engine contact: - SIP After Sales 01509 500400 - Email: technical@sip-group.com...
Page 21 PART LIST Ref. Description Ref. Description Hex Bolt M10 Hex Nylon Lock Nut M8 Hex Nylon Lock Nut M10 Rubber Mount Washer Hex Socket Screw M8 Diesel Engine Hex Socket Screw M6 Triplex Pump Hex Bolt M8 Detergent Hose Brake Bolt M8 Adjustable Detergent Injector Hex Socket Screw M6 Unloader Valve...
Page 22 WIRING DIAGRAM...
Page 23 NOTES...
Page 24 NOTES...
Page 25 NOTES...
Page 26 LE12 9NH England As the manufacturer within the UK, England, Scotland & Wales, declare that SIP Tempest D 300T Diesel Pressure Washer - SIP Part No. 089 9 Conforms to the requirements of the following (s), as indicated. Supply of Machinery (Safety) Regulations 2008...
Page 27 County Louth Republic of Ireland As the manufacturer's authorised representative within the EC declare that the Tempest CW-D 300TX Diesel Pressure Washer - SIP Part. No. 08989 Conforms to the requirements of the following directive(s), as indicated. 2006/42/EC Machinery Directive...
Page 28 FOR HELP OR ADVICE ON THIS PRODUCT PLEASE CONTACT YOUR DISTRIBUTOR, OR SIP Please dispose of packaging for the product in a DIRECTLY ON: responsible manner. It is suitable for recycling. Help TEL: 01509 500400 to protect the environment, take the packaging to EMAIL: sales@sip-group.com or...
