Tempest CW-P 160AX / 08984

Tempest CW-P 215AX / 08985

Tempest CW-P 225AX / 08986

Table of Contents

Need help?

Do you have a question about the Tempest CW-P 160AX and is the answer not in the manual?

Questions and answers

Summary of Contents for SIP Tempest CW-P 160AX

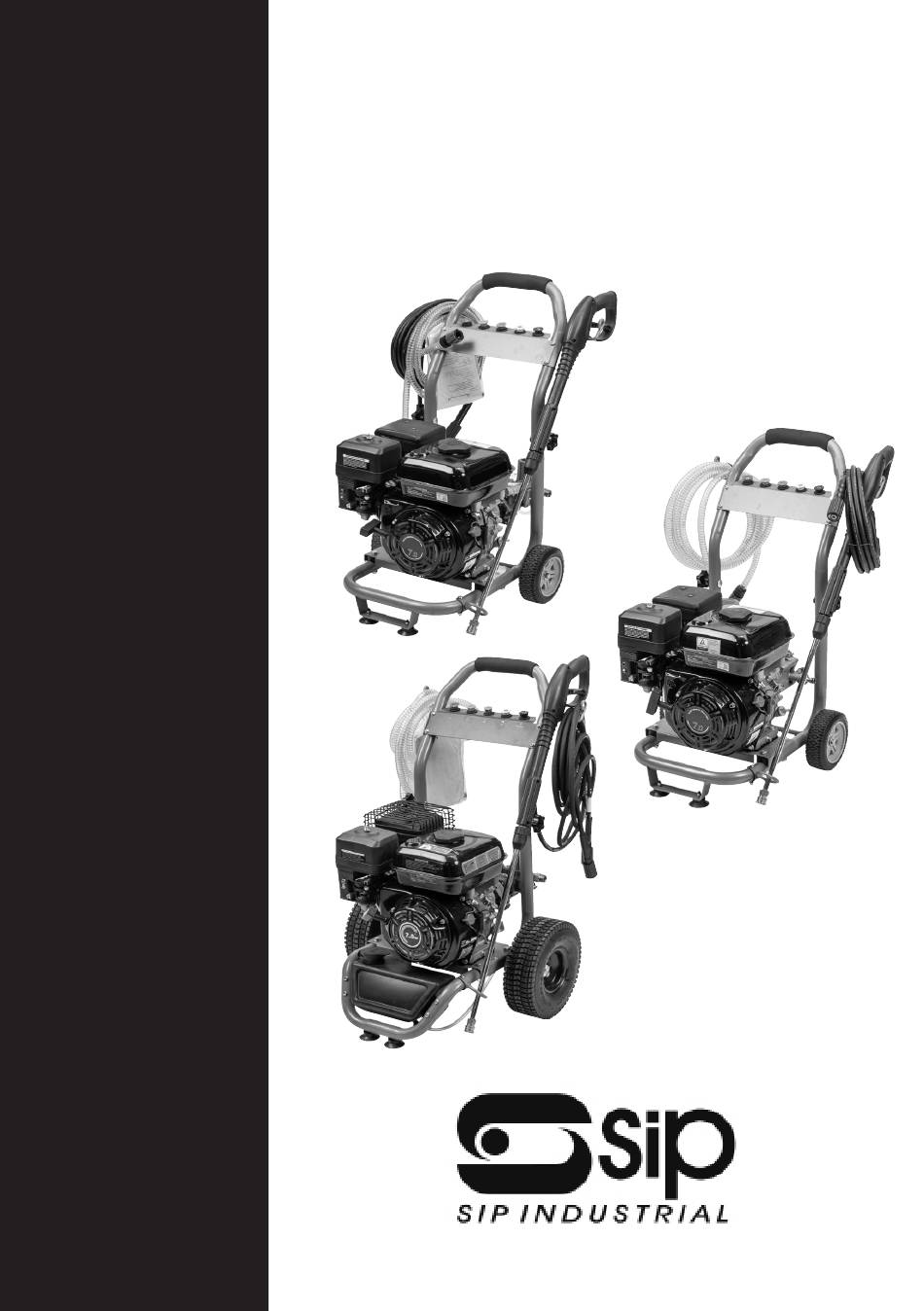

Page 1 Tempest CW-P 160AX / 08984 SIP Industrial Products Limited Gelders Hall Road Shepshed Tempest CW-P 215AX / 08985 Loughborough Leicestershire Tempest CW-P 225AX / 08986 LE12 9NH United Kingdom For help or advice please contact your distributor, or sip directly on: Tel.: 01509 500400 Email:sales@sip-group.com or...
Page 3: Table Of Contents
CONTENTS Page No. Description Safety Instructions Guarantee Your item Technical Specifications Assembly Instructions Operating Instructions Maintenance Troubleshooting Exploded Drawing & Part List 08984 08985 Exploded Drawing & Part List 08986 UK - Declaration Of Conformity EU - Declaration Of Conformity...
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Danger / Caution: This picture indicates risk of personal injury and/ or the possibility of damage. Warning: This picture indicates risk of electrical injury or damage! Note: This picture indicates supplementary information. Important: Please read the following instructions carefully, failure to do so could lead to serious personal injury and / or damage to the item.
Page 5 • USE ONLY RECOMMENDED ACCESSORIES: Consult this user manual, your distributor or SIP directly for recommended accessories. Follow the instructions that accompany the accessories. The use of improper accessories may cause hazards and will invalidate any warranty you may have.
Page 6 SAFETY INSTRUCTIONS of ignition. Should any fuel make contact with your clothes; change and wash them immediately. If any fuel makes contact with your skin wash with soap and water immediately. • Always operate this Pressure washer in a well ventilated area to reduce the risk of suffocation.
Page 7: Guarantee
GUARANTEE This item is covered by a 24 month parts and labour warranty covering failure due to manufacturers defects. This does not cover failure due to misuse or operating the item outside the scope of this manual - any claims deemed to be outside the scope of the warranty may be subject to charges Including, but not limited to parts, labour and carriage costs, failure to regularly clean your item will shorten its working life and reduce performance.
Page 8: Your Item
YOUR ITEM *This picture makes reference to the model 08986. Some of the features may not be available on your model. Ref. Description Ref. Description Rubber feet Nozzles Detergent Tank Pistol Recoil Assembly Handle Choke and fuel tap levers Suction hose assembly Fuel Tank Spark plug Air Filter...
Page 9: Technical Specifications
TECHNICAL SPECIFICATION 08984 08985 08986 Model No. Power 7 hp 6.5 hp Engine Type 4-stroke, single cylinder, air cooled, E5, EURO V Fuel Type Petrol Axial - Aluminium Pump Axial - Brass Head Adjustable Pressure Head Fixed Pressure Flow Rate 402 l/hr 522 l/hr 540 l/hr...
Page 10: Assembly Instructions
ASSEMBLY INSTRUCTIONS FITTING THE HANDLE TO THE FRAME 1. Slide the handle assembly over the main frame. Fig.1 2. Ensure that the holes line up and secure in place with the bolt, washer and hand wheel as shown. Fig.1 CONNECTING THE HOSE / PISTOL / LANCE 1.
Page 11: Connecting To A Water Supply
ASSEMBLY INSTRUCTIONS 5. Connect the opposite end of the hose onto the water outlet on the pressure washer pump. (A) 6. Tighten the hose fitting to secure. Fig.4 CONNECTING TO A WATER SUPPLY • The pressure washer is supplied with a quick-release type water inlet bayonet (B).
Page 12 ASSEMBLY INSTRUCTIONS FITTING THE DETERGENT HOSE Simply push the detergent hose over the detergent inlet. Fig.6 & 7. (Where applicable). Fig.6 Fig.7...
Page 13: Operating Instructions
OPERATING INSTRUCTIONS Danger / Caution: Before you operate the pressure washer ALWAYS check that no damage is present and that everything that should be, is tight and secure. Danger / Caution: Hot Surfaces. Always ensure that the pressure washer is turned off and allowed to fully cool before any refuelling or maintenance procedures are carried out.
Page 14 OPERATING INSTRUCTIONS To fill the machine with oil, follow the next steps. • Ensure that the pressure washer is on a flat level surface. • Remove the filler cap / dip stick by turning it anti-clockwise. Fig.8 • Slowly pour the oil into the crankcase. •...
Page 15: Starting The Engine
OPERATING INSTRUCTIONS NOTE: Never overfill the fuel tank, leave a small air gap at the top. Danger / Caution: Petrol is highly flammable. Never re-fuel the pressure washer whilst it is running, allow the machine to cool down. Do not re-fuel near naked flames or other possible ignition sources.
Page 16: Stopping The Pressure Washer
OPERATING INSTRUCTIONS Fig12 Fig.13 NOTE: The choke may not be needed if the engine is already warm or the ambient temperature is hot. NOTE: It may take a few sharp pulls to get the engine started. STOPPING THE PRESSURE WASHER 1.
Page 17 OPERATING INSTRUCTIONS OPERATING THE PISTOL / LANCE FUNCTIONS The trigger can be locked to stop it functioning unintentionally by operating lever D. Fig.14 Fig.14 Nozzle selection Choose the correct nozzle according to your required spray pattern (0°,15°,25°,40°) or detergent nozzle (the one with the larger orifice) and connect by quick coupling. NOTE: When changing the nozzles, always switch off the machine, release the pressure and point to a safe direction.
Page 18 OPERATING INSTRUCTIONS Using detergent Place the filter end of the detergent hose into the detergent container (not supplied). The detergent will flow through the hose/pistol/lance when the trigger is pressed. NOTE: Always use chemicals cleaning agents recommended by the manufacturer. NOTE: Always turn off the pressure washer and allow to fully cool before carrying out any maintenance procedures.
Page 19: Maintenance
MAINTENANCE REPLACING THE ENGINE OIL Replace the engine oil after the first 5 hours of operation, then every 50 hours, or yearly, whichever is first, thereafter. 1. Turn the oil filler cap counter clockwise and remove from the crankcase. 2. Loosen and remove the oil drain bung and allow the oil to drain into a suitable container.
Page 20: Transportation And Storage
MAINTENANCE CHECK THE FUEL TANK FILTER Just under the fuel cap is a fuel filter, check this filter periodically (every month) and remove any contaminants which may have accumulated. 1. Remove the fuel tank cap and filter. 2. Clean the filter and, if damaged replace. 3.
Page 21: Troubleshooting
TROUBLESHOOTING Problem Possible reason Solution • Low-oil shutdown. • Fill engine with 10W-30 oil. Engine will not start (or • Engine switch not in the “ON” • Turn switch to the “ON” stops during operation). position. position. • Pressure built up in the hose. •...
Page 22 EXPLODED DRAWING 08984 08985 *For full exploded drawing & parts list for pump and engine contact: - SIP After Sales 01509 500400 - Email: technical@sip-group.com...
Page 23 PART LIST 08984 08985 Ref. Description Foam handle grip Upper handle Right hook Nozzle plate Axial pump 08984 Axial pump 08985 Shaft key Engine Complete Hand Bolt M8 Molded nut M8 Lower frame 6'' Wheel Washer 12 Hex bolt M8 Washer Hex nylon lock nut Wand ring...
Page 24 EXPLODED DRAWING 08986 *For full exploded drawing & parts list for pump and engine contact: - SIP After Sales 01509 500400 - Email: technical@sip-group.com...
Page 25 PART LIST 08986 Ref. Description Foam handle grip Upper handle Left hook silver grey Nozzle plate Hex socket screw M6 Washer Nylon lock cap nut M6 Axial pump 08986 Lifan engine Key shaft Bolt Hand nut M8 Lower frame Base plate Cotter pin Wheel 10"...
Page 26: Uk - Declaration Of Conformity
SIP Tempest Petrol Pressure Washer - SIP Part No. 089 4 SIP Tempest CW-P 215AX Petrol Pressure Washer - SIP Part No. 08985 SIP Tempest CW-P 225AX Petrol Pressure Washer - SIP Part No. 08986 Conforms to the requirements of the following (s), as indicated.
Page 27: Eu - Declaration Of Conformity
Republic of Ireland As the manufacturer’s authorised representative within the EC SIP Tempest CW-P 160AX Petrol Pressure Washer - SIP Part No. 08984 SIP Tempest CW-P 215AX Petrol Pressure Washer - SIP Part No. 08985 SIP Tempest CW-P 225AX Petrol Pressure Washer - SIP Part No. 08986 Conforms to the requirements of the following directive(s), as indicated.
Page 28 FOR HELP OR ADVICE ON THIS PRODUCT PLEASE CONTACT YOUR DISTRIBUTOR, OR SIP Please dispose of packaging for the product in a DIRECTLY ON: responsible manner. It is suitable for recycling. Help TEL: 01509 500400 to protect the environment, take the packaging to EMAIL: sales@sip-group.com or...
