Summary of Contents for SIP Tempest PH540/150

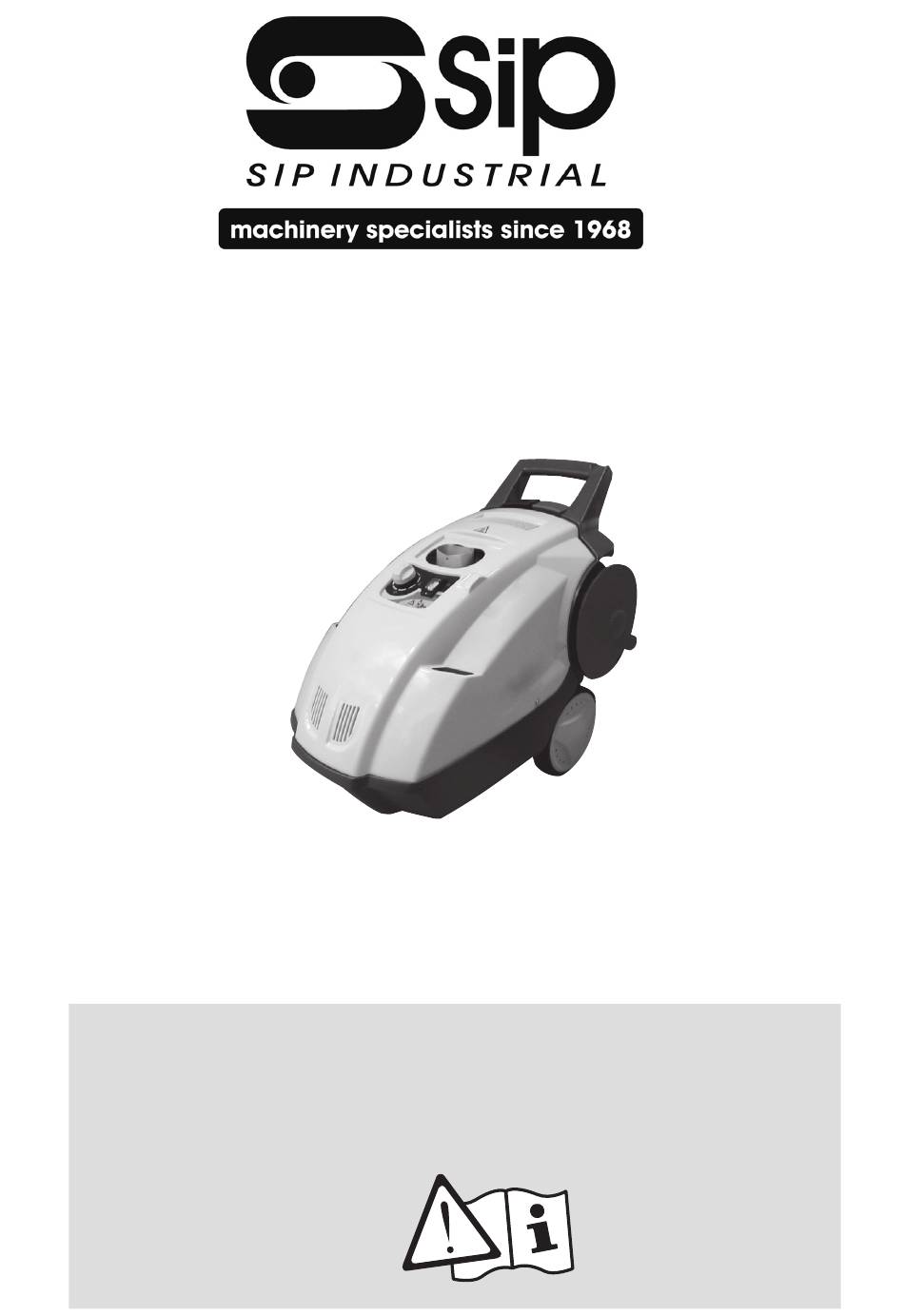

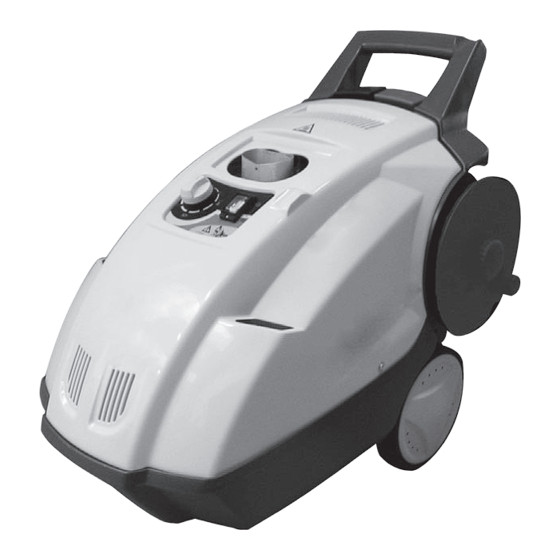

- Page 1 SIP Tempest PH540/150 Hot Wash Pressure Washer SIP Code: 08954 WARNING. Read the instructions before using the machine...
-
Page 5: General Information
TRANSLATION OF THE ORIGINAL INSTRUCTIONS Read and keep in mind that indicated in the WARNING INSTRUCTION MANUAL - SAFETY WARNINGS. 1 GENERAL INFORMATION Congratulations for choosing one of our products. We would like to remind you that we took the safety of the operator, the efficiency of its use and the protection of the environment into great consideration when designing and manufacturing this product. -
Page 6: Features And Technical Specifications
• Easy Start: this aids starting up the water cleaner by lowering the pressure for the first moments of its operation. 2 FEATURES AND TECHNICAL SPECIFICATIONS SIP Tempest PH540/150 ELECTRICAL CONNECTION Mains power supply 230 V / 1~50 Hz... - Page 7 2.1 Identification of Components (continues) 26. Handle 31. Detergent tank plug 27. Water adjusting knob 32. Gas oil tank plug 28. Stack 33. Water suction filter/gasket 29. Plate “Caution: Hot surfaces” 34. Control panel 30. Pressure gauge 35. Water suction connector 2.2 s afEty EvIcEs...
-
Page 8: Removing The Appliance From Its Packing Materials
3.2 s tandard ccEssorIEs Make sure that in the product package that was bought there are the following elements: • SIP high-pressure water cleaner; • hose reel complete with high-pressure delivery pipe • water gun; • lance hose; • accessory bag containing:... -
Page 9: Installation
be reached by the water cleaner: with these accessories it is therefore necessary to limit the temperature, by operating on knob (27) in the due way. It is possible to build in the standard equipment of the water cleaner with a rich range of accessories. To buy them, apply to the dealer or to an authorised service centre. -
Page 10: Operation
• If the power supply cable is too short, an extension cord can be used provided it is not longer than 10 m/32.8 ft, the section of the wires is at least 1,5 mm² and the plug and the socket are waterproof. Contact a Qualified Eletrician so that all these requirements are followed. - Page 11 • Keep the power supply cable, any extension cords, the plugs and the outlets dry. Do not touch them with wet hands. • If the supply cord is damaged, it must be replaced by the Manufacturer or by a Skilled Technician, in order to avoid a hazard.
- Page 12 • Check that the nozzle-holding head (18) is not set to detergent supply (see also paragraph “Operation with detergent”). • Restart the water cleaner by setting the main switch (2) to “1”. Note: during this starting-up the water cleaner stops immediately after the starting pickup, because the Total Stop device is activated.
-
Page 13: Switching Off And Storage
(Fig. 1 - position S), before leaving it unattended, even for a short time. 6 SWITCHING OFF AND STORAGE After cleaning, switch the water cleaner off and prepare it for storage. 6.1 s WItchIng • Use the water cleaner with cold water for a couple of minutes. •... -
Page 14: Dismantling And Disposal
INTERVAL ACTION FOR MAINTENANCE Each time used • Check the supply cable, high-pressure pipe, couplings, cleaner gun, lance pipe. Should any of these parts appear to be damaged, do not use the high pressure cleaner and contact a Skilled Technician. Weekly •... -
Page 15: Problems, Causes And Solutions
to children playing. 9 PROBLEMS, CAUSES AND SOLUTIONS WARNING • Before undertaking any action, follow the instructions in the “Switching off” section. If it is not possible to restore correct operation of the high pressure cleaner using the information in the table below, contact a Skilled Technician. - Page 16 NOTE:...
- Page 17 NOTE:...
- Page 18 NOTE:...
- Page 20 This will allow recycling materials and help protect the environment. FOR HELP OR ADVICE ON THIS PRODUCT PLEASE CONTACT YOUR DISTRIBUTOR, OR SIP DIRECTLY ON: TEL: 01509500400 EMAIL: sales@sip-group.com or technical@sip-group.com www.sip-group.com...
