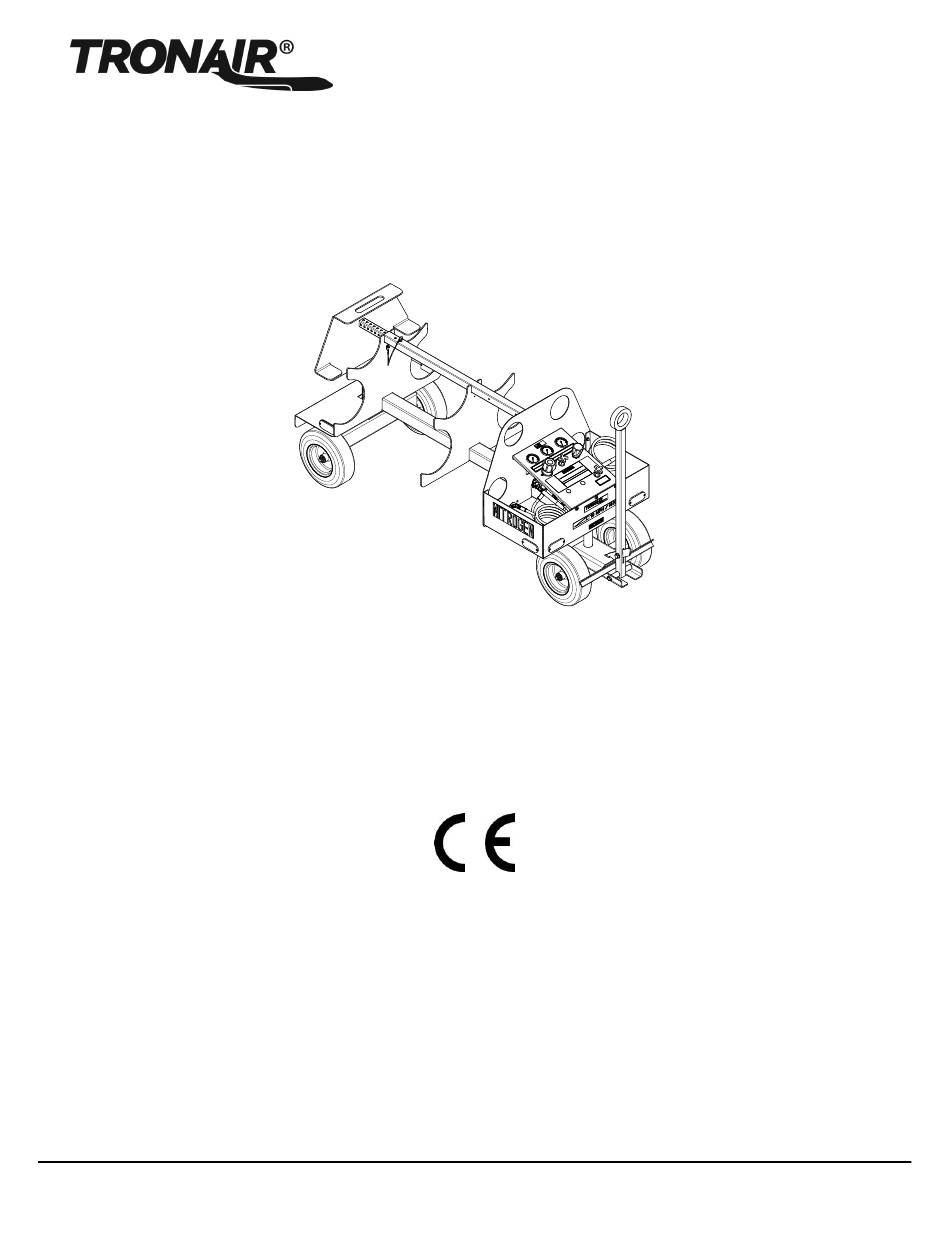

- Page 1 OPERATION & SERVICE MANUAL Model: 18-4303-0000 Four Bottle Nitrogen Cart with Manifold/Regulator 10/2018 - Rev. 04 Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
- Page 2 REVISION DATE TEXT AFFECTED 04/2006 Original Release 04/2007 Modified Schematic, and Manifold Assembly Illustration and Parts List 04/2010 Added CE documentation 02/2012 Modified 1.0 General Description Warning and 2.0 Specifications 10/2018 Major revision...
- Page 3 Model: 18-4303-0000 Four Bottle Nitrogen Cart with Manifold/Regulator TABLE OF CONTENTS PAGE PRODUCT INFORMATION ............................2 DESCRIPTION ............................. 2 MODEL & SERIAL NUMBER ........................2 MANUFACTURER ............................2 SPECIFICATIONS ............................2 SAFETY INFORMATION ............................3 USAGE AND SAFETY INFORMATION ......................3 GENERAL ..............................
- Page 4 Model: 18-4303-0000 Four Bottle Nitrogen Cart with Manifold/Regulator Figure 1 - Schematic 02/2012 | Rev. 03 Page | 1...
- Page 5 DESCRIPTION The Tronair Four Bottle Cart is designed to transport Nitrogen bottles which are used in the aviation industry. The system contains two regulators. The high pressure regulator is for regulating output pressure from 25 4000 psi (276 bar), and the low pressure regulator is for operating servicing needs of 0 ...
- Page 6 Model: 18-4303-0000 Four Bottle Nitrogen Cart with Manifold/Regulator SAFETY INFORMATION USAGE AND SAFETY INFORMATION To insure safe operations please read the following statements and understand their meaning. Also refer to your equipment manufacturer’s manual for other important safety information. This manual contains safety precautions which are explained below.
- Page 7 Installation, Operation, Maintenance and Trouble Shooting which should be read, understood and followed for the safe and effective use of this equipment. Training: Read this entire manual prior to operation of the unit. We encourage our customers to call Tronair to discuss any operating or testing requirements. Telephone 419-866-6301 or 800-426-6301.
- Page 8 Model: 18-4303-0000 Four Bottle Nitrogen Cart with Manifold/Regulator OPERATION OF NITROGEN 4-BOTTLE CART (continued) EFFICIENT USE OF SYSTEM Maximum pressure may be removed from supply bottles if aircraft are serviced from the lowest pressure bottle first. In this manner, the most Nitrogen may be removed from each bottle.
- Page 9 Model: 18-4303-0000 Four Bottle Nitrogen Cart with Manifold/Regulator OPERATION OF NITROGEN 4-BOTTLE CART (continued) DISCONNECTING NITROGEN BOOSTER FROM AIRCRAFT Slowly close Nitrogen supply bottle shut off valve. This will stop inlet Nitrogen flow. Decrease the pressure regulator to minimum pressure setting.
- Page 10 GUARANTEES/LIMITATION OF LIABILITY Tronair products are warranted to be free of manufacturing or material defects for a period of one year after shipment to the original customer. This is solely limited to the repair or replacement of defective components. This warranty does not cover the...
- Page 11 Model: 18-4303-0000 Four Bottle Nitrogen Cart with Manifold/Regulator This page left blank intentionally. 02/2012 | Rev. 03 Page | 8...
- Page 12 Model: 18-4303-0000 Four Bottle Nitrogen Cart with Manifold/Regulator Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. 02/2012 | Rev. 03 Page | 9...
- Page 13 Model: 18-4303-0000 Four Bottle Nitrogen Cart with Manifold/Regulator Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description Z-5585-00 Weldment, Back Stop H-2649-18 G-1150-103506 Screw, Hex Head Machine, #10-32 x ¾" long H-1026*12.0...
- Page 14 Model: 18-4303-0000 Four Bottle Nitrogen Cart with Manifold/Regulator Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description HC-2279 Gauge, Pressure 0-5000 psi S-1906-00 Panel, Instrument HC-2239 Gauge, Pressure 0-600 psi...
- Page 15 Model: 18-4303-0000 Four Bottle Nitrogen Cart with Manifold/Regulator Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description TF-1043-11*09.5 Assembly, Hose N-2005-04-S Elbow, 90º, ¼ NPT x #4 JIC N-2206-03-S Plug, ¼...
- Page 16 Model: 18-4303-0000 Four Bottle Nitrogen Cart with Manifold/Regulator Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description TF-1043-07*21.0 Assembly Hose N-2006-04-S Elbow, 90º , ¼ NPT x #4 JIC...
- Page 17 Model: 18-4303-0000 Four Bottle Nitrogen Cart with Manifold/Regulator Repair Kits When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description K-2741 Kit, High Pressure Regulator Standard Repair, for: PC-1037-01 (Non-Metallic and Metallic Parts)
- Page 19 APPENDIX I Smith’s Installation & Operation Guide Pressure Regulators...
- Page 25 APPENDIX II Instrument Certification Notice...
- Page 27 Re-calibration should be done on a periodic basis as dictated by the end user's quality system or other overriding requirements. Note that Tronair, Inc. does not supply certificates of calibration on flow meters or pyrometers unless requested at the time of placed order. These instruments are considered reference indicators only and are not critical to the test(s) being performed on the aircraft.
- Page 29 APPENDIX III Declaration of Conformity...
- Page 31 DECLARATION of CONFORMITY The design, development and manufacture is in accordance with European Community guidelines 18-4303-0000 Relevant provisions complied with by the machinery: 2006/42/EC Relevant standards complied with by the machinery: EN ISO 12100-1 Identification of person empowered to sign on behalf of the Manufacturer: Quality Assurance Representative Tronair, Inc.
