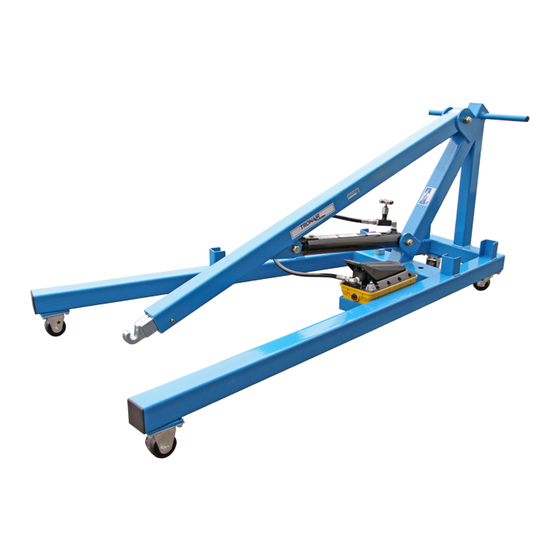

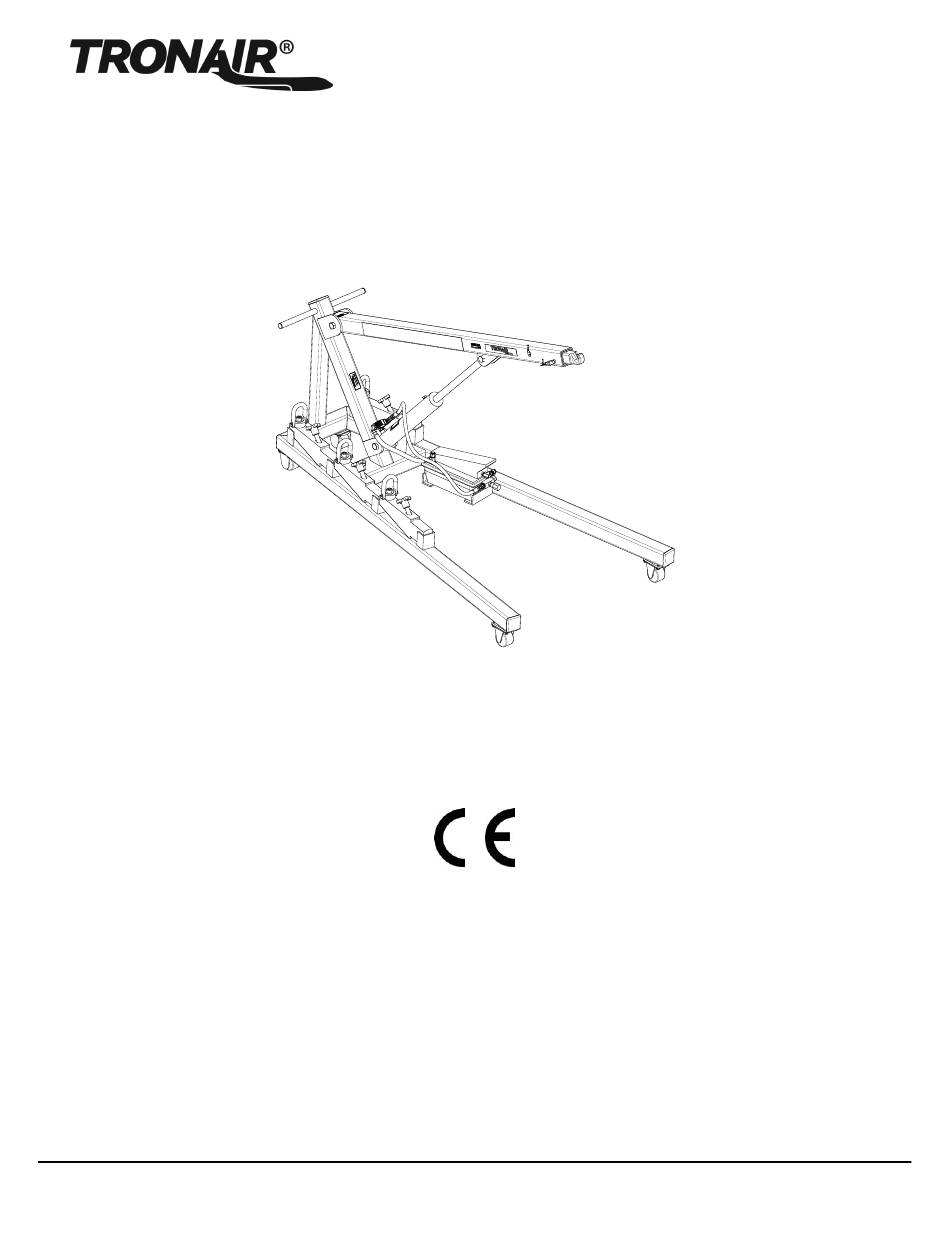

- Page 1 OPERATION & SERVICE MANUAL Model: 14-6923-0110 Strut Service Tool 06/2015 Rev. 02 Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
- Page 2 REVISION DATE TEXT AFFECTED 03/2015 Original Release 06/2015 Modified Parts List...
-
Page 3: Table Of Contents
Model: 14-6923-0110 Strut Service Tool TABLE OF CONTENTS PAGE PRODUCT INFORMATION ............................1 DESCRIPTION ................................1 MODEL & SERIAL NUMBER ............................. 1 MANUFACTURER ..............................1 SPECIFICATIONS ..............................1 SAFETY INFORMATION............................... 1 USAGE AND SAFETY INFORMATION ........................1 TRAINING..................................1 TRAINING REQUIREMENTS ............................ 1 OPERATING INSTRUCTIONS ............................ -
Page 4: Product Information
Model: 14-6923-0110 Strut Service Tool This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., its suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. -
Page 5: Operating Instructions
Model: 14-6923-0110 Strut Service Tool OPERATING INSTRUCTIONS CAUTION! Operator injury and/or component damage can result. Do not transport components on this lift. This lift is designed to only compress landing gear struts on aircraft. Common Set Up Universal Jack Pad Gulfstream MLG Adapter 4.0 Operating instructions continued on following page. -
Page 6: Operating Controls
Model: 14-6923-0110 Strut Service Tool OPERATING INSTRUCTIONS (continued) OPERATING CONTROLS TO RAISE BOOM Place Strut Service Tool on hard level surface. Use appropriate adaptors. Actuate foot pedal to “Pressure” side until desired boom height is reached. Use flow control valve to adjust speed of boom. -
Page 7: Adapter Listing
NOTE: Aircraft adapters will vary depending on Gulfstream aircraft model and aircraft service change 155 INSPECTION/MAINTENANCE: To keep your Tronair equipment fully operational and last for years you should adhere to the following suggestions: Before each use: Visually inspect unit to ensure all components are present and functional All pivot bolts &... -
Page 8: Guarantees/Limitation Of Liability
GUARANTEES/LIMITATION OF LIABILITY Tronair products are warranted to be free of manufacturing or material defects for a period of one year after shipment to the original customer. This is solely limited to the repair or replacement of defective components. This warranty does not cover the... - Page 9 Model: 14-6923-0110 Strut Service Tool This page left blank intentionally. 06/2015 | Rev. 02 Page | 6...
- Page 10 Model: 14-6923-0110 Strut Service Tool Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description U-1123 Caster, Rigid U-1124 Caster, Swivel HC-2247 Valve, Flow Control TF-1043-06*38.00 Hose, 3/8 ID HC-2346...
- Page 11 Model: 14-6923-0110 Strut Service Tool Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description Swivel, Female, 37º JIC x ⅜ N-2009-10-S HC-2653 Manifold, In-Line HC-2652 Cartridge, Relief Valve N-2208-03-S...
- Page 13 APPENDIX I Declaration of Conformity...
- Page 15 Relevant standards complied with by the machinery: EN ISO 12100-1 Identification of person empowered to sign on behalf of the Manufacturer: Quality Assurance Representative Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558...
