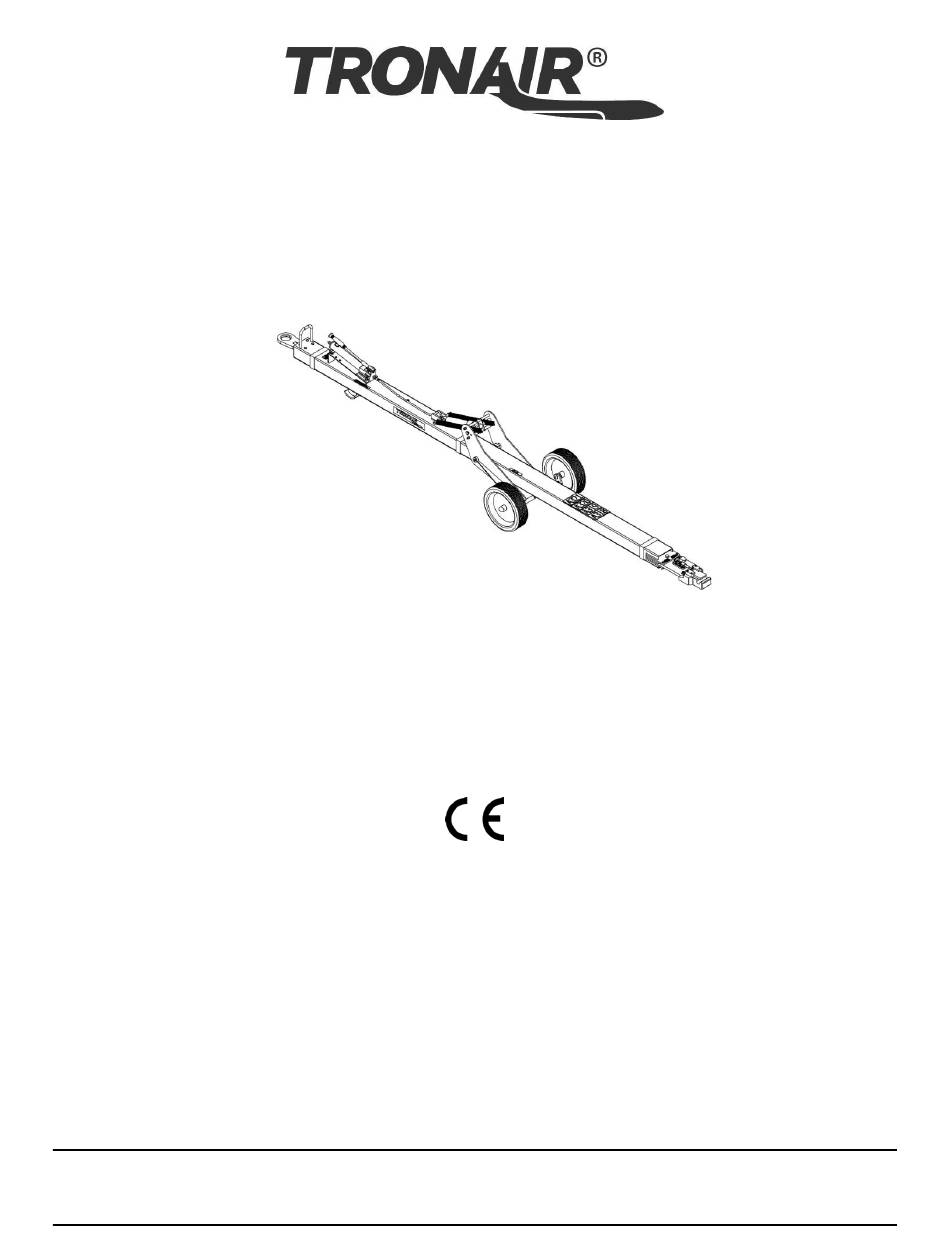

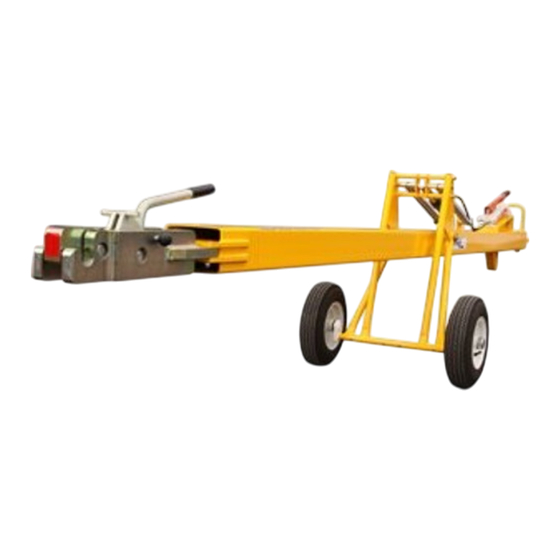

- Page 1 Operation & Service Manual Model: A003817D Airbus Towbar A318, A319, A320, A321 03/2016 Rev. 02 Tronair, Inc. 1740 Eber Rd Phone: (419) 866-6301 Holland, OH 43528-9794 www.tronair.com 800-426-6301 Email: sales@tronair.com Fax: (419) 867-0634...
- Page 2 REVISION DATE TEXT AFFECTED 12/2014 Original release 03/2016 Modified 4.2 Attaching To Aircraft, 5.0 Maintenance and Parts List...
- Page 3 Model: A003817D Airbus A318, A319, A320, A321 Towbar TABLE OF CONTENTS PAGE PRODUCT INFORMATION............................... 1 DESCRIPTION ..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 SAFETY INFORMATION ..............................1 USAGE AND SAFETY INFORMATION ......................1 SHEAR BOLTS ..............................1 TRAINING ..................................
-
Page 4: Model And Serial Number
Tronair towbars/heads must only be used with matching Tronair heads/towbars, and Tronair shear pins. This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. -
Page 5: Attaching To Tractor
Model: A003817D Airbus A318, A319, A320, A321 Towbar OPERATION (continued) ATTACHING TO AIRCRAFT The towbar is equipped with a clamp type attachment head. When attached properly it will allow the aircraft to be pushed or pulled safely. To attach the towbar to the aircraft:... - Page 6 Website: www.tronair.com RECOMMENDED SPARE PARTS LISTS Reference the following page(s) for Replacement Parts and Kits available. IN SERVICE SUPPORT Contact Tronair, Inc. for technical services and information. See Section 1.3 Manufacturer. 12/2014 | Rev. 01 Page | 3...
- Page 7 GAURANTEES/LIMITATION OF LIABILITY Tronair products are warranted to be free of manufacturing or material defects for a period of one year after shipment to the original customer. This is solely limited to the repair or replacement of defective components. This warranty does not cover the...
- Page 8 Model: A003817D Airbus A318, A319, A320, A321 Towbar Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. 12/2014 | Rev. 01 Page | 5...
- Page 9 Model: A003817D Airbus A318, A319, A320, A321 Towbar Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description W005222B WELDMENT, CHASSIS TUBE A002574A ASSEMBLY, SWIVEL LUNETTE X-1239 ASSEMBLY, HEAD H006322...
- Page 10 Model: A003817D Airbus A318, A319, A320, A321 Towbar Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description J-6205 MACHINE, HEAD J-6209 PLATE, SLIDER J-4485 GUIDE, SLIDE G-1151-107213 SCREW, 3/8-16 X 1-3/8" HEX HD CAP GR 8...
- Page 11 Model: A003817D Airbus A318, A319, A320, A321 Towbar Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description A002574A Swivel Lunette Assembly; consists of: W003887A Hitch Pin Weldment W003888A Pin Block Weldment...
- Page 12 Model: A003817D Airbus A318, A319, A320, A321 Towbar Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description Z-8603 Weldment, Wheel Plate Z-8604 Weldment, Wheel Plate P054192A Hyd. Cyl. Mount Plate...
- Page 13 APPENDIX - I Declaration Conformity...
- Page 15 Declaration of Conformity The design, development and manufacture is in accordance with European Community guidelines Towbar A003817D Relevant provisions complied with by the machinery: 2006/42/EC Relevant standards complied with by the machinery: EN ISO 12100-1 Identification of person empowered to sign on behalf of the manufacturer: Quality Assurance Representative Tronair, Inc.
