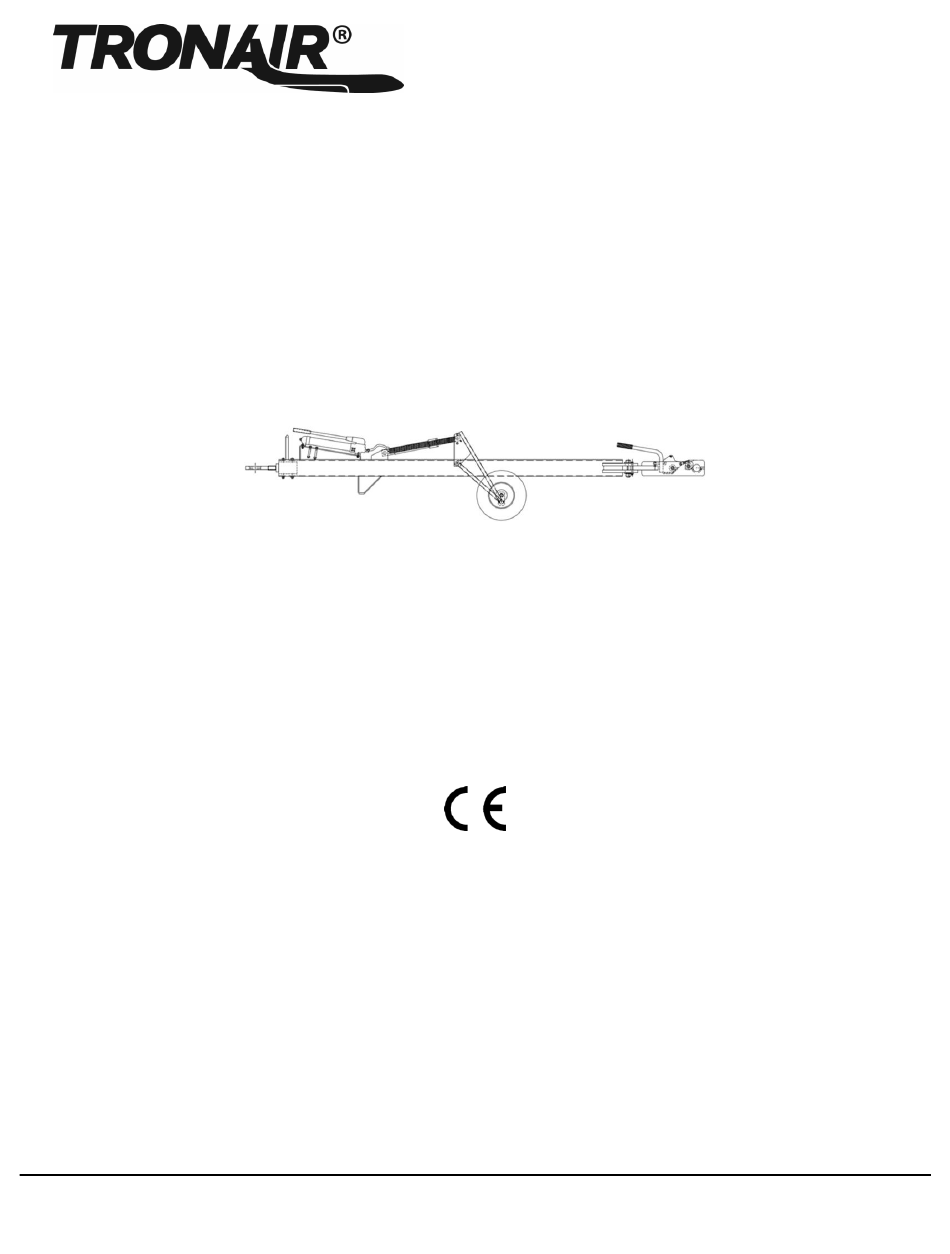

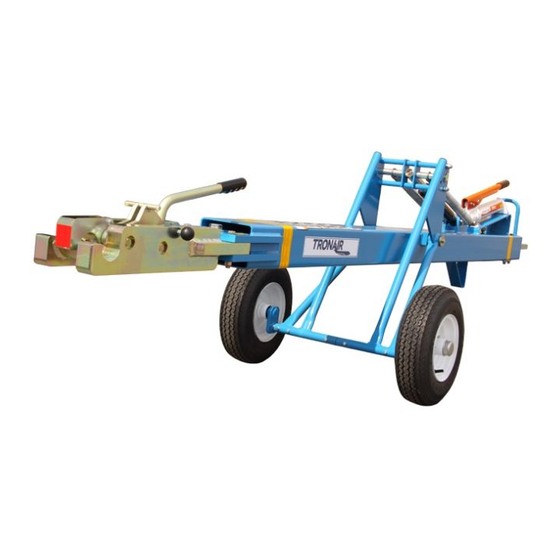

- Page 1 OPERATION & SERVICE MANUAL Model: A212636D Airbus A330, A340, A350 McDonnell Douglas DC-10, MD-11 Towbar 12/2014 Rev. 01 Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1740 Eber Rd Web: www.tronair.com Holland, OH 43528-9794 Email: sales@tronair.com...
- Page 2 REVISION DATE TEXT AFFECTED 12/2014 Original release...
- Page 3 Model: A212636D Airbus A330, A340, A350, McDonnell Douglas DC-10, MD-11 Towbar TABLE OF CONTENTS PAGE PRODUCT INFORMATION ............................1 DESCRIPTION ................................1 MODEL & SERIAL NUMBER ............................. 1 MANUFACTURER ..............................1 SAFETY INFORMATION............................... 1 USAGE AND SAFETY INFORMATION ........................1 SHEAR BOLTS ................................
-
Page 4: Model And Serial Number
Tronair towbars/heads must only be used with matching Tronair heads/towbars, and Tronair shear pins. This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. -
Page 5: Attaching To Tractor
Model: A212636D Airbus A330, A340, A350, McDonnell Douglas DC-10, MD-11 Towbar OPERATION (continued) ATTACHING TO AIRCRAFT The towbar is equipped with a clamp type attachment head. When attached properly it will allow the aircraft to be pushed or pulled safely. - Page 6 Model: A212636D Airbus A330, A340, A350, McDonnell Douglas DC-10, MD-11 Towbar MAINTENANCE (continued) OVER CLAMP ADJUSTMENT Adjust .38” capscrew until the lock pin engages lock hole on handle Tighten .38” jamnut Attach towbar head assembly to aircraft pin, push handle down until lock pin engages. 10-20 lbs of down force on handles...
- Page 7 GAURANTEES/LIMITATION OF LIABILITY Tronair products are warranted to be free of manufacturing or material defects for a period of one year after shipment to the original customer. This is solely limited to the repair or replacement of defective components. This warranty does not cover the...
- Page 8 Model: A212636D Airbus A330, A340, A350, McDonnell Douglas DC-10, MD-11 Towbar Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. 12/2014 | Rev. 01 Page | 5...
- Page 9 Model: A212636D Airbus A330, A340, A350, McDonnell Douglas DC-10, MD-11 Towbar Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description W004679B Chassis Tube Weldment A002574A Swivel Lunette Assembly A003809B...
- Page 10 Model: A212636D Airbus A330, A340, A350, McDonnell Douglas DC-10, MD-11 Towbar Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description A003809B Towing Pin Head Assembly; consists of: W005344B Head Weldment...
- Page 11 Model: A212636D Airbus A330, A340, A350, McDonnell Douglas DC-10, MD-11 Towbar Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description A002574A Swivel Lunette Assembly; consists of: W003887A Hitch Pin Weldment...
- Page 12 Model: A212636D Airbus A330, A340, A350, McDonnell Douglas DC-10, MD-11 Towbar Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description Z-8604-01 WELDMENT, WHEEL PLATE Z-8603-00 WELDMENT, WHEEL PLATE W004605A...
- Page 13 APPENDIX I Declaration of Conformity...
- Page 15 Declaration of Conformity The design, development and manufacture is in accordance with European Community guidelines Towbar A212636D Relevant provisions complied with by the machinery: 2006/42/EC Relevant standards complied with by the machinery: EN ISO 12100-1 Identification of person empowered to sign on behalf of the Manufacturer: Quality Assurance Representative Tronair, Inc.
