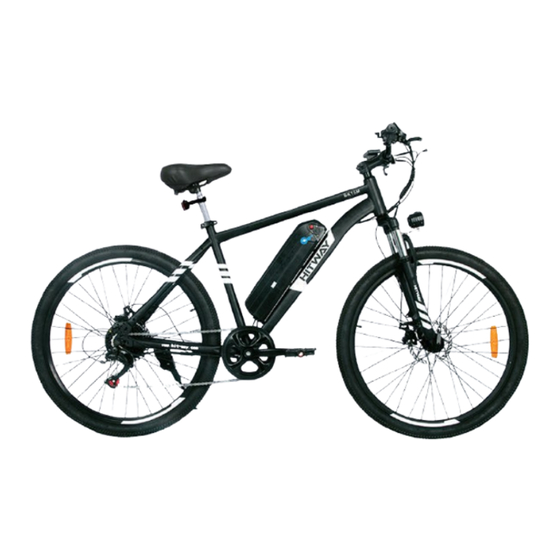

- Page 1 HIT THE ROAD HIT THE FUN Model: BK15M Operation Manual ENK V 3.05.10...
- Page 3 Step 3: Click the "Ask a Question" button. Choose your topic from list displayed. Step 4: Select Contact seller. *If you purchased HITWAY products by other platforms or channels, please also find the corresponding seller contact support. Thanks for your support and patience!
- Page 4 ATTENTIONS Battery and Charging: Charge at 0℃～45℃, discharge at -20℃～60℃, keep the battery dry. Do not put the battery in acidic or alkaline liquid. Avoid rain and keep away from fire, heat and high temperature reversely. It is strictly forbidden to damage,disassemble the battery or cause short-circuit.
- Page 5 Liability statement: After riding, please store the bike in a place without sunlight and rain, not in a residentia lbuilding; Regularly check the motor and brake; Regularly check bike’s screw , especially those need to be tightened, and tighten them regularly.
- Page 6 PRODUCT FUNCTION DIAGRAM Figure 1 (Whole bike diagram) Note: The product upgrade may cause the actual product you receive to be different from the sample in the photo, please don't worry, the specific functions are the same and will not affect your normal use. 1 Display 11 Battery 2 Handlebar...
- Page 7 Function introduction: (Picture 1) 1. Charging: Unscrew the plastic cover on the battery (Picture 1), connect the charger to start charging, when the battery is full and the indicator light of the charger changes from red to green, it means it is fully charged. (Picture2) (Picture 3) 2.
- Page 8 3. Power display: After powering on, the dashboard lights up to display the power, and the power is divided into 5 grids, corresponding to high, medium and low power. 4. Headlights: refer to Picture 3, long press the button to turn on/off the headlights.
- Page 9 PRODUCT PARAMETERS Outlook & Dimension Parameter Standard Version Carbon Structural Steel Body Material Color Black/White/Blue 1830mm*630mm*1070mm Unfolding Size Hub Form Wire spoked wheels Wheel Size 26 inches 1450mm*240mm*740mm Package Size Performancev Parameters Gross/Net 30kgs/23.3kgs (66.14lbs/51.37lbs) Maximum Load 120kg (264.55 lb) 20mph Maximum Speed 35KM-90KM(Affected by load,...
- Page 10 Electrical Specifications Battery Type 18650 lithium ion power battery 12AH Battery Capacity Battery Rated Voltage Motor Rated Power 500W Motor Form Assist mode 26 inch/36V/high speed brushless motor Motor Type with gear Motor Rated No-Load Speed 310±10r/min Charger Output 42V 2.0A Charger Input 100~240V 50/60Hz 3.0A Undervoltage Protection...
- Page 11 MANUAL CONTROL INSTRUMENT PANEL INSTRUCTION Function description: 1. Display function Speed display, power assist display, power indicator, fault prompt, mileage display, voltage display, single boot time, 3.75mph boost, brake indication, headlight display 2. Control, set function Power switch control, headlight switch control, 6Km/h booster setting, cruise control, 3-speed booster ratio setting, speed display switching, mileage and single boot time and voltage display switching.
- Page 12 Display content introduction 1.Voltage status level POWER 2.Multifunctional display area Total mileage ODO, single mileage TRIP (unit: mile, km), single boot time TIME, battery voltage VOL 3.Speed display area AVG: Average speed, MAX: maximum speed, SPEED: current speed; unit Mp/h, km/h 4.Bike power-assisted gear adjustment, 0-3 digital display and gear bar display;...
- Page 13 6.Instrument Status Code Meaning Status Code State Meaning Normal Status Battery Undervoltage Motor Failure Controller Failure Communication Reception Failure Communication Sending Failure Button Introduction The specific combination of buttons is as follows Use Introduction Button operation is divided into short press and long press. Specific operation explanation Switch LCD 1.In the off state, press and hold the...
- Page 14 2. In the power-on state, press and hold the button to turn it off. Change the assist gear In power-on state 1. Short press button, assist gear will be + 1 2. Short press button, assist gear will be - 1 Switch speed display area content 1.
- Page 15 3. Press and hold button to turn the headlights on or off. Switch the content of the multi-function display area 1. In the power-on state, short press the button to switch the display data in the multi-function area. Note: 1. Due to the upgrade of the company's products, the display content of the product you get may be different from the manual, but it will not affect your normal use.
