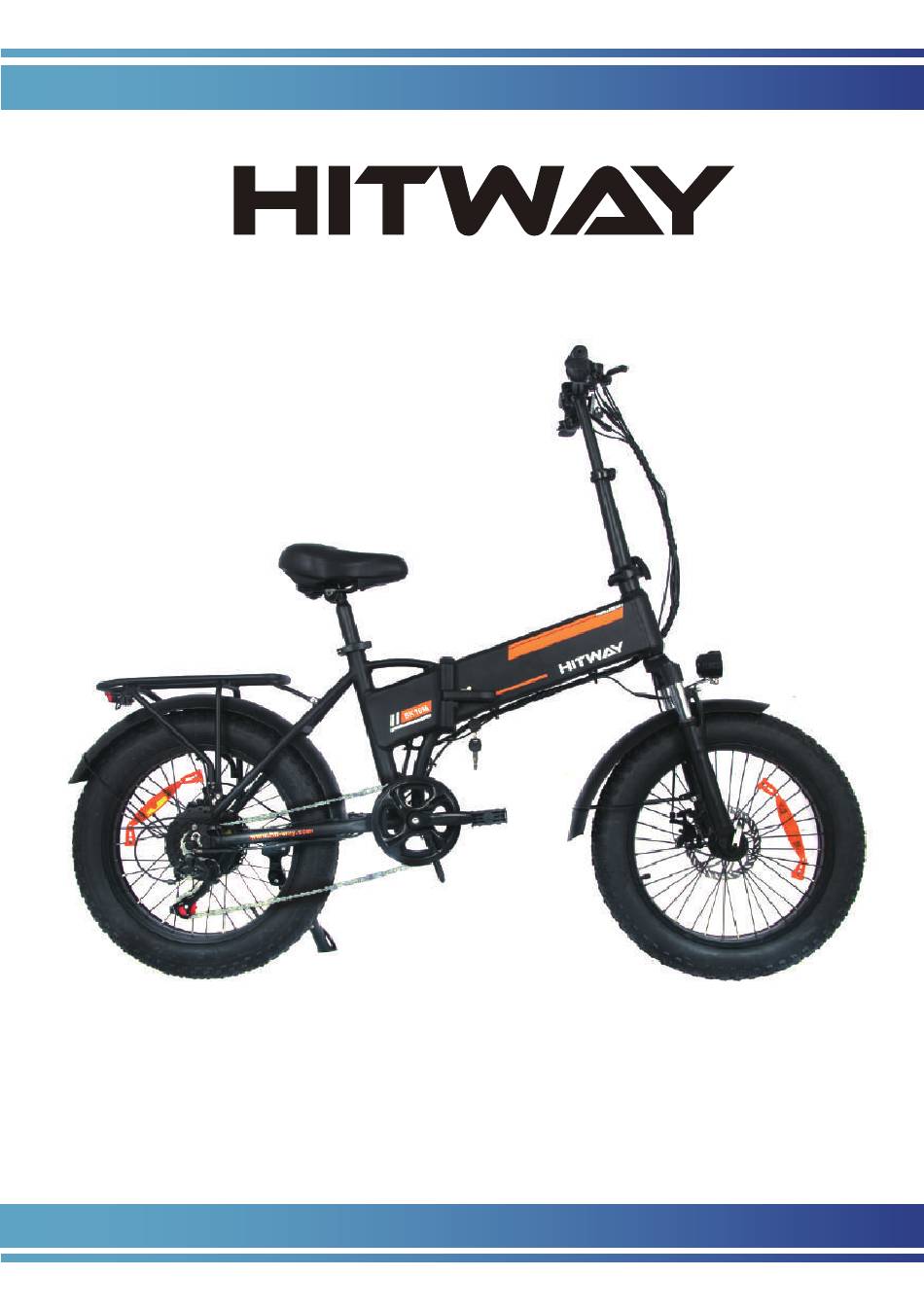

  • Page 1 Model: BK10M Operation Manual UNK V 3.04.12...
  • Page 2 Step 3: Click the "Ask a Question" button. Choose your topic from list displayed. Step 4: Select Contact seller. *If you purchased HITWAY products by other platforms or channels, please also find the corresponding seller contact support. Thanks for your support and patience!
  • Page 3 ATTENTIONS Battery and Charging Charge at 0℃～45℃, discharge at -20℃～60℃, keep the battery dry. Do not put the battery in acidic or alkaline liquid. Avoid rain and keep away from fire, heat and high temperature environment. It is strictly forbidden to connect the positive and negative poles of the battery reversely.

  • Page 4: Liability Statement

    must be parked correctly in accordance with the safety rules. Liability statement After riding, please store the bike in a place without sunlight and rain, not in a residential building; Regularly check the motor and brake; Regularly check bike’s screw , especially those need to be tightened, and tighten them regularly.

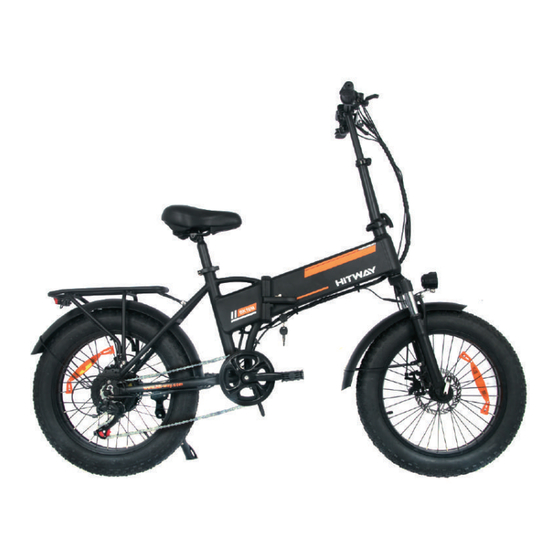

  • Page 5 PRODUCT FUNCTION DIAGRAM Figure 1 (Whole vehicle diagram) Note: The product upgrade may cause the actual product you receive to be different from the sample in the photo, please don't worry, the specific functions are the same and will not affect your normal use.

  • Page 6: Function Introduction

    Function introduction: (Picture 1) 1. Charging: Refer to the charging port in Picture 1, connect the charger to start charging, when the battery is full and the indicator light of the charger changes from red to green, it means it is fully charged. (Picture2) (Picture 3) 2.
  • Page 7 3. Power display: After powering on, the dashboard lights up to display the power, and the power is divided into 5 grids, corresponding to high, medium and low power. 4. Headlights: refer to Picture 3, long press the button to turn on/off the headlights.

  • Page 8: Product Parameters

    PRODUCT PARAMETERS Parameter Standard Version Aluminum alloy Body Material Color Matte Black 1650mm*580mm*1160mm Unfolding Size Outlook & Dimension 920mm*500mm*800mm Folding Size Spoke wheel Hub Form Wheel Size 20 inches 1430mm*300mm*700mm Package Size Gross/Net 35.3KG/28.3KG(77.82LB/62.39LB) Maximum Load 120kg (264.55lbs) 20MPH Maximum Speed 35KM-90KM(Affected by load, temperature, road conditions, riding Performance...
  • Page 9 Battery Type 18650 lithium ion power battery 12Ah Battery Capacity Battery Rated Voltage Motor Rated Power 750W Motor Form Assist mode Electrical Specifi- 20 inch/high speed gear/ cations Motor Type Spoke wheel brushless motor Motor Rated No-Load Speed 430±10r/min Charger Output 54.6V 2.0A Charger Input 100~240V 50/60Hz 3.0A...
  • Page 10 MANUAL CONTROL INSTRUMENT PANEL INSTRUCTION Function description: 1. Display function Speed display, power assist display, power indicator, fault prompt, mileage display, voltage display, single boot time, 3.75mph boost, cruise control, brake indication, headlight display 2. Control, set function Power switch control, headlight switch control, 3.75mph booster setting（WALK mode）, cruise control setting, 3-speed booster ratio setting, speed display switching, mileage and single boot time and voltage display switching.
  • Page 11 Display content introduction 1.Voltage status level POWER 2.Multifunctional display area Total mileage ODO, single mileage TRIP (unit: mile, km), single boot time TIME, battery voltage VOL 3.Speed display area AVG：Average speed, MAX: maximum speed, SPEED: current speed; unit Mp/h, km/h 4.Bike power-assisted gear adjustment , 0-3 digital display and gear bar display;...

  • Page 12: Button Introduction

    6.Instrument Status Code Meaning Status Code State Meaning Normal Status Battery Undervoltage Motor Failure Controller Failure Communication Reception Failure Communication Sending Failure Button Introduction The specific combination of buttons is as follows Use Introduction Button operation is divided into short press and long press. Specific operation explanation I 、...
  • Page 13 2. In the power-on state, press and hold the button to turn it off. II 、Change the assist gear In power-on state 1. Short press button, assist gear will be + 1 2. Short press button, assist gear will be - 1 III 、Switch speed display area content 1.
  • Page 14 2. When the bike is in the power- assisted running state, press and hold button to enter the cruise control mode. Press any brake or turn the accelerator to exit cruise mode. 3. Press and hold button to turn the headlights on or off. V、Switch the content of the multi-function display area 1.
