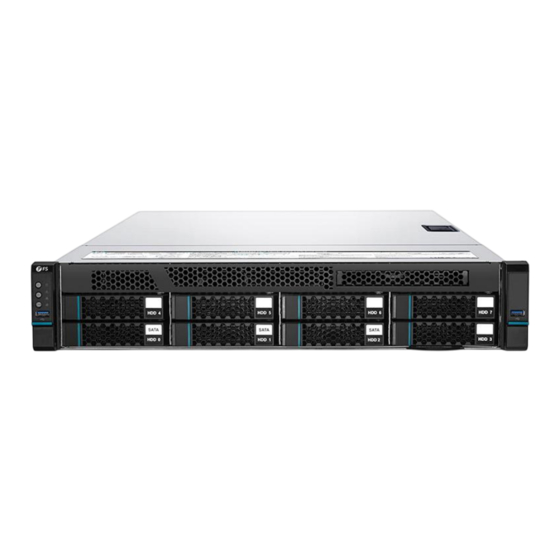

FS RS5220 User Manual
  1. Manuals
  2. Brands
  3. FS Manuals
  4. Server
  5. RS5220
  6. User manual

FS RS5220 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
RS5220 USER MANUAL
RS5220
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the RS5220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FS RS5220

Summary of Contents for FS RS5220

  • Page 1 RS5220 USER MANUAL RS5220 User Manual...
  • Page 2 RS5220 USER MANUAL Contents 1. Preparation for Use ..........................1 1.1 Abstract ..............................1 1.2 Check the Transport Package......................1 1.3 Select a Suitable Location to Place the Server................1 1.4 The Server Is Installed on the Rack.....................2 1.5 Check the Power Cord........................... 2 1.6 Add Equipment ............................1...
  • Page 3 RS5220 USER MANUAL 7.4 Concrete Issue ............................40 8. Statement on Environmental Protection..................43 8.1 ROHS Statement............................43 8.2 Recycling Instructions for Waste Electronics................44 www.fs.com...
  • Page 4 RS5220 USER MANUAL 1. Preparation for Use 1.1 Abstract The main task of this chapter is to describe how to do some basic preparations. They include: Check the transportation and packaging; Select a suitable location for the server; Check the power supply setting switch;...
  • Page 5 RS5220 USER MANUAL 1.3 Select a Suitable Location to Place the Server Conditions Required Illustration A three-core power socket fitted with a local power standard. The expected overload current is 13A, or less than Three-core power socket 100-120VAC/6.5A or less than 200-240VAC.
  • Page 6 RS5220 USER MANUAL 1.4 The Server Is Installed on the Rack All Powerleader rack-type servers are compatible with a 19-inch standard rack, installation procedures are described in the shelf Installation Guide. 1.5 Check the Power Cord If the supplied AC power cord does not match the model of the place where the server is used, do not continue, replace it with a compliant power cord.
  • Page 7 RS5220 USER MANUAL 1.6 Add Equipment Before adding the expansion device in your server, verify that the server is not connected to power. When you add drives, expansion cards, and memory, or make any internal changes to your server, restore the server chassis.
  • Page 8 RS5220 USER MANUAL when the hard disk receives an access signal. If the fault occurs, record the error message displayed on the screen and hear the sound code. See the System troubleshooting chapter. www.fs.com...
  • Page 9 RS5220 USER MANUAL 2. Description of the System Structure 2.1 Description of the Front Panel and Structural Characteristics of the PR2510P2 PR2510P2 front panel and indicator light / control panel zoom-in diagram: Figure 2-1 Schematic diagram of the front panel of the PR2510P2 server...
  • Page 10 RS5220 USER MANUAL Definition Color Condition Illustration Server fan, temperature transfer or voltage sensor is in an abnormal state. Often bright: Abnormal System Status Twinkle temperature sensor. Lamp 4 hertz (Hz): The power module is abnormal 2 hertz (Hz): fan,Abnormal...
  • Page 11 RS5220 USER MANUAL PR2510P2 3.5 inch HDD Bay Mounting and HDD Bay Indicator Description: Figure 2-2 3.5 inch HDD bay mounting and bay indicator instructions PR2510P2.5 inch hard disk installation and hard disk indicator instructions: Figure 2-3 2.5 inch hard disk bracket installation and bracket indicator instructions...
  • Page 12 RS5220 USER MANUAL Chassis-shaped: Source Server-redundant power supply System Height 88mm Width 448mm Depth 660mm Weight About 23KG 2.2 PR2510P2 Description of the Rear Window Figure 2-4 PR2510P2 Style A Rear Window IO diagram Figure 2-5 PR2510P2 Style B Rear Window IO diagram...
  • Page 13 RS5220 USER MANUAL Description of the Rear Window Network Lamp Working Status: Name Color Status Ilustration Network connection is Yellow Twinkle normal Orange The IPMI works at 100Mbps Managementport Green/Orange （RJ45） Double-color Green The IPMI works at 1Gbps The network connection is...
  • Page 14 RS5220 USER MANUAL 2.3 Jumper Settings and Connector Description www.fs.com...
  • Page 15 RS5220 USER MANUAL Jumpers Description Default Setting CPUO/CPU1 change the Link J5F1/J5F2 Pins 1-2 (Normal) JTAG JSF10 Clear BIOS Password Pins 1-2 (Normal) J5F11 Force to Power On Pins 1-2 (Normal) J5F6 Me Restoration Mode Pins 1-2 (Normal) J5F5 BIOS Restoration Mode...
  • Page 16 RS5220 USER MANUAL USB3.0 x2 Back USB3.0 Connector x2 IPMI IPMI Ethernet Port Reserved COM Connector www.fs.com...
  • Page 17 RS5220 USER MANUAL 3. System Description and Settings 3.1 CPU 3.1.1 CPU Summary This series supports two Intel Xeon Scalable-SP and second generation Intel Xeon Scalable-SP series processors, UPI support up to 10.4 GT / s, up to 140W. 3.1.2 CPU Installation Steps 3.1.3 Memory Summary...
  • Page 18 RS5220 USER MANUAL 3.1.4 Memory Installation Considerations Because one CPU supports four memory slots, and two CPU's support eight memory slots, so one is used The CPU and using the two CPU in memory are installed in a different order.
  • Page 19 RS5220 USER MANUAL 2. The frequency of memory depends on the CPU and different CPU support maximum memory frequencies. 2933Mhz Install only the second-generation Intel Xeon Scalable-SP (82XX, 62XX) support. 3. Imbalanced memory topologies, such as installing two memories in one memory channel and one memory in the other, can result in reduced memory performance.
  • Page 20 RS5220 USER MANUAL Number Operating System Microsoft Windows 2012R2 Microsoft Windows 2016 Red Hat Enterprise Linux* 7.3 Second-generation Intel Xeon Scalable-SP Series processors Number Operating System Microsoft Windows 2016 Red Hat Enterprise Linux 7.6 www.fs.com...
  • Page 21 RS5220 USER MANUAL 4. The BIOS Settings BIOS is short for a basic input-output system. Basic management of hardware before entering operating systems such as Windows, and many hardware compatibility problems can be solved through upgrading and setting of BIOS. This chapter highlights the setup menu for the BIOS.
  • Page 22 RS5220 USER MANUAL can go from hour to minute key. Change the size of the value: Use to change the size of the current <—>,<＋> value and scroll through the optional values without displaying the list of all values. Default setting: Press <F3> The popup below:...
  • Page 23 RS5220 USER MANUAL 5. Integrated RAID Configuration This chapter describes using the motherboard integrated SATA RAID controller to create RAID1, RAID0 and RAID10, RAID1 is created with only half the total capacity, hard disk backup, much improved reliability. After the RAID0 is created, the hard disk improves read and write speed, reduces reliability, and the available capacity is equal to the total capacity.
  • Page 24 RS5220 USER MANUAL To create an array, select the Create RAID Volume option, and the following menu appears: Press<↑>,<↓> Move the key cursor up and down and select the level of the required array at RAID Level, optional RAID0, RAID1, and RAID5. After you have selected the array level and the...
  • Page 25 RS5220 USER MANUAL hard disk you want to do, tap the Create Volume option to select 'Y' to create the array. As shown in the figure below: To remove the array, select the Delete RAID Volume option, and the following menu appears:...
  • Page 26 RS5220 USER MANUAL 6. Operating System Installation Instructions This chapter describes the manual installation and driver installation of the Windows Server 2016 operating system. 6.1 Microsoft Windows Server 2016 Installation Instructions This guide is suitable for the manual installation of the Microsoft Windows 2008 Server R2 SP1 operating system.
  • Page 27 RS5220 USER MANUAL Start from the disc, load in 2. Go to the following screen and select the language / keyboard: www.fs.com...
  • Page 28 RS5220 USER MANUAL 3. Click to start the installation: 4. Select the type of operating system that you want to install, and press Next www.fs.com...
  • Page 29 RS5220 USER MANUAL 5. Read the User License Agreement with PAGE DOWN / PAGE UP: 6. Select the term I Accept the License Terms and press the term Next step 7. To select how to install the operating system www.fs.com...
  • Page 30 RS5220 USER MANUAL 8. If you do a RAID, the disk cannot be found. Select Load Driver for RAID driver loading to see the disk array. With the left mouse button, the load directory dialog box appears and select the copy directory of step 2 in 6.1.1.If the SATA disk is onboard AHCI mode can directly recognize...
  • Page 31 RS5220 USER MANUAL 9. Srow space size on the disk array installation Windows Server 2016 10. Click OK to confirm the partition: www.fs.com...
  • Page 32 RS5220 USER MANUAL 11. Complete the partition, click Next to install the system; 12. Start copying the data, and install the system: www.fs.com...
  • Page 33 RS5220 USER MANUAL 13. Complete the installation, and restart the computer 14. You need to reset the password before entering the system 15. Enter the password to enter the system: www.fs.com...
  • Page 34 RS5220 USER MANUAL 16. Install the driver, put in the random drive disc, the drive disc open as shown below: 17. Click "Windows" to select the chip and controller to be driven, as shown in the figure below; 18. Install chipset, and other chip driver, graphics and external card drivers inside the expansion card drive disc, select to restart the computer after installation: Chipset main board chipset drive;...
  • Page 35 RS5220 USER MANUAL 6.2 Redhat Enterpise Linux7.3 Installation Instructions 6.1.1 Preparations: If your server needs to load RAID drives when installing the operating system, prepare the U disk and random drive discs. If your server is configured with a RAID plug card, drive discs.
  • Page 36 RS5220 USER MANUAL 3．Select the system language, the default English, and click on Next 4. The system goes to the following interface. (Set time, system package, hard disk partition) www.fs.com...
  • Page 37 RS5220 USER MANUAL 5. Click SOFTWARE SELECTION to select the system software; click Done to return to the step 4 interface; 6. Select INSTALLATION DESTINATION, hard disk partition; (optional automatic or manual partition) www.fs.com...
  • Page 38 RS5220 USER MANUAL 7. Click on Next, 8. Start installing the system as shown in the following figure www.fs.com...
  • Page 39 RS5220 USER MANUAL 9. Set the Root user password, and then click Done, see the figure below 10. Installation is complete, click on REBOOT, see the figure below www.fs.com...
  • Page 40 RS5220 USER MANUAL 11. License information 12. Default click FINISH CONFIGURATION ,as following picture shows: 13. Click on Next by default, see the figure below www.fs.com...
  • Page 41 RS5220 USER MANUAL 14. Click on Next by default, see the figure below 15. Select the time zone (such as Shanghai) and click on Next, see the figure below www.fs.com...
  • Page 42 RS5220 USER MANUAL 16. Click on Skip and see the figure below 17. Create a user, see the figure below www.fs.com...
  • Page 43 RS5220 USER MANUAL 18. Click Start using Red Hat Enterprise Linux Server to enter the system, see the figure below www.fs.com...
  • Page 44 RS5220 USER MANUAL 7. System Troubleshooting 7.1 Introduction to System Reset This chapter helps you check and resolve problems that you may encounter while using the Powerleader server system. Task Keys (combination) Hot start: Clear the system memory and remount <Ctrl>+<Alt>+<Del>...
  • Page 45 RS5220 USER MANUAL Whether the operating system is mounted correctly (see the operating system-related documentation). Whether the server is turned on by pressing the system power button on the front panel (the light indicates that it should be lit) Whether the system power cord is properly connected to the system and plugged into an outlet.
  • Page 46 RS5220 USER MANUAL 7.3 Other Problems and Solutions 7.3.1 Prepare the System for Diagnostic procedures Turn off the device before unplugging the cable: Turn off the external device that is connected to the system before disconnecting the external cable from the system. Failure may result in damage to the system or external devices.
  • Page 47 RS5220 USER MANUAL support or authorized reseller for assistance. 7.4.2 The Screen Does not Display Characters Check the following items: Whether the keyboard is working properly. Check to see if the "Num Lock" light is on. Whether the cable of the monitor is plugged in and whether the power is on. Many monitors now automatically turn off when not working, while when activated require a period of warm-up.
  • Page 48 RS5220 USER MANUAL Whether a short circuit is caused by a squeeze cable or the power connector incorrectly plugged into the power connector connector interface. If the connection is correct and there is AC power in the wall outlet, contact a technical support person or authorized dealer for assistance.
  • Page 49 RS5220 USER MANUAL 8. Statement on Environmental Protection 8.1 ROHS Statement The RoHS Directive 2011 / 65 / EU (ROHS 2.0) was published in the official EU magazine on 1 July 2011 and in 2011 Effective on 21 July. According to ROHS 2.0, we collected the supplier material information and controlled the production process within the company.
  • Page 50 RS5220 USER MANUAL <1000 <1000 <1000 <1000 8.2 Recycling Instructions for Waste Electronics In order to protect the environment, protect human health, according to the law of the People's Republic of China on environmental prevention and control of solid waste pollution...
