Varian PaxScan 4336R Operating Instructions Manual

Digital image receptor, radiographic digital x-ray imaging sub-system
Hide thumbs

Advertisement

Quick Links

Download this manual
Digital Image Receptor
The PaxScan 4336R is a radiographic
digital x-ray imaging sub-system
© Varian Medical Systems | X-Ray Products
35858-000 Rev L
10/2014

Advertisement

loading
Need help?

Need help?

Do you have a question about the PaxScan 4336R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Varian PaxScan 4336R

Summary of Contents for Varian PaxScan 4336R

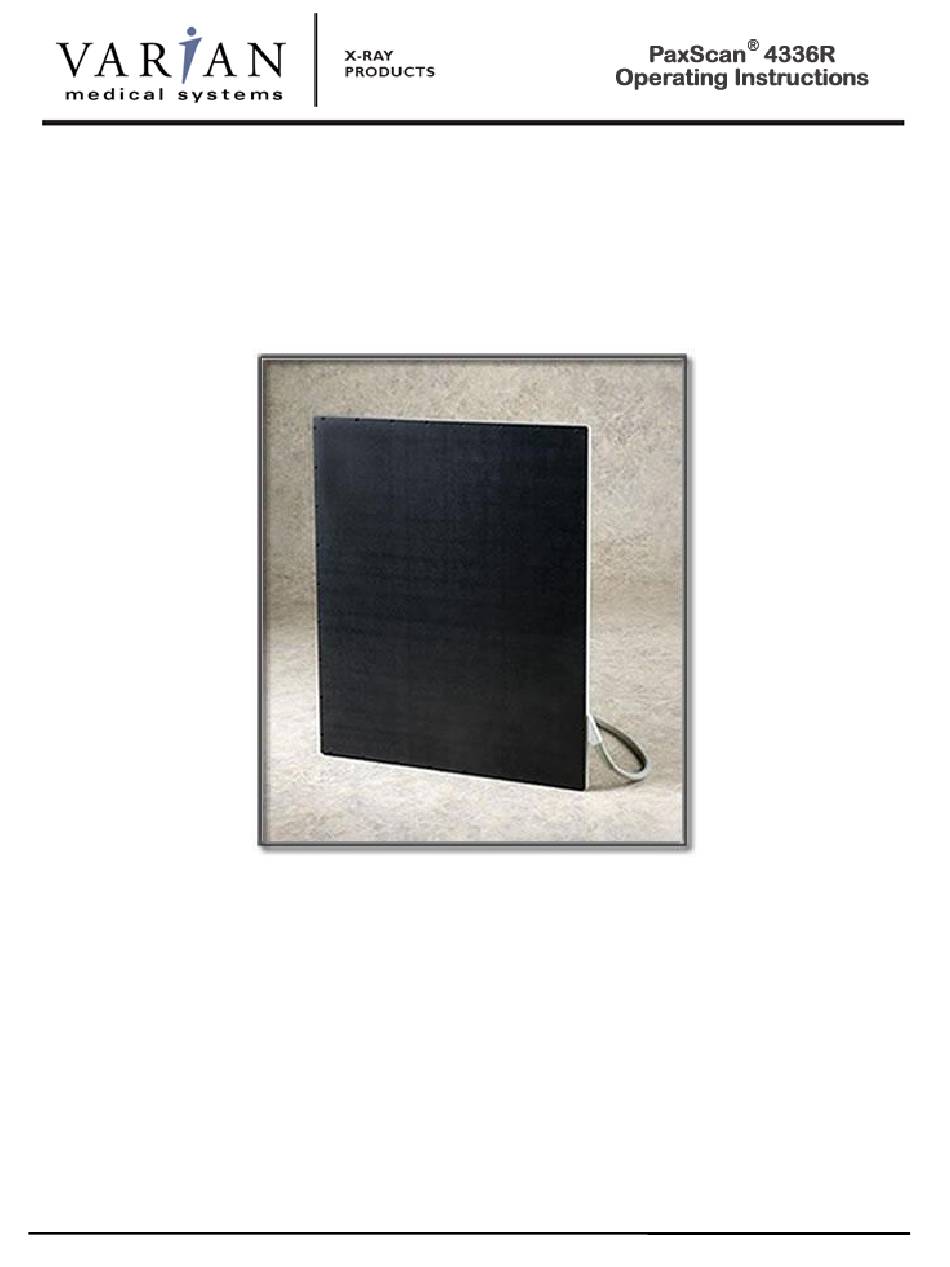

  • Page 1 Digital Image Receptor The PaxScan 4336R is a radiographic digital x-ray imaging sub-system © Varian Medical Systems | X-Ray Products 35858-000 Rev L 10/2014...
  • Page 2 + 1 801 973 5023 Fax Notice Information in this manual is subject to change without notice. Varian is not liable for errors or omissions contained in this manual or for any damages incurred in connection with furnishing or use of this material.
  • Page 3 Sales, Technical Service and Warehouse  Germany Karl-Arnold-StraBe 12 + 49 2154-92 4980 Phone + 49 2154-92 4980 Phone D-47877 Wilich, Germany + 49 2154-92 4994 Fax Sales, Technical Service and Warehouse E-mail: sales-xray@varian.com © Varian Medical Systems | X-Ray Products...
  • Page 4 Chapter Summary Introduction Getting Started Additional Features Paxscan Software Modes of Operation Calibration Procedures Image Acquisition Safety Maintenance Trouble Shooting Problem Report Appendix © Varian Medical Systems | X-Ray Products...
  • Page 5 Paxscan System Software ..........................18 Software Installation ............................18 Receptor Files Installation ..........................21 Modes of Operation ............................22 Table 2-0 PaxScan 4336R Operational Modes ..................22 Default Mode ..............................23 Operation States ............................. 23 Multiple Receptor ............................23 UL 60601-1 Equipment Mode ........................23 Calibration Procedures ............................
  • Page 6 Repairs ................................38 Proper Disposal ..............................38 Troubleshooting ..............................39 How To Reach Us ............................. 40 PaxScan 4336R Problem Report Customer Information ................... 41 Appendix A ............................... 42 Interfacing Information ..........................42 Figure A.1 Block Diagram of the 4336R Imager ................... 42 Figure A.2 Schematic for “Expose Ok”...
  • Page 7 Chapter 1 Introduction The PaxScan 4336R model family of radiographic digital image receptors is commonly referred to as a flat panel detector (FPD). The detector together with image processing and command software called Virtual Command Processor (VCP) is designed for integration into a complete X-ray system. The imaging system has two main system components: The 38.3 x 42.7cm 139µm-pixel amorphous silicon FPD that houses the solid-...
  • Page 8 X-ray beam path of an X-ray source. The 4336R is not intended to be used as a primary barrier to X-rays. The user is responsible for Warning: insuring the safety of the operator, bystanders, and the subjects being radiographed. © Varian Medical Systems | X-Ray Products...
  • Page 9 Warning: nitrous oxide. Do not exceed maximum load weight of 100kg over a Warning: diameter of 40mm and 150kg distributed around the entire surface of the panel. © Varian Medical Systems | X-Ray Products...
  • Page 10 Note: monitors the internal temperature data supplied by the panel, mechanisms can be put in place at the OEM system level to control panel surface temperature so that it does not exceed 41 © Varian Medical Systems | X-Ray Products...
  • Page 11 The device is intended for use on adult patients with healthy skin only. No additional pressure should be applied when patient is in contact with surfaces. Number of image acquisitions not to exceed 150 per hour. Figure 1-0 Patient Contact Surfaces © Varian Medical Systems | X-Ray Products...
  • Page 12 Authorized Representative in the Consult Instruction European Manufacturer for Use Community/European Union Moisture Resistance Level Tested – IPX1 Heated Surface Type B Applied Part minimal water exposure Load Weight Temperature Limits Restriction © Varian Medical Systems | X-Ray Products...
  • Page 13 19.370 ±0.040 x18.697 ±0.040 x .906 ±0.039 inches. Figure 2-0 Imager Configuration Virtual Command Ethernet +20V Processor Software -12V +5.5V PaxScan 4336R Receptor Power Supply (I/O Box External Sync X-ray Control X-rays In Imager Control Image Data Customer System © Varian Medical Systems | X-Ray Products...
  • Page 14 Win32 DLL. The control of the Receptor is platform- independent. The I/O Box (power supply) provides all hardware interfaces for the PaxScan 4336R. It consists of an external hardware interface connection and a power supply. The I/O Box also provides all the DC power necessary for the Receptor through an integrated, internal 24V power supply.
  • Page 15 Req” signal schematic. Connect this cable to the external sync connector on the power supply. Ground Lug Connect chassis ground lug to acceptable ground connection The External Sync Cable Connection is user supplied Note: equipment. This connection shall only be handled by the service personnel. © Varian Medical Systems | X-Ray Products...
  • Page 16 LEDs indicate when external signal are asserted at the time acquisition is taking place. The average lifetime of the panel can be improved by turning it Note: off when not in use. Recommended warm up time for proper image quality is 15 minutes. © Varian Medical Systems | X-Ray Products...
  • Page 17 When using this product with enclosure, you must avoid excessive bending and twisting of the power cable. Regular Warning: inspection of the power cable for any damage is required – immediately replacing the cable if any damage is observed. © Varian Medical Systems | X-Ray Products...
  • Page 18 Additional Features Power Down Algorithm The PaxScan 4336R version 2 model provides an alternative option to allow customer to power down major voltages in the receptor as soon as undesirable higher temperature is reached. This new algorithm will prevent the receptor to work in such conditions thereby lowering the power consumption of it.
  • Page 19 ViVA™. The 4336R model family is compatible with the Paxscan System Software version L04 or higher depending on the model. Please consult your Varian representative. Software Installation Begin software installation by using the run command under the Windows Start button, select Browse, My Computer, and your DVD/CD ROM Drive that contains the PaxScan CD.
  • Page 20 Step Action / Results 1. For a normal install, you may simply accept all the defaults in progressing to the Install Shield Wizard Complete screen. © Varian Medical Systems | X-Ray Products...
  • Page 21 Windows driver though still not nearly as good as the performance driver. We strongly recommend using only the Performance driver for medical applications. The user must validate that any configuration used is suitable for the intended application. © Varian Medical Systems | X-Ray Products...
  • Page 22 Receptor Files Installation Follow through the Install Shield Wizard screens to complete the PaxScan Receptor installation. You must restart  your computer for installation to take effect. © Varian Medical Systems | X-Ray Products...
  • Page 23 Modes of Operation The PaxScan 4336R supports the radiography mode of operation as defined in Table 2-0. In general, there is a trade off between varying operation modes of resolution, or field of view, or cycle time, or noise. The sensitivity of the imager is optimized to match the X-ray dose used in each mode.
  • Page 24 UL 60601-1 Equipment Mode The UL defined operation of equipment mode, UL60601-1 Clause 2.10.3 is “continuous operation with intermittent loading”. The panel is intended to run up to a maximum of 150 cycles per hour. © Varian Medical Systems | X-Ray Products...
  • Page 25 Select Open link Receptor under the Acquisition drop down menu bar to establish connection to the PaxScan imaging system. For multiple receptors, completion of the single receptor setup is required before additional receptors are available for setup in the serial # drop down. © Varian Medical Systems | X-Ray Products...
  • Page 26 To perform offset calibration, click the ViVA icon launches the application Ensure required receptor appears in the Mode drop down. The 4336R currently supports Rad 1x1 4pf. Click Offset Calib. button or select from the menu bar under Acquisition. © Varian Medical Systems | X-Ray Products...
  • Page 27 Step Action / Results An accumulating Dark Frames window appears followed by an offset calibration acquisition completion. © Varian Medical Systems | X-Ray Products...
  • Page 28 Using larger numbers of calibration frames to capture Note: the flat field image will result in more accurate calibration. © Varian Medical Systems | X-Ray Products...
  • Page 29 Receptor during typical procedures, keeping in mind the general consideration outlined above. Repeat The above procedure must be repeated for each of the stored imaging modes. © Varian Medical Systems | X-Ray Products...
  • Page 30 Step Action / Results Ensure the desire receptor and imaging mode appears in the Mode drop down. Click Gain Calibration from the menu bar under Acquisition invokes hardware handshaking for dark field calibration. © Varian Medical Systems | X-Ray Products...
  • Page 31 (3) months, or Note: whenever the central beam of the X-ray source has been moved relative to the Receptor. Replacement of the X-ray tube will require a new gain calibration to be performed. © Varian Medical Systems | X-Ray Products...
  • Page 32 Make sure the desired receptor is selected from the Mode drop down menu; and, that “Hardware Handshaking” is “checked” from the menu bar under Acquisition. ViVA will remember your preference for future launches © Varian Medical Systems | X-Ray Products...
  • Page 33 Select Mode Settings from the menu bar under Acquisition for Calibration and Frame Rate settings. Frame rate settings are fixed. However, calibration frames can be adjusted. System settings are verified as follows. . © Varian Medical Systems | X-Ray Products...
  • Page 34 The Radiography mode provides the technician with superior single-shot, higher resolution images, for  diagnosis. Step Action / Results Select required receptor from Mode drop down menu. The 4336R currently supports Rad 1x1 4pf. Make sure hardware handshaking is checked. © Varian Medical Systems | X-Ray Products...
  • Page 35 Step Action / Results Select the Acquire Image button invokes imager to begin acquiring images Depress operator control fully to “Expose” position to complete image capture and retrieval. © Varian Medical Systems | X-Ray Products...
  • Page 36 Step Action / Results Acquired image can be saved in the desired file format by selecting File / Save As. Note: Operator Control is user supplied equipment. © Varian Medical Systems | X-Ray Products...
  • Page 37 Normal Operation Temperature (measured at the center 10º C to 35º C of the back cover) Operation Humidity (non condensing) 10% to 90% Altitude Limits The Paxscan Digital Imager Receptor is rated to operate at an altitude ≤ 3000m. © Varian Medical Systems | X-Ray Products...
  • Page 38 Basic Safety and Essential Performance Collateral Standard: Electromagnetic Compatibility 3rd ed. ● Type B Applied Part ● CE Mark - Varian Medical Systems’ imaging products are designed and manufactured to meet the Low Voltage Directive 2006/95/EC, MDD 93/42/EEC. ● MDD Class IIa ●...
  • Page 39 • Receptor Assembly • Power Supply (I/O Box) Proper Disposal The 4336R receptor should be returned to Varian Medical Systems for disposal. We request that you obtain an RMA number using the same procedure for warranty/returns of products. Contact: PAXSCAN.RMA@VARIAN.COM Precautions should be taken to not open the receptor module.
  • Page 40 X-rays until the residual image is gone. ViVA error message 1. Please complete PaxScan 4336R Problem Report. 2. Email the error log file generated to: paxscan.rma@varian.com. This log file is normally found at C:\users\{username}\AppData\Local\ crashdumps\viva.log...
  • Page 41 How To Reach Us In order to provide you with the most comprehensive technical support, (hardware or software), please complete the problem report on following page before contacting your Varian representative. To speak with our technical support personnel:  Call (800) 432-4422 dial 8.
  • Page 42 Chapter 11 PaxScan 4336R Problem Report Customer Information Date: Your Name Company/Unit Name: Email: Phone Number: Fax Number: Product Information. PaxScan Part Number: Imager Serial Number: Software Revision #: Operation I was trying to perform (be as specific as possible: What happened (use additional sheets as necessary): PAXSCAN.RMA@varian.com...
  • Page 43 The Hardware Synchronization connection (“B”) is a 9-pin D-sub type. Power for the panel is supplied by a medical-grade “laptop” style supply whose dc supply cable “C” can be up to 3 meters in length. Figure A.1 Block Diagram of the 4336R Imager © Varian Medical Systems | X-Ray Products...
  • Page 44 NOTE: The maximum input voltage on the opto-couplers used in the 4336R is 5V. Refer to the TSM0505S datasheet for additional information. Figure A.2 Schematic for “Expose Ok” and “Expose Request” Signal © Varian Medical Systems | X-Ray Products...
  • Page 45 360 msecs. When the panel receives the Expose_Request, the assumption is that the generator is ready to make an exposure when Expose_OK is issued. Figure A.3 Example Timing for 4336R Synchronization Interface © Varian Medical Systems | X-Ray Products...
