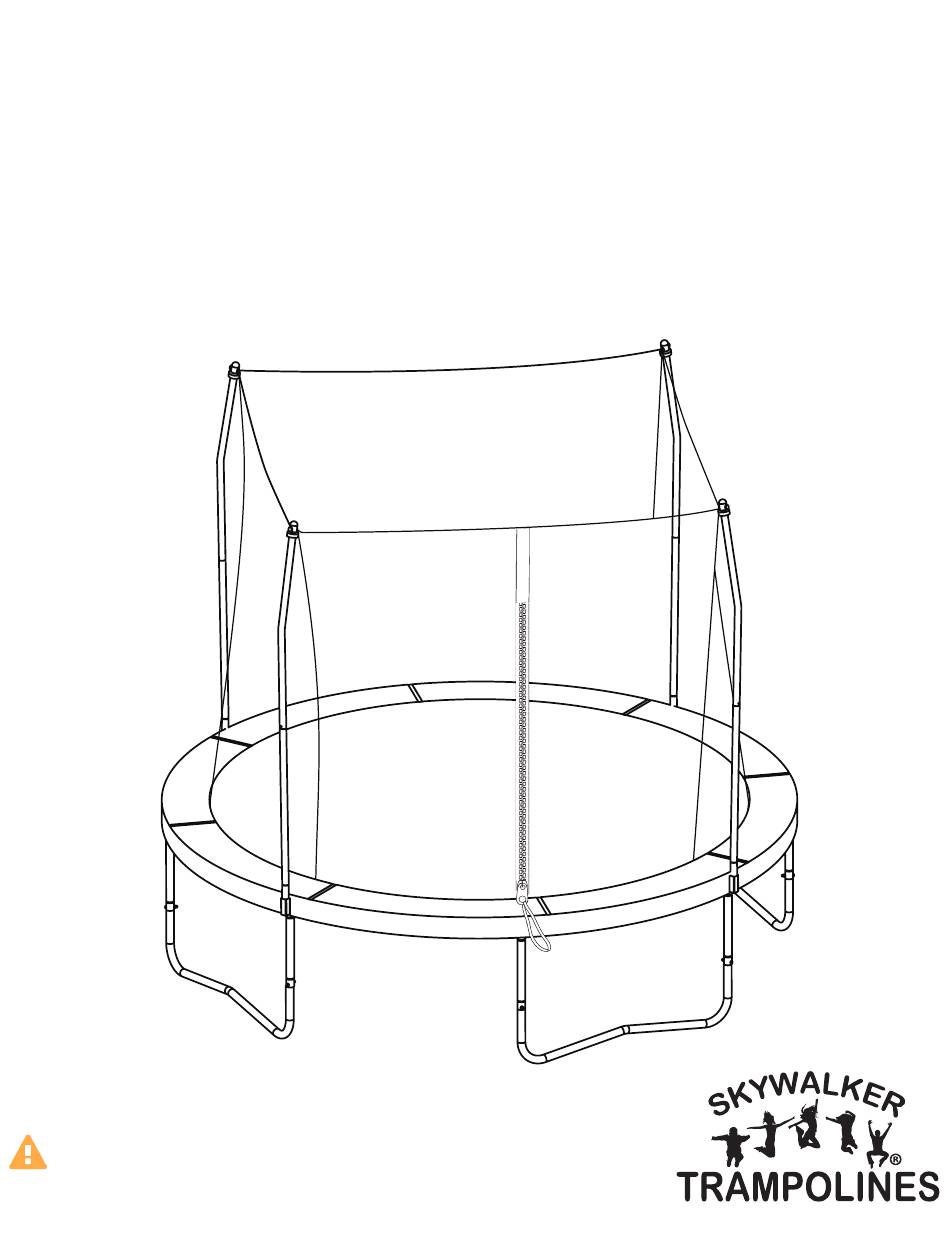

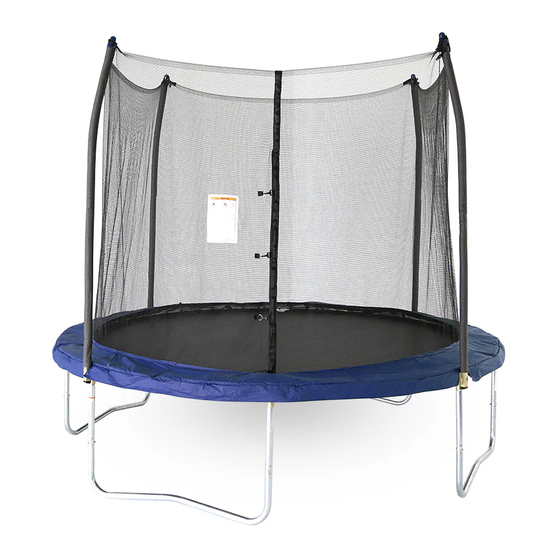

ASSEMBLY, MAINTENANCE, &

USER MANUAL

MODEL #SWTC10

WARNING

Read all precautions and instructions in

this manual before using this equipment.

Save this manual for future reference.

Maximum user weight 175 lbs.

Skywalker Holdings LLC

P.O. Box 574, Brigham City, UT 84302

Need help?

Do you have a question about the SWTC10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Skywalker SWTC10

Page 1 ASSEMBLY, MAINTENANCE, & USER MANUAL MODEL #SWTC10 WARNING Read all precautions and instructions in this manual before using this equipment. Skywalker Holdings LLC Save this manual for future reference. P.O. Box 574, Brigham City, UT 84302 Maximum user weight 175 lbs.
Page 2 TABLE OF CONTENTS Part List.....................................3 Part Identification................................4-5 Exploded Drawing................................6 Assembly..................................8-17 Maintenance and Care Information........................18 Instructions for Use...............................19 Warning Label Placement............................20 Methods of Accident Prevention..........................21 Instructions and Model Lessons........................22-23 Trampoline Safety Information..........................24 Enclosure Safety Information..........................25 Limited Warranty................................26 STOP EVERYTHING YOU'RE DOING AND REGISTER YOUR TRAMPOLINE Find our warranty registration online by typing in: www.skywalkertrampolines.com/registration/ You'll need to have the following information handy: •...
Page 3 BEFORE YOU BEGIN Thanks for choosing Skywalker Trampolines! We’re just as excited as you are to help your family live an active (but most importantly FUN) lifestyle. This model is one of our favorites, and we’re confident you’ll love it too. To make things easier for you, we’ve listed important information that you (and your little outdoor adventurers) need to know.
Page 4 PART IDENTIFICATION Before you begin, take a look at the drawings below to make sure you have all the parts! The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. T-joint (may be pre- Socket (may be Top Tube (x8) installed) (x4)
Page 5 Pole Cap (x4) End Cap (x4) M6x47mm Bolt (x16) M6 Washer (x16) M6 Nut (x16) M5x44mm Bolt (x4) Self-tapping Screw Driver (x1) Wrench (x1) Screw (x4) Spring Tool (x1)
Page 6 EXPLODED DRAWING (18) (18) (13) (13) (12) (10) (10) (12) (18) (19) (13) (19) (10) (12) (11) (12) (10) (19) (19) (12) (11) (11) (12) (16) (15) (17) (16) (15) (17) (17) (15) (16) (16) (17) (17) (17) (16) (15) (15) (16) (16)
Page 7 ASSEMBLY READ THIS BEFORE YOU BEGIN • You’ll probably need at least 2 adults and 2 hours to assemble your trampoline (of course, that depends on what model you have, and whether or not you’re secretly a superhero). • We’ve provided a Phillip’s screw driver and two adjustable wrenches to help with assembly, but you’re more than welcome to use your own tools.
Page 8 ASSEMBLY STEP 3 Insert two leg posts (4) into a T-joint and socket at the same time, and then insert one leg brace (5) into the leg post as shown. Now that you’re a pro at step 2, repeat this step until Leg Brace (x4) you have 4 frame pieces assembled.
Page 9 Place the jump mat on the ground. The warning label should be on the top, Jump Mat (x1) and the ID label should be on the back. Model: SWTC10 Part #: 7019 Description: 10 Foot Mat Made in China...
Page 10 ASSEMBLY STEP 7 Now place the enclosure net (6) on the jump mat (7), and make sure the first hole and the first V-ring line up. Now insert the first V-ring into the first hole. Then, insert the remaining V-rings into their corresponding holes. Once you’ve finished, the enclosure net should be fully attached to the jump mat.
Page 11 STEP 9 You may want to use gloves for this step! Before you begin, make sure each V-ring has been threaded through the holes on the enclosure net. Make sure the enclosure door is lined up with a T-joint. Using the spring tool, hook the smaller end of a spring into the V-ring just left of the enclosure door.
Page 12 ASSEMBLY STEP 11 Next, find the middle of the 2 springs by counting the exact number of V-rings and frame holes. Place a spring into the V-ring just left of the T-joint, and stretch the spring until it reaches the frame hole just left of the T-joint. Now, repeat this step on the other side of the trampoline.
Page 13 STEP 13 Now, place one spring directly to the left of each spring already placed. Continuing in a clock-wise direction, attach the remaining springs to the remaining V-rings and frame holes until all 56 springs have been placed. Springs (x56) 14th 15th 13th...
Page 14 ASSEMBLY STEP 15 Look under the trampoline. Find the straps that are attached to the underside of the frame pad (6). Position the outer straps so that one strap is on each side of the frame. Position the inner straps so that one strap is threaded through a V-ring.
Page 15 STEP 17 Insert one straight tube (11) into one curved tube (10), and secure with one self-tapping screw (19). Important: On the curved tube there is one end that has two holes. Make sure that end is on top! Repeat this step to attach the 3 remaining straight tubes and curved tubes Self-tapping Screws (x4) together.
Page 16 ASSEMBLY STEP 19 Next insert a curved tube (10) into the pole cap (13). Make sure the bent side of the enclosure poles are facing towards the center of the trampoline. Make sure the holes on the curved tube, pole cap, and strap ring are all aligned. Then insert a M5x44mm bolt (18) to secure in place.
Page 17 STEP 21 LAST STEP YOU’RE IN THE FINAL HOME STRETCH. Insert the end caps (14) into the bottom of the sockets. Using the included plastic tie, attach the safety placard to the trampoline frame close to the enclosure door. End Cap (x4) Frame Socket Safety Placard...
Page 18 MAINTENANCE & CARE INFORMATION Congratulations and high five on successfully assembling your new Skywalker Trampolines 10' Round Trampoline with Enclosure! Now, the best way to keep your new trampoline in tip top shape, is to periodically check for: • Missing, improperly positioned, or insecurely attached frame padding, netting, enclosure tubes, or foam sleeves •...
Page 19 INSTRUCTIONS FOR USE To reduce the risk of serious injury, read and follow all of the warnings, precautions, and instructions in this manual before you use the trampoline enclosure. Warnings and instructions for care, maintenance, and use of this trampoline and enclosure are included to promote safe enjoyable use of this equipment.
Page 20 Climb on to and off the trampoline. Do not jump on or off. Do not use the trampoline as a springboard to other objects. Inspect before using and replace any worn, defective or missing parts. For further equipment information contact Skywalker. For skill training information, contact a trainer certification organization. ATTACH TO TRAMPOLINE WARNING Do not land on head or neck.
Page 21 METHODS OF ACCIDENT PREVENTION THE SUPERVISOR’S ROLE IN PREVENTING ACCIDENTS It is the responsibility of the supervisors of trampoline users to provide knowledgeable and mature supervision. They need to know and enforce all of the rules and warnings printed in this manual to minimize the likelihood of accidents and injuries.
Page 22 INSTRUCTIONS & MODEL LESSONS The following lessons are examples of an instructional program. They should follow a complete discussion and demonstration of body mechanics between the supervision and the student(s). 1. Mounting and dismounting: Demonstration and practice of proper techniques. 2.
Page 23 Lesson 5: Seat Drop Lesson 6: Front Drop 1. Land in a sitting position with your legs parallel to the 1. Start from a low bounce and land on the mat in a mat. prone position. 2. Place your hands on the mat beside your hips. 2.
Page 24 TRAMPOLINE SAFETY INFORMATION In trampoline use, as in all active recreational sports, participants can be injured. However, there are steps that can be taken to reduce risk of injury. In this section, primary accident patterns are identified and the responsibilities of supervisors and jumpers in accident prevention are described.
Page 25 ENCLOSURE SAFETY INFORMATION NEED FOR TRAMPOLINE ENCLOSURE SAFETY A trampoline enclosure is a recreational product. The information on this page identifies important safety precautions. The precautions are not all-inclusive, because an enclosure can be used in ways that this manual cannot cover completely.
Page 26 LIMITED WARRANTY Skywalker Holdings, LLC warrants its products to be free from defects in material and workmanship under normal use and service conditions. The steel frame is warranted for three (3) years after the date of purchase. All other parts are warranted for one (1) year after the date of purchase. Warranty coverage extends only to the original retail purchaser from the date of original purchase.
Page 27 NOTE: SKYWALKER HOLDINGS, LLC IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUE OR PROFITS, LOSS OF ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES.
