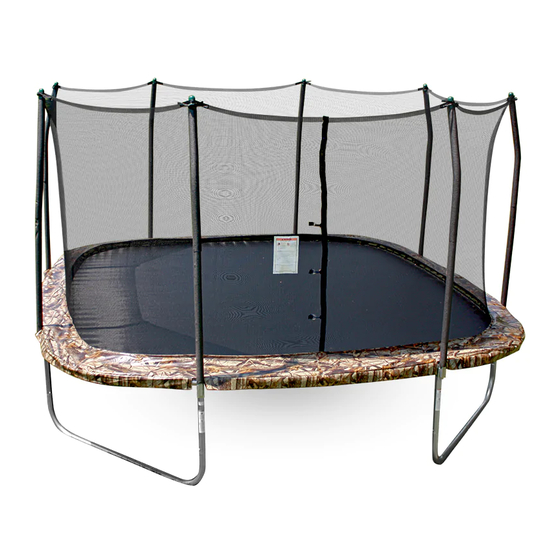

- Page 1 ASSEMBLY, MAINTENANCE, & USER MANUAL MODEL #SWTCS1400 / OWTCS1414 WARNING Read all precautions and instructions in this manual before using this equipment. Skywalker Holdings LLC Save this manual for future reference. P.O. Box 574, Brigham City, UT 84302 Maximum user weight 250 lbs.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Part List.....................................3 Part Identification................................4-5 Exploded Drawing................................6 Assembly...................................7-18 Maintenance and Care Information........................19 Instructions for Use..............................20 Warning Label Placement............................21 Instructions and Model Lessons........................22-23 Trampoline Safety Information..........................24 Enclosure Safety Information..........................25 Methods of Accident Prevention.........................26 Limited Warranty................................27 STOP EVERYTHING YOU'RE DOING AND REGISTER YOUR TRAMPOLINE Find our warranty registration online by typing in: www.skywalkertrampolines.com/registration/ You'll need to have the following information handy: •... -
Page 3: Part List
BEFORE YOU BEGIN Thanks for choosing Skywalker Trampolines! We’re just as excited as you are to help your family live an active (but most importantly FUN) lifestyle. This model is one of our favorites, and we’re confident you’ll love it too. To make things easier for you, we’ve listed important information that you (and your little outdoor adventurers) need to know. -
Page 4: Part Identification
PART IDENTIFICATION Before you begin, take a look at the drawings below to make sure you have all the parts! The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. Tube with Middle Frame Corner Tube (x4) Socket (x8) - Page 5 Pole Cap (x8) End Cap (x8) Foam (x16) M6 Washer (x32) M6x58mm Bolt (x20) M6 Nut (x20) Self-tapping Spring Tool (x1) M5x50mm Bolt (x8) Screw (x8) Wrench (x1) Screw Driver (x1)
-
Page 6: Exploded Drawing
EXPLODED DRAWING (14) (20) (14) (20) (14) (12) (12) (20) (20) (14) (12) (19) (19) (20) (11) (11) (19) (14) (12) (14) (14) (20) (20) (11) (12) (20) (19) (19) (11) (12) (12) (12) (11) (19) (19) (19) (11) (11) (11) (10) (16) -
Page 7: Assembly
ASSEMBLY READ THIS BEFORE YOU BEGIN • You’ll probably need at least 2 adults and 2 hours to assemble your trampoline (of course, that depends on what model you have, and whether or not you’re secretly a superhero). • We’ve provided a Phillip’s screw driver and one adjustable wrench to help with assembly, but you’re more than welcome to use your own tools. - Page 8 ASSEMBLY STEP 3 Insert two leg posts (4) into the sockets, and secure using two M6x58mm bolts (16), two M6 washers (17) and two M6 nuts (18). Repeat this step until all eight leg posts are Leg Post M6x58 M6 Nut M6 Washer assembled.
- Page 9 STEP 5 Insert one U-shaped leg section into the leg posts of a corner frame section. Make sure the holes of the U-leg match the holes of the leg posts. Secure with two M6x58mm bolts (16), four M6 washers (17), and two M6 nuts (18).
- Page 10 ASSEMBLY STEP 7 Now, place two middle frame tubes (bend facing out) between the two frame halves. Slide the two halves of the trampoline together to create a free standing frame. Note: Tighten all the bolts to secure into place. Middle Frame Tube (x2) STEP 8 Now place the enclosure net (7) on the jump mat (8), and make...
- Page 11 STEP 9 Place the jump mat on the ground inside the frame with the enclosure net on top. Be sure to center the enclosure door in the middle of one side of the frame. (Which technically shouldn’t be too difficult considering it’s a square...) Enclosure door Enclosure door...
- Page 12 ASSEMBLY STEP 11 Attach two springs on the opposite middle frame tube. You should now have four springs attached. Spring (x2) STEP 12 Starting with the spring just placed, count 23 V-rings and 23 spring holes to the right, and attach two springs. Then, count 23 V-rings and 23 spring holes to the left, and attach two springs.
- Page 13 STEP 13 Starting from the pair of springs opposite of the enclosure door, count 6 V-rings and 6 spring holes to the right to attach a spring. Then, count 6 V-ring and 6 spring holes to the left to attach an additional spring. Repeat this process on each side of the trampoline, to place 6 remaining springs (2 on each side).
- Page 14 ASSEMBLY STEP 15 Now, working in a clockwise direction, attach all of the remaining springs. Make sure the V-rings and frame holes line up correctly! (Remember, you’re the boss here. You tell those springs what to do! And other people if they’re helping...) Spring (x48) STEP 16 Lay the spring pad (10) on the frame.
- Page 15 STEP 17 Look under the trampoline and find the straps that are attached to the underside of the spring pad (10). Position the outer straps so that one strap is on each side of the frame. Position the inner straps so that one strap is threaded through a V-ring.
- Page 16 ASSEMBLY STEP 19 Insert one straight tube (11) into one curved tube (12), and secure with one self-tapping screw (19). Important: On the curved tube there is one end that has two holes. Make sure that end is on top! Repeat this step to attach the 7 remaining straight tubes and curved tubes Self-tapping Screw (x8) together.
- Page 17 STEP 21 Next insert a curved tube (12) into the pole cap (14). Make sure the bent side of the enclosure poles are facing towards the center of the trampoline. Make sure the holes on the curved tube, pole cap, and strap ring are all aligned. Then insert a M5x50mm bolt (20) to secure in place.
- Page 18 STEP 23 LAST STEP YOU’RE IN THE FINAL HOME STRETCH. Insert the end caps (15) into the bottom of the sockets. Using the included plastic tie, attach the safety placard to the trampoline frame close to the enclosure door. End Cap (x8) Safety placard STEP 24 Congratulations on completing your new trampoline! (See...
-
Page 19: Maintenance And Care Information
MAINTENANCE & CARE INFORMATION Congratulations and high five on successfully assembling your new Skywalker Trampolines 14' Square Trampoline with Enclosure! Now, the best way to keep your new trampoline in tip top shape, is to periodically check for: • Missing, improperly positioned, or insecurely attached frame padding, netting, enclosure tubes, or foam sleeves •... -
Page 20: Instructions For Use
INSTRUCTIONS FOR USE To reduce the risk of serious injury, read and follow all of the warnings, precautions, and instructions in this manual before you use the trampoline enclosure. Warnings and instructions for care, maintenance, and use of this trampoline and enclosure are included to promote safe enjoyable use of this equipment. -
Page 21: Warning Label Placement
Climb on to and off the trampoline. Do not jump on or off. Do not use the trampoline as a springboard to other objects. Inspect before using and replace any worn, defective or missing parts. For further equipment information contact Skywalker. For skill training information, contact a trainer certification organization. ATTACH TO TRAMPOLINE WARNING Do not land on head or neck. -
Page 22: Instructions And Model Lessons
INSTRUCTIONS & MODEL LESSONS The following lessons are examples of an instructional program. They should follow a complete discussion and demonstration of body mechanics between the supervision and the student(s). 1. Mounting and dismounting: Demonstration and practice of proper techniques. 2. - Page 23 Lesson 5: Seat Drop Lesson 6: Front Drop 1. Land in a sitting position with your legs parallel to the 1. Start from a low bounce and land on the mat in a mat. prone position. 2. Place your hands on the mat beside your hips. 2.
-
Page 24: Trampoline Safety Information
TRAMPOLINE SAFETY INFORMATION In trampoline use, as in all active recreational sports, participants can be injured. However, there are steps that can be taken to reduce risk of injury. In this section, primary accident patterns are identified and the responsibilities of supervisors and jumpers in accident prevention are described. -
Page 25: Enclosure Safety Information
ENCLOSURE SAFETY INFORMATION NEED FOR TRAMPOLINE ENCLOSURE SAFETY A trampoline enclosure is a recreational product. The information on this page identifies important safety precautions. The precautions are not all-inclusive, because an enclosure can be used in ways that this manual cannot cover completely. -
Page 26: Methods Of Accident Prevention
METHODS OF ACCIDENT PREVENTION THE SUPERVISOR’S ROLE IN PREVENTING ACCIDENTS It is the responsibility of the supervisors of trampoline users to provide knowledgeable and mature supervision. They need to know and enforce all of the rules and warnings printed in this manual to minimize the likelihood of accidents and injuries. -
Page 27: Limited Warranty
LIMITED WARRANTY Skywalker Holdings, LLC warrants its products to be free from defects in material and workmanship under normal use and service conditions. The steel frame is warranted for three (3) years after the date of purchase. All other parts are warranted for one (1) year after the date of purchase. Warranty coverage extends only to the original retail purchaser from the date of original purchase. - Page 28 NOTE: SKYWALKER HOLDINGS, LLC IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUE OR PROFITS, LOSS OF ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES.
