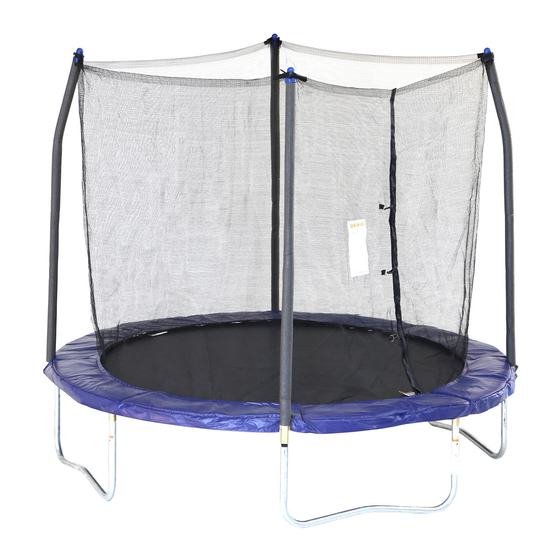

  • Page 1 User’s Manual Model______________ SWTC800 WARNING Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference. Maximum user weight 175 lbs. IMPORTANT CAUTION: Adult Assembly Required Trampoline and Enclosures are susceptible to winds. Be sure to secure your trampoline and enclosure.

  • Page 2: Table Of Contents

    SWTC800 Model_____________ A serial decal is found on one of the trampoline legs. Model number decal tag is located on the jumping mat. CONTENTS Important Precautions...........3 Warning Label Placement........4 Before You Begin..........4 Trampoline Safety Information......5 Enclosure Safety Information.......6 Methods of Accident Prevention......7 Important Warnings..........8...

  • Page 3: Important Precautions

    USE INSTRUCTIONS WARNING: To reduce the risk of serious injury, read and follow all of the warnings, precautions, and instructions in this manual before you use the trampoline enclosure. Warnings and instructions for care, maintenance, and use of this trampoline and enclosure are included to promote safe, enjoyable use of this equipment. It is the responsibility of the owner and supervisors of the Do not attach anything to the enclosure barrier that is not a trampoline and enclosure to make sure all users obey the safety...

  • Page 4: Warning Label Placement

    BEFORE YOU BEGIN Thank you for choosing your Skywalker Trampolines brand Trampoline. Skywalker Trampoline round Trampolines are designed and crafted to provide many years of fun and fitness. This trampoline comes equipped with warnings and instructions for the assembly, care, maintenance, and use of the trampoline.

  • Page 5: Trampoline Safety Information

    TRAMPOLINE SAFETY INFORMATION In trampoline use, as in all active recreational sports, participants can be injured. However, there are steps that can be taken to reduce the risk of injury. In this section, primary accident patterns are identified and the responsibilities of supervisors and jumpers in accident prevention are described.

  • Page 6: Enclosure Safety Information

    ENCLOSURE SAFETY INFORMATION NEED FOR TRAMPOLINE ENCLOSURE SAFETY A trampoline enclosure is a recreational product. The information on this page and on pages 7-9 identify important safety precautions. The precautions are not all-inclusive, because an enclosure can be used in ways that this manual cannot cover completely. To prevent pinches and cuts during enclosure use, a frame pad must be installed on the trampoline (See the trampoline manufacturer’s instructions).

  • Page 7: Methods Of Accident Prevention

    METHODS OF ACCIDENT PREVENTION The Supervisor's Role in Preventing Accidents It is the responsibility of the supervisors of trampoline users to provide knowledgeable and mature supervision. They need to know and enforce all of the rules and warnings printed in this manual to minimize the likelihood of accidents and injuries.

  • Page 8: Important Warnings

    • Wear clothing that does not have drawstrings, hooks, loops or anything else that could get caught while using the trampoline/enclosure and result in entanglement or strangulation, or both. • Do not attach anything to the netting that is not a Skywalker Trampolines approved accessory or part of the of the trampoline enclosure.

  • Page 9: Use And Instructional Material

    D-ring on the jump mat and that the horizontal clips are attached to the D-rings on the enclosure netting, both during use and after use. For additional information regarding equipment, contact Skywalker Holding, LLC. For additional information regarding skill training, contact a trainer certification organization.

  • Page 10: Instructional Program And Model Lessons

    INSTRUCTIONAL PROGRAM AND MODEL LESSONS The following lessons are examples of an instructional program. They should follow a complete discussion and demonstration of body mechanics between the supervision and the student(s). See also page 11. 1. Mounting and dismounting (getting on and off)-Demonstration and practice of proper techniques. 2.
  • Page 11 Lesson 5: Seat Drop Lesson 6: Front Drop 1. Review and practice of skills already learned. 1. To save time and avoid mat (bed) burns, all students should 2. Land in a sitting position with your legs parallel to the be requested to assume the front drop position on the floor mat.

  • Page 12: Part Identification Chart

    Model No. SWTC800 Use below drawings to identify all the parts. Top Tube with T-joint (4 pcs) Top Tube with Socket (4 pcs) Leg brace (4 pcs) Enclosure net (1 pc) Spring (56 pcs) Jumping mat (1 pc) Frame Pad (1 pc)

  • Page 13: Exploded Drawing And Parts List

    SWTC800...

  • Page 14: Ordering Replacement Parts

    SWTC800 Key No. Qty. Description Top Tube with T-joint Top Tube with Socket Leg brace Enclosure net Jumping mat Frame PAD Spring Foam Straight Tube Curved Tube End Cap Pole Cap Self-tapping Screw(2 spare parts) M5x47mm Bolt Screw Driver Spring Tool User’s Manual and Safety Placard...

  • Page 15: Assembly

    ASSEMBLY ASSEMBLY (PUTTING THE TRAMPOLINE AND ENCLOSURE TOGETHER) IMPORTANT ASSEMBLY INFORMATION • Need phillips screw driver (included with trampoline) and 2 adjustable wrenches (for putting the trampoline together). A rubber mallet is also recommended to make assembly easier. • Assembly requires two adults. Keep children away from the trampoline and enclosure until they are completely put together. •...
  • Page 16 Press down on both Leg Brace(3) at the same time and fully insert them into the T-joint and Socket , then tighten by two Self-tapping screws(13). Repeat above assembly steps until four frame pieces are completed. Then flip the trampoline frame pieces over so that the legs are now holding the trampoline frame pieces up.
  • Page 17 If the Enclosure net(4) and Jumping mat(5) are not pre-installed, follow below steps to install. Place the Jumping mat(5) on clear ground. Identify the warning label on mat top and the ID label on mat back as shown. the first hole ID label (on mat back) the first V-ring Place the Enclosure net(4) on the Jumping mat(5),...
  • Page 18 If the Enclosure net and Jumping mat are pre-installed, follow below steps to assemble the Jumping mat to frame. T-joint 5.1 Inspect the connection of Jumping mat and Enclosure Warning net, make sure all the V-rings are passed through the Decal corresponding net holes.
  • Page 19 Attach the Spring as follows: V-ring Hook one end of Spring into the V-ring sewn on Jumping mat. Hook a Spring Tool as shown to the free end of the Spring. Pull the Spring until it reaches the frame. Push the end of the Spring into a hole in the frame, then unlook the Spring Tool Frame CAUTION:...
  • Page 20 Attach all the remaining V-rings with spring to Top tube holes correspondlingly. Enclosure door T-joint Lay the Frame Pad(6) on the frame. Adjust it’s position so that the slits are just above the Sockets as shown. CAUTION: Do not use the trampoline without the Frame Pad(6).The Frame Pad is designed to reduce the possibility of injuries due to jumpers coming in contact with the trampoline frame.
  • Page 21 Inner Straps 7. Look underneath the trampoline. Locate the straps Strap sewn in the outside of attached to the underside of the Frame Pad. Position the Joint for the pad bottom each outer strap so that one strap is on each side of Inner Straps the frame as shown.
  • Page 22 Follow below steps to attach Curved tube to cap Hexagon hole Holes Identify the hexagon hole on the Pole Cap(12) with a nut buried inside. Insert the Pole Cap(12) into one strap ring on the top Strap ring edge of net. Make sure the Hexagon hole side of the cap is against the net, and the holes on both the strap ring and the caps are aligned.
  • Page 23 Insert the end cap(11) into the bottom hole of the Socket as shown. Socket Using a ladder, reach to the top of the enclosure poles and tie the straps around the pole caps as shown. Make sure to secure the knot tightly. (Do not stand on the edge of the trampoline to do Strap Strap...

  • Page 24: Care And Maintenance

    WARNING TRAMPOLINE AND ENCLOSURE CARE AND MAINTENANCE Care To avoid damage to the trampoline and enclosure, do not allow pets or animals inside the enclosure. The trampoline is intended to be used by one person at a time who weighs no more than 175 pounds. The user should be either barefoot, wearing socks, or wearing gymnastic shoes.

  • Page 25: Limited Warranty

    Skywalker Holdings, LLC option, the product at one of this authorized service centers. All products for which a warranty claim is made must be received by Skywalker Holdings, LLC at one of its authorized locations. Preauthorization may be obtained by calling Skywalker Holding, LLC Customer Care Hot Line at 1-866-603-Jump(5867).
