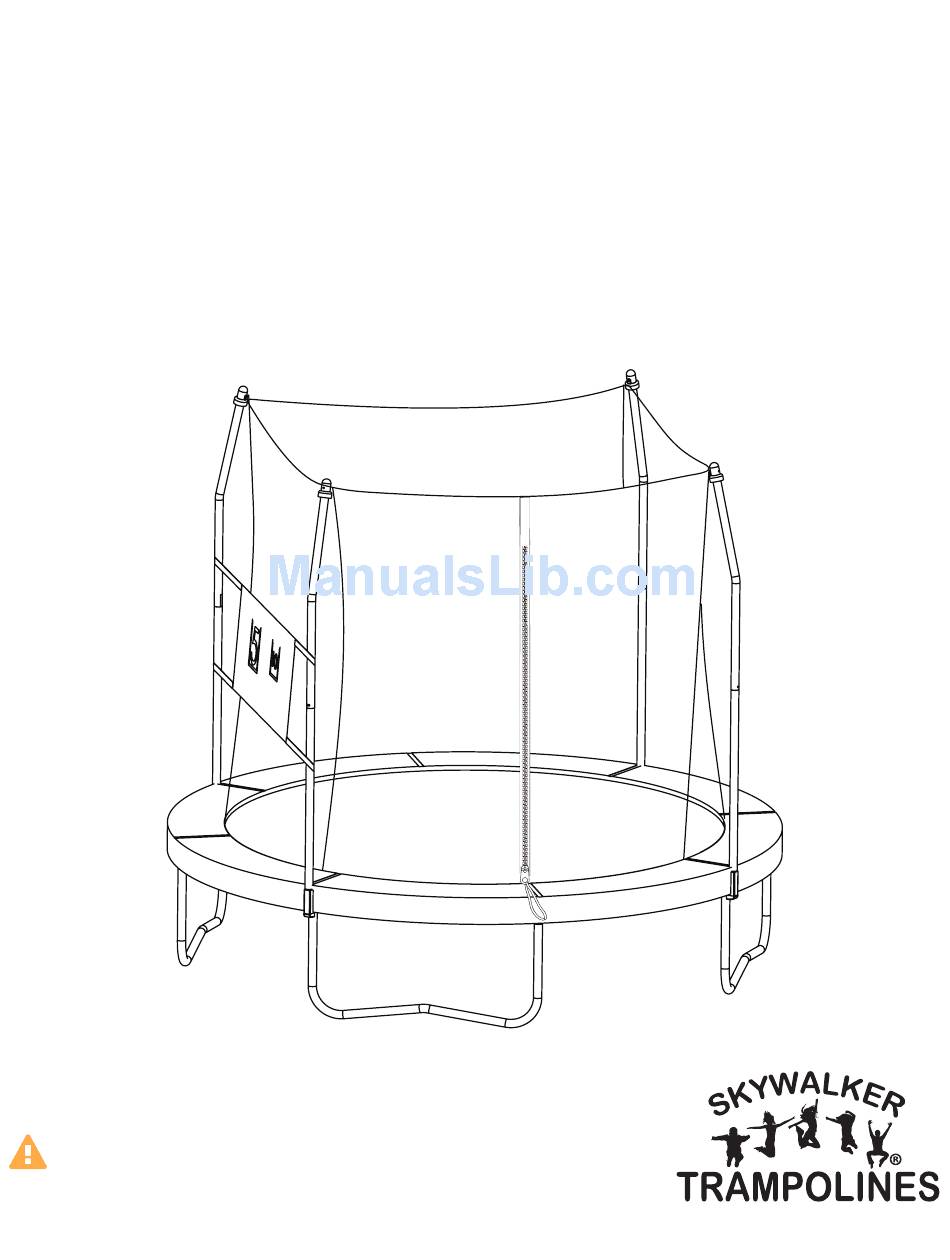

ASSEMBLY, MAINTENANCE, &
USER MANUAL
MODEL #JTEC8B
WARNING
Read all precautions and instructions in
this manual before using this equipment.
Save this manual for future reference.
Maximum user weight 175 lbs.
Skwalker Holdings LLC
P.O. Box 574, Brigham City, UT 84302

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JTEC8B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skywalker JTEC8B

Summary of Contents for Skywalker JTEC8B

  • Page 1 ASSEMBLY, MAINTENANCE, & USER MANUAL MODEL #JTEC8B WARNING Read all precautions and instructions in this manual before using this equipment. Skwalker Holdings LLC Save this manual for future reference. P.O. Box 574, Brigham City, UT 84302 Maximum user weight 175 lbs.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Part List...................................3 Part Identification...............................4-5 Exploded Drawing..............................6 Assembly..................................7-17 Maintenance and Care Information......................18 Double Toss Game..............................18 Instructions for Use..............................19 Warning Label Placement..........................20 Methods of Accident Prevention.........................21 Instructions and Model Lessons......................22-23 Trampoline Safety Information........................24 Enclosure Safety Information........................25 Limited Warranty..............................26 STOP EVERYTHING YOU'RE DOING AND REGISTER YOUR TRAMPOLINE Find our warranty registration online by typing in: www.skywalkertrampolines.com/registration/ You'll need to have the following information handy: •...

  • Page 3: Part List

    BEFORE YOU BEGIN Thanks for choosing Skywalker Trampolines! We’re just as excited as you are to help your family live an active (but most importantly FUN) lifestyle. This model is one of our favorites, and we’re confident you’ll love it too. To make things easier for you, we’ve listed important information that you (and your little outdoor adventurers) need to know.

  • Page 4: Part Identification

    PART IDENTIFICATION Before you begin, take a look at the drawings below to make sure you have all the parts! The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. T-joint (may be pre- Socket (may be Leg Brace (x4) installed) (x4)
  • Page 5 Self-tapping M5x44mm Bolt (x4) Screw Driver (x1) Screw (x16) Double Toss Spring Tool (x1) Sand Bag (x6) Game (x1) Top Tube (x8)

  • Page 6: Exploded Drawing

    EXPLODED DRAWING (14) (14) (12) (12) (14) (12) (10) (10) (14) (12) (13) (13) (10) (13) (13) (19) (19) (19) (13) (19) (11) (13) (13) (19) (13) (19) (19) (13) (19) (11) (13) (11)

  • Page 7: Assembly

    ASSEMBLY READ THIS BEFORE YOU BEGIN • You’ll probably need at least 2 adults and 2 hours to assemble your trampoline (of course, that depends on what model you have, and whether or not you’re secretly a superhero). • We’ve provided a Phillip’s screw driver and two adjustable wrenches to help with assembly, but you’re more than welcome to use your own tools.
  • Page 8 ASSEMBLY STEP 3 Insert a leg brace (3) into a T-joint and socket at the same time, and tighten with two self-tapping screws (13). Now that you’re a pro at Step 2, repeat this step until you have 4 frame pieces assembled. Leg Brace (x4) Self-tapping Screws (x8) (13)
  • Page 9 ID label should be on the back. Model: TJN800 Part #: 7013 Description: 8 Foot Mat Made in China Skywalker Holdings, LLC PO Box 547, Brigham City, UT, 84302 USA www.skywalkertrampolines.com Factory address: Wei Jia Tun Village Ligezhuang town Jiaozhou city Qingdao China WARNING Trampoline and enclosures are susceptible to winds, secure your trampoline and enclosure.
  • Page 10 ASSEMBLY STEP 7 Place the jump mat (5) on clear ground inside the frame. Make sure the 2 warning decals align with 2 T-joints! Warning label T-joint Enclosure door Warning label T-joint STEP 8 You may want to use gloves for this step! Before you begin, make sure each V-ring has been threaded through the holes on the enclosure net.
  • Page 11 STEP 9 Now, repeat step 8 on the other side of the trampoline. Make sure to count the exact number of V-rings and frame holes so each one corresponds! You now have attached 2 V-rings to the frame holes using 2 springs. Springs (x1) Enclosure door STEP 10...
  • Page 12 ASSEMBLY STEP 11 Next, place 4 springs into the V-rings just left of the 4 remaining sockets, and stretch the springs until they reach the frame holes just left of the sockets. You now have attached 8 V-rings to the frame holes using 8 springs. There Springs (x4) should be 6 V-rings and 6 frame holes in between each spring.
  • Page 13 STEP 13 Place the frame pad (6) on top of the springs. Adjust the frame pad so that the slits are directly above the T-sockets. Important: Don’t use the trampoline without the frame pad. It’s designed to protect your little jumpers! Trust us on this one. Frame Pad (x1) Socket Slit of Pad...

  • Page 14: Self-Tapping

    ASSEMBLY STEP 15 If you want, take a snack break because you’re MORE THAN HALFWAY DONE, and you deserve it. This next step is easy. Just slide all the straight tubes (9) and curved tubes (10) into foam (8). If you’re having trouble getting the foam over the tubes, try adding a small amount of water inside the Straight Curved...

  • Page 15: M5X44Mm Bolt (X4)

    STEP 17 Important: The pole cap (12) has two sides; one with a hexagon hole, and one with a regular hole. Insert the pole cap into one strap ring found on the top of the enclosure net. Make sure the hexagon hole is facing the net, and the regular hole is facing Pole Cap (x4) you.
  • Page 16 ASSEMBLY STEP 19 Starting from the enclosure door, lift one of the assembled poles and insert the straight tube (9) into the socket. Repeat this process to assemble the 3 remaining poles. Helpful tip: When inserting the enclosure poles, pull back on the middle of the poles! Pull back Socket Socket...
  • Page 17 STEP 21 LAST STEP YOU’RE IN THE FINAL HOME STRETCH. Using the included plastic tie, attach the safety placard to the trampoline frame close to the enclosure door. Frame Safety Placard STEP 22 Congratulations on completing your new trampoline! (See... we knew you could do it!) So here comes the real question...

  • Page 18: Maintenance And Care Information

    MAINTENANCE & CARE INFORMATION Congratulations and high five on successfully assembling your new Skywalker Trampolines 8' Round Trampoline with Enclosure! Now, the best way to keep your new trampoline in tip top shape, is to periodically check for: • Missing, improperly positioned, or insecurely attached frame padding, netting, enclosure tubes, or foam sleeves •...

  • Page 19: Instructions For Use

    INSTRUCTIONS FOR USE To reduce the risk of serious injury, read and follow all of the warnings, precautions, and instructions in this manual before you use the trampoline enclosure. Warnings and instructions for care, maintenance, and use of this trampoline and enclosure are included to promote safe enjoyable use of this equipment.

  • Page 20: Warning Label Placement

    Climb on to and off the trampoline. Do not jump on or off. Do not use the trampoline as a springboard to other objects. Inspect before using and replace any worn, defective or missing parts. For further equipment information contact Skywalker. For skill training information, contact a trainer certification organization. ATTACH TO TRAMPOLINE WARNING Do not land on head or neck.

  • Page 21: Methods Of Accident Prevention

    METHODS OF ACCIDENT PREVENTION THE SUPERVISOR’S ROLE IN PREVENTING ACCIDENTS It is the responsibility of the supervisors of trampoline users to provide knowledgeable and mature supervision. They need to know and enforce all of the rules and warnings printed in this manual to minimize the likelihood of accidents and injuries.

  • Page 22: Instructions And Model Lessons

    INSTRUCTIONS & MODEL LESSONS The following lessons are examples of an instructional program. They should follow a complete discussion and demonstration of body mechanics between the supervision and the student(s). 1. Mounting and dismounting: Demonstration and practice of proper techniques. 2.
  • Page 23 Lesson 5: Seat Drop Lesson 6: Front Drop 1. Land in a sitting position with your legs parallel to the 1. Start from a low bounce and land on the mat in a mat. prone position. 2. Place your hands on the mat beside your hips. 2.

  • Page 24: Trampoline Safety Information

    TRAMPOLINE SAFETY INFORMATION In trampoline use, as in all active recreational sports, participants can be injured. However, there are steps that can be taken to reduce risk of injury. In this section, primary accident patterns are identified and the responsibilities of supervisors and jumpers in accident prevention are described.

  • Page 25: Enclosure Safety Information

    ENCLOSURE SAFETY INFORMATION NEED FOR TRAMPOLINE ENCLOSURE SAFETY A trampoline enclosure is a recreational product. The information on this page identifies important safety precautions. The precautions are not all-inclusive, because an enclosure can be used in ways that this manual cannot cover completely.
