Skywalker SWTCS15 Assembly, Maintenance & User Manual

Hide thumbs Also See for SWTCS15:
Table of Contents

Advertisement

Quick Links

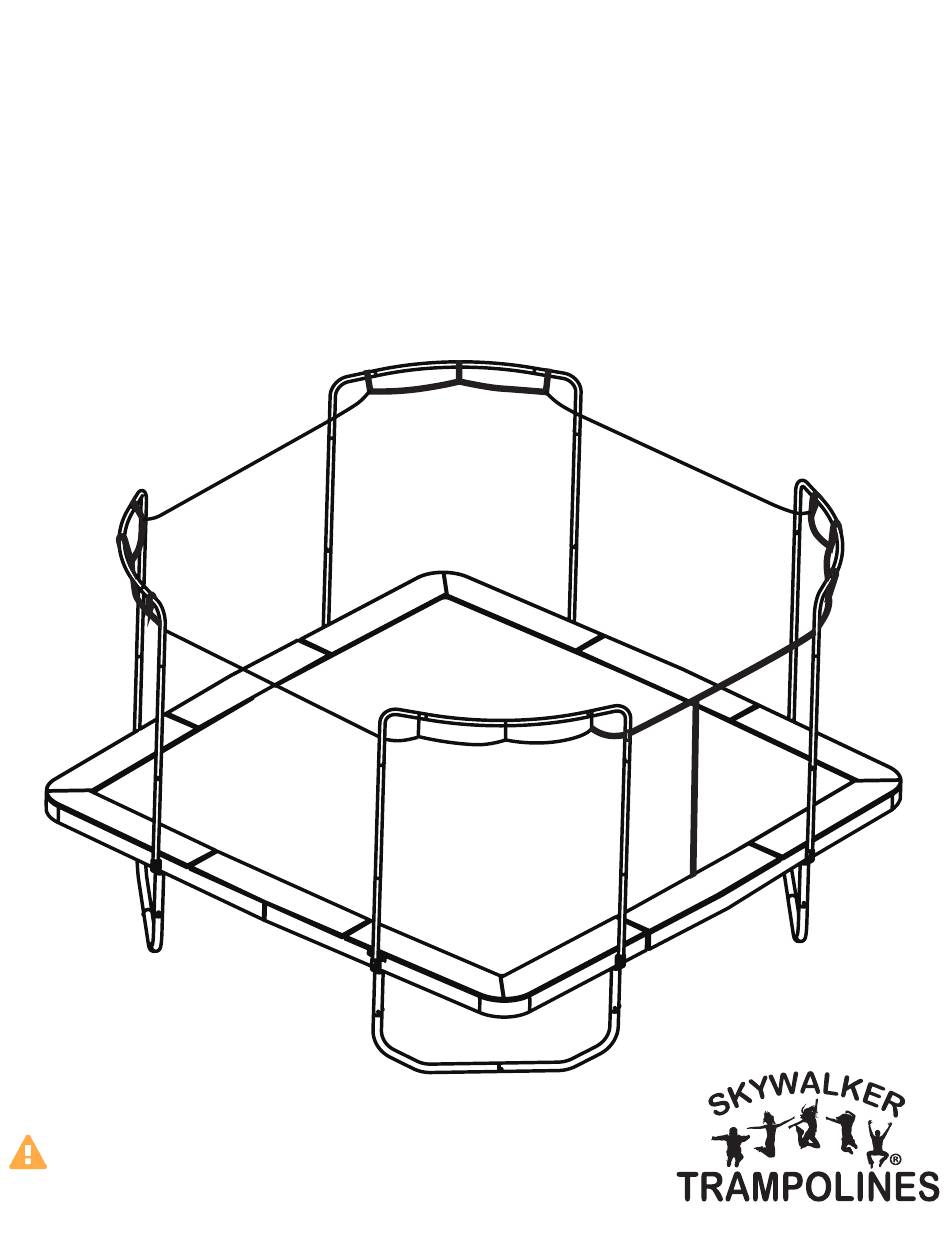

ASSEMBLY, MAINTENANCE, &
USER MANUAL
MODEL #SWTCS15 / SWTCS015
WARNING
Read all precautions and instructions in
this manual before using this equipment.
Skywalker Holdings LLC
Save this manual for future reference.
P.O. Box 574, Brigham City, UT 84302
Maximum user weight 250 lbs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWTCS15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skywalker SWTCS15

Summary of Contents for Skywalker SWTCS15

  • Page 1 ASSEMBLY, MAINTENANCE, & USER MANUAL MODEL #SWTCS15 / SWTCS015 WARNING Read all precautions and instructions in this manual before using this equipment. Skywalker Holdings LLC Save this manual for future reference. P.O. Box 574, Brigham City, UT 84302 Maximum user weight 250 lbs.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Part List.....................................3 Part Identification................................4-6 Exploded Drawing................................7 Assembly..................................8-20 Maintenance and Care Information........................21 Instructions for Use..............................22 Warning Label Placement............................23 Instructions and Model Lessons........................24-25 Trampoline Safety Information..........................26 Enclosure Safety Information..........................27 Methods of Accident Prevention........................28 Limited Warranty................................29 STOP EVERYTHING YOU'RE DOING AND REGISTER YOUR TRAMPOLINE Find our warranty registration online by typing in: www.skywalkertrampolines.com/registration/ You'll need to have the following information handy: •...

  • Page 3: Part List

    BEFORE YOU BEGIN Thanks for choosing Skywalker Trampolines! We’re just as excited as you are to help your family live an active (but most importantly FUN) lifestyle. This model is one of our favorites, and we’re confident you’ll love it too. To make things easier for you, we’ve listed important information that you (and your little outdoor adventurers) need to know.

  • Page 4: Part Identification

    PART IDENTIFICATION Before you begin, take a look at the drawings below to make sure you have all the parts! The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. Corner Tube (x4) Straight Tube (x8) Curved Tube (x4) Male Leg (x4)
  • Page 5 Top Tube (x4) Upper Tube (x8) Top Corner Tube (x8) Strap with D-rings Lower Tube (x8) Foam (x20) (x12) Self-tapping Screw M10x88mm Bolt (x16) M10 Washer (x16) (x26) (2 Spare Parts) M6 Washer (x40) M10 Nut (x16) M6x70mm Bolt (x20)
  • Page 6 PART IDENTIFICATION Before you begin, take a look at the drawings below to make sure you have all the parts! The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. M6 Nut (x20) Bolt End Cap (x16) End Cap (x8) Spring Tool (x1)

  • Page 7: Exploded Drawing

    EXPLODED DRAWING (13) (14) (14) (14) (14) (15) (15) (13) (15) (13) (16) (16) (14) (15) (14) (16) (15) (15) (16) (13) (14) (14) (18) (16) (15) (16) (15) (16) (16) (12) (10) (11) (11) (22) (26) (26) (22) (21) (21) (20) (20)

  • Page 8: Assembly

    ASSEMBLY READ THIS BEFORE YOU BEGIN • You’ll probably need at least 2 adults and 2 hours to assemble your trampoline (of course, that depends on what model you have, and whether or not you’re secretly a superhero). • We’ve provided a Phillip’s screw driver and two adjustable wrenches to help with assembly, but you’re more than welcome to use your own tools.
  • Page 9 ASSEMBLY STEP 3 Place the sockets onto the end of each tube and line up the holes. Secure using four M10x88mm bolts (20), four M10 washers (21), four M10 nuts (22). Then, place four bolt end caps (26) onto the bolt ends. Repeat this step M10 Washer M10 Nut Bolt End...
  • Page 10 ASSEMBLY STEP 5 Insert one male leg (5) into one female leg (6), and secure with one M6x70mm bolt (23), two M6 washers (24), and one M6 nut (25). Repeat this step until you have Male Female M6 Washer M6 Nut M6x70mm made four U-shaped leg sections.
  • Page 11 STEP 7 Grab a friend and flip the assembled corner leg sections over so they are now standing on the legs. (Do not skip this step! We’re not underestimating your strength or anything, but if you connect before flipping, the entire frame will be too heavy to flip.) Now place a curved tube (3) (bend facing out) in between two corner leg sections and slide them together.
  • Page 12 ASSEMBLY STEP 9 The enclosure net (9) will be pre-installed to the jump mat (8) (just trying to help you out a bit!) Before continuing, make sure each V-ring of the jump mat is properly threaded through the corresponding hole in the enclosure net. Jump Mat (x1) Enclosure Net (x1) STEP 10...
  • Page 13 STEP 11 You may want to use gloves for this step! Using the spring tool (28), hook the smaller end of a gold spring (10) into the corner square ring. Stretch the free end of the spring until it reaches the nearest frame hole. Repeat this step to place another spring into the same corner square ring and nearest frame hole.
  • Page 14 ASSEMBLY STEP 13 Place four silver springs in the middle of one curved tube. To make sure the V-rings and frame holes line up properly, count the number of frame holes starting from the corner and moving towards the middle curved tube. Then, count the V-rings starting from the same corner to the exact number of spring holes and place the springs.
  • Page 15 STEP 15 Now, working in a clockwise direction, attach all of the remaining gold springs. Make sure the V-rings and frame holes line up correctly. (Remember, you’re the boss here. You tell those springs what to do! And other people if they’re helping...) Gold Spring (x40) STEP 16 Lay the two halves of the frame pad (12) on the frame.
  • Page 16 ASSEMBLY STEP 17 Look under the trampoline. Find the straps that are attached to the underside of the frame pad (12). Position the strap with buckle so that the strap and buckle is on either side of the frame. Position the inner straps so that one strap is threaded through a V-ring.
  • Page 17 STEP 19 Insert two top corner tubes (14) into the top tube with foam (13) and secure together using two self-tapping screws (19). Repeat steps 18-19 three more times to complete four total top tube sections. Top Corner Self-tapping Tube (x2) Screw (x2) (13) (19)
  • Page 18 ASSEMBLY STEP 21 Next, slide four foam pieces (17) onto the tubes. If you’re having trouble getting the foam over the tubes, try adding a small amount of water inside the foam! Repeat steps 20-21 three more times to complete four total enclosure pole Foam (x4) sections.
  • Page 19 STEP 23 Make sure the indented sides of the straight tubes are against the trampoline frame. Using a couple people (because the poles are pretty heavy!), grab either side of an enclosure arch. Lift the poles at the same time and place the end of the lower tubes into the T-sockets.
  • Page 20 ASSEMBLY STEP 25 LAST STEP YOU’RE IN THE FINAL HOME STRETCH. Insert the end caps (27) into the bottom of the sockets. Tie the included placard to a socket close to the enclosure door as shown. End Cap (x8) Safety placard STEP 26 Congratulations on completing your new trampoline! (See...

  • Page 21: Maintenance And Care Information

    MAINTENANCE & CARE INFORMATION Congratulations and high five on successfully assembling your new Skywalker Trampolines 15' Square Trampoline with Enclosure! Now, the best way to keep your new trampoline in tip top shape, is to periodically check for: • Missing, improperly positioned, or insecurely attached frame padding, netting, enclosure tubes, or foam sleeves •...

  • Page 22: Instructions For Use

    INSTRUCTIONS FOR USE To reduce the risk of serious injury, read and follow all of the warnings, precautions, and instructions in this manual before you use the trampoline enclosure. Warnings and instructions for care, maintenance, and use of this trampoline and enclosure are included to promote safe enjoyable use of this equipment.

  • Page 23: Warning Label Placement

    Climb on to and off the trampoline. Do not jump on or off. Do not use the trampoline as a springboard to other objects. Inspect before using and replace any worn, defective or missing parts. For further equipment information contact Skywalker. For skill training information, contact a trainer certification organization. ATTACH TO TRAMPOLINE WARNING Do not land on head or neck.

  • Page 24: Instructions And Model Lessons

    INSTRUCTIONS & MODEL LESSONS The following lessons are examples of an instructional program. They should follow a complete discussion and demonstration of body mechanics between the supervision and the student(s). 1. Mounting and dismounting: Demonstration and practice of proper techniques. 2.
  • Page 25 Lesson 5: Seat Drop Lesson 6: Front Drop 1. Land in a sitting position with your legs parallel to the 1. Start from a low bounce and land on the mat in a mat. prone position. 2. Place your hands on the mat beside your hips. 2.

  • Page 26: Trampoline Safety Information

    TRAMPOLINE SAFETY INFORMATION In trampoline use, as in all active recreational sports, participants can be injured. However, there are steps that can be taken to reduce risk of injury. In this section, primary accident patterns are identified and the responsibilities of supervisors and jumpers in accident prevention are described.

  • Page 27: Enclosure Safety Information

    ENCLOSURE SAFETY INFORMATION NEED FOR TRAMPOLINE ENCLOSURE SAFETY A trampoline enclosure is a recreational product. The information on this page identifies important safety precautions. The precautions are not all-inclusive, because an enclosure can be used in ways that this manual cannot cover completely.

  • Page 28: Methods Of Accident Prevention

    METHODS OF ACCIDENT PREVENTION THE SUPERVISOR’S ROLE IN PREVENTING ACCIDENTS It is the responsibility of the supervisors of trampoline users to provide knowledgeable and mature supervision. They need to know and enforce all of the rules and warnings printed in this manual to minimize the likelihood of accidents and injuries.

  • Page 29: Limited Warranty

    LIMITED WARRANTY Skywalker Holdings, LLC warrants its products to be free from defects in material and workmanship under normal use and service conditions. The steel frame is warranted for three (3) years after the date of purchase. All other parts are warranted for one (1) year after the date of purchase. Warranty coverage extends only to the original retail purchaser from the date of original purchase.
  • Page 30 NOTE: SKYWALKER HOLDINGS, LLC IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUE OR PROFITS, LOSS OF ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES.
