NOTICE
This Instruction Guide is meant as a quick reference document and is an addendum to
the documentation set that came with the F1-Series.
This Instruction Guide assumes that the F1-Series is installed in the field.
F-Series - Field mounted indicators for safe and hazardous areas.
FW_F1_TYPE ZU_001_EN.docx
F1-Series

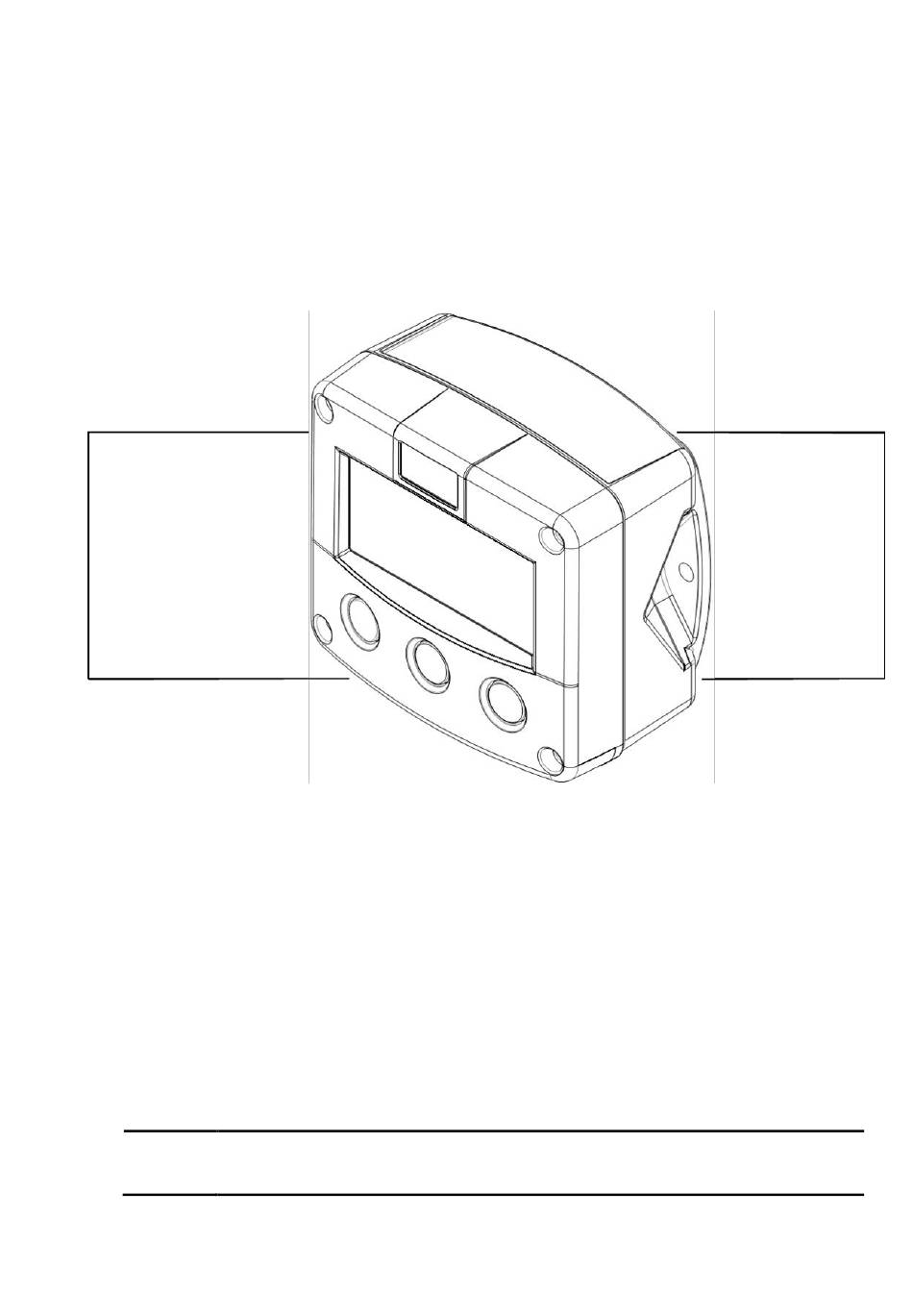

Flow rate indicator / Totalizer
Instruction Guide
Type ZU: Selectable MODBUS table
More info: www.fluidwell.com/fseries.
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Fluidwell F1 Series
Summary of Contents for Fluidwell F1 Series
- Page 1 This Instruction Guide is meant as a quick reference document and is an addendum to the documentation set that came with the F1-Series. This Instruction Guide assumes that the F1-Series is installed in the field. F-Series - Field mounted indicators for safe and hazardous areas. More info: www.fluidwell.com/fseries. FW_F1_TYPE ZU_001_EN.docx Page 1...
- Page 3 F1-SERIES – TYPE ZU INSTRUCTION GUIDE Disclaimer This Instruction Guide is created to provide as accurate and authoritative information regarding the subjects covered as was available at the time of writing. The copyright owner of this Instruction Guide cannot take any responsibility or liability for any errors or omissions in this Instruction Guide or for discrepancies arising from the features of any actual item in the respective refit being different from those shown in this Instruction Guide.
- Page 4 F1-SERIES – TYPE ZU INSTRUCTION GUIDE TABLE OF CONTENTS TABLE OF CONTENTS ........................4 GENERAL INFORMATION ..................... 5 SETUP level menu structure ....................5 SELECTABLE MODBUS TABLE ................... 6 General ............................ 6 Table ‘Standard’: Additional registers ..................6 2.2.1 Modbus Table........................6 Table ‘Type ZU’: Function codes and definitions ..............
- Page 5 F1-SERIES – TYPE ZU INSTRUCTION GUIDE 1 GENERAL INFORMATION When the F1-Series, Flow rate indicator / Totalizer is ordered with type ZU, the following functionality is added to the F1-Series: • Selectable Modbus Table SETUP LEVEL MENU STRUCTURE With type ZU, the following highlighted sub-functions are added to the SETUP level menu: NOTICE The additional settings are accessed through the SETUP level.
- Page 6 F1-SERIES – TYPE ZU INSTRUCTION GUIDE 2 SELECTABLE MODBUS TABLE GENERAL In many existing installations, the Modbus communication is based on a commonly used list of Modbus registers, which we have grouped in the Modbus ‘type ZU’ table. Since the ‘type ZU’ table is not compatible with our standard table, a selection must be made between these two tables at SETUP 9.6.
- Page 7 F1-SERIES – TYPE ZU INSTRUCTION GUIDE 2.3.4 REGISTER ORDER The following register orders are used for Modbus communication: most significant word first least significant word first 2.3.5 BAUD RATE AND POWER MODE The following values are used for register 1010 (Baud Rate) and register 1007 (Power Mode): 1010] 1007] EGISTER VALUE...
- Page 8 F1-SERIES – TYPE ZU INSTRUCTION GUIDE ESCRIPTION EGISTER EMARKS TART RDER CCESS Internal system 1008 16-bit Always return sample rate 3600 1…251 supported Slave address 1009 16-bit Baud rate 1010 16-bit Refer to the table in paragraph 3.2.5. Bus delay 1011 16-bit x 10ms (==...
- Page 9 F1-SERIES – TYPE ZU INSTRUCTION GUIDE 2.4.5 HOLDING REGISTERS ESCRIPTION EGISTER EMARKS TART RDER CCESS Real date 17007 16-bit 6 digits: MMDDYY 8006 16-bit 14 August 2017 7003 32-bit FP32 = 081417 Real time 17009 16-bit 6 digits: HHMMSS 8008 16-bit 13:46:55 = 7004...
- Page 10 F1-SERIES – TYPE ZU INSTRUCTION GUIDE Page 10 FW_F1_TYPE ZU_001_EN.docx...
- Page 11 F1-SERIES – TYPE ZU INSTRUCTION GUIDE FW_F1_TYPE ZU_001_EN.docx Page 11...
- Page 12 F1-SERIES – TYPE ZU INSTRUCTION GUIDE Fluidwell B.V. PO box 6 Voltaweg 23 Website: www.fluidwell.com 5460 AA Veghel 5466 AZ Veghel Find your nearest representative: www.fluidwell.com/representatives Page 12 FW_F1_TYPE ZU_001_EN.docx The Netherlands The Netherlands Copyright: 2020 - FW_F1_TYPE ZU_001_EN.docx...
