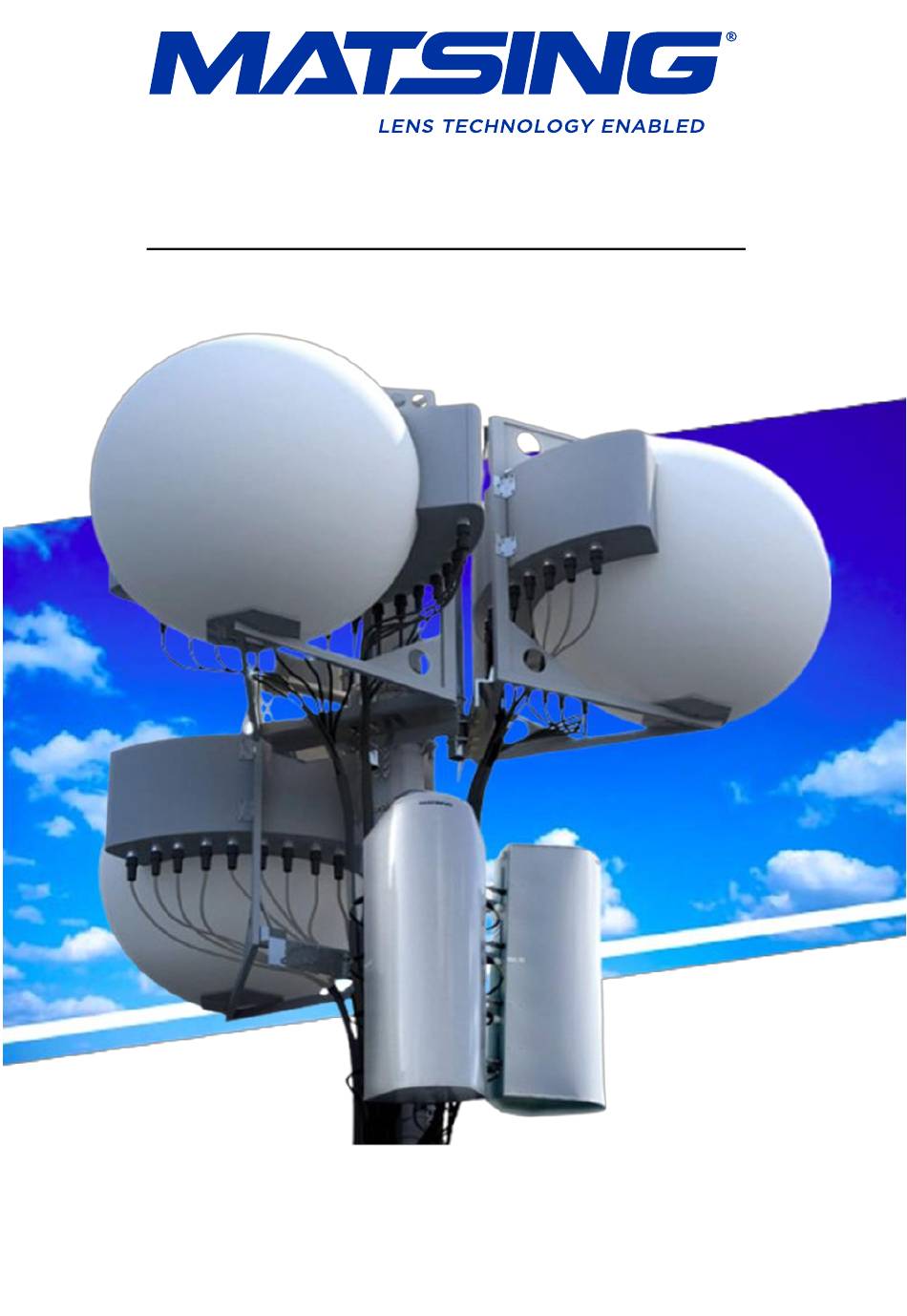

- Page 1 LSA Installation & Alignment General Guide (Large Sphere Antenna) www.matsing.com technicalsupport@matsing.com phone: (800) 867-6429...
- Page 2 Table Of Content 1.00 Large Sphere Antenna's (LSA) Product Overview 1.10 LSA Height, Width, Depth (in mm), KG 2.00 LSA Unloading, Transportation & Unpacking 2.10 Safety Precaution 2.20 LSA Antenna Wooden Crate Lifting & Handling Caution Point (90 to 180cm Lens) 3.00 LSA Lifting &...
- Page 3 1.00 Large Sphere Antenna's (LSA) Product Overview 1.10 LSA Height, Width, Depth (in mm), KG 1.11 180cm Lens (MS-24H180) 1.12 120cm Lens (MS-16H120) 1879*2066*2072 1282*1492*1425 (241KG) (87.22KG) 1.13 1.14 90cm Lens (MS-48F90) 60cm Lens (MS-8F60) 1054*1087*1100 726*861*800 (54.20KG) (2.76KG) 1.15 1.16...
- Page 4 2) "Extended Fork "MUST Be Use" For Lifting/Moving and the Length Shall Not Be Exceed 1.5 Time the Lifting Fork 2.21 Unloading, Transportation & Unpacking (Example of MS-24H180 ) Antenna Rear Side Label 2.22 Unloading Using Crane Truck, Manual Hydraulic Jack or Forklift...
- Page 5 2.24 Wooden Crate Unpacking Tools & Steps (Example of MS-24H180 ) Unpacking Electric Driver Tools Craw bar Cutter MS-24H180 Unpacking Step Step 1 Use cutter Cut & Remove Plastic Straps Step 2 Unscrew & Remove Top Panel Unscrew Left & Right Side to Remove...
- Page 6 3.00 LSA Lifting & Installation 3.10 LSA Lifting Equipment Preparation Antenna Installation Location May Varies From Point to Point In Facing Different Terrain And Environments, ONLY Appropriate Material Handling Machine, Lifting Equipment & Working Platform To Be Deploy And With Certified Operator. 3.20 Lifting Planning &...
- Page 7 3.34 LSA Antenna Installation (Sample Picture Of Antenna Installed On-Site) MS LSA Installation & Alignment General Guide Rev0 090524.xlsx Page 7 of 18...
- Page 8 3.35 LSA Antenna Levelling Steps (For Horizontal Setting) Digital Gauge Calibration to Zero "0" Step 1 Target Level is 0˚ (Zero) ≤0.2˚ Level Place Digital Gauge On The Rear Frame Step 2 Top Center Place Digital Gauge On The Right Frame Step 3 Top Center Place Digital Gauge On The Left Frame...
- Page 9 LSA Product Configurations (Example Models) Lens Nos of Beam/R Left Top Left Top Tilt Model Band Frequency Tilt Up Size Rows Angle Angle Down MS-24H180 1695-2690 MHz 52.5° 57.5° -4.3° 4.3° MS-16H120 1695-2690 MHz 56.2° 48.8° -6.5° 6.5° MS-48F90 3300-4200 MHz 52.5° 57.5°...
- Page 10 5.00 LSA Tilt Adjustment (Elevation) 5.10 Planning & Execution Installation Specialist Have the Option To Pre-Tilt The Antenna Angle Before The Lifting And Installation Of The Antenna. That May Help In Reducing The Work Load & Safety Concern When Performing Adjustment On-Site. 5.20 Antenna Tilt Configuration Types (Elevation Angle) 5.21...
- Page 11 5.40 "S" RET Motor Connection & Operations (Example of MS-12H180 sn: #10 ) 5.41 Motor Installation & Connection "S" RET Motor AISG Daisy Chain Cable Female Output Female Male Male Input 2 Group Of 6 Motors Group Group Looping Cable External Output (Female) External Input (Male) Amphenol AISG Laptop Application...
- Page 12 5.44 Plan View Connector Layout 5.45 Antenna Connector Port Table 5.46 Group 1 Display Information & Reference Group 1 Display Display: Beam 1 (Reference as RET 01) Display: Beam 2 (Reference as RET 02) Display: Beam 3 (Reference as RET 03) Display: Beam 4 (Reference as RET 04) Display: Beam 5 (Reference as RET 05) Display: Beam 6 (Reference as RET 06)
- Page 13 Group 1 Repeat Beam 2 to Beam 6 Display As Follow: RET 02 Info: R2 (HB2,P3,4) RET 03 Info: R3 (HB3,P5,6) RET 04 Info: R4 (HB4,P7,8) RET 05 Info: R5 (HB5,P9,10) RET 06 Info: R6 (HB6,P11,12) 5.48 Group 2 Display Information & Reference Group 2 Display Display: Beam 7 (Reference as RET 07) Display: Beam 8 (Reference as RET 08)
- Page 14 Applicable Antenna Models (Example of MS-SLP-AXX Series ) MS-18H90 MS-12H90 MS‐8H120 MS‐16H120 MS-18F45 MS-12F45 MS-8F60 MS-16F60 MS-8H60 MS-6H90 MS-48H180 MS-24H180 MS-8F30 MS-6F45 MS-48F90 MS-24F90 6.20 Model Setting & Assembly Configuration Table MS LSA Installation & Alignment General Guide Rev0 090524.xlsx Page 14 of 18...
- Page 15 SET 1 LEFT SET 2 LEFT SET 1 RIGHT 180 CENTER 120 CENTER TILT LEFT TILT RIGHT 6.33 Configurated Model Sample (Example of MS-8H60, MS-48F90, MS-8F60, MS-24H180 ) MS LSA Installation & Alignment General Guide Rev0 090524.xlsx Page 15 of 18...
- Page 16 7.00 SLP Mounting-On Antenna & Positioning Guide 7.10 Planning & Execution Installation Specialist Should Plan The Mounting & Adjustment Works On Deployed Antenna Models, Advance On Antenna Model SLP Assembly & Configuration Will Be Much Helpful In Reducing On-Site Assembly Work Load & Safety Concern. 7.20 SLP Positioning Guide 7.21...
- Page 17 7.40 SLP Pointing Guide Line 7.41 SLP Laser Pointing Projected View (Example of MS-48F90 ) Beam Beam Laser Position Laser Position Angle Angle Centre Laser Left Top Laser Right Top Laser -52.5 +57.5 Left Bottom Laser -57.5 0/0° Right Bottom Laser +52.5...
- Page 18 7.50 LSA Antenna Position Confirm & Secure With Marking (Repeat Same Process For Another Antenna Positioning) Building Structure Adjustable Support Pole Custom-Make Bracket On-Site Marking & Record As Reference For Position Pointed Building Structure MS LSA Installation & Alignment General Guide Rev0 090524.xlsx Page 18 of 18...
