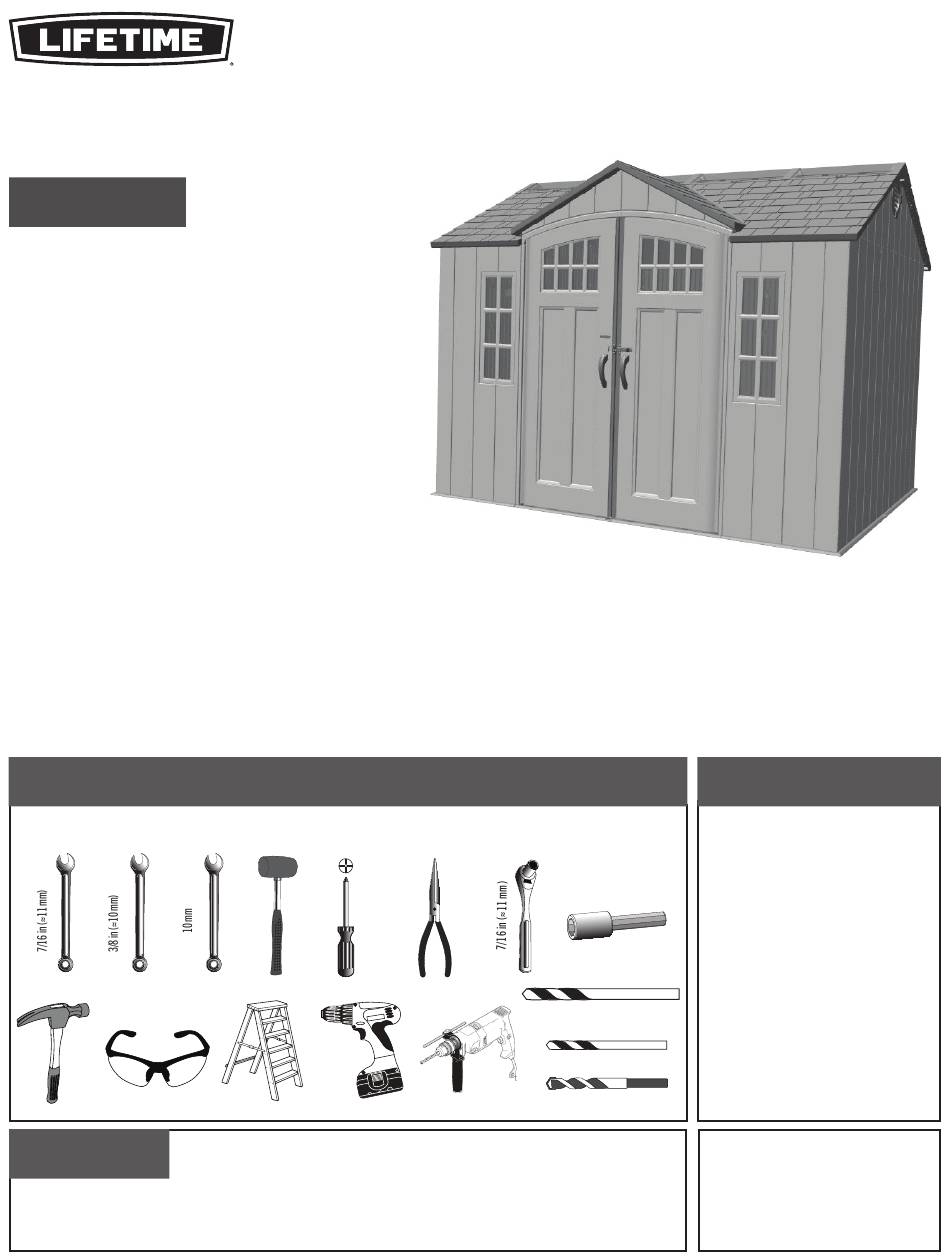

Lifetime 60459U Assembly Instructions Manual

Outdoor storage shed

page of 112

/ 112
Bookmarks

Quick Links

Download this manual

OUTDOOR

STORAGE SHED

MODEL 60459U

ITM./ART. 1774914

BEFORE ASSEMBLY:

• Assemble on a level platform

• At least 3 adults recommended for setup

• Inspect all parts and hardware. Ensure all are included using the Parts

Identifier in the middle of these instructions. The Parts Identifier , in yellow,

can be removed from the instructions for quick reference

THIS ITEM IS INTENDED FOR OUTDOOR DOMESTIC USE ONLY! NOT FOR

COMMERCIAL USE.

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

TOOLS REQUIRED

(Not included—unless otherwise indicated*)

QUESTIONS?

Call: 1-800-225-3865

(English, French, Spanish)

CONTACT LIFETIME CUSTOMER SERVICE:

Live Chat:

www.lifetime.com/customerservice/home

(click on "LIVE CHAT" tab)

ASSEMBLY INSTRUCTIONS

Pour le français, voir la page 2. Para el español, ver la página 3.

5/16 in (≈8 mm)

ARA (x1)

1/8 in (≈3mm)

5/16 in (≈8 mm) Wood Drill Bit

5/16 in (≈8 mm) Masonry Drill Bit

For Customer Service in mainland

Europe and the United Kingdom:

E-mail: csinternational@lifetime.com

TABLE OF CONTENTS

Icon Legend..................................................................4

Warnings & Notices......................................................5

Platform Construction..................................................6

Truss Assembly..........................................................11

Gable Assembly..........................................................21

Door Assembly...........................................................28

Floor Assembly...........................................................41

Wall Assembly............................................................46

Parts Identiﬁ er...........................................................i-iv

Shelving Installation....................................................57

Roof Assembly...........................................................62

Wall Hook Installation................................................86

Snow Load Kit Installation..........................................88

Door Alignment...........................................................94

Anchoring...............................................97

Cleaning & Care........................................................100

Registration..............................................101

Warranty...................................................102

Product ID:

Need help?

Do you have a question about the 60459U and is the answer not in the manual?

Questions and answers

Summary of Contents for Lifetime 60459U

Page 1 5/16 in (≈8 mm) Wood Drill Bit Cleaning & Care............100 Registration..........101 5/16 in (≈8 mm) Masonry Drill Bit Warranty...........102 QUESTIONS? Product ID: CONTACT LIFETIME CUSTOMER SERVICE: Call: 1-800-225-3865 For Customer Service in mainland Live Chat: Europe and the United Kingdom: www.lifetime.com/customerservice/home (English, French, Spanish) E-mail: csinternational@lifetime.com...
Page 2 5/16 po (≈8 mm) Foret à boit Ancrage de l’abri............97 Nettoyage et entretien..........100 Enregistrement..........101 5/16 po (≈8 mm) Foret à maçonnerie Garantie............103 Produkt-ID: FRAGEN? KONTAKTIEREN SIE DEN KUNDENDIENST VON LIFETIME: Live-Chat: E-Mail Kundendienst europäisches Telefon: 1-800-225-3865 www.lifetime.com/customerservice/home Festland und Vereinigtes Königreich: csinternational@lifetime.com...
Page 3 5/16 in. (≈8 mm) Broca de albañilería Garantía............104 ID del producto: ® ¿PREGUNTAS? PONERSE EN CONTACTO CON LOS SERVICIOS DE CLIENTES LIFETIME Chat en vivo: Llamar : 1-800-225-3865 Para el servicio a clientes en el www.lifetime.com/customerservice/home continente europeo: Correo electrónico: (inglés, francés, español)
Page 4 ICON LEGEND / LÉGENDE DES ICÔNES / LEYENDA DE ÍCONOS • Indicates special heed should be taken when reading. • Indique qu’une attention spéciale doit être portée à la lecture. • Indica que uno debe prestar atención al leer. • Indicates the parts required for a section. •...
Page 5 WARNINGS & NOTICES / AVERTISSEMENTS ET AVIS / ADVERTENCIAS Y AVISOS English: • Failure to follow these warnings may result in serious injury or property damage and will void warranty. • To ensure safety, do not attempt to assemble this product without following the instructions carefully. •...
Page 6 PLATFORM CONSTRUCTION (MATERIALS NOT INCLUDED) / CONSTRUCTION DE LA PLATE-FORME (LES PIÈCES NE SONT PAS INCLUSES) / CONSTRUCCIÓN DE LA PLATAFORMA (LOS MATERIALES NO SON INCLUIDOS) • You must provide a platform on which to assemble your shed. Proper building permit documentation may be required in your neighborhood.
Page 7 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) CONCRETE REQUIRED / BÉTON REQUIS / CONCRETO REQUERIDO 1 yd (≈0,77 m CONCRETE PLATFORM / PLATE-FORME EN BÉTON / PLATAFORMA DE CONCRETO • The concrete should be approximately 4 in (≈10,2 cm) thick. The actual dimensions of the shed, at its widest and longest points, are 95.7"...
Page 8 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) WOOD REQUIRED / BOIS REQUIS / MADERA REQUERIDA WOOD PLATFORM / PLATE-FORME EN BOIS / PLATAFORMA DE MADERA • All lumber must be rated for outdoor use! The actual dimensions of the shed, at its widest and longest points, are 95.7" x 119.6"...
Page 9 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y PIEZAS REQUERIDOS 2 in/po x 4 in/po x 118 in/po (≈5 cm x ≈10 cm x ≈299,7 cm) (x2) 2 in/po x 4 in/po x 91 in/po (≈5 cm x ≈10 cm x ≈231,2 cm) (x9) 16d 3 1/2 in/po (16 mm dia.
Page 10 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y PIEZAS REQUERIDOS 22 in/po x 94 in/po x 0.75 in/po (≈55,9 cm x ≈238,8 cm x ≈19,1 mm) (x1) 48 in/po x 94 in/po x 0.75 in/po (≈121,9 cm x ≈238,8 cm x ≈19,1 mm) (x2) 8 mm dia.
Page 11 TRUSS ASSEMBLY / ASSEMBLAGE DES FERMES / ENSAMBLAJE DE LAS CERCHAS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO CXK (x2) DTK (x14) ADY (x11) ADJ (6) ADK (x24) AHT (x1) DTJ (x1) ADH (x3) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Metal Parts / Pièces en métal / Piezas de metal DSP (x1) 50 9/16 in/po (≈1,28 m)
Page 12 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • There are two types of long gutter channels: DSQ and DSR. One end of channel DSQ is notched. Channel DSR has no notches at either end. This is important to know when assembling the two side trusses;...
Page 13 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) DTK (x4) ADK (x4) SIDE TRUSSES (x2) / FERMES LATÉRLES (x2) / CERCHAS LATERALES (x2) •...
Page 14 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) ADY (x4) ADK (x4) • Slide a truss brace (AFG) onto the truss gutter channels as shown. •...
Page 15 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADJ (x4) 7/16 in/po (x2) ADK (x8) ADY (x4) DTK (x4) (≈11 mm) 3/8 in/po ADH (x2) (≈10 mm) •...
Page 16 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (x2) (≈10 mm) DTK (x4) ADK (x4) CENTER TRUSS (x1) / CERCHA CENTRAL (x1) / FERME CENTRALE (x1) •...
Page 17 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) ADY (x2) ADK (x2) • Slide a truss brace (AFG) onto the truss gutter channels as shown. •...
Page 18 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) DTK (x2) DTJ (x1) ADK (x1) CXK (x2) 2.10 • Attach the vertical truss brace (DSN) to the truss. Only ﬁ nger tighten this nut (ADK) for now. •...
Page 19 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 7/16 in/po (x2) (≈11 mm) ADJ (x2) ADH (x1) 2.12 • Slide a truss rod (ADH) through the holes in the large truss brace, small truss brace (BRD), and connector. Secure with two cap nuts (ADJ).
Page 20 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) ADK (x1) ADY (x1) AHT (x1) 2.13 • Only tighten the nut (ADK) by hand in this step. •...
Page 21 GABLE ASSEMBLY / ASSEMBLAGE DES PIGNONS / ENSAMBLAJE DE LAS FACHADAS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Parts / Pièces / Piezas ADW (x10) ADZ (x12)* AEE (x12) AIQ (x2) ENH (x2) ADV (x16) EYR (x2) AHS (x6) ADK (x2) EYQ (x1) CXK (x1)
Page 22 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) / SECCIÓN 3 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x4) • Align the holes in the side gable halves (AGH and AGI). • Aligner les trous dans les pignons latéraux (AGH et AGI). •...
Page 23 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) / SECCIÓN 3 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADW (x5) AEE (x5) • Place the screen (AIQ) over the vent (ENH) and align the ﬁ ve holes in the vent with those in the gable. •...
Page 24 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) / SECCIÓN 3 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS AHS (x2) • Insert an end cap (AHS) into each end of the square tube (AFE). •...
Page 25 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) / SECCIÓN 3 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x4) ADW (x5) ADV (x6) AEE (x5) • Secure with the hardware provided. Repeat the previous steps for the second side gable. •...
Page 26 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) / SECCIÓN 3 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 10 mm EYQ (x1) ADZ (x3) CXK (x1) AHS (x2) • Secure the two gable halves with three (3) screws (ADZ) and one screw (EYQ) and nut (CXK). •...
Page 27 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) / SECCIÓN 3 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 10 mm ADV (x4) EYR (x2) ADK (x2) AEE (x2) 3.11 • Align the holes in the header with those in the entry gable. •...
Page 28 LEFT DOOR ASSEMBLY / ASSEMBLAGE DE LA PORTE GAUCHE / ENSAMBLAJE DE LA PUERTA IZQUIERDA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO AEE (x3) AEB (x2) ADJ (x2) ADW (x1) BYZ (x2) Parts / Pièces / Piezas ACH (x2) AHM (x2) BYS (x1) ADZ (x14)
Page 29 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Slide a hinge Ttbe (CRE) down into the hole at the top of the left door (BDJ). •...
Page 30 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Door channels (BLH) are speciﬁ cally designed to bow. This ensures a tight ﬁ t when they are closed and latched, making your shed more secure.
Page 31 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADW (x1) BYZ (x2) AEE (x3) • Note: The Deadbolts are used for locking the door. They may not •...
Page 32 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 7/16 in/po (≈11 mm) ACH (x2) AEB (x2) ADJ (x2) • Attach the strike plate (ECW) and lock racket (ECY) to the channel as shown. Only hand-tighten the hardware for now. •...
Page 33 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • There is a narrow groove (illustrated in black) running along the outside of the window on the back of each Door. Starting at the top, left corner of the groove in the Left Door, lay the 1/8”...
Page 34 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x14) • Peel off the protective backing from both sides of window pane (DHN). Align the holes in the pane with those in the door, and gently set a window pane down onto the door.
Page 35 RIGHT DOOR ASSEMBLY / ASSEMBLAGE DE LA PORTE DROITE / ENSAMBLE DE LA PUERTA DERECHA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Parts / Pièces / Piezas ADW (x1) AEE (x3)* ADJ (x2) AEB (x2) BYR (x1) ACH (x2) BYZ (x2) * Not all hardware will be used in the section.
Page 36 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Slide a hinge tube (CRE) down into the hole at the top of the right door (BDK). •...
Page 37 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Door Channels (BLH) are speciﬁ cally designed to bow. This ensures a tight ﬁ t when they are closed and latched, making your shed more secure.
Page 38 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 7/16 in/po (≈11 mm) BYZ (x2) ADW (x1) AEE (x1) AEB (x2) ADJ (x2) ACH (x2) •...
Page 39 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • There is a narrow groove (illustrated in black) running along the outside of the window on the back of each door. Starting at the top, right corner of the groove in the Right Door, lay the 1/8"...
Page 40 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x14) • Peel off the protective backing from both sides of window pane (DHN). Align the holes in the pane with those in the door, and gently set a window pane down onto the door.
Page 41 FLOOR ASSEMBLY / ASSEMBLAGE DU PLANCHER / ENSAMBLE DEL PISO HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Parts / Pièces / Piezas CWU (x32)* ADC (x1) AHL (x1) AHO (x2) • These screws do not anchor the ﬂ oor; they only hold the panels together. •...
Page 42 SECTION 6 (CONTINUED) / SECTION 6 (SUITE) / SECCIÓN 6 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Hold an inner ﬂ oor panel (CUD) at an angle and slide the tabs along the edge underneath an outer ﬂ oor panel (CUW). The tabs interlock.
Page 43 SECTION 6 (CONTINUED) / SECTION 6 (SUITE) / SECCIÓN 6 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Repeat the previous step. • Répétez l’étape précédente. • Repita el paso anterior. Hole / Trou / Agujero •...
Page 44 SECTION 6 (CONTINUED) / SECTION 6 (SUITE) / SECCIÓN 6 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS CWU (x18) AHO (x2) • Decide on which edge you would like to install your doors. Insert bushings (AHO) through the holes in the ﬂ oor. •...
Page 45 SECTION 6 (CONTINUED) / SECTION 6 (SUITE) / SECCIÓN 6 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS CWU (x2) AHL (x1) • Attach the strike plate (AHL) to the ﬂ oor on the same side the bushings were installed. •...
Page 46 WALL ASSEMBLY / ASSEMBLAGE DES MURS / ENSAMBLE DE LOS MUROS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO * Not all hardware will be used in the section. * La quincaillerie n’est pas utilisée au complet dans la section. * No se utilizará...
Page 47 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x28) • Insert a wall channel (AFM) into the groove just to the left notch of the seven (7) wall panels (AHD) as shown. Secure with four (4) screws (ADZ) for each one.
Page 48 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x8) • Insert a wall channel (AFM) into the ﬁ rst groove on the back of the right window wall panel (BDI) as shown.
Page 49 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • There is a narrow groove (illustrated in black) running along the outside of the window on the back of each narrow window wall panel (BDH &...
Page 50 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x28) • Peel off the protective backing from both sides of window pane (BDV). Align the holes in the pane with those in the panel, and gently set a window pane down onto the panel.
Page 51 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Insert tabs at the bottom of the Right Window Wall Panel (BDI) into the third and fourth slots from the front, right corner of the Floor.
Page 52 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Insert tabs at the bottom of the corner panel (AGW) into the ﬁ rst two slots along the right edge of the ﬂ...
Page 53 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x15) 7.10 • Secure the two panels using ﬁ ve (5) screws (ADZ). The attachment points may have a thin membrane that the screws will puncture.
Page 54 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x20) 7.12 • For the right, rear corner panel (AGL), repeat the step done for the right, front corner panel.
Page 55 PARTS IDENTIFIER / IDENTIFICATEUR DE PIÈCES / IDENTIFICADOR DE PIEZAS CONTENTS OF BOX 1 / CONTENU DE LA BOITE 1 / CONTENIDO DE LA CAJA 1 BDJ (x1) BDK (x1) AGH (x2) AGI (x2) CUW (x2) AGQ (x6) CUD (x2) AFV (x2) BDR (x1) BDS (x1)
Page 56 PARTS IDENTIFIER / IDENTIFICATEUR DE PIÈCES / IDENTIFICADOR DE PIEZAS METAL PARTS KIT 1 / TROUSSE DE PIÈCES EN MÉTAL 1 / KIT DE PIEZAS DE METAL 1 BLH (x2) 67 3/4 in/po (≈1,72 m) AFM (x4) HDU (x1) HDT (x1) 74 1/2 in/po (≈1,89 m) CRE (x2) 50 9/16 in/po (≈1,28 m)
Page 57 PARTS IDENTIFIER / IDENTIFICATEUR DE PIÈCES / IDENTIFICADOR DE PIEZAS METAL PARTS KIT 1 / TROUSSE DE PIÈCES EN MÉTAL 1 / KIT DE PIEZAS DE METAL 1 50 9/16 in/po (≈1,28 m) DSR (x2) 67 3/4 in/po (≈1,72 m) AFM (x5) 34 1/8 in/po (≈86,7 cm) DSO (x1)
Page 58 PARTS IDENTIFIER / IDENTIFICATEUR DE PIÈCES / IDENTIFICADOR DE PIEZAS CONTENTS OF SMALL PARTS KIT / CONTENU DE LA TROUSSE DE PETITES PIÈCES / CONTENIDO DEL KIT DE PIEZAS PEQUEÑAS AFL (x6) AIX (x4) AIW (x1) DRB (x1) BDV (x2) HDV (x4) DHN (x2) HOC (x2)
Page 59 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x15) 7.14 • For the left, rear corner panel (AGW), repeat the step you did for the right, front corner panel. •...
Page 60 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x10) 7.16 • For the left, front corner panel (AGL), repeat the step you did for the right, front corner panel. •...
Page 61 SHELVING INSTALLATION / INSTALLATION DU RAYONNAGE / INSTALACIÓN DE LA ESTANTERÍA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Parts / Pièces Piezas GJZ (x8) ADZ (x32)* FEX (x8) AIY (x4) * Not all hardware will be used in the section. * La quincaillerie n’est pas utilisée au complet dans la section.
Page 62 • En caso de problemas con esta sección, escanear el código QR debajo para ver un video del ensamblaje. http://go.Lifetime.com/60405-10x8-outside-shed-section8 • Insert the shelf brackets (AIY) into the slots in the wall/shelf support channels. The brackets must be at the same height.
Page 63 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS GJZ (x4) • Attach a shelf support bracket (HDV) into the side wall at the same level the shelf brackets were placed. Repeat for the other shelf support bracket on the opposite side.
Page 64 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x8) • Attach the shelf (AFV) to the corner wall panels and shelf support brackets using eight (8) screws (ADZ). •...
Page 65 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS FEX (x4) GJZ (x4) ADZ (x16) • Repeat steps 8.1–8.6 to install the second shelf on the opposite wall. •...
Page 66 ROOF ASSEMBLY / ASSEMBLAGE DU TOIT / ENSAMBLAJE DEL TEJADO HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO DTV (x2) ADZ (x155)* AHP (x2) * Not all hardware will be used in the section. ARV (x4) CXK (x2) AEE (x2) * La quincaillerie n’est pas utilisée au complet dans la section.
Page 67 ROOF ASSEMBLY / ASSEMBLAGE DU TOIT / ENSAMBLAJE DEL TEJADO PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Plastic Parts / Pièces en plastique / Piezas de plástico HOC (x2) HOB (x3) DRB (x1) (x2) (x1) AGQ (x6) HLF (x4) (x1) (x1) BDR (x1)
Page 68 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO ADZ (x14) • Set a side gable down onto the right side of the shed. •...
Page 69 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO • Place a Side Truss into the notches on the rear Wall Panel and Right Front Window Wall Panel.
Page 70 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO ADZ (x4) • Set the roof panel (AGQ) down onto the wall panel, gable, and truss. The groove at the bottom of the roof panel sets over the top of the wall panel.
Page 71 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO ADZ (x5) • Insert the ﬁ rst three screws (ADZ) through the gable and into the roof panel and the ﬁ rst two screws (ADZ) through the truss and into the roof panel at the locations shown.
Page 72 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO ADZ (x13) • Insert one screw (ADZ) through the gable and into the roof panel and one screw (ADZ) through the truss and into the roof panel at the locations shown.
Page 73 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO ADZ (x36) • Repeat steps 9.1–9.7 for the left side of the shed. • Répéter les étapes 9.1 – 9.7 pour le côté droit de l’abri. •...
Page 74 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO 3/8 in/po DTV (x2) (≈10 mm) CXK (x2) AEE (x2) 9.11 • Secure the ends of the support tube to the side truss channels using the hardware provided. •...
Page 75 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO AHP (x2) 9.12 • Pull the hinge tube down out of the left door (the door without the notched corner) about six inches. Align the hole at the bottom of the hinge tube with the slit in the bushing, and insert the tube.
Page 76 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO 3/8 in/po (≈10 mm) ADZ (x1) 9.13 • Slide the holes in the entry gable down over the two hinge tubes. The ends of the gable go in the trusses. •...
Page 77 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO ADZ (x20) 9.15 • Attach the two center, rear roof panels using only one roof support per panel. •...
Page 78 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO AEE (x4) BZA (x2) ADK (x2) ECR (x1) ECS (x1) 9.16 • Insert the right drainage plate (ECS) into the right lateral truss, and align the notch in the plate with the ﬁ rst hole in the truss as shown.
Page 79 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO ADZ (x12) 9.17 • Fold the ends of the large angled roof panel (DRA), and set it down onto the shed as shown. Secure the panel to the entry gable and center truss with twelve (12) screws (ADZ) at the locations shown.
Page 80 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO 3/8 in/po (≈10 mm) ADZ (x2) 9.18 • Using two adults, secure the drainiage plates from step 9.16 to the roof at the location shown. Tighten the nut on the drainage plate now.
Page 81 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO ADZ (x2) 9.19 • An adult must apply a downward pressure on panel (DRB) during the insertion of the screws (ADZ). •...
Page 82 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO ADZ (x18) 9.20 • An adult must apply a downward pressure on panels (BDS & BDR) during the insertion of the screws (ADZ). •...
Page 83 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO 9.21 • Bend the skylights (HLF) before installing them. The ﬁ rst skylight will ﬁ t in the upper edge of the end cap (HOC). Place a connector (HOB) on the other end of the skylight, ﬁ...
Page 84 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO ARV (x2) 9.22 • Place the skylight onto the end of the roof. Fit the end cap over the gable. The end of the connector will extend to the truss.
Page 85 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO ADZ (x2) 9.24 • Secure the skylight with the hardware indicated in the location shown. Do not use any other hardware until all the skylights are in place.
Page 86 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO 9.26 • Place the second skylight into the upper section of the connector. • Mettre le deuxième puits de lumière dedans la section supérieure du connecteur. •...
Page 87 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO 9.28 • Repeat step 9.26 to add the third skylight and connector. • Répéter l’étape 9.26 pour ajouter le troisième puits de lumière et connecteur. •...
Page 88 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO ARV (x2) 9.30 • Place the end cap and skylight onto the end of the roof. Fit the end cap over the gable. The end of the skylight will extend slightly past the truss.
Page 89 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO ADZ (x22) 9.32 • Attach the skylights to the roof panels with the hardware indicated. •...
Page 90 WALL HOOK INSTALLATION / INSTALLATION DES CROCHETS MURAUX / INSTALACIÓN DE LOS GANCHOS MURALES HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO EDL (x6) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO (Not included—unless otherwise indicated*) / (Non inclus —...
Page 91 SECTION 10 (CONTINUED) / SECTION 10 (SUITE) / SECCIÓN 10 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS EDL (x6) 10.1 • Insert the six (6) wall hooks (EDL) into any of the notches in the wall panels. Then push downward to lock them in place.
Page 92 SNOWLOAD KIT INSTALLATION / INSTALLATION DE L’ENSEMBLE DE LA CHARGE DE NEIGE / INSTALACIÓN DEL KIT DE LA CARGA DE NIEVE HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO BRK (x80) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Metal Parts / Pièces en métal / Piezas de metal EGQ (x10) EGR (x1) EGS (x1)
Page 93 SECTION 11 (CONTINUED) / SECTION 11 (SUITE) / SECCIÓN 11 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 5/16 in/po (≈8 mm) BRK (x6) 11.1 • Abut the gussett (EGQ) against the truss gutter channel so the top, horizontal border of the gusset is parallel with the truss brace.
Page 94 SECTION 11 (CONTINUED) / SECTION 11 (SUITE) / SECCIÓN 11 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 5/16 in/po (≈8 mm) 7/16 in/po (≈11 mm) BRK (x58) 7/16 in/po (≈11 mm) 11.2 •...
Page 95 SECTION 11 (CONTINUED) / SECTION 11 (SUITE) / SECCIÓN 11 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 5/16 in/po (≈8 mm) 7/16 in/po (x2) (≈11 mm) BRK (x8) 11.4 • Repeat step 11.3 for the remaining two Truss Assemblies. Tighten the Cap Nuts. •...
Page 96 SECTION 11 (CONTINUED) / SECTION 11 (SUITE) / SECCIÓN 11 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 5/16 in/po (≈8 mm) BRK (x2) 11.5 • Place the left gable support (EGR) up ﬂ ush against the entry gable and roof as shown. Secure with two (2) self-tapping screws (BRK) to the center truss.
Page 97 SECTION 11 (CONTINUED) / SECTION 11 (SUITE) / SECCIÓN 11 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 5/16 in/po (≈8 mm) BRK (x6) 11.6 • Insert two (2) self-tapping screws (BRK) through the gable and into the door hinge tube. The holes are oval shaped in case it’s easier to insert the screws into the hinge tube at an angle.
Page 98 DOOR ALIGNMENT / ALIGNEMENT DES PORTES / ALINEACIÓN DE LAS PUERTAS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Plastic Parts / Pièces en plastique / Piezas de plástico AIX (x4) TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO (Not included—unless otherwise indicated*) / (Non inclus —...
Page 99 SECTION 12 (CONTINUED) / SECTION 12 (SUITE) / SECCIÓN 12 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • If the doors are not level, follow the steps on this page or the next to even them out. •...
Page 100 SECTION 12 (CONTINUED) / SECTION 12 (SUITE) / SECCIÓN 12 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 7/16 in/po (≈11 mm) 12.2 • Once the doors are the same height, have one adult with the tools stand inside the shed. Close the doors and lock them.
Page 101 SHED ANCHORING / ANCRAGE DE L’ABRI / ANCLAJE DE LA CASETA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO (Not included—unless otherwise indicated*) / (Non inclus — sauf indication contraire*) / (No incluido, salvo indicación contratia*) 5/16”...
Page 102 SECTION 13 (CONTINUED) / SECCIÓN 13 (CONTINUACIÓN) / SECTION 13 (SUITE) FOR CONCRETE PLATFORMS / POUR LES PLATE-FORMES EN BÉTON / PARA PLATAFORMAS DE CONCRETO 5/16 in/po (≈8 mm) 13.1 • To anchor your shed, you must purchase the correct anchoring hardware. For a concrete platform, we recommend using a hammer drill, 5/16"...
Page 103 SECTION 13 (CONTINUED) / SECCIÓN 13 (CONTINUACIÓN) / SECTION 13 (SUITE) FOR WOOD PLATFORMS / POUR LES PLATE-FORMES EN BOIS / PARA PLATAFORMAS DE MADERA 5/16 in/po (≈8 mm) 13.1 • To anchor your shed, you must purchase the correct anchoring hardware. For a wood-framed platform, we recommend using a drill, 5/16"...
Page 104 ® product purchase. By following the instructions below, your new Lifetime product should provide you with years of service and enjoyment. The polyethylene panels are stain and solvent resistant. Most stains can be removed using a mild soap and a soft-bristled brush.
Page 105 à des tiers, et ne leur permettra pas d’utiliser vos données personnelles à leurs propres ﬁ ns. Nous vous invitons à lire notre politique de conﬁ dentialité à www.lifetime.com (en anglais seulement) ENREGISTRER CE PRODUIT aujourd’hui! REGISTRAR EL PRODUCTO EN LÍNEA EN WWW.LIFETIME.COM...
Page 106 THE MANUFACTURER RESERVES THE RIGHT TO MAKE SUBSTITUTIONS TO WARRANTY CLAIMS IF PARTS ARE UNAVAILABLE OR OBSOLETE. 1. Lifetime outdoor sheds are warranted to the original purchaser to be free from defects in material or workmanship for a period of ten years from the date of original retail purchase. The word “defects” is deﬁ ned as imperfections that impair the use of the product.
Page 107 2. Cette garantie n’est pas transférable et est expressément limitée à la réparation ou au remplacement du produit défectueux. © Si le produit est déclaré défectueux selon les termes de cette garantie, Lifetime Products, Inc. réparera ou remplacera les parties défectueuses gratuitement pour l’acheteur. Les frais d’expédition aller et retour de l’usine ne sont pas couverts et sont à...
Page 108 NO ESTÁN DISPONIBLES O SON OBSOLETAS. 1. El comprador original recibe la garantía de que las casetas Lifetime estarán libres de defectos de material o de mano de obra por un período de 10 años a contar desde la fecha de la compra original. La palabra “defectos” se deﬁ ne como imperfecciones que perjudican el uso del producto.
Page 109 NOTES / REMARQUES / NOTAS...
Page 110 NOTES / REMARQUES / NOTAS...
Page 111 IMPORT INFORMATION / IMPORTATIONS / INFORMACIÓN DE IMPORTACIONES Distributed by: Costco Wholesale Korea, Ltd. 40, Iljik-ro Costco Wholesale Corporation Gwangmyeong-si P.O. Box 34535 Gyeonggi-do, 14347, Korea Seattle, WA 98124-1535 1899-9900 1-800-774-2678 www.costco.co.kr www.costco.com Importado por: Importadora Primex S.A. de C.V. Costco Wholesale Canada Ltd.* Blvd.
Page 112 Pour acheter des accessoires ou des autres produits Lifetime , visiter le : www.lifetime.com Ou composer le 1-800-424-3865 ® MEJORAR LA COMPRA DE LIFETIME AGREGANDO ACCESORIOS U OTROS MARAVILLOSOS PRODUCTOS Para comprar accesorios u otros productos de Lifetime®, visitarnos en: www.lifetime.com O marcar al 1-800-424-3865 1233632 11/15/2023...
