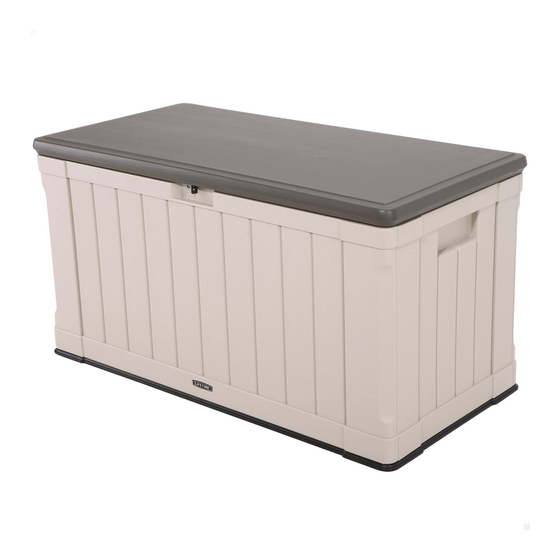

116-GALLON
DECK BOX
MODEL #60091
MODEL 60186
BEFORE ASSEMBLY:
• Assemble on a level surface
• At least 2 people recommended for setup
• Ensure all hardware and parts are included and
free of damage.
GET ASSEMBLY HELP
WATCH THE INSTRUCTIONAL VIDEOS ON YOUTUBE.
Scan the code, or search http://go.lifetime.com/60186playlist
For Customer Service in the United Kingdom and mainland Europe:
E-mail: cs@lifetimeproducts.eu
FOR DOMESTIC USE ONLY!
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
TOOLS REQUIRED
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
Live Chat: www.lifetime.com
(click on "LIVE CHAT" tab)
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
3/8" (10 mm)
MODEL# AND PRODUCT ID
Model Number: 60186
Product ID:
TABLE OF CONTENTS
Icon Legend...............................4
Warnings & Notices.....................5
Parts Identifi er............................6
Box Assembly..............................7
Lid Assembly............................14
Additional Warnings..................23
Cleaning & Care........................27
Registration.........................28
Warranty.............................29
(you will need both when contacting us)
