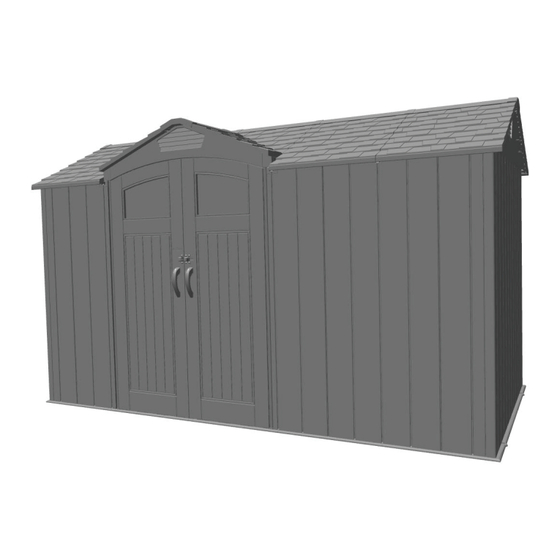

STORAGE SHED
MODEL 60430U
ITM./ART. 1713495
BEFORE ASSEMBLY:
• Assemble on a level surface
• At least 3 people for setup recommended
• Inspect all parts and hardware. Ensure all are included
using the Parts Identifier in the middle of these
instructions. The Parts Identifier , in yellow, can be
removed from the instructions for quick reference.
THIS ITEM IS INTENDED FOR OUTDOOR DOMESTIC USE ONLY! NOT FOR
COMMERCIAL USE.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

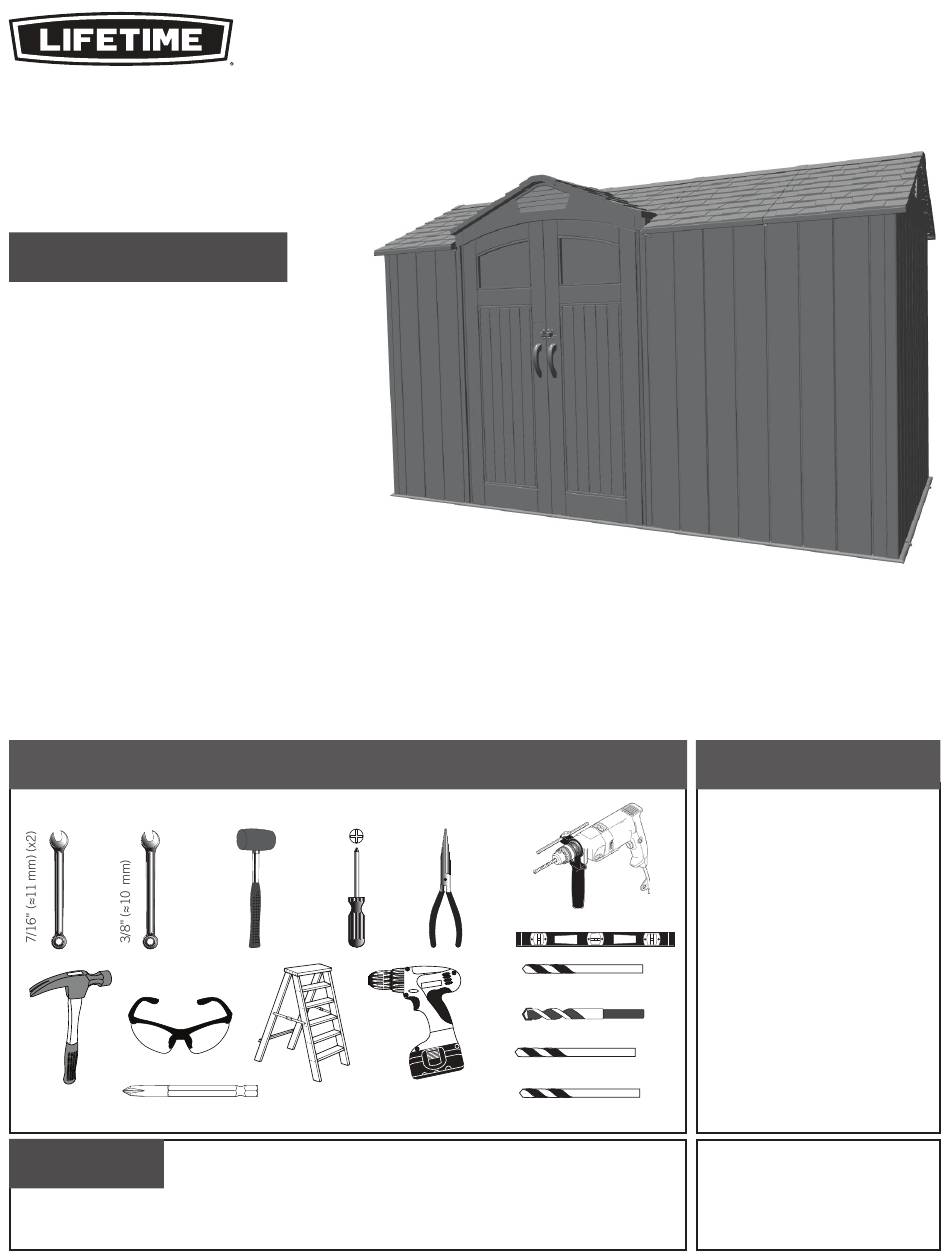

TOOLS REQUIRED
(Not included—unless otherwise indicated*)
ADC #2 Phillips Bit*
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Call:
1-800-225-3865
English, French, Spanish
Live Chat:
www.lifetime.com/customerservice/home
(click on "LIVE CHAT" tab)
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
5/16" (≈8 mm) Wood Drill Bit
5/16" (≈8 mm) Masonry Drill Bit
FRS 1/4" (6,4 mm) Drill Bit*
ARA 1/8" (3,2 mm) Drill Bit*
For Customer Service in mainland Europe,
E-mail:
csinternational@lifetime.com
TABLE OF CONTENTS
Icon legend..........................................................4
Warnings & notices...............................................5
Platform construction..........................................6
Truss assembly...................................................11
Gable assembly..................................................18
Door assembly...................................................21
Floor assembly...................................................38
Wall assembly....................................................43
Shelving installation...........................................55
Roof assembly....................................................60
Parts identifi er..................................................i-iv
Window installation..........................................100
Wall hook installation......................................103
Door alignment................................................105
Shed anchoring................................................108
Cleaning & care................................................111
Registration................................................112
Warranty..................................................116
Model Number: 60430U
Product ID:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 60430U and is the answer not in the manual?

Questions and answers

Related Manuals for Lifetime 60430U

Summary of Contents for Lifetime 60430U

  • Page 1 Cleaning & care..........111 FRS 1/4" (6,4 mm) Drill Bit* Registration..........112 Warranty..........116 ADC #2 Phillips Bit* ARA 1/8" (3,2 mm) Drill Bit* Model Number: 60430U QUESTIONS? CONTACT LIFETIME CUSTOMER SERVICE: Product ID: Call: Live Chat: For Customer Service in mainland Europe, www.lifetime.com/customerservice/home...
  • Page 2 ARA 1/8 po (3,2 mm) Mèche* Phillips n° 2* N° de modèle : 60430U ® QUESTIONS ? CONTACTER LES SERVICES À LA CLIENTÈLE LIFETIME Référence du produit : Composer le t’Chat en direct: Pour les services à la clientèle du continent 1-800-225-3865 www.lifetime.com/customerservice/home...

  • Page 3: Table Of Contents

    ADC n° 2 Broca Phillips* ARA 1/8 in (3,2 mm) Broca* Número de modelo: 60430U ® ¿PREGUNTAS? PONERSE EN CONTACTO CON LOS SERVICIOS DE CLIENTES LIFETIME ID del producto: Marcar: Chat en vivo: Para el servicio a clientes en el continente 1-800-225-3865 www.lifetime.com/customerservice/home...
  • Page 4 ICON LEGEND / LÉGENDE DES ICÔNES / SIGNIFICADO DE LOS ÍCONOS • Indicates special heed should be taken when reading. • Indique qu’une attention spéciale doit être portée à la lecture. • Indica que uno debe prestar atención al leer. •...
  • Page 5 WARNINGS & NOTICES / AVERTISSEMENTS ET AVIS / ADVERTENCIAS Y AVISOS English: • Failure to follow these warnings may result in serious injury or property damage and will void warranty. • To ensure safety, do not attempt to assemble this product without following the instructions carefully. •...
  • Page 6 PLATFORM CONSTRUCTION / CONSTRUCTION DE LA PLATE-FORME / CONSTRUCCIÓN DE LA PLATAFORMA • You must provide a platform on which to assemble your shed. Proper building permit documentation may be required in your neighborhood. Consult all local building codes prior to assembling the shed. Before beginning assembly, you must pour or construct a platform.
  • Page 7 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) CONCRETE REQUIRED / BÉTON REQUIS / CONCRETO REQUERIDO 1 yd (≈,77 m CONCRETE PLATFORM / PLATE-FORME EN BÉTON PLATAFORMA DE CONCRETO • The concrete should be approximately 4" (≈10,2 cm) thick. The actual dimensions of the shed, at its widest and longest points, are 144"...
  • Page 8 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) WOOD REQUIRED / BOIS REQUIS / MADERA REQUERIDA WOOD PLATFORM / PLATE-FORME EN BOIS / PLATAFORMA DE MADERA • All lumber must be rated for outdoor use! The actual dimensions of the shed, at its widest and longest points, are 144" x 84"...
  • Page 9 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS, PARTS, AND HARDWARE REQUIRED / OUTILS, PIÈCES, ET QUINCAILLERIE REQUIS / INSTRUMENTAL, PIEZAS, Y HERRAJE REQUERIDOS 2 in/po x 4 in/po x 138 in/po (≈5,1 cm x ≈10,2 cm x ≈350,42 cm) (x2) 2 in/po x 4 in/po x 78 in/po (≈5,1 cm x ≈10,2 cm x ≈198,2 cm) (x10) 16d 3 1/2 in/po (16d x ≈8,89 cm) (x40) 1.2.1...
  • Page 10 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS, PARTS, AND HARDWARE REQUIRED / OUTILS, PIÈCES, ET QUINCAILLERIE REQUIS / INSTRUMENTAL, PIEZAS, Y HERRAJE REQUERIDO 42 in/po x 81 in/po x 3/4 in/po (≈107 cm x ≈206 cm x ≈1,91 cm) (x1) 48 in/po x 81 in/po x 3/4 in/po (≈122 cm x ≈206 cm x ≈1,91 cm) (x2) 8d 2 1/2 in/po (8d ≈6,35 cm) (x32)

  • Page 11: Ensamblaje De Las Cerchas

    TRUSS ASSEMBLY / ASSEMBLAGE DES FERMES / ENSAMBLAJE DE LAS CERCHAS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO ETC (x26) CXK (x26) ADY (x1) ADK (x1) ADJ (x8) ADH (x4) AHT (x1) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Metal parts / Pièces en métal / Piezas de metal 83,5 cm (≈33”) DSO (x1)
  • Page 12 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) ETC (x4) CXK (x4) SIDE TRUSSES (x3) / FERMES LATÉRALES (x3) CERCHAS LATERALES (x3) •...
  • Page 13 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po ETC (x2) (≈10 mm) CXK (x2) ADJ (x2) 7/16 in/po 8 1/4” 8 1/4 in/po (20,96 cm) (≈11 mm) (x2) ADH (x1) •...
  • Page 14 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po 8 1/4” 8 1/4 in/po (20,96 cm) (≈10 mm) ADH (x2) ETC (x16) CXK (x16) 7/16 in/po (≈11 mm) (x2)
  • Page 15 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) ETC (x2) CXK (x2) • Slide a Truss Brace (AFG) onto the truss gutter channels as shown. •...
  • Page 16 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po ETC (x2) (≈10 mm) CXK (x2) 7/16 in/po (≈11 mm) (x2) ADH (x1) ADJ (x2) 2.12 •...
  • Page 17 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 7/16 in/po (≈11 mm) ADY (x1) ADK (x1) AHT (x1) 2.14 • Only tighten the nut (ADK) by hand in this step. •...

  • Page 18: Ensamblaje De Las Fachadas

    GABLE ASSEMBLY / ASSEMBLAGE DES PIGNONS / ENSAMBLAJE DE LAS FACHADAS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO ADZ (x6) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Plastic parts / Pièces en plastique / Piezas de plástico AGI (x2) AGH (x2) TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO Not included, unless indicated otherwise / Non inclus, sauf indication contraire / No incluido, salvo indicación contraria...
  • Page 19 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) / SECCIÓN 3 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x3) • Align the holes in the side gable halves (AGH and AGI). • Aligner les trous dans les pignons latéraux (AGH et AGI). •...
  • Page 20 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) / SECCIÓN 3 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x3) • Repeat the previous steps for the second side gable. • Répéter les étapes précédentes pour le deuxième pignon latéral. •...
  • Page 21 LEFT DOOR ASSEMBLY / ASSEMBLAGE DE LA PORTE GAUCHE / ENSAMBLAJE DE LA PUERTA IZQUIERDA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO AEE (x3) CHK (x7) AZP (x2) ACH (x2) BYZ (x2) ADW (x1) ADZ (x12) BBH (x1) Parts / Pièces / Piezas DGR (x1) DGS (x1) Lower / Inférieur / Inferior...
  • Page 22 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS BBH (x1) • Slide a long tube (CHI) into the hole in the left door (AGO) until a few inches remain out of the door. •...
  • Page 23 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Drill the two (2) center divots perpendicular to the door with the 1/4 in/po (≈6,4 mm) drill bit (FRS) included. Drill just through the plastic on one side of the door, then fl...
  • Page 24 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 7/16 in/po (≈11 mm) ACH (x2) AZP (x2) • Attach the left latch bracket (FGM) to the door using the hardware included. Tighten only by hand at this point.
  • Page 25 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS CHK (x3) • Attach the door bracket (HLU) onto the side of the door with the self-drilling screws (CHK). •...
  • Page 26 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS CHK (x4) • Attach the locks (DGS & DGR) to the top and bottom of the left door. If the pins in the locks do not move freely, loosen the screws (CHK) just a tad.
  • Page 27 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS BYZ (x2) AEE (x3) ADW (x1) 4.10 • Attach the handle to the door using the hardware included. •...
  • Page 28 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 4.12 • There is a narrow groove (illustrated in black) running along the outside of the window on the back of each door. Starting at the top, left corner of the groove in the left door, lay the 1/8"...
  • Page 29 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x12) 4.13 • Align the holes in the pane with those in the door, and gently set a window pane (DHN) down onto the door. •...
  • Page 30 RIGHT DOOR ASSEMBLY / ASSEMBLAGE DE LA PORTE DROITE / ENSAMBLAJE DE LA PUERTA DERECHA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO AEE (x1) BYZ (x2) ACH (x4) BBH (x1) AEB (x2) AZP (x4) ADZ (x12) ADW (x1) Parts / Pièces / Piezas BBI (x1) EDA (x1) FGN (x1)
  • Page 31 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS BBH (x1) • Slide a long tube (CHI) into the hole in the right door (AGZ) until a few inches remain out of the door. •...
  • Page 32 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Drill the four (4) center divots perpendicular to the door with the 1/4 in/po (≈6,4 mm) FRS included drill bit. Drill just through the plastic on one side of the door, then fl...
  • Page 33 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 7/16 in/po (≈11 mm) ACH (x4) AZP (x4) AEB (x2) • Attach the latch as shown. Ensure the tube inside the door should be fl ush with the bottom of the door, then tighten securely.
  • Page 34 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS BYZ (x2) ADW (x1) AEE (x1) • Attach the handle as shown. Tighten securely. • Attacher bien la poignée comme illustré. Serrer bien la quincaillerie. •...
  • Page 35 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Slide a hinge tube (CHH) into the hole in the door until a few inches remain out of the bottom. •...
  • Page 36 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • There is a narrow groove (illustrated in black) running along the outside of the window on the back of each door. Starting at the top-right corner of the groove in the right door, lay the 1/8"...
  • Page 37 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x12) • Align the holes in the pane with those in the door, and gently set a window pane (DHN) down onto the door. •...

  • Page 38: Ensamblaje Del Piso

    FLOOR ASSEMBLY / ASSEMBLAGE DU PLANCHER / ENSAMBLAJE DEL PISO HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO BQC (x18) AIB (x1) AHO (x2) • These screws do not anchor the fl oor; they only hold the panels together. • Ces vis n’ancrent pas le plancher ; ils ne servent que pour attacher les panneaux les uns aux autres. •...
  • Page 39 SECTION 6 (CONTINUED) / SECTION 6 (SUITE) / SECCIÓN 6 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Hold an inner fl oor panel (AFX) at an angle, and slide the tabs along the edge underneath an outer fl oor panel (AGR). The tabs interlock.
  • Page 40 SECTION 6 (CONTINUED) / SECTION 6 (SUITE) / SECCIÓN 6 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Repeat the previous step. • Répéter l’étape précédente. • Repetir el paso anterior. Hole / Trou / Agujero •...
  • Page 41 SECTION 6 (CONTINUED) / SECTION 6 (SUITE) / SECCIÓN 6 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS BQC (x16) AHO (x2) • Insert bushings (AHO) through the holes in the 2nd and 3rd fl oor panels from the left. The slit in the bushing should face the front of the shed.
  • Page 42 SECTION 6 (CONTINUED) / SECTION 6 (SUITE) / SECCIÓN 6 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS BQC (x2) • Attach the strike plate (AIB) to the fl oor on the same side the bushings were installed. •...

  • Page 43: Ensamblaje De Los Muros

    WALL ASSEMBLY / ASSEMBLAGE DES MURS / ENSAMBLAJE DE LOS MUROS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO BQC (x4) ADZ (x124) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Metal parts / Pièces en métal / Piezas de metal 43”...
  • Page 44 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x40) • Attach a wall support channel (AFM) to a wall panel (AHD) using fi ve (5) screws (ADZ). Repeat this step for all wall panels. •...
  • Page 45 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS BQC (x4) • Place truss slot covers (HLX & HLY) on the two narrow wall panels (CKK & CKN). Attach the truss slot covers with the hardware indicated.
  • Page 46 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x10) • Insert a wall channel (AFM) into the fi rst groove on the back of the right narrow wall panel (CKN) as shown. Attach with fi...
  • Page 47 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x4) • Secure a wall support channel (BXT) just to the left of the notch on the window wall panel (AHH) using four (4) screws (ADV).
  • Page 48 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Insert tabs at the bottom of the right narrow wall panel (CKN) into the seventh and eighth slots from the front, right corner of the fl...
  • Page 49 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x5) • Insert the four tabs at the bottom of the wall panel (AHD) into the fl oor slots next to the narrow wall panel, and slide the panel to the left.
  • Page 50 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x5) 7.10 • Insert tabs at the bottom of the corner panel (AGL) into the fi rst two slots along the right edge of the fl...
  • Page 51 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x10) 7.12 • Insert two (2) wall panels (AHD), and secure using fi ve (5) screws (ADZ) each. •...
  • Page 52 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x25) 7.13 • For the right, rear corner panel (AGL), repeat the step you did for the right, front corner panel.
  • Page 53 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x15) 7.15 • For the left, rear corner panel (AGL), attach it to the fl oor similar to the way you did the previous corner panels. •...
  • Page 54 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x10) 7.17 • For the left, front corner panel (AGL), attach it to the fl oor similar to the way you did the previous corner panels.

  • Page 55: Instalación De La Estantería

    SHELVING INSTALLATION / INSTALLATION DU RAYONNAGE / INSTALACIÓN DE LA ESTANTERÍA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO GJZ (x8) ADZ (x16) FEX (x8) Parts / Pièces / Piezas HDV (x4) FEG (x4) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Plastic parts / Pièces en plastique / Piezas de plástico AFV (x2) TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO...
  • Page 56 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS FEX (x4) • Insert the shelf brackets (FEG) into the slots in the wall/shelf support channels. The brackets must be at the same height. •...
  • Page 57 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS GJZ (x4) • Attach a shelf support bracket (HDV) into the side wall at the same level the shelf braces were placed. Repeat for the other shelf support bracket on the opposite side.
  • Page 58 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x8) • Attach the shelf (AFV) to the corner wall panels and shelf support brackets using eight (8) screws (ADZ). •...
  • Page 59 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS FEX (x4) GJZ (x4) ADZ (x8) • Repeat steps 8.1–8.4 to install the second shelf on the opposite wall. •...

  • Page 60: Ensamblaje Del Tejado

    ROOF ASSEMBLY / ASSEMBLAGE DU TOIT / ENSAMBLAJE DEL TEJADO HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO HQB (x2) ADK (x4) BZA (x2) ADZ (x165) AEE (x8) FEX (x16) AHP (x2) CXK (x2) GJZ (x18) CHK (x2) ADV (x44) GLW (x6) EYR (x2) AHS (x2)
  • Page 61 PARTS IDENTIFIER / IDENTIFICATEUR DE PIÈCES / IDENTIFICADOR DE PIEZAS CONTENTS OF SMALL PARTS BAG / CONTENU DU SAC DE PETITES PIÈCES / CONTENIDO DE LA CAJA DE BOLSA DE PIEZAS PEQUEÑAS ETD (x4) EUG (x4) BYX (x6) EPH (x1) BYW (x3) FRW (x4) HLX (x1)
  • Page 62 PARTS IDENTIFIER / IDENTIFICATEUR DE PIÈCES / IDENTIFICADOR DE PIEZAS CONTENTS OF BOX 1 / CONTENU DE LA BOÎTE 1 / CONTENIDO DE LA CAJA 1 AHE (x1) DHN (x2) AHD (x8) AHH (x1) CONTENTS OF BOX 2 / CONTENU DE LA BOÎTE 2 / CONTENIDO DE LA CAJA 2 AGR (x2) AGQ (x8) AGL (x4)
  • Page 63 PARTS IDENTIFIER / IDENTIFICATEUR DE PIÈCES / IDENTIFICADOR DE PIEZAS CONTENTS OF BOX 3 / CONTENU DE LA BOÎTE 3 / CONTENIDO DE LA CAJA 3 AGO (x1) AGZ (x1) AFV (x2) AGI (x2) AGH (x2) DRA (x1) AGF (x1) BDS (x1) BDR (x1) FYV (x5)
  • Page 64 PARTS IDENTIFIER / IDENTIFICATEUR DE PIÈCES / IDENTIFICADOR DE PIEZAS CONTENTS OF METAL KIT / CONTENU DU KIT DE PIÈCES EN MÉTAL / CONTENIDO DEL KIT DE PIEZAS DE METAL Top end / Extrémité supérieure / Extremo superior 74” (≈188 cm) CHI (x2) 74”...
  • Page 65 ROOF ASSEMBLY / ASSEMBLAGE DU TOIT / ENSAMBLAJE DEL TEJADO PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Plastic parts / Pièces en plastique / Piezas de plástico BDR (x1) BDS (x1) DRA (x1) AGQ (x8) AGF (x1) (x2) FYV (x5) BYW (x3) FRW (x4) BYX (x6)
  • Page 66 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x12) • Attach a side gable to the shed using twelve (12) screws (ADZ). •...
  • Page 67 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADV (x6) • Using two people, attach a wall header (AFE) to the right shed wall using six (6) screws (ADV). •...
  • Page 68 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS FEX (x4) • Insert a support tube (BYY) into the notches of a roof panel (AGQ). Repeat this step for all roof panels. •...
  • Page 69 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS GJZ (x4) HLO (x4) • Orient four (4) L-brackets (HLO) as shown, and place them on the top of the screw anchors as shown. The small end of the L-bracket should face the edge of the panel •...
  • Page 70 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Place a side truss into the notches on the rear wall panel and right, front window wall panel. While another adult holds this in place, continue to the next step.
  • Page 71 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADV (x4) • Align the four holes in the wall panel with the slits at the bottom of the roof panel, and insert four (4) screws (ADV) to secure the panel in place.
  • Page 72 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x4) 9.10 • Align the L-bracket with the holes on the inside of the right gable, and insert four (4) screws (ADZ) to secure the gable to the roof panel.
  • Page 73 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS GJZ (x4) ADZ (x4) FEX (x4) HLO (x4) 9.11 • Insert four (4) screws (ADZ) along the truss as shown. •...
  • Page 74 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADV (x4) ADZ (x20) 9.13 • Set the second roof panel from steps 9.7–9.11 onto the gable, wall panel, and truss assembly. The L-brackets should be against the gable.
  • Page 75 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADV (x6) 9.15 • Using two people, attach a wall header (AFE) to the right shed wall using six (6) screws (ADZ). •...
  • Page 76 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADV (x8) ADZ (x16) GJZ (x8) FEX (x8) HLO (x8) 9.16 • Place a side truss into the notches on the rear wall panel and left, front wall panel. While another adult holds this in place, continue to the next step.
  • Page 77 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 9.18 • Place a side truss into the notches on the rear wall panel and right, front wall panel. While another adult holds this in place, continue to the next step.
  • Page 78 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADV (x8) ADZ (x16) 9.20 • Attach the roof panels onto the gable, wall panel, and truss assembly, and secure them with the hardware shown.
  • Page 79 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 9.21 • Place the back of the center truss into the notch on the rear wall panel. Then, lift the front of the truss up so the ends of the roof support tube touch the side trusses.
  • Page 80 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) HQB (x2) CXK (x2) AEE (x2) 9.22 • Secure the ends of the support tube to the underside of the truss channels using the hardware provided. •...
  • Page 81 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS AHP (x2) 9.23 • Pull the hinge tube down out of the left door about six inches. Align the hole at the bottom of the hinge tube with the slit in the bushing, and insert the tube.
  • Page 82 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x1) 9.25 • Slide the holes in the entry gable down over the two hinge tubes. •...
  • Page 83 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADV (x8) ADZ (x16) 9.27 • Attach the two center, rear roof panels and secure it with the hardware shown. Only insert the long screws (ADV) along the top edge of the wall panel.
  • Page 84 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 9.28 • There are two connectors that are laid on the left and right trusses and slide into the center gable above the doors.
  • Page 85 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) BZA (x1) AEE (x2) ADK (x1) 9.30 • Place the left-side gable connecter (HLK) onto the truss nearest the roof panel. Slide the connector forward so that it is inserted into the front gable.
  • Page 86 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) BZA (x1) AEE (x2) ADK (x1) ADZ (x4) 9.32 • Repeat steps 9.30–9.31 to attach the right-side gable connector (HLJ). •...
  • Page 87 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x4) 9.34 • Utilizing the remaining butyl tape from the door assembly sections, place a strip of the tape in the groove found at the bottom of the small triangle roof panel (DRB).
  • Page 88 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x16) 9.36 • An adult must apply a downward pressure on panels (BDS & BDR) while another inserts these screws (ADZ). •...
  • Page 89 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 9.38 • Slide the front roof cap (BYW) and the black foam pieces (BYX) into the front gable. •...
  • Page 90 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x4) 9.39 • Connect the front roof cap to the inside of the shed using two (2) screws (ADZ). •...
  • Page 91 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x6) 9.41 • Attach the front gable to the large angled roof panels from inside the shed with the hardware indicated. •...
  • Page 92 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS GJZ (x1) CHK (x1) ADZ (x2) 9.43 • Attach the right gable support to the large angled roof panels from inside the shed with the hardware indicated.
  • Page 93 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS GJZ (x1) CHK (x1) ADZ (x2) 9.44 • Repeat steps 9.41–9.42 to place and attach the left gable support (EGR). •...
  • Page 94 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 9.45 • Place end caps (AHS) into the ends of the gable header bar (HPS). •...
  • Page 95 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) ADK (x2) EYR (x2) GLW (x6) AEE (x2) 9.47 • Attach the header to the gable using the hardware indicated. The middle holes will be attached in the next step. •...
  • Page 96 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 9.49 • Insert two (2) pieces of foam (BYX) into each end cap (BYW) as shown. Repeat this step for the second end caps. •...
  • Page 97 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x4) 9.51 • Connect the end roof cap to the inside of the shed using two (2) screws (ADZ). These screws attach to the underside of the roof cap.
  • Page 98 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 9.53 • Bend the skylights (FYV) slighty before installing them. The fi rst skylight will fi t in the upper edge of the end cap (BYW). Place a connector (FRW) on the other end of the skylight, fi...
  • Page 99 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x2) 9.54 • Place the skylight onto the end of the roof. The fi rst skylight will fi t in the upper edge of the end cap (BYW). The end of the connector will extend to the truss.
  • Page 100 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 9.56 • Place a connector on the end of the second skylight. • Mettre un connecteur sur l’extrémité du deuxième puits de lumière. •...
  • Page 101 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 9.58 • Repeat the last step for the next three skylights and connectors. Do not use any other hardware until all the skylights are in place. •...
  • Page 102 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x4) 9.60 • Connect the end roof cap to the inside of the shed using two (2) screws (ADZ). These screws attach to the underside of the roof cap.
  • Page 103 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN 9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x28) 9.62 • Attach the skylights to the roof panels with the hardware indicated. •...
  • Page 104 WINDOW INSTALLATION / INSTALLATION DU CARREAU / INSTALACIÓN DE LA HOJA DE VENTANA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO ADZ (x2) ADY (x1) AIS (x1) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Plastic parts / Pièces en plastique / Piezas de plástico AHE (x1) TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO Not included, unless indicated otherwise / Non inclus, sauf indication contraire / No incluido, salvo indicación contraria...
  • Page 105 SECTION 10 (CONTINUED) / SECTION 10 (SUITE) / SECCIÓN 10 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 10.1 • Peel off the protective backing from both sides of the window (AHE). • Retirer la pellicule protectrice des deux côtés du carreau (AHE). •...
  • Page 106 SECTION 10 (CONTINUED) / SECTION 10 (SUITE) / SECCIÓN 10 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x2) ADY (x1) AIS (x1) 10.3 • Attach the latch (AIS) at the top left corner of the window. The latch should move freely. •...
  • Page 107 WALL HOOK INSTALLATION / INSTALLATION DES CROCHETS / INSTALACIÓN DE LOS GANCHOS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO EDL (x6) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO Not included, unless indicated otherwise / Non inclus, sauf indication contraire / No incluido, salvo indicación contraria...
  • Page 108 SECTION 11 (CONTINUED) / SECTION 11 (SUITE) / SECCIÓN 11 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS EDL (x6) 11.1 • Insert the six (6) wall hooks (EDL) into any of the notches in the wall panels (either side of the shed). Then push downward to lock them in place.
  • Page 109 DOOR ALIGNMENT / ALIGNEMENT DES PORTES / ALINEACIÓN DE LAS PUERTAS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Plastic parts / Pièces en plastique / Piezas de plástico EUG (x4) TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO Not included, unless indicated otherwise / Non inclus, sauf indication contraire / No incluido, salvo indicación contraria...
  • Page 110 SECTION 12 (CONTINUED) / SECTION 12 (SUITE) / SECCIÓN 12 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 12.1 • If the doors are not level, follow the steps on this page or the next to even them out. •...
  • Page 111 SECTION 12 (CONTINUED) / SECTION 12 (SUITE) / SECCIÓN 12 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 12.3 • If the right door is higher, insert a shim (EUG) underneath the left, front and right, rear corners of the shed until the doors are the same height.

  • Page 112: Anclaje De La Caseta

    SHED ANCHORING / ANCRAGE DE L’ABRI / ANCLAJE DE LA CASETA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO Not included, unless indicated otherwise / Non inclus, sauf indication contraire / No incluido, salvo indicación contraria 5/16"...
  • Page 113 SECTION 13 (CONTINUED) / SECTION 13 (SUITE) / SECCIÓN 13 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 5/16 in/po (≈8 mm) 13.1 • To anchor your shed, you must purchase the correct anchoring hardware. For a concrete platform, we recommend using a hammer drill, 5/16"...
  • Page 114 SECTION 13 (CONTINUED) / SECTION 13 (SUITE) / SECCIÓN 13 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 5/16 in/po (≈8 mm) 13.1 • To anchor your shed, you must purchase the correct anchoring hardware. For a wood-framed platform, we recommend using a drill, 5/16"...

  • Page 115: Limpieza Y Cuidado

    ® product purchase. By following the instructions below, your new Lifetime product should provide you with years of service and enjoyment. The polyethylene panels are stain and solvent resistant. Most stains can be removed using a mild soap and a soft-bristled brush.
