Summary of Contents for Lifetime 60455

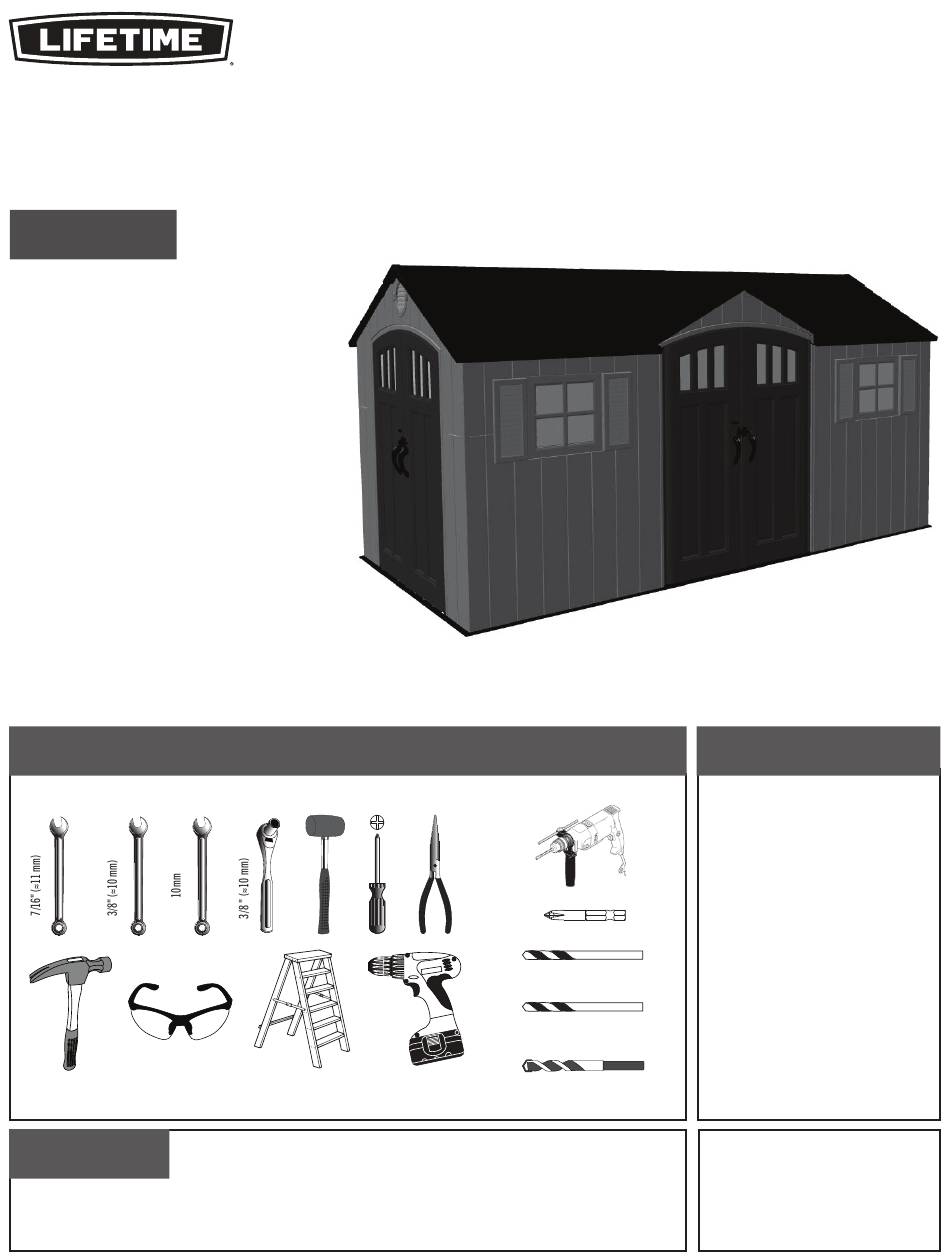

Page 1: Table Of Contents
Door alignment......103 Anchoring........106 Cleaning & care......109 Registration......110 5/16" (≈8 mm) Masonry Drill Bit Warranty........113 QUESTIONS? Product ID: CONTACT LIFETIME CUSTOMER SERVICE: Call: 1-800-225-3865 For Customer Service in mainland Live Chat: Europe and the United Kingdom: www.lifetime.com/customerservice/home (English, French, Spanish) E-mail: csinternational@lifetime.com...
Page 2: Instructions D'assemblage
5/16 po (≈8 mm) Foret à maçonnerie Nettoyage et entretien....109 Enregistrement....110 Garantie......114 Référence du produit : ® QUESTIONS ? CONTACTER AUX SERVICES À LA CLIENTÈLE LIFETIME Pour les services à la clientèle du Composer le 1-800-225-3865 Entretien en direct: continent européen: (anglais, français, espagnol) www.lifetime.com/customerservice/home (cliquer sur la languette «...
Page 3: Instrucciones De Ensamblaje
5/16 in (≈8 mm) Broca de albañilería Garantía......115 ID del producto: ® ¿PREGUNTAS? PONERSE EN CONTACTO CON LOS SERVICIOS DE CLIENTES LIFETIME Chat en vivo: Llamar : 1-800-225-3865 Para el servicio a clientes en el www.lifetime.com/customerservice/home continente europeo: Correo electrónico: (inglés, francés, español)
Page 4 ICON LEGEND / LÉGENDE DES ICÔNES / LEYENDA DE ÍCONOS • Indicates special heed should be taken when reading. • Indique qu’une attention spéciale doit être portée à la lecture. • Indica que uno debe prestar atención al leer. • Indicates the parts (or no parts) required for a section. •...
Page 5 WARNINGS & NOTICES / AVERTISSEMENTS ET AVIS / ADVERTENCIAS Y AVISOS English: • Failure to follow these warnings may result in serious injury or property damage and will void warranty. • To ensure safety, do not attempt to assemble this product without following the instructions carefully. •...
Page 6 PLATFORM CONSTRUCTION / CONSTRUCTION DE LA PLATE-FORME / CONSTRUCCIÓN DE LA PLATAFORMA • You must provide a platform on which to assemble your shed. Proper building permit documentation may be required in your neighborhood. Consult all local building codes prior to assembling the shed. Before beginning assembly, you must pour or construct a platform.
Page 7 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) CONCRETE REQUIRED / BÉTON REQUIS / CONCRETO REQUERIDO 2 yd (1,53 m CONCRETE PLATFORM / PLATE-FORME EN BÉTON / PLATAFORMA DE CONCRETO • The concrete should be approximately 4" (≈10,2 cm) thick. The actual dimensions of the shed, at its widest and longest points, are 180"...
Page 8: Icon Legend
SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) WOOD REQUIRED / BOIS REQUIS / MADERA REQUERIDA WOOD PLATFORM / PLATE-FORME EN BOIS / PLATAFORMA DE MADERA • All lumber must be rated for outdoor use! The actual dimensions of the shed, at its widest and longest points, are 180" x 96" (≈4,57 m x ≈2,44 m).
Page 9: Warnings & Notices
SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) WOOD REQUIRED / BOIS REQUIS / MADERA REQUERIDA 2 in/po x 4 in/po x 178 in/po (≈5,1 cm x ≈10,2 cm x ≈4,52 m) (x2) 2 in/po x 4 in/po x 90 1/2 in/po (≈5,1 cm x ≈10,2 cm x ≈2,30 m) (x13) 16d 3 1/2 in/po (16d x ≈8,89 cm) (x52) 1.2.1 •...
Page 10: Platform Construction
SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) WOOD REQUIRED / BOIS REQUIS / MADERA REQUERIDA 34 in/po x 93 1/2 in/po x 3/4 in/po (≈86,4 cm x ≈2,38 m x ≈19,1 mm) (x1) 48 in/po x 93 1/2 in/po x 3/4 in/po (≈1,22 m x ≈2,38 m x ≈19,1 mm) (x3) 3/8 in/po (≈10 mm) 8d 2 1/2 in/po (8d ≈6,35 cm) (x72)
Page 11 TRUSS ASSEMBLY / ASSEMBLAGE DES FERMES / ENSAMBLAJE DE LAS CERCHAS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Parts / Pièces / Piezas CXK (x2) ADY (x19) DTK (x22) ADK (x40) ADJ (10) DTJ (x1) ADH (x5) AHT (x1) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS CONTENTS OF SMALL PARTS BOX Metal parts / Pièces en métal / Piezas de metal...
Page 12 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) (x2) ADK (x8) DTK (x8) SIDE TRUSSES (x2) / FERMES LATÉRALES (x2) / CERCHAS LATERALES (x2) •...
Page 13 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) ADK (x8) ADY (x8) ADH (x2) ADJ (x4) 7/16 in/po (≈11 mm) (x2) •...
Page 14 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 7/16 in/po (≈11 mm) (x2) ADK (x16) ADY (x8) DTK (x8) ADJ (x4) 3/8 in/po (≈10 mm) (x2) ADH (x2) •...
Page 15: Truss Assembly
SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) (x2) DTK (x4) ADK (x6) ADY (x2) • Attach a connector (AIP) to the end of two truss gutter channels using the hardware provided. Do not overtighten the cap nuts (ADK).
Page 16 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) (x2) DTJ (x1) DTK (x2) ADK (x1) CXK (x2) 2.11 • Attach the vertical truss brace (DSN) to the truss. Only ﬁ nger tighten this nut (ADK) for now. •...
Page 17 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 7/16 in/po (≈11 mm) (x2) ADY (x1) ADK (x1) ADJ (x2) 3/8 in/po (≈10 mm) (x2) AHT (x1) ADH (x1) 2.13...
Page 18 GABLE ASSEMBLY / ASSEMBLAGE DES PIGNONS / ENSAMBLE DE LAS FACHADAS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Parts / Pièces / Piezas EYR (x4) ADV (x16) EYQ (x3) ADZ (x9) AIQ (x2) ENH (x2) CXK (x3) ADK (x4) AHS (x6) ADW (x10) AEE (x16)
Page 19 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) / SECCIÓN 3 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x4) • Align the holes in the left (AGH) and right (AGI) side gable halves. •...
Page 20 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) / SECCIÓN 3 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADW (x5) AEE (x5) • Place the screen (AIQ) over the vent (ENH) and align the ﬁ ve holes in the vent with those in the gable. •...
Page 21 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) / SECCIÓN 3 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS AHS (x2) • Insert an end cap (AHS) into each end of the square tube (AFE). •...
Page 22: Gable Assembly
SECTION 3 (CONTINUED) / SECTION 3 (SUITE) / SECCIÓN 3 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADV (x6) • Secure with the hardware provided. • Fixer les uns aux autres en utilisant la quincaillerie incluse. •...
Page 23 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) / SECCIÓN 3 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 10 mm EYQ (x1) ADZ (x3) CXK (x1) AHS (x2) • Secure the two gable halves with three (3) screws (ADZ) and one (1) screw (EYQ) and nut (CXK). •...
Page 24 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) / SECCIÓN 3 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADV (x4) 3.11 • Align the holes in the header with those in the entry gable. •...
Page 25 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) / SECCIÓN 3 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 10 mm ADK (x2) EYR (x2) AEE (x2) 3.13 • Secure with two (2) screws (EYR), two (2) washers (AEE), and two (2) nuts (ADK). •...
Page 26 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) / SECCIÓN 3 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 10 mm EYQ (x2) CXK (x2) ADZ (x2) ADW (x5) AEE (x7) 3.15 • Secure with the hardware included. •...
Page 27 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) / SECCIÓN 3 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS AHS (x2) 3.17 • Insert an end cap (AHS) into each end of the header (EYS). •...
Page 28 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) / SECCIÓN 3 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 10 mm ADK (x2) EYR (x2) AEE (x2) ADV (x6) 3.19 • Secure with two (2) screws (EYR), two (2) washers (AEE), and two (2) nuts (ADK) ... •...
Page 29 LEFT DOOR ASSEMBLY / ASSEMBLAGE DE LA PORTE GAUCHE / ENSAMBLE DE LA PUERTA IZQUIERDA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO BYZ (x4) AEE (x6) AAB (x4) ADW (x2) ACH (x4) ARA (x2) 1/8 in/po (≈3 mm) ENO (x8) Parts / Pièces / Piezas...
Page 30 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS BBH (x1) • Slide a long tube (EDW) into the hole in the left door (BDJ) until a few inches remain out of the Door. The end with the hole goes at the top.
Page 31 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ARA (x1) 1/8 in/po (≈3 mm) ACH (x2) AAB (x2) AEB (x2) • Attach the left latch bracket (EOY) to the door using the hardware included. Tighten only by hand at this point. •...
Page 32 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ENO (x4) ENP (x2) • Attach the locks (DGS & DGR) and spacers (ENP) to the top and bottom of the left door. If the pins in the locks do not move freely, loosen the screws (ENO) just a little.
Page 33: Door Assembly
SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS BYZ (x2) ADW (x1) AEE (x3) • Secure the handle to the door using the hardware included. •...
Page 34 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • There is a narrow groove (illustrated in black) running along the outside of the window on the back of each door. Starting at the top, left corner of the groove in the left door, lay the 1/8"...
Page 35 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x14) 4.10 • Align the holes in the pane with those in the door, and gently set a window pane (DHN) down onto the door. •...
Page 36 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) / SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS BYZ (x2) AEE (x3) AAB (x2) ACH (x2) ARA (x1) ENO (x4) ADW (x1) 1/8 in/po AEB (x2) (≈3 mm) ADZ (x14)
Page 37 RIGHT DOOR ASSEMBLY / ASSEMBLAGE DE LA PORTE DROITE / ENSAMBLE DE LA PUERTA DERECHA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Metal parts / Pièces en métal Piezas de metal BYZ (x4) ACH (x4) BBI (x2) EPA (x2) BBH (x2) CXK (x4) CHK (x2)
Page 38 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS CHK (x1) • Slide a long tube (EDW) into the hole in the right door (BDK) until a few inches remain out of the door. The end with the hole goes at the top.
Page 39 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 7/16 in/po (≈11 mm) 3/8 in/po (≈10 mm) EPC (x2) AEE (x2) CXK (x2) ACH (x2) AAB (x2) AEB (x2) •...
Page 40 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS BYZ (x2) ADW (x1) AEE (x1) • Attach the handle as indicated. Tighten securely. • Bien attacher la poignée comme indiqué. Bien serrer la quincaillerie. •...
Page 41 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Slide a hinge tube (CRD) into the hole in the door until a few inches remain out of the bottom. •...
Page 42 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • There is a narrow groove (illustrated in black) running along the outside of the window on the back of each door. Starting at the top, right corner of the groove in the right door, lay the 1/8"...
Page 43 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x14) • Align the holes in the pane with those in the door, and gently set a window pane (DHN) down onto the door. •...
Page 44 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 7/16 in/po (≈11 mm) CHK (x1) AEE (x3) ACH (x2) AAB (x2) 3/8 in/po AEB (x2) (≈10 mm) EPC (x2) BYZ (x2)
Page 45 FLOOR ASSEMBLY / ASSEMBLAGE DU PLANCHER / ENSAMBLE DEL PISO HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Parts / Pièces Piezas CWU (x34) ADC (x1) AHL (x2) AHO (x4) • These screws do not anchor the ﬂ oor; they only hold the panels together. •...
Page 46 SECTION 6 (CONTINUED) / SECTION 6 (SUITE) / SECCIÓN 6 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Hold an inner ﬂ oor panel (CUD) at an angle and slide the tabs along the edge underneath an outer ﬂ...
Page 47 SECTION 6 (CONTINUED) / SECTION 6 (SUITE) / SECCIÓN 6 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Repeat the last step. If the hole is not at this corner, turn the Panel 180°. •...
Page 48 SECTION 6 (CONTINUED) / SECTION 6 (SUITE) / SECCIÓN 6 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS AHO (x4) • You may install the side doors on either end; however, you will •...
Page 49: Floor Assembly
SECTION 6 (CONTINUED) / SECTION 6 (SUITE) / SECCIÓN 6 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS CWU (x30) • Insert the screws (CWU) through the divots in the ﬂ oor panels and into the tabs of the adjacent ﬂ oor panels. (The divots are near the seams of the ﬂ...
Page 50 SECTION 6 (CONTINUED) / SECTION 6 (SUITE) / SECCIÓN 6 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS CWU (x4) • Attach the strike plate (AHL) to the ﬂ oor on the same side the bushings were installed. •...
Page 51 WALL ASSEMBLY / ASSEMBLAGE DES MURS / ENSAMBLE DE LOS MUROS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO * Not all hardware will be used in the section. * La quincaillerie n’est pas utilisée au complet dans la section. * No se utilizará...
Page 52 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x28) • Secure a wall support channel (AFM) just to the left of the center groove of each of the seven (7) wall panels (AHD) using four (4) •...
Page 53 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x8) • Secure a wall support channel (AFM) to the groove along the edge of the corner wall panels (AGY) using four (4) screws (ADZ) each. The two holes in the wall support channel go at the top of the corner wall panel.
Page 54 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x8) • Secure a wall support channel (AFM) to the left narrow wall panel (CKK) using four (4) screws (ADZ). The end with two holes goes at the top. •...
Page 55: Wall Assembly
SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • You may install the side doors on either end; however, you will need to install the corner panels (AGN & ANY) on the same end as you do the doors. •...
Page 56 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x5) • Insert the four tabs at the bottom of the window wall panel (AHH) into the 3rd–6th slots from the right along the front edge of the ﬂ...
Page 57 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x5) 7.10 7.11 • Insert the two rear-most tabs at the bottom of • Slide the panel to the front of the ﬂ oor as far as the front, right corner wall panel (AGW) in the ﬁ...
Page 58 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x40) 7.13 • Insert the four tabs at the bottom of two (2) wall panels (AHD) into the next four slots along the edge of the ﬂ oor, and slide the panel forward.
Page 59: Identificador De Piezas
PARTS IDENTIFIER / IDENTIFICATEUR DE PIÈCES / IDENTIFICADOR DE PIEZAS CONTENTS OF BOX 1 / CONTENU DE LA BOÎTE 1 / CONTENIDO DE LA CAJA 1 BDJ (x1) BDK (x1) EVZ (x1) EWA (x1) BDS (x1) AGQ (x6) AGI (x1) AGH (x1) DRA (x1) BDR (x1)
Page 60 PARTS IDENTIFIER / IDENTIFICATEUR DE PIÈCES / IDENTIFICADOR DE PIEZAS METAL PARTS KIT 1 / KIT PIÈCES EN MÉTAL 1 / KIT DE PIEZAS DE METAL 1 59 1/2 in/po (≈1,51 m) EYS (x1) HDU (x2) HDT (x1) Top End / Extrémité supérieure / Extremo superior 74 5/8 in/po (≈1,90) EDW (x2) 50 9/16 in/po (≈1,28 m)
Page 61 PARTS IDENTIFIER / IDENTIFICATEUR DE PIÈCES / IDENTIFICADOR DE PIEZAS CONTENTS OF BOX 2 / CONTENU DE LA BOÎTE 2 / CONTENIDO DE LA CAJA 2 HLF (x6) CKK (x1) CKN (x1) CONTENTS OF SMALL PARTS BOX / CONTENU DE LA BOÎTE DE PETITES PIÈCES / CONTENIDO DE LA CAJA DE PIEZAS PEQUEÑAS AIX (x4) AYI (x4) DRB (x1)
Page 62 PARTS IDENTIFIER / IDENTIFICATEUR DE PIÈCES / IDENTIFICADOR DE PIEZAS CONTENTS OF SMALL PARTS BOX / CONTENU DE LA BOÎTE DE PETITES PIÈCES / CONTENIDO DE LA CAJA DE PIEZAS PEQUEÑAS 25 7/8 in/po (≈65,7 cm) DSM (x1) 74 1/2 in/po (≈1,89 m) CRE (x2) AFG (x3) 50 9/16 in/po (≈1,28 m)
Page 63 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x15) 7.16 7.17 • Insert this corner wall panel (AGN) in the same way as •...
Page 64 SECTION 7 (CONTINUED) / SECTION 7 (SUITE) / SECCIÓN 7 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x15) 7.16 7.17 • Insert this corner wall panel (AGN) in the same way as •...
Page 65: Roof Assembly
ROOF ASSEMBLY / ASSEMBLAGE DU TOIT / ENSAMBLE DEL TEJADO HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Parts / Pièces / Piezas AIM (x1) DTV (x2) ARV (x4) ADZ (x200)* AIC (x1) BHJ (x2) AHP (x4) AEE (x2) CXK (x2) ADX (x4) * Not all hardware will be used in the section.
Page 66 ROOF ASSEMBLY / ASSEMBLAGE DU TOIT / ENSAMBLE DEL TEJADO PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Plastic parts / Pièces en plastique / Piezas de plástico (x1) (x1) (x2) (x2) (x1) BDS (x1) BDR (x1) DRA (x1) AGQ (x10) HOB (x5) HLF (x6) DRB (x1)
Page 67 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x14) • Attach a side gable to the shed using fourteen (14) screws (ADZ). •...
Page 68 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS • Place a outer side truss into the notches on the rear wall panel and left front window wall panel. While another adult holds this in place, continue to the next step.
Page 69 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x4) • Set the roof panel (AGQ) down onto the wall panel, gable, and truss. The groove at the bottom of the roof panel sets over the top of the wall panel.
Page 70 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x7) • Insert the ﬁ rst three (3) screws (ADZ) through the gable and the ﬁ rst two (2) screws (ADZ) through the truss and into the roof panel at the locations shown.
Page 71 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x11) • Repeat these steps for the rear roof panel, but only use one roof support for each roof panel (AGQ). •...
Page 72 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x20) • Attach these roof panels (AGQ) in a similar manner as the previous panels. Roof panels in these locations only use ten (10) Screws (ADZ) each.
Page 73 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS AHP (x2) 8.10 • Pull the hinge tube down out of the left door (the door with hinge tube (CRD), the longest of the tubes) about six inches. Align the hole at the bottom of the hinge tube with the slit in the bushing, and insert the tube.
Page 74 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x6) 8.11 • Slide the holes in the entry gable down over the two hinge tubes. Secure with six (6) screws (ADZ). •...
Page 75 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x42) 8.12 • Repeat steps 9.3–9.9 for the panels on the opposite side. • Répéter les étapes 9.3 – 9.9 pour les panneaux sur le côté opposé. •...
Page 76 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 8.13 • Place the back of the center truss into the notch (Fig. 1) on the center rear wall panel. Then, lift the front of the truss (Fig.
Page 77 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po DTV (x2) (≈10 mm) CXK (x2) AEE (x2) 8.14 • Secure the ends of the support tube to the side truss channels using the hardware provided. •...
Page 78 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS AHP (x2) 8.15 • Repeat step 9.10 for the front left and right doors. • Répéter l’étape 9.10 pour les porte gauche et droite avants. •...
Page 79 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 8.16 • Slide the holes in the entry gable down over the two hinge tubes. •...
Page 80 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x21) 8.17 • Set the end of the center truss onto the notch in the front gable as shown. •...
Page 81 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) BZA (x2) ADK (x2) AEE (x4) 8.19 • Insert the right drainage plate (ECS) into the right lateral truss, and align the notch in the plate with the ﬁ rst hole in the truss as shown.
Page 82 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (≈10 mm) ADZ (x14) 8.21 • Fold the ends of the large angled roof panel (DRA) and set it down onto the shed as shown. Secure the panel to the entry gable and center truss with twelve (12) screws (ADZ) at the locations shown.
Page 83 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x20) 8.23 • An adult must apply a downward pressure on panel (DRB) while another inserts these screws (ADZ). •...
Page 84 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 8.25 • Bend the skylights (HLF) slighty before installing them. The ﬁ rst skylight will ﬁ t in the upper edge of the end cap (HOC). Place a connector (HOB) on the other end of the skylight, ﬁ...
Page 85 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ARV (x2) 8.26 • Place the skylight onto the end of the roof. Fit the end cap over the gable. The end of the connector will extend to the truss.
Page 86 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x2) 8.28 • Secure the skylight with the hardware indicated in the location shown. Do not use any other hardware until all the skylights are in place.
Page 87 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 8.30 • Place the second skylight into the upper section of the connector. • Mettre le deuxième puits de lumière dedans la section supérieure du connecteur. •...
Page 88 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 8.32 • Connect the last skylight to the remaining end cap. Fold the skylight before inserting into the cap. •...
Page 89 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ARV (x2) 8.33 • Place the end cap and skylight onto the end of the roof. Fit the end cap over the gable. The end of the skylight will extend slightly past the truss.
Page 90 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x34) 8.35 • Attach the skylights to the roof panels with the hardware indicated. •...
Page 91 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADX (x4) 8.36 • Attach the left (AIC) and right (AIM) gap ﬂ aps to the corners of the doors using the hardware included. These ﬂ aps simply serve to block out light.
Page 92 SECTION 8 (CONTINUED) / SECTION 8 (SUITE) / SECCIÓN 8 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS BHJ (x2) 8.25 • Use an electric screwdriver to Insert a self tapping screw (BHJ) through the plastic of the gable and into the right and left door hinge tubes at the location shown.
Page 93: Shelving Installation
SHELVING INSTALLATION / INSTALLATION DU RAYONNAGE / INSTALACIÓN DE LA ESTANTERÍA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Parts / Pièces / Piezas GJZ (x8) FEX (x8) AIY (x4) ADZ (x32)* * Not all hardware will be used in the section. * La quincaillerie n’est pas utilisée au complet dans la section.
Page 94 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS AIY (x2) FEX (x4) • Insert the shelf brackets (AIY) into the slots in the wall/shelf support channels. The brackets must be at the same height. •...
Page 95 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS GJZ (x4) • Attach a shelf support bracket (HDV) into the side wall at the same level the shelf brackets were placed. Repeat for the other shelf support bracket on the opposite side.
Page 96 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x8) • Attach the shelf (AFV) to the corner wall panels and shelf support brackets using eight (8) screws (ADZ). •...
Page 97 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS AIY (x2) FEX (x4) GJZ (x4) ADZ (x8) • Repeat steps 9.1–9.6 to install the second shelf on the same wall. •...
Page 98 SECTION 9 (CONTINUED) / SECTION 9 (SUITE) / SECCIÓN9 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x8) • Select the corner in which you would like to install a corner shelf (AFZ). Fold up the ﬂ aps of the shelf, and align the holes in the tabs with those in the corner wall panel.
Page 99: Window Pane Installation
WINDOW PANE INSTALLATION / INSTALLATION DES CARREAUX / INSTALACIÓN DE LAS HOJAS DE VENTANA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO ADY (x2) ADZ (x8) AIS (x4) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Plastic parts / Pièces en plastique / Piezas de plástico AHE (x2) TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO (Not included—unless indicated otherwise*) / (Non inclus —...
Page 100 (AHE). Con el borde curvado hacia arriba y el interior, deslizar la hoja en su lugar. http://go.lifetime.com/8wininstall 10.2 • Insert a screw (ADY) into the hole at the bottom of the window pane. This helps keep the window pane up when open.
Page 101 SECTION 10 (CONTINUED) / SECTION 10 (SUITE) / SECCIÓN 10 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x8) AIS (x4) 10.3 • Attach the two (2) window latches (ADY) at the top corners of the panel opening. The latch should move freely. Repeat steps 10.1–10.3 for the second window pane.
Page 102: Shutter Installation
SHUTTER INSTALLATION / INSTALLATION DES VOLETS / INSTALACIÓN DE LAS CONTRAVENTANAS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO ARV (x16) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Plastic parts / Pièces en plastique / Piezas de plástico AYI (x4) TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO (Not included—unless otherwise indicated*) / (Non inclus —...
Page 103 • En cas d’avoir des problèmes avec cette section, suivre le code en bas pour voir un vidéo sur l’assemblage dans cette section. • En caso de tener problemas con esta sección, seguir el código debajo para ver un video sobre el ensamble en esta section. http://go.lifetime.com/lifetime20x8outdoorshed-section11 11.1 •...
Page 104 SECTION 11 (CONTINUED) / SECTION 11 (SUITE) / SECCIÓN 11 (CONTINUACIÓN) TOOLS AND PARTS REQUIRED / OUTILS ET PIÈCES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS ARV (x7) 11.2 • Align the screw bosses in the shutters (AYI) with the screws (ARV) as you insert the screws. Secure both shutters to the panels.
Page 105: Wall Hook Installation
WALL HOOK INSTALLATION / INSTALLATION DES CROCHETS / INSTALACIÓN DE LOS GANCHOS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO EDL (x12) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO (Not included—unless otherwise indicated*) / (Non inclus — sauf indication contraire*) / (No incluido, salvo indicación contratia*)
Page 106 (en cualquiera de los dos lados de la caseta). Entonces, empujarlos hacia abajo para ﬁ jarlos en su lugar. http://go.lifetime.com/doorbaghooks WARNING The total weight on a wall hook should not exceed 7 lb (3,2 kg) nor more than 30 lb (14 kg) on a wall panel.
Page 107: Door Alignment
DOOR ALIGNMENT / ALIGNEMENT DES PORTES / ALINEACIÓN DE LAS PUERTAS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Plastic parts / Pièces en plastique / Piezas de plástico AIX (x4) TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO (Not included—unless otherwise indicated*) / (Non inclus —...
Page 108 SECTION 13 (CONTINUED) / SECTION 13 (SUITE) / SECCIÓN 13 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 13.1 • If one or both of the doors scrape the ﬂ oor when closing or are not aligned at the top, follow these steps to correct them: •...
Page 109 SECTION 13 (CONTINUED) / SECTION 13 (SUITE) / SECCIÓN 13 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS 7/16 in/po (≈11 mm) 13.3 • Have one adult with the tools stand inside the shed. Close the doors and lock them. Center the dead bolt by adjusting the left lock bracket and strike plate.
Page 110: Anchoring
SHED ANCHORING / ANCRAGE DE L’ABRI / ANCLAJE DE LA CASETA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO (Not included—unless otherwise indicated*) / (Non inclus — sauf indication contraire*) / (No incluido, salvo indicación contratia*) 5/16"...
Page 111 SECTION 14 (CONTINUED) / SECTION 14 (SUITE) / SECCIÓN 14 (CONTINUACIÓN) FOR A CONCRETE PLATFORM / POUR UNE PLATE-FORME EN BÉTON / PARA UNA PLATAFORMA DE CONCRETO 5/16 in/po (≈8 mm) 14.1 • To anchor your shed to a concrete platform, you must purchase the correct anchoring hardware. We recommend using a hammer drill, 5/16"...
Page 112 SECTION 14 (CONTINUED) / SECTION 14 (SUITE) / SECCIÓN 14 (CONTINUACIÓN) FOR A CONCRETE PLATFORM / POUR UNE PLATE-FORME EN BÉTON / PARA UNA PLATAFORMA DE CONCRETO 5/16 in/po (≈8 mm) 7/16 in/po (≈11 mm) 14.1 • To anchor your shed to a wood platform, you must purchase the correct anchoring hardware. We recommend using a drill, 5/16"...
Page 113: Cleaning & Care
® product purchase. By following the instructions below, your new Lifetime product should provide you with years of service and enjoyment. The polyethylene panels are stain and solvent resistant. Most stains can be removed using a mild soap and a soft-bristled brush.
Page 114: Registration
à des tiers, et ne leur permettra pas d’utiliser vos données personnelles à leurs propres ﬁ ns. Nous vous invitons à lire notre politique de conﬁ dentialité à www.lifetime.com (en anglais seulement) ENREGISTRER CE PRODUIT aujourd’hui! REGISTRAR EL PRODUCTO EN LÍNEA EN WWW.LIFETIME.COM...
Page 115 NOTES / REMARQUES / NOTAS...
Page 116 NOTES / REMARQUES / NOTAS...
Page 117: Warranty
This warranty is nontransferable and is expressly limited to the repair or replacement of defective products. If the product is defective within the terms of this warranty, Lifetime Products, Inc. will repair or replace defective parts at no cost to the purchaser.
Page 118 La présente garantie remplace expressément toute autre garantie, expresse ou implicite, y compris les garanties de qualité marchande ou d’adaptation à un usage particulier dans la mesure permise par les lois du pays ou de l’État. Ni Lifetime Products, Inc. ni aucun de ses représentants n’assument une quelconque responsabilité en lien avec ce produit. Cette garantie vous donne des droits juridiques précis et vous pourriez également avoir d’autres droits selon l’État ou la province.
Page 119: Garantía
NO ESTÁN DISPONIBLES O SON OBSOLETAS. El comprador original recibe una garantía de que los productos de césped y jardín de Lifetime están libres de defectos de material o mano de obra durante un período de 10 años a partir de la fecha de compra original al por menor. La palabra “defectos” se deﬁ...
Page 120 Pour acheter des accessoires ou des autres produits Lifetime , visiter le : www.lifetime.com Ou composer le 1-800-424-3865 ® MEJORAR LA COMPRA DE LIFETIME AGREGANDO ACCESORIOS U OTROS MARAVILLOSOS PRODUCTOS Para comprar accesorios u otros productos de Lifetime®, visitarnos en: www.lifetime.com O marcar al 1-800-424-3865 www.lifetime.com 1233261_B 4/22/2024...
