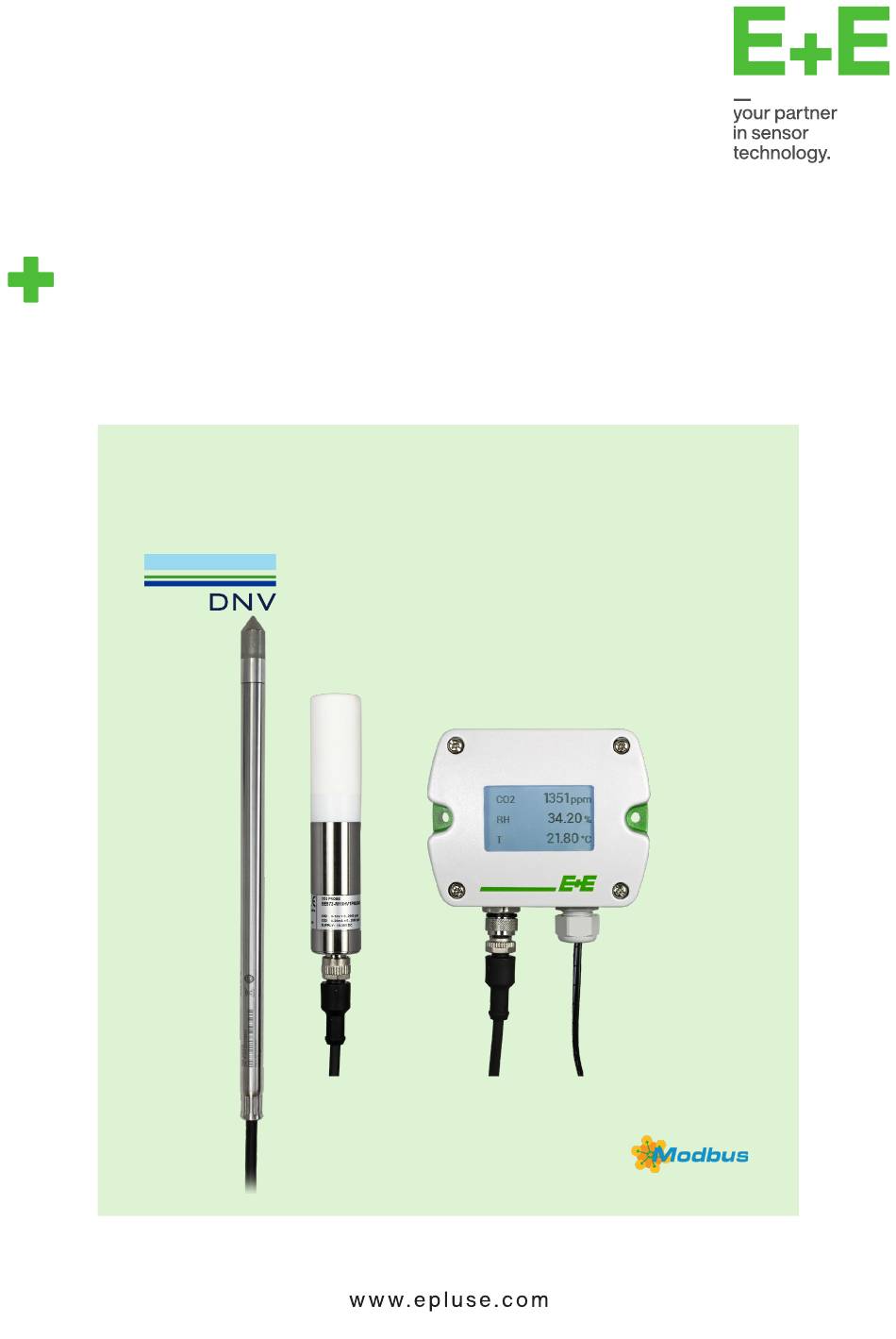

- Page 1 User Manual Sigma 05 Modular Sensor Platform...
- Page 2 User Manual Sigma 05 Content General Information ............................3 Explanation of Warning Notices and Symbols .................... 3 Safety Instructions ............................. 4 1.2.1 General Safety Instructions ..........................4 1.2.2 Intended Use ..............................4 1.2.3 Mounting, Start-up and Operation ........................5 Environmental Aspects..........................5 ESD Protection ............................
- Page 3 All rights reserved by E+E Elektronik Ges.m.b.H. No part of this document may be reproduced, published or publicly displayed in any form or by any means, nor may its contents be modified, translated, adapted, sold or disclosed to a third party without prior written permission of E+E Elektronik Ges.m.b.H.
- Page 4 M12 cables. Refer to chapter 3.5 Sensing Probes for details on the “Sigma plug-and-play” and the “Sigma compatible” probes. The use of the Sigma 05 in any other way than described in this manual bears a safety risk for people and the entire measurement installation and is therefore not allowed.
- Page 5 1.2.3 Mounting, Start-up and Operation The Sigma 05 Modular Sensor Platform has been produced under state of the art manufacturing conditions, has been thoroughly tested and has left the factory after fulfilling all safety criteria. The manufacturer has taken all precautions to ensure safe operation of the device.
- Page 6 General The Sigma 05 is a host device acting as a hub for intelligent E+E sensors with RS485 interface and Modbus RTU protocol. It accomodates up to 3 probes and features 2 analogue outputs as well as an optional display for max. 3 measurands.
- Page 7 Power off Sigma 05 before connecting or disconnecting sensing probes. Failing to do so may cause damages to Sigma 05 and to the probes. ▪ Choose the Sigma 05 supply voltage (in the range 15 - 30 V DC) to match the probe supply requirements. ▪ For minimizing the self-heating and its effect onto the measurement accuracy of the RH and / or T probes, use lower supply voltage, e.g. 15 V DC. The self heating affects mostly the RH and / or T probes...
- Page 8 Tab. 2 Sigma 05 plug-and-play probes and their Modbus address INFORMATION Sigma 05, HTP501 and MOP301 are available with DNV approval which form a DNV conform sensor setup with or without display INFORMATION Please note that Sigma 05 with display option is available with polycarbonate encolosure only.
- Page 9 Even None, odd, even Stop bits 1, 2 Modbus address Sigma 05 is Modbus master and does not have an address Tab. 4 Interface default settings The recommended settings for multiple devices in a Modbus RTU network are 9 600, 8, even, 1. The Sigma 05 represents 1 unit load in an RS485 network. RS485 communication settings can be changed with PCS10 Product Configuration Software.
- Page 10 After power up in Automatic Probe Discovery mode (default setting), a progress bar made up of single points indicates Sigma 05 scanning the RS485 interface for sensing probes. A question mark appears approx. every 12 seconds as long as no probe is detected, see Fig. 3.
- Page 11 Display layouts in normal operation 3.9.3 Configuration If the Sigma 05 host device is connected with a PC via USB only (i. e. no voltage supply at the spring clamp terminals, see Fig. 5), the display shows the USB symbol. Fig. 5...
- Page 12 Tab. 5 (Behaviour of on-board LED array). As soon as Sigma 05 discovers at least one probe, it autonomously performs the setup according to predefined rules. By this, the display layout and the analogue outputs are automatically set according to Tab. 6.
- Page 13 User Manual Sigma 05 Modular Sensor Platform | 13...
- Page 14 User Manual Sigma 05 Modular Sensor Platform | 14...
- Page 15 5 M anual Operation / Setup The Sigma 05 is ready to use and does not require any configuration by the user. The Sigma 05 factory setup corresponds to the type number ordered. Please refer to the data sheet at www.epluse.com/sigma05. The user can change factory setup with the help of the PCS10 Product Configuration Software and the USB cable for connecting Sigma 05 to PC (HA010327).
- Page 16 The blue cable stiffener needs to be on the left side as shown in Fig. 7. Firmware Update Connect the Sigma 05 to a PC. Start the PCS10 Product Configuration Software while the PC is connected to the internet, and scan the COM port connected to Sigma 05 as described in chapter 5 Manual Operation / Setup, point 4.
- Page 17 User Manual Sigma 05 Spare Parts Description Code Display for Sigma 05 D09P for polycarbonate enclosure 7 Accessories For further information please refer to the Accessories datasheet. Accessories Code Modbus configuration adapter HA011018 PCS10 Product Configuration Software PCS10 (Free download: www.epluse.com/pcs10)
- Page 18 User Manual Sigma 05 8 Technical Data Probe connection Max. number of sensing probes Max. number of measurands 5 (2 on the analogue outputs, 3 on the display) Electrical connection M12x1 socket 5 poles 1) Compatible E+E probes see section “Plug-and-Play Probe” above.
- Page 19 User Manual Sigma 05 9 Conformity Declarations of Conformity E+E Elektronik Ges.m.b.H. hereby declares that the product complies with the respective regulations listed below: European directives and standards. UK statutory instruments and designated standards. DNV (Det Norske Veritas) maritime type approval.
- Page 20 T +39 02 2707 86 36 info.it@epluse.com E+E Elektronik Korea Ltd. T +82 31 732 6050 info.kr@epluse.com E+E Elektronik Corporation T +1 847 490 0520 info.us@epluse.com BA_Sigma_05 | Version v2.0 | 08-2024 © Copyright E+E Elektronik Ges.m.b.H. | All rights reserved.
