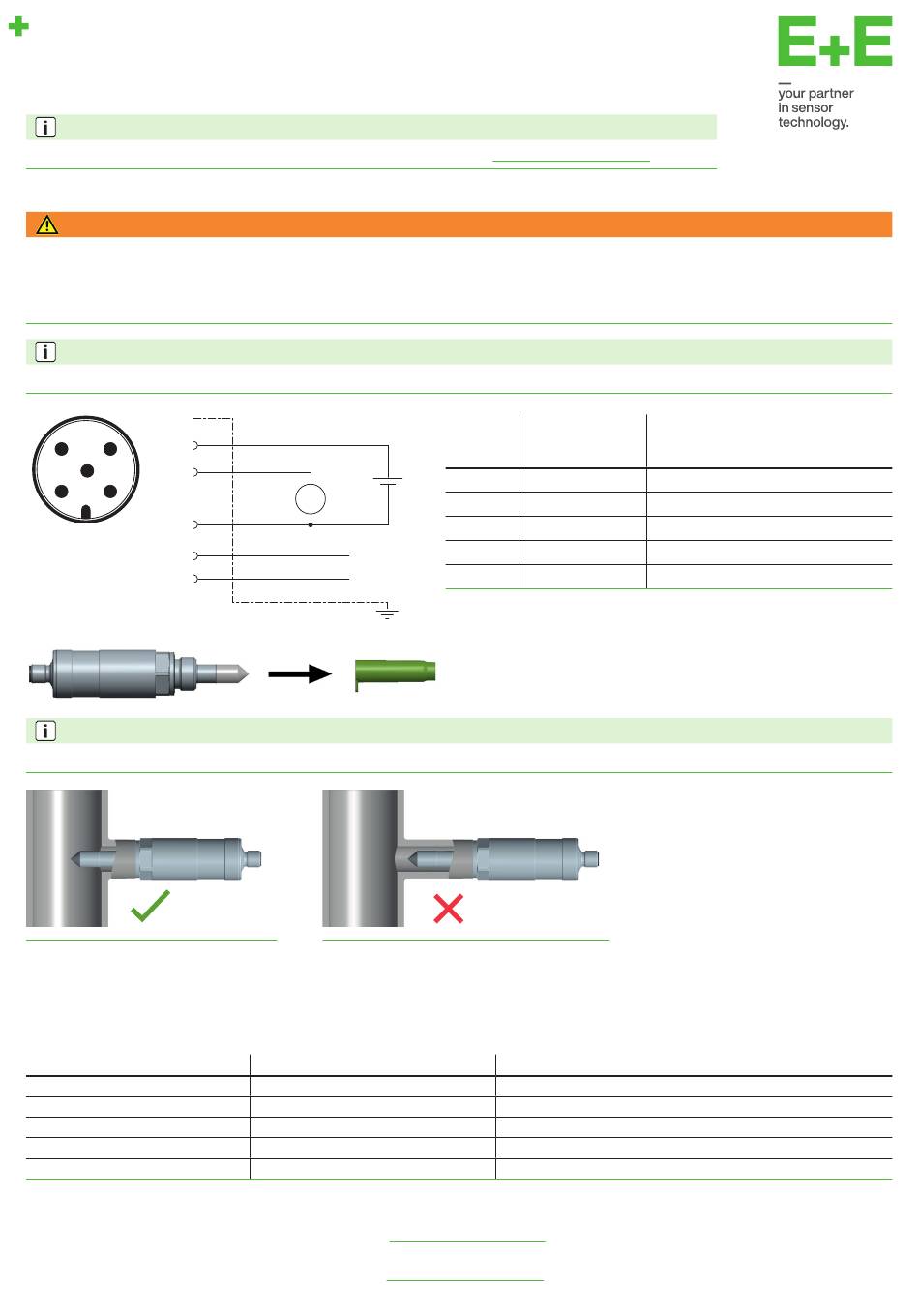

E+E Elektronik EE354 Quick Start Manual

Quick Guide
EE354 - Dew Point Sensor down to -20 °C Td (-4 °F Td)
PLEASE NOTE
Find this document and further product information on our website at www.epluse.com/ee354.
Electrical Connection
WARNING
Incorrect installation, wiring or power supply may cause overheating and therefore personal injuries or damage to property.
For correct cabling of the device, always observe the presented wiring diagram for the product version used.
The manufacturer cannot be held responsible for personal injuries or damage to property as a result of incorrect handling,
installation, wiring, power supply and maintenance of the device.
PLEASE NOTE
To meet the EMC Directive 2014/30/EU a shielded connection cable must be used.
4 3
1
5
2
1 2
3
M12 device plug
front view
4
5
Installation
PLEASE NOTE
Remove the protection cap just before installation.
OK
Setup and Adjustment
The EE354 is ready to use and does not require any user configuration. The factory setup of EE354 corresponds to the type
number ordered. If needed, the user can change the factory setup or make an adjustment with the help of the optional Modbus
configuration adapter and the free PCS10 Product Configuration Software.
Modbus Setup
Baud rate
Data bits
Parity
Stop bits
Modbus address
Device address, baud rate, parity and stop bits can be set via:
▪
PCS10 Product Configuration Software and the the appropriate configuration cable HA011013.
The PCS10 can be downloaded free of charge from www.epluse.com/pcs10.
▪
Modbus protocol in the register 1 (0x00) and 2 (0x01).
See Application Note Modbus AN0103 (available at www.epluse.com/ee354).
10 - 28V DC 10V+0.02*R
*) *)
L
Output 4 - 20 mA
+
-
mA
RS485 A (=D+)
RS485 B (=D-)
Factory settings
9 600
8
Even
1
243
Pin
Function
number
1 Supply voltage
2 Output 4 - 20 mA
3 GND
4 RS485 A (D+)
5 RS485 B (D-)
NOT OK
User selectable values (via PCS10)
9 600, 19 200, 38 400, 57 600, 76 800, 115 200
8
None, odd, even
1, 2
1...247
Wire colours for accessory:
Connection cable
HA010819/20/21
brown
white
blue
black
grey
