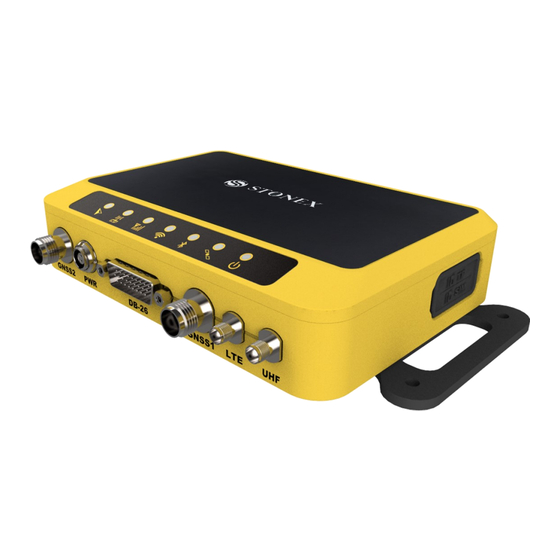

STONEX SC600+ User Manual

Cors receiver
Hide thumbs

Advertisement

Quick Links

Download this manual
STONEX SC600
+
CORS RECEIVER
User Manual
March 2023 – Ver. 1 – Firmware update-20220530
www.stonex.it

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC600+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STONEX SC600+

Summary of Contents for STONEX SC600+

  • Page 1 STONEX SC600 CORS RECEIVER User Manual March 2023 – Ver. 1 – Firmware update-20220530 www.stonex.it...
  • Page 2 Heading ..........................................18 NTRIP Server ........................................19 Recording ......................................... 20 Port Configuration ......................................22 Network ..........................................24 4.6.1 Network ..........................................24 4.6.2 Dynamic DNS ........................................25 4.6.3 FTP Server......................................... 26 March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 3 For countries outside European Union (EU) ..............................42 Appendix 2: Safety Recommendations ..................................42 Warnings and Cautions ....................................... 42 Wireless Module Approval ......................................43 Instrument Approval ........................................43 March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 4 This user manual is only for your receiver. If your receiver does not match the scenario shown in the user manual, the actual situation of the receiver shall prevail. Information in this document is subject to change without notice; STONEX reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements.
  • Page 5 Flash: data transmission via network Off: network disconnected Radio indicator Green Flash (at frequency of data transmission/reception): data transmission/reception Off: default Heading indicator Green Always-on: heading output Off: no heading output March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 6 One 1PPS output interface One EVENT interface One CAN interface One 100M Ethernet port GNSS1 TNC, external GNSS master antenna connector SMA, 4G antenna interface External UHF antenna March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 7 1.3 Right-side view Num. Item Description TF card slot MicroSD card slot SIM card slot Nano-SIM card interface 1.4 Left-side view 1.5 Bottom view March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 8 3 mm + 0.1 ppm RMS 5 mm + 0.4 ppm RMS 8 mm + 1 ppm RMS 15 mm + 1 ppm RMS Initialization time: < 10 s Initialization reliability: > 99.9% March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 9 1PPS output interface  Event interface  2 GNSS antenna, TNC female Radio UHF antenna, SMA female LTE antenna, SMA female 2.1 + EDR, V5.0 Bluetooth 802.11 a/ac/b/g/n Wi-Fi March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 10 Power, Satellite, Bluetooth, Wi-fi, Network, Radio, Heading state LEDs Linux Operating system 2.9 Networking Services Client/Server/Caster NTRIP Remote config by STONEX Software Remote Management For data download FTP server For low storage and other warning messages Email alerts Support NTP server...
  • Page 11 After authentication, it will be possible to see the name of the instrument and the list of available commands (below picture). The commands are shown and analyzed in the following paragraphs. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 12 Internal memory refers to the RAM memory and Data memory to the space dedicated to archive recordings. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 13 System information page contain more details about the device, such as the hardware and firmware versions of mainboard, GNSS board, GSM modem and radio module. It also shows the internal and data memory usage. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 14 4.1.3 GPS Status In this page you can check the positioning status in real time, together with the information of antenna and meteorological sensor (if installed). March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 15 (green) and tracked (white), in the sky plot you can select which constellation are visualized (both screens in the figures below). March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 16 These settings are reflected in the recorded files (see Recording menu) and in the coordinates transmitted by the base (See NTRIP server menu). March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 17 The RTK mode allows to configure the RTK computation. For static applications the SURVEY mode is recommended, while for kinematic applications (e.g., machine control or precision farming) the AUTOMOTIVE mode is recommended. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 18 MSEP [m] is the horizontal distance between primary and secondary antennas. PBIAS and HBIAS [°] are optional offsets that can be added to pitch and heading output, respectively. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 19 If SC600+ is to act as a caster: NTRIP caster function must be enabled (see Port Configuration page), server address is 127.0.0.1, port must be the same as the one indicated on the NTRIP caster function (see Port Configuration page). March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 20 It is recommended to enable this option. SC600+ also support the File push function that allow you to automatically transmit the completed recording file to an FTP Server. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 21 [File Push] enables automatic transfer of RINEX files via FTP when the file is converted. This option is effective only if raw file push is enabled. The FTP server and the access parameters are those indicated in the Push Parameters section. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 22 Can also be saved in the raw data recordings; DEBUG: reserved for development purposes. We suggest to not change the COM3 function. NtripDouble (Output): output first NTRIP data stream configured in NTRIP Server page. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 23 The account is unique but allows multiple simultaneous connections. Warning: to use this function, at least one NTRIP Server must be active on address 127.0.0.1 and the same port set in the Caster (See NTRIP Server). March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 24 We suggest leaving the Wireless net set as hotspot to ease the connection to the WebUI. Mobile network needs an LTE antenna connected to the respective connector. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 25 This is the page where it is possible to unable/disable the Dynamic DNS. By choosing the enable key it will be possible to enter the service provider, host name, username, and password. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 26 The anonymous access is enabled by default: we recommend disabling it if the receiver is accessible from the Internet. The Encryption enable the SSL / TLS explicit encryption. The default port for SC600+ FTP server is 21. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 27 4.6.4 NTP Server NTP (Network Time Protocol) Server allows you to synchronize the computer clock with the time of the receiver. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 28 Non-real-time branch: 1.3.6.1.4.1.13526.12.10.15.1.2 MIB variable Name Note Receiver Model Receiver SN Receiver FW GNSS board Model GNSS board FW Antenna Latitude Degrees Longitude Degrees Height Ellipsoid height [m] March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 29 IPs from which you can access the web interface, any other IP is blocked. Blacklist works the opposite way: it allows to define the only IPs that cannot access the web interface while any other IP can access. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 30 Encapsulation layer L3 -TUN Authentication Type TLS: client.crt/client.key Private Key Password <client-password> Authentication Algorithm SHA-256, 256 bit Encryption Algorithm AES, 256 bit Enable LZO Disable HMAC Signature Check tls-crypt March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 31 4.6.8 Frp Setting This function is for internal use. It is recommended not to use this function. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 32 If the receiver works permanently and is connected to a network, it is recommended to use email alerts. In this case, alarms on disk capacity and minimum number of satellites are useful to receive an alert in case of potential malfunctions. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 33 If the receiver registration is expired and the WebUI is no longer accessible, disconnect the receiver from the GNSS antenna and restart it. This should let you connect to the WebUI again. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 34 4.7.3 Configuration Set In this page you can download/upload configuration files. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 35 Remote Debug. Simply insert the IP of the server where Cube-cors is running and its ports. Further details on Cube-cors manual. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 36 The guest account can only view the Summary and System Information menus. It does not have access to device configuration or stored data. [Restart Device] reboots the system. [Freset OEM] does a reset of the GNSS board. [Factory Reset] restores the default configuration of the receiver. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 37 You can choose between various RINEX and Hatanaka RINEX versions. Mixed navigation file can also be generated. If [Antenna Phase Center] is enabled, the header coordinates are referred to the phase center. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 38 Language and Log Out Language command allows you to select the language. The available languages are English, Russian, traditional Chinese, simplified Chinese. Logout command if clicked closes the session. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 39 SA1500, GNSS 2D Choke Ring antenna 30-357135 SA1200 GNSS 3D Choke Ring Antenna 30-357136 SA1000, GNSS Mini Choke Ring Antenna 30-357120 SA3G+C GNSS Reference Antenna 30-357134 SA65 GNSS Geodetic Antenna March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 40 Limited Warranty shall become property of STONEX ® . All products that have to be repaired have to be returned to our technical representative office location via any delivery company the customer prefers, nevertheless STONEX ® is not accountable for the unlikely event that the Products gets lost in transit.
  • Page 41 Shipping policy The Customer or the dealer is required to pay for the charges for shipping of fault parts or instruments to STONEX ® representative office and STONEX ® is providing the shipping for return. Dealers need to follow STONEX ®...
  • Page 42 CAUTION - A Caution alerts about a possible risk of damage to the equipment and/or loss of data, but no risk for human safety. March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
  • Page 43 (note like emc compatibility) or generate not correct functionalities of the instrument itself. Approval is granted by the manufacturer of the equipment. Some countries have unique technical requirements for operation in particular frequency bands. To comply with those requirements, Stonex Srl may modified the equipment to be subjected to grant.
  • Page 44 STONEX® SRL Viale dell’Industria, 53 - 20037 Paderno Dugnano (MI) Tel: +39 02 78619201 www.stonex.it | info@stonex.it March 2023 – Ver. 1 Stonex SC600 CORS Receiver – User Manual...
