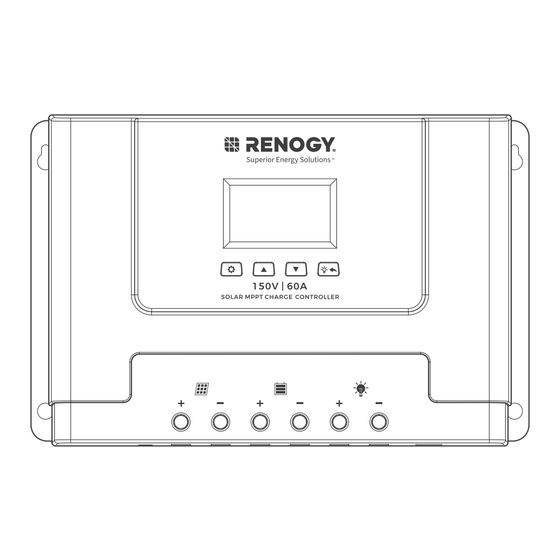

- Page 1 Renogy Solar MPPT Charge Controller 12V/24V/36V/48V VERSION A0 RCC60RVRE June 4, 2024 USER MANUAL...
- Page 2 Renogy is not responsible or liable for any failure, damage, or injury resulting from repair attempts by unqualified personnel, improper installation, or inappropriate operation.
- Page 3 Product Features ..........................2 Device Diagram ..........................2 Mounting Instruction ........................3 Wire Connection Sequence ......................4 Monitoring via DC Home or Renogy ONE..................4 LCD Display Interface Overview ...................... 7 LCD Status Information ........................8 Key Functionality Chart ........................9 LCD Display Rules & Cycles ......................9 LCD Screen Display Cycle .........................
- Page 4 Symbols Used The following symbols are used throughout the user manual to highlight important information. WARNING: Indicates a potentially dangerous condition which could result in injury or death. CAUTION: Indicates a critical procedure for safe and proper installation and operation. NOTE: Indicates an important step or tip for optimal performance.
- Page 5 Industrial grade design with reverse polarity protection for solar panels, battery and load. z After installing the Renogy BT-2 Bluetooth module on this charge controller, you can view the working status of the charge controller through the DC Home APP and RENOGY Core.
- Page 6 Mounting Instruction > 100mm > 200mm Cold Air Step 1: Find a cool, dry and weather safe Step 2: Mark the controller’s mounting holes on location for installation. the mounting surface. Step 3: Drill holes in the marked mounting Step 4: Insert pilot screws in the mounting hole location.
- Page 7 Monitoring via DC Home or Renogy ONE With a Renogy BT-2 Bluetooth Module, the charge controller can be connected to the DC Home app for remote device monitoring. You can monitor and modify parameters of the charge controller through the DC Home app.
- Page 8 Make sure that the charge controller is properly installed and powered on before it is paired with the DC Home app. To ensure optimal system performance, keep the phone within 10 feet (3 m) of the Renogy BT-1 Bluetooth Module or a Renogy BT-2 Bluetooth Module.
- Page 9 Make sure the charge controller does not communicate with any other device. Step 1: Connect the charge controller to Renogy ONE through the Bluetooth of your phone. Step 2: Pair the Renogy ONE with the DC Home app by scanning the QR code on Renogy ONE. — 6 —...
- Page 10 Internet My Renogy Devices Battery Controller RBT12400LFPL-... RCC60RVRE Device Scene Community LCD Display Interface Overview Active Functions Charge Display Unit Status Display Section Display Layout Active Functions Charge Mode & Parameter Charge Status — 7 —...
- Page 11 LCD Status Information Status Icon Indication Status Description Flowing Solar Power Charging Battery Solar Charge Indication Solar Power Not Charging Battery Flowing DC Load Drawing Power DC Load Indication DC Load Off MPPT Charge Mode Steady On Boost Charge Mode Charge Mode Float Charge Mode Not Charging...
- Page 12 Key Functionality Chart System Mode Function Key Input Input Function Short Press View the previous page. Short Press View the next page. DC Load On/Off View Mode (Only applicable when the Load Mode is Short Press set to “15”. For details, see Load Mode Settings.) Long Press...
- Page 13 LCD Screen Display Cycle The battery voltage view will be displayed by default. Use the functional keys to cycle through different views. The battery voltage view will resume upon 30 seconds of inactivity. The error code view will be displayed when an error is detected. The backlight in the screen will be on for 20 seconds with any button operation.
- Page 14 Abbreviations Battery Types Description Lithium Battery (Lithium battery activation Low temperature protection (Frozen disabled) charge forbid). Some parameters can be customized. Lithium Battery (Lithium battery activation enabled) Advanced User Mode Most parameters can be customized. Advanced Battery Settings Pressing to enter Setting mode. Choose LI, ALI or USE mode, short press the again to cycle through each parameter view.
- Page 15 Load Mode Settings Enter Load Setting Mode by pressing in Load Mode view only. Use the functional keys to cycle through load modes before long pressing to save and exit. Short pressing will exit without saving the settings. Load Mode View Setting Load Mode Long press to save settings and exit the setup interface.
- Page 16 Battery connection wires connected with reverse Battery Reverse Polarity polarity. Disconnect and re-connect with correct wire polarity. For further assistance, contact Renogy technical support service at https:/ /www.renogy. com/contact-us. Charging Parameters The variable “n” is adopted as a multiplying factor when calculating parameter voltages, the rule for “n”...
- Page 17 Battery SLD/ Type LI/ALI (Recommended (Default) Parameters Range) Undervoltage 12.0V *n 12.0V *n 12.0V *n 12.0V *n 12.0V *n 9V to 17V *n Warning Undervoltage 12.2V *n 12.2V *n 12.2V *n 12.2V *n 12.2V *n 9V to 17V *n Alarm Recovery Low Voltage 11.0V *n 11.0V *n...
- Page 18 Specifications Model RCC60RVRE System Wiring Grounded Negative Grounded 12V/24V/36V/48V Battery System Voltage Auto (FLD/GEL/SEL/USE) ● Manual (LI/USE) ● 12V: 15mA ● 24V: 11mA ● No-load Loss 36V: 8mA ● 48V: 7mA ● Max Solar Input Voltage (Voc) < 150V Rated Solar Charge Current 12V: 900W ●...
- Page 19 Maintenance Inspection For optimum performance, it is recommended to perform these tasks regularly. z Ensure the charge controller is installed in a clean, dry, and ventilated area. z Ensure there is no damage or wear on the cables. z Ensure the firmness of the connectors and check if there are any loose, damaged or burnt connections.
- Page 20 Important Safety Instructions █ General z Wear proper protective equipment and use insulated tools during installation and operation. Do not wear jewelry or other metal objects when working on or around the charge controller. z Keep the charge controller out of the reach of children. z Do not dispose of the charge controller as household waste.
- Page 21 Questionnaire Investigation To explore more possibilities of solar systems, visit Renogy Learning Center at: renogy.com/learning-center For technical questions about your product in the U.S., contact the Renogy technical support team through: renogy.com/contact-us 1(909)2877111 For technical support outside the U.S., visit the local website below: Canada ca.renogy.com...
- Page 22 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 23 Save 105 gallons of water from being consumed Renogy Power PLUS Renogy Power Plus allows you to stay in the loop with upcoming solar energy innovations, share your experiences with your solar energy journey, and connect with like-minded people who are changing the world in the Renogy Power Plus community.
