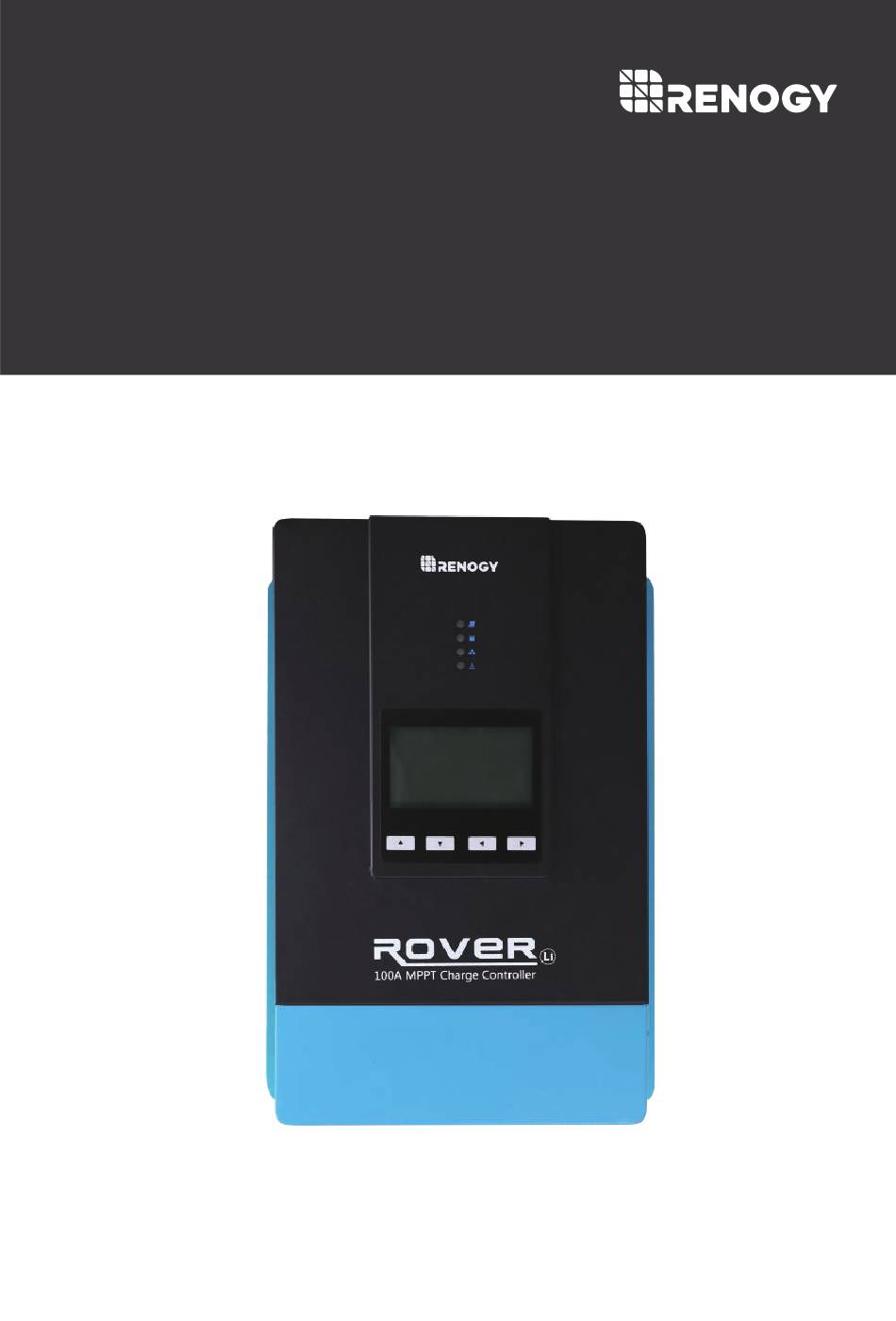

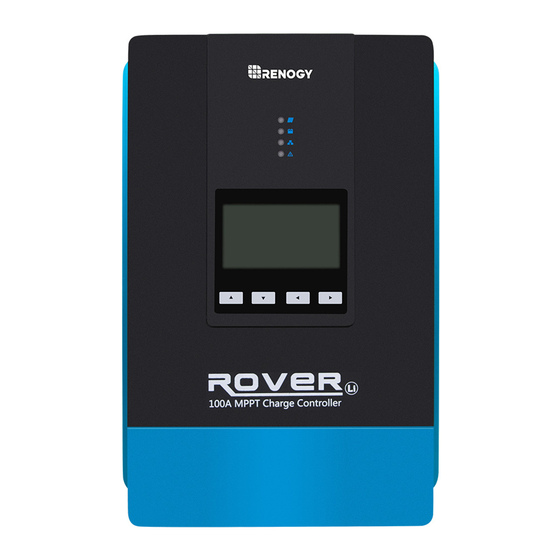

  • Page 1 ROVER SERIES Maximum Power Point Tracking Solar Charge Controller Rover 100A Version 1.4...
  • Page 2 Important Safety Instructions Please save these instructions. This manual contains important safety, installation, and operating instructions for the charge controller. The following symbols are used throughout the manual to indicate potentially dangerous conditions or important safety information. Indicates a potentially dangerous condition. Use extreme caution WARNING when performing this task Indicates a critical procedure for safe and proper operation of the...
  • Page 3 Battery Safety Use only sealed lead-acid, flooded, gel or lithium batteries which must be deep cycle. Explosive battery gases may be present while charging. Be certain there is enough ventilation to release the gases. Be careful when working with large lead acid batteries. Wear eye protection and have fresh water available in case there is contact with the battery acid.

  • Page 4: Table Of Contents

    Table of Contents General Information Additional Components Optional Components Identification of Parts Installation Operation LED Indicators Protections System Status Troubleshooting Error Codes Maintenance Fusing Fusing Technical Specifications Electrical Parameters General Battery Charging Parameters PV Power – Conversion Efficiency Curves Dimensions...

  • Page 5: General Information

    General Information The Rover Series charge controllers are suitable for various off-grid solar applications. It protects the battery from being over-charged by the solar modules and over-discharged by the loads. The controller features a smart tracking algorithm that maximizes the energy from the solar PV module (s) and charge the battery.
  • Page 6 Therefore, assuming 100% efficiency: Power In = Power Out Volts In * Amps In = Volts out * Amps out Although MPPT controllers are not 100% efficient, they are very close at about 92-95% efficient. Therefore, when the user has a solar system whose Vmp is greater than the battery bank voltage, then that potential difference is proportional to the current boost.
  • Page 7 Four Charging Stages The Rover MPPT charge controller has a 4-stage battery charging algorithm for a rapid, efficient, and safe battery charging. They include: Bulk Charge, Boost Charge, Float Charge, and Equalization*. Battery Voltage Constant Charging Bulk Charging Float Charging Equalize Boost Boost...
  • Page 8 The purpose for this is to offset the power consumption while maintaining a full battery storage capacity. In the event that a load drawn from the battery exceeds the charge current, the controller will no longer be able to maintain the battery to a Float set point and the controller will end the float charge stage and refer back to bulk charging.

  • Page 9: Additional Components

    RS232 or RS485 port and is used to pair charge controllers with the Renogy DC Home App. After pairing is done you can monitor your system and change parameters directly from you cell phone or tablet. No more wondering how your system is performing, now you can see performance in real time without the need of checking on the controller’s LCD.

  • Page 10: Identification Of Parts

    Identification of Parts ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Key Parts 1.PV LED Indicator 2.Battery LED Indicator 3.Controller Parallel LED Indicator 4.System Error LED Indicator 5.LCD Screen 6.Operating Keys 7.Mounting Holes 8.PV Terminals 9.Battery Terminals 10.RS485 Port (Optional Accessory) 11.Remote Temperature Sensor/ Battery Remote Port/ Controller Parallel Port (Optional Accessory)

  • Page 11: Installation

    Installation Recommended tools to have before installation: Screwdriver Multi-Meter Connect battery terminal wires to the charge controller FIRST then connect the solar WARNING panel(s) to the charge controller. NEVER connect solar panel to charge controller before the battery. INVERTER BATTERY CHARGER HIGH AMP DRAWING DEVICE...
  • Page 12 1. Remove Cover 2. Connect Battery 3. Connect Solar Panels...
  • Page 13 4. Bluetooth Module communication (optional) 5. Temperature Sensor ( not polarity sensitive) Secure the Temperature Sensor lug to one of the battery posts 6. Install Cover...
  • Page 14 7. Paralleling Function (Optional) Parallel Port Use the provided paralleling cable to combine multiple Rover 100A Charge NOTE Controllers. Connect the cable into the port labeled Parallel Operation on each Rover 100A. Using this function will allow the Rover to act as one large charge controller (Example above 300A).
  • Page 15 Mounting Recommendations WARNING NEVER INSTALL THE CONTROLLER IN A SEALED ENCLOSURE WITH FLOODED BATTERIES. GAS CAN ACCUMULATE AND THERE IS A RISK OF EXPLOSION. 1. Choose Mounting Location — place the controller on a vertical surface protected from direct sunlight, high temperatures, and water. Make sure there is good ventilation. 2.

  • Page 16: Operation

    Operation Rover is very simple to use. Simply connect the batteries, and the controller will automatically determine the battery voltage. The controller comes equipped with an LCD screen and 4 buttons to maneuver though the menus. Main Display VOLT BATT VOLT 13.0V CHARGE STATUS...
  • Page 17 Screen 3 BATT VOLT 13.0V Displays battery Voltage and charging Current CHARGE CURR Screen 4 CHARGE STATUS Shows charge controllers current charging stage (Discharge, Boost, Float and Equalize). DISCHARGE Screen 5 Displays Error code and controller’s status NORMAL Screen 6 BATT MAX VOLT ON THE DAY 13.4V Displays Maximum and Minimum battery voltage...
  • Page 18 Screen 7 BATT CHARGE KWH TODAY 0KWH Displays Kilowatt hours charged today, and average Kilowatt hours charged per day BATT CHARGE KWH/DAY 1.927KWH Screen 8 DEVICE TEMPERATURE 29℃ Displays ambient temperature and battery temperature (Remote temperature sensor needed) BATT TEMPERATURE 25℃...
  • Page 19 2. Parameter Set 1. Sys Batt Volt: User can change between 1.Sys Batt Volt: AUTO(12V) (Auto/12V/24V/36V/48V) 2. Batt Type: User can change between Sealed (SLD), 2.Batt Type: Gel, Flooded (FLD), Lithium (Li) and User (USE) 3.Batt Capacity: 3. Battery Capacity: User can set battery bank’s Amp 4.Batt OVD: 16.0V hour capacity...
  • Page 20 3. System Log 1.Same day 1. Same day: View system information for current day 2.History 2. History: View Historical data 3. Total: View system overall generation 3.Total Same day MinBatVol: Batteries lowest voltage for current day MinBatVol: 13.4V MaxBatVol: Batteries highest voltage for current day MaxBatVol: 13.4V MaxChgCurr: Maximum charging current (Amps) for...
  • Page 21 ANALYSIS Rundays: Number of days system has been operational LVW-Count: Number of times controller entered Low Rundays: Voltage Warning LVW-Count: FUL-Count: Number of times batteries have been fully FUL -Count: charged Charge AH: 826AH Charge AH: Total Amp hours charged Generation: 12.568KWH Generation: Total Kilowatt hours charged...
  • Page 22 6. Device Information Model: RNG-CTRL-RVR100 Model: Device SKU Number HW-Ver: Hardware Version HW-Ver: 00.01.00 SW-Ver: Software Version SW-Ver: 01.01.04 SN: Serial Number 18070100 LCD Buttons Function Page Up/ Increase parameter value Page Down/ Decrease parameter value Return to the previous menu Enter sub menu/ save parameter value/ turn load on or off in manual mode...
  • Page 23 Main Menu LCD BATT 13.0V Icon or Value State Description Steady on Nighttime Steady on Daytime A dynamic arrow indicates Steady on charging is in progress. 0-100% Current battery capacity 0% Slow Flashing Battery over-discharged 100% Flash Flashing Battery over-voltage...
  • Page 24 Parameter Settings Displayed Parameter and Screen Parameter Parameter setting range 12v,24v,36v,48v, AUTO System Battery Voltage Sys Batt Volt: Battery type Batt Type: “SLD” Sealed lead-acid battery “FLD” Flooded lead-acid battery “GEL” Gel battery “Li” Lithium battery “USE” user defined Nominal battery capacity Batt Capacity: 0-9999 Battery Over Voltage...

  • Page 25: Led Indicators

    LED Indicators Indicating the controller's current ①---PV array indicator charging mode. ① ②---BAT indicator Indicating the battery's current state. ② Indicating whether controller is ③ ③---PARALLEL indicator paralled with another unit. ④ Indicating whether the controller is ④---ERROR indicator functioning normally. PV Indicator (1) Status Blue Solid...

  • Page 26: Protections

    Protections Protection Behavior When PV shot circuit occurs, the controller will stop charging. PV Array Short Circuit Clear it to resume normal operation If the PV voltage is larger than maximum input open voltage 150VDC, PV will remain disconnected until the voltage drops PV Overvoltage below 150VDC.

  • Page 27: System Statustroubleshooting

    System StatusTroubleshooting PV indicator Troubleshoot Ensure that the PV wires are correctly and tightly secured inside the charge controller PV terminals. Use a multi-meter to make sure the Off during daylight poles are correctly connected to the charge controller. BATT Indicator Troubleshoot Disconnect loads, if any, and let the PV modules charge the battery bank.

  • Page 28: Error Codes

    Error Codes Error Number Description No error detected Battery over-discharged Battery over-voltage Battery under-voltage Controller over-temperature Battery over-temperature PV input over-current PV over-voltage PV reverse polarity Maintenance Risk of Electric Shock! Make sure that all power is turned off before touching the WARNING terminals on the charge controller.

  • Page 29: Fusing

    Fusing Fusing is a recommended in PV systems to provide a safety measure for connections going from panel to controller and controller to battery. Remember to always use the recommended wire gauge size based on the PV system and the controller. NEC Maximum Current for different Copper Wire Sizes Max.

  • Page 30: Technical Specifications

    Technical Specifications Electrical Parameters Model RNG-CTRL-RVR100 Nominal system voltage 12V/24V/36V/48V Auto Recognition Rated Battery Current 100A Battery Voltage 9V-60V Max. Solar Input Voltage 150 VDC (25°C), 140VDC (-25°C) Max. power point voltage range Battery voltage +2V to 75V Max. Solar Input Power 1300W/12V;...
  • Page 31 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 32: Battery Charging Parameters

    Battery Charging Parameters Battery SEALED FLOODED LI (LFP) USER Range High Voltage 16 V 16 V 16 V 16 V 16 V 9-17 V Disconnect Equalization 14.6 V ----- 14.8 V ----- 14.6 V 9-17 V Voltage Boost 14.4 V 14.2 V 14.6 V 14.4 V...

  • Page 33: Pv Power - Conversion Efficiency Curves

    *Only charging parameters in USER mode and LI mode can be programmed. ***The above parameters are based on 12V system settings. Parameters are multiplied by 2 for 24V systems, multiplied by 3 for 36V systems, and multiplied by 4 for 48V systems. ****For Equalization Interval setting under USER mode, 0 Day refers to close equalization function.
  • Page 34 2. 24 Volt System Conversion Efficiency 3. 48 Volt System Conversion Efficiency...

  • Page 35: Dimensions

    Dimensions 110.50 4Xφ8 4Xφ12 Dimensions in millimeters (mm) NOTE...
  • Page 36 RENOGY.COM Renogy reserves the right to change the contents of this manual without notice. 2775 E Philadelphia St, Ontario, CA 91761, USA 909-287-7111 www.renogy.com support@renogy.com 苏州高新区科技城培源路1号5号楼-4 400-6636-695 https://www.renogy.cn support@renogy.cn https://www.renogy.jp supportjp@renogy.com https://ca.renogy.com supportca@renogy.com https://au.renogy.com supportau@renogy.com https://uk.renogy.com supportuk@renogy.com https://de.renogy.com supportde@renogy.com...
