Etac Prio User Manual

Hide thumbs Also See for Prio:

Advertisement

Quick Links

Download this manual
User manual
User manual
Prio
Prio
75437 - 2024-11-15 - Version 6
Applies to Etac Prio 3A with serial no beginning with 38D or
serial no from S/N 1003310170001
en
www.etac.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Prio and is the answer not in the manual?

Questions and answers

Related Manuals for Etac Prio

Summary of Contents for Etac Prio

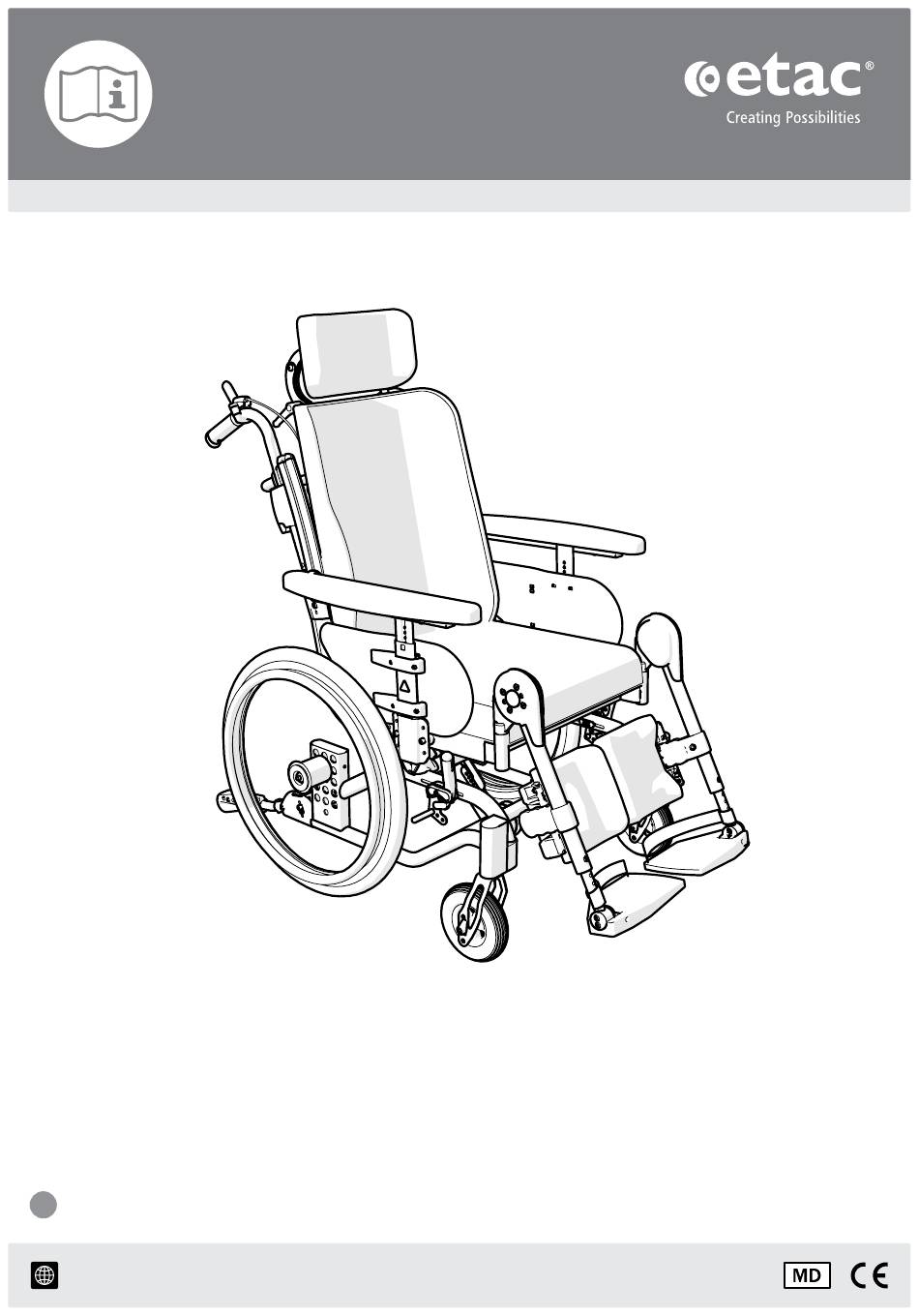

  • Page 1 User manual User manual Prio Prio 75437 - 2024-11-15 - Version 6 Applies to Etac Prio 3A with serial no beginning with 38D or serial no from S/N 1003310170001 www.etac.com...
