Summary of Contents for Etac Molift Partner 255

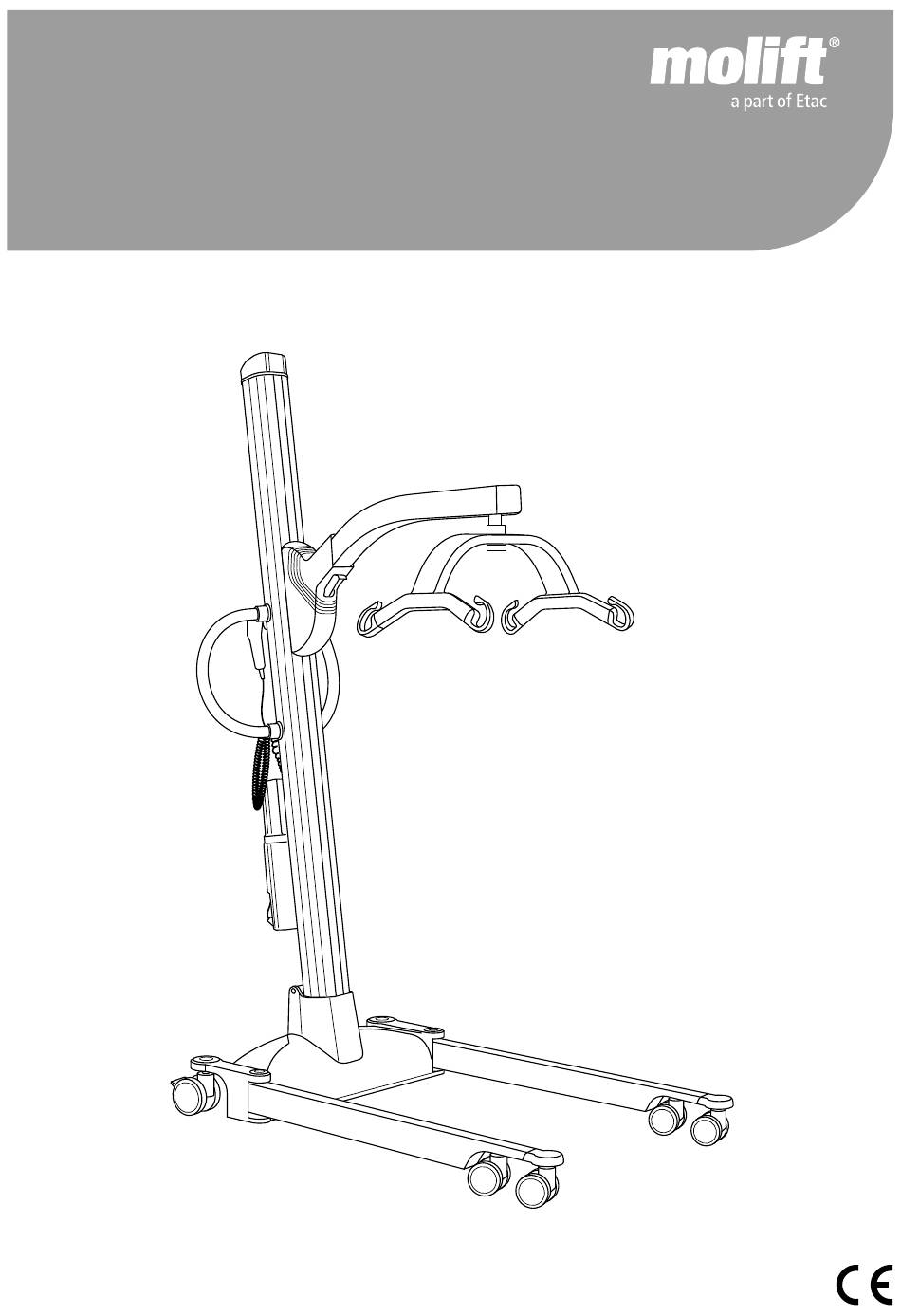

- Page 1 Molift Partner 255 EN - User manual BM03101 Rev. L 2016-06-14...
-
Page 2: Table Of Contents
Battery and hand control ......5 Read User Manual before use! Checklist after assembly ......5 It is important to fully understand How to use Molift Partner 255 ....6 the content of the user manual Before use / Daily check ......6 before attempting to use the Hand control ..........6... -

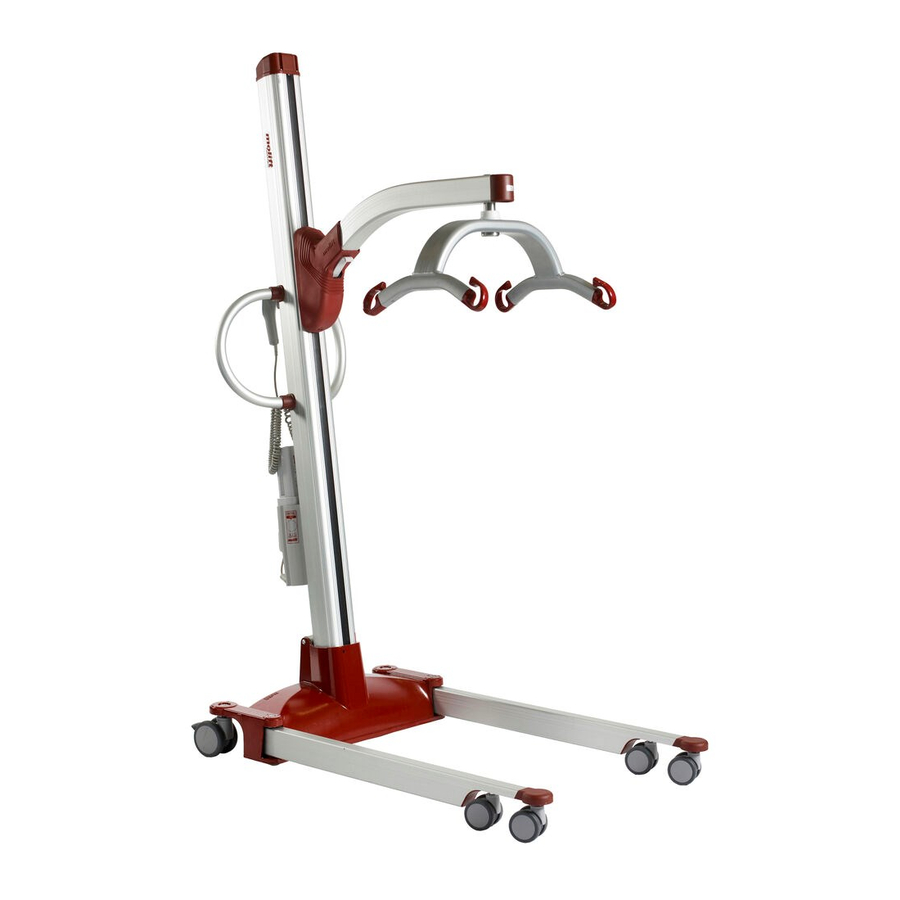

Page 3: Molift Partner 255
With a total weight of 42.5 kg (94 and critical care areas in both hospitals and care lbs) Molift Partner 255 is one of the lightest in its facilities. With an excellent hoisting range: 37–179 category. Combined with excellent construction cm (14.5–70.4”) the Molift Partner 255 allows easy... -
Page 4: General
We recommend only using Molift components and spare parts. Declaration of conformity is not valid and Etac is not responsible for warranty if any modifications are made to the product. Etac shall not be liable for faults or accidents that can occur when using components made by other manufacturers. -
Page 5: Technical Data
Molift Partner 255 / www.etac.com Technical Data Safe Working Load (SWL) Protection class 255 kg (562 lbs) Hand control IP24 Weight of unit Lift motor IP24 Maximum A-weighted sound power level Excl. battery and suspension: 38.3 kg/84.4 lbs = 49,4 dB... -
Page 6: Assembly
Molift Partner 255 / www.etac.com Assembly Mounting Suspension Charge the battery. The battery must not be in the battery holder during assembly! Lifting column Place lifting column in chassis. Make sure that the red arrow on the lower part of the column corresponds with the edge of chassis. -
Page 7: How To Use Molift Partner 255
Working pause ratio/Duty Cycle. support unit, then the lowest maxi- mum load shall always be used Molift Partner 255 should not be run constantly for more than 2 minutes (with maximum load), Molift lifters shall only be used to lift and rest for minimum 18 minutes. -
Page 8: Safety Devices
Molift Partner 255 / www.etac.com Safety devices Emergency Stop / Emergency lowering Molift Partner 255 is equipped with several safety devices, which are intended to prevent damage to personnel and equipment in the case of incorrect use. The lifter has an overload sensor preventing the Electrical lifter to be operated if the load exceeds SWL. -
Page 9: Electronics
Service light Mode Batteries No light Power saving (Stand by) Molift Partner 255 has a 26.4 V 2.6Ah NiMH bat- Green Ready for use tery. The battery has a life expectancy of approx. Yellow Order service 500 charge cycles. -
Page 10: Charging
Molift Partner 255 / www.etac.com Charging Integrated charger (optional) The lifter can be charged without removing the battery from lifter with integrated charger. Park the lifter and connect to a wall socket to charge Charger the battery. Lifter can be delivered with integrated... -
Page 11: Transfer
Assess the risks and take notes. The assistant is responsible for the safety of the user. Molift Partner 255 can be used with 4-point suspension for different types of transfers; sitting, recumbent or ambulating. The suspensions hook design prevents sling to be inadvertently detached when mounted correct. -
Page 12: Transfer
Molift Partner 255 / www.etac.com Transfer Lowering into sitting Try to position the user as low as possible (preferably resting the feet on the chassis) when When transferring the user into sitting, the follow- transferring the lifter with a suspended user. In this... -
Page 13: Accessories
Accessories Recommended optional equipment and acces- sories for Molift Partner 255. Suspensions Scale Molift Partner 255 can be used with 4 point Molift Scale is approved Class III. The scale can suspension. also calculate BMI (Body Mass Index). Aluminum suspension Molift Scale Set (without Suspension) Art. -
Page 14: Maintenance
Periodic Inspection Report for Molift performed. Air. This can be found on www.etac.com. Periodic Inspection shall be performed at least Mark label CONTROL once a year or more frequently if required by local with month requirements. -
Page 15: Troubleshooting
Molift Partner 255 / www.etac.com Troubleshooting Symptom Possible Cause/Action The lifting column is wobbly The lifting column is not correctly positioned in the chassis or the screw in front or back is not properly tightened. Assemble column and chassis, and tighten screws properly.
