Summary of Contents for Onbon OVP-K

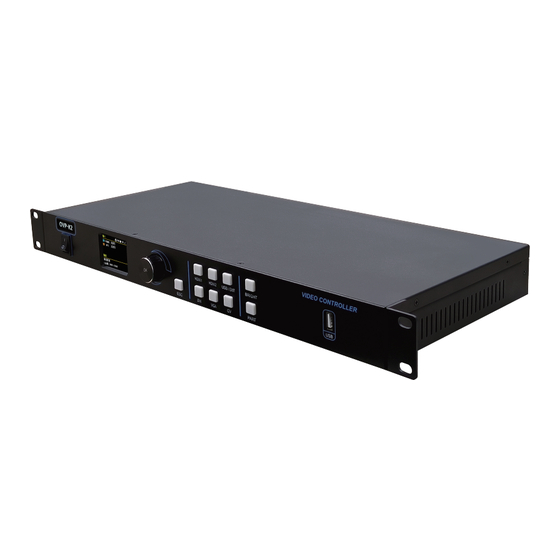

- Page 1 OVP-K video controller OVP-K2 /K4 /K6 /K10 /K16 Quick guide...
- Page 2 1. Description OVP-K2 /K4 /K6 /K10 /K16 are the latest easy-to-use and feature-rich LED video controllers from shanghai ONBON Technology.Set professional LED display control technology and powerful video processing capabilities in one, respectively integrated 2/4/6/10/16 Gigabit network port output, the maximum load 1.31/2.62/3.93/6.55/9.6 million pixels.The equipment adopts 1U standard industrial chassis design to...
- Page 3 2. Application Central control HDMI HDMI 3. Appearance ▸ Front panel ① ② ③ ④ ⑤ ⑥ ⑦ Key instruction On/off: Device switch 320×240 LCD: Display the operation menu and device status. Knob[OK]: Press the knob to confirm or enter the subordinate menu.Select the knob to select a menu or adjust parameters.
- Page 4 ▸ Back panel ① ② ② ② ② ② ③ ④ ⑤ ⑥ ⑦ Interface Gigabit network port: 2/4/6/10/16 channels of Gigabit network port output,connect with receiving card Video input interface OVP-K2/K4:HDMI1.4 /DVI /VGA /CV OVP-K6/K10/K16:HDMI2.0 /DVI /VGA /CV AUDIO IN /OUT: Audio input/output interface COM: USB control LAN: LAN control RS232: Central control...
- Page 5 5. User manual 5.1 Quick debugging screen Knob select [OK] to enter the main menu, and then select " Q u i c k d e b u g g i n g s c r e e n " u n d e r " s m a r t d e b u g g i n g screen"menu.
- Page 6 5.2 Switch the input signal source The user can set the specific input signal source according to the actual situation, and directly click the input signal source button corresponding to the front panel. Input EDID Step 1: Knob select 【OK】 to enter the main menu, and then select "Advanced "...
- Page 7 5.4 USB display Supports three modes: video playback, picture playback, video and picture mixed playback. Step 1: Insert the USB flash drive with playback content (video or picture) into the USB port on the front panel. Step 2: Press the USB key on the front panel to pop up the "Select file type to play" window. The user can select "Video", "Picture", "mix"...
- Page 8 Problem Check and adjust project details No display or image Check whether the power cable is in poor connection. output on the LCD screen Check whether the power switch is on. Check whether the input signal is correctly connected and switched to the ...
