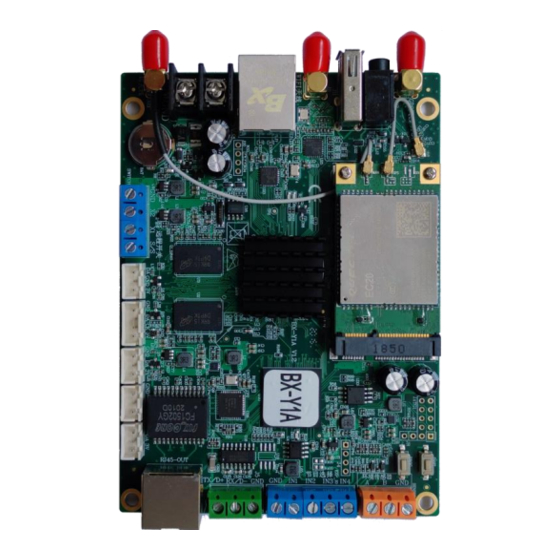

- Page 1 USER MANUAL BX-Y1A ON/OFF Selecting Program Version：V1.0 Release Date：2020.4.30...
- Page 2 Introduction of Outside IO Logic Selecting program by outside IO is to choose program by outside signal, as to display different programs by different signal. Outside IO trigger mode is level trigger, there are 5 IO on controller. IO Port Introduction IO is low level trigger.
- Page 3 Logical Connection Level Trigger Single logical controlling ⚫ In single logical controlling, only allow one IO level trigger to be close signal. Select “IO configuration” on “Advanced”, click “single logical control”, then click “setup”, as below: www.onbonbx.com 第3 页...
- Page 4 Controlling logic: When IN1 connects with GND, means pin IN1 is selected, play program 1. When IN2 connects with GND, means pin IN2 is selected, play program 2. When IN3 connects with GND, means pin IN3 is selected, play program 3. When IN4 connects with GND, means pin IN4 is selected, play program 4.
- Page 5 16 Shanghai ONBON Technology Inc. Address: 7 Floor, Tower 88, 1199#, North Qinzhou Road, Xuhui District, Shanghai City, China Website: www.onbonbx.com 仰邦微信公众号 ONBON (Jiangsu) Optoelectronic Industrial Co.,LTD Address: 1299#, Fuchun Jiang Road, Kunshan City, Jiangsu Province, China www.onbonbx.com 第5 页...
