- Page 1 USER MANUAL OVP-L1X VIDEO CONTROLLER VERSION：V1.0 RELEASE DATE：2019.2.27...
-
Page 2: Statement
Statement Any companies or privates cannot copy, transcribe or translate part or whole content of this file without our written permission. And cannot use it on any business or benefit filed with any forms. The specifications and information which are mentioned on the file is for reference only, if there’s update, we will not inform you. -
Page 3: Table Of Contents
CATALOG Statement................................2 Brief Introduction..............................3 Safety Note..............................3 About Software............................3 Function..................................4 Overview................................ 4 Characteristics.............................. 4 Physical Instruction............................. 5 Front board..............................5 Backside board............................. 6 Introduction of PC software..........................7 Connect Video Processor.......................... 7 Send Device Configuration........................7 Signal Source.............................. 10 Receiving card configuration......................... 10 Crop setting..............................13 Effect setting............................... - Page 4 Firmware update............................18 FAQ..................................19 www.onbonbx.com Page 2...
-
Page 5: Brief Introduction
Brief Introduction Safety Note There’ s high pressure components in this products, please do not open the box and repair it by yourself. Input voltage is 100-240V, 50/60Hz, please use correct power supply. Power cable connect with GND. Please ensure that you will plug in the socket which is connecting with GND before you connect with input and output port Please take off the power supply of LED video processor before you do any hardware operations, and ESD by touching the ground. -
Page 6: Function
It supports pixel-pixel input and output for high resolution LED screen, the video effect will be more clear. There are two Gigabit port on OVP-L1X, it’s the integrated type with video processor and LED big screen. Also, it supports USB port. -
Page 7: Physical Instruction

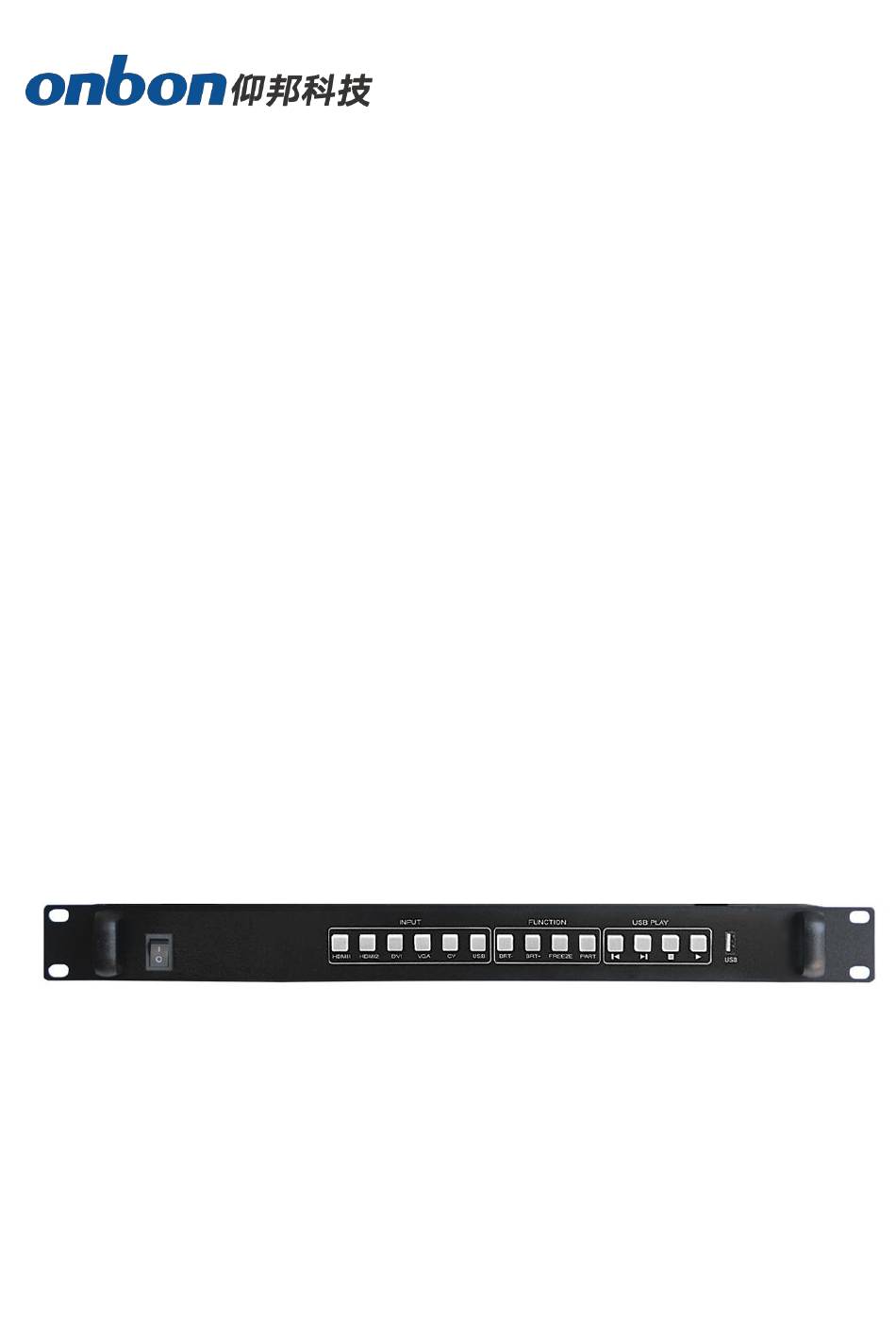

Physical Instruction Front board ○ ○ ○ ○ ○ Interface Turn on/off button for power supply INPUT AREA Buttons for inputting signals. There are 6 buttons from [HDMI1] ~ [USB]. FUNCTION AREA Part of functions and menu, 4 buttons: [BRT-]：Adjust brightness - . [BRT+]：Adjust brightness + . -
Page 8: Backside Board

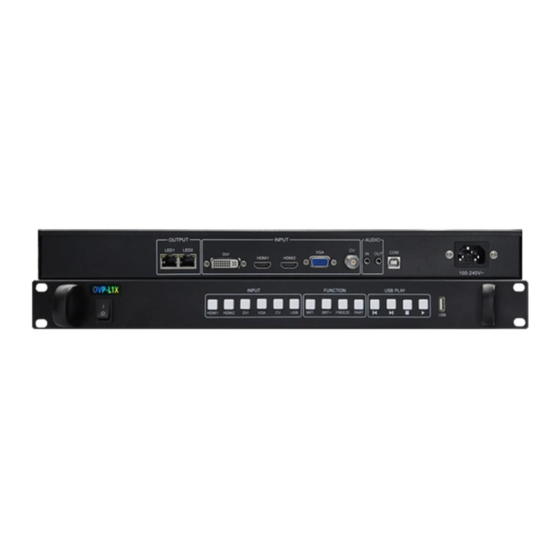

Backside board Video input signal DVI port HDMI1 HDMI port 1 HDMI2 HDMI port 2 PAL\NTSC compound video VGA port Video output signal LED1~LED2 Transfer by LAN cable Audio input & output signal HDMI Embedded in HDMI video input port AUDIO_IN Audio input AUDIO_OUT... -
Page 9: Introduction Of Pc Software
Introduction of PC software Use LedshowTV 2017 software, it support all of our video processor, like OVP-L1,OVP-M2,OVP-M3,OVP-L1X and OVP-M1X. We integrated VS or VSM sending card inside the video processor, customers will get a good video effect. Connect Video Processor Open “LedshowTV 2017”, select “screen options”... - Page 10 ,set the width and height of LED screen. Then, click “send” as to finish the configuration to video controller. Check below: OVP-L1X connects LED screen by LAN cable. Each port supports maximum 650,000pixels @60Hz Horizontal splicing: width≤3840, height≤2500, total pixels:≤1.3 million pixels LAN Port Parameters Support two modes:“Automatic distribution network port output”...
- Page 11 Custom network port output: Users can set output parameters of each Ethernet manually according to the connection between LED screen and receiving cards. As below: www.onbonbx.com Page 9...
-
Page 12: Signal Source
Signal Source Set the signal source according to your requirements, below is the input signal sources which are supported by OVP-L1X. HDMI1：Can transfer both video and audio of PC to display at the same time, support digital video & audio. - Page 13 Set width and height of receiving card according to the screen it is connecting, and select connection method of receiving card after finish settings of width and height. Then, click “Load to receiver card”, as below: www.onbonbx.com Page 11...
- Page 14 Image layout Users can adjust parameters for each image, as below: Image status: Default of image status is “open”. Image parameters: When the image status is open, user can set width,height,horizontal start and vertical start. Or users can adjust by dragging image. Image width: adjust range 128~can set maximum pixels on horizontal side Image height: adjust range 64~can set maximum pixels on vertical side Image horizontal start: minimum is 0, maximum value is : maximum horizontal pixels -...
-
Page 15: Crop Setting
Image output control Users can set output effect for each image: Select “open” or “close”. Crop setting Crop setting is to crop part of inputting signal source area as to do zoom in and out. Parameters, please check below: www.onbonbx.com Page 13... -
Page 16: Effect Setting
Firstly, click present inputting signal source, example: select “HDMI1”. Select “open” or “close”. ”Crop width”, “Crop height”, “Crop horizontal start”, “Crop vertical start” After finish crop settings, click “send”. Effect setting It’s divided into three parts: image quality, color temperature and audio effect, as below. Image quality：... -
Page 17: Mode Setting
Saturation：adjust range 0~100. Dynamic contrast：adjust range 0~4. Color temperature Click “color temperature”, users can modify the color temperature of image. There are 4 styles: warm, cold, natural,custom. For specific color temperature data, user can adjust by dragging “RED”,”GREEN”, and “BLUE”. Audio effect Click “audio effect”, select “open”... -
Page 18: Input Source Setting
Clear user mode：User can delete all parameters which is saved to this user mode by clear user mode. Setup user mode：User can switch selected user mode as present image mode by setup user mode. Input source setting Users can edit EDID of HDMI1, HDMI2 and DVI, as to give a “recommended input EDID” or adjust VGA input signal source. -
Page 19: Other Settings
When there’s excursion of VGA input signal in display, users can click “Auto adjust” as to display correctly. And if “Auto adjust”is invalid, users can adjust“VGA horizontal start” and “VGA vertical start” manually. Adjust horizontal station of VGA input signal, adjust range 0-300. ... - Page 20 Output status: Select “open”, it will show on LED display; If select “close”, it will not show. Factory reset: Click “reset”if you need to do factory reset. Firmware update Click “firmware update”--”check version”, as below. Click in “firmware name”-- choose the correct firmware-- click “update”.
- Page 21 This is a professional equipment, users should be professional on it. When you meet some problems, please try to check with below info. And if you still cannot solve, please contact with local agent or contact with us directly. Problems Checking and adjusting solutions There’s no light or light flashing of signal button...
- Page 22 Contact Us Shanghai ONBON Technology Co.,ltd (Headquarters) Address: 7 Floor, Tower 88, 1199#, North Qinzhou Road, Xuhui District, Shanghai City, China ONBON (Jiangsu) Optoelectronic Industrial Co.,LTD Address: 1299#, Fuchun Jiang Road, Kunshan City, Jiangsu Province, China Tel Phone: 086-0512-36912687 Website: www.onbonbx.com...
