Technical Support and E-Warranty Certificate
www.vevor.com/support

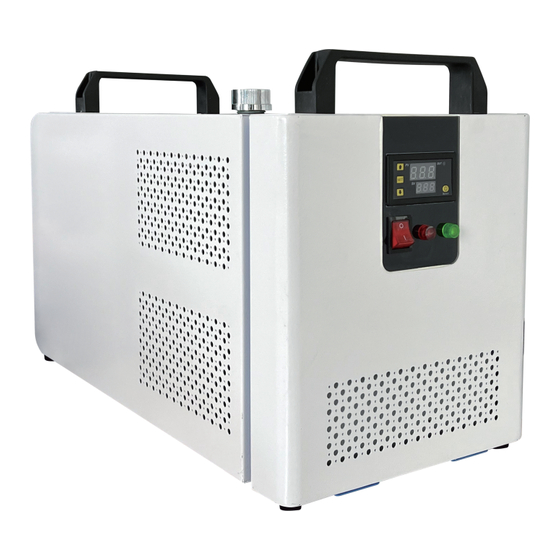

INDUSTRIAL WATER CHILLER
USER MANUAL
MODEL: KH-6000
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR KH-6000
Summary of Contents for VEVOR KH-6000
- Page 1 INDUSTRIAL WATER CHILLER USER MANUAL MODEL: KH-6000 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 3 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if...
- Page 4 WARN PLEASE MAKE SURE THAT THE POWER SUPPLY AND THE POWER OUTLET ARE IN GOOD CONTACT AND THE GROUNDING WIRE MUST BE FIRM! Although the average working current of the chiller is small, the instantaneous working current can sometimes reach 6~10 amperes (the instantaneous working current of the AC110V power supply model is possible up to 10~1 5 amperes) PLEASE MAKE SURE THAT THE WORKING CHILLER HAS A STABLE AND NORMAL VOLTAGE! Since the refrigeration compressor is more sensitive to power supply and voltage, so the working voltage our...
- Page 5 SPECIFICATIONS Model KH-6000 AC220V AC110V voltage frequency 50Hz 60Hz power 500W Cooling capacity 0.13kw 0.2kw Refrigerant R134a noises ≤65dB Water tank capacity Maximum flow 8L/min Pump power The main material Iron, copper Compressor overcurrent protection flow alarm Security overtemperature alarm...
- Page 6 DEVICE ILLUSTRATION front Temperature controller Normal Flow (Red) Normal Flow (Green) Master switch Air intake behind Water supply inlet Alarm output Cooling terminal water inlet Cooling Power outlets water outlet Water level observation line Cooling fan Drain spout base...
- Page 7 PROCEDURE Installing this industrial chiller is very simple. The first installation of a new machine can be carried out by following these steps: ①.OPEN THE PACKAGE TO CHECK IF THE MACHINE IS FIXED AND ALL NECES- SARY ACCESSORIES ARE COMPLETE. ②.OPEN THE WATER SUPPLY INLET TO SUPPLY COOLING WATER (DON'T SPILL THE WATER OUT!).
- Page 8 DISPLAY PANEL AND BUTTONS 8.8.8 key：Reboot key key：Adjust the up key key：Move the key down 8.8.8 SETkey：Set the key INSTRUCTIONS FOR KEY OPERATION Before use, the user is first reminded to pay attention to a point, the data must be set and wait for 6s, and the module will automatically save the data after 6s SORT KEYSTROKE FUNCTION...
- Page 9 PRODUCT INTRODUCTION Wiring（Commecting Mode） load 110V-220V Power supply（Suupply） RELAYS ARE AVAILABLE IN 3 OPERATING VOLTAGE SPECIFICATIONS: DC 12V/DC 24V/AC 110V-220V 2200W You can choose to buy according to your actual situation, and if you don't know how to wire or don't know how to choose, you can contact customer service for advice PRODUCT INTRODUCTION: Time range: 0-999 hours/0-999 minutes/0-999 seconds...
- Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
