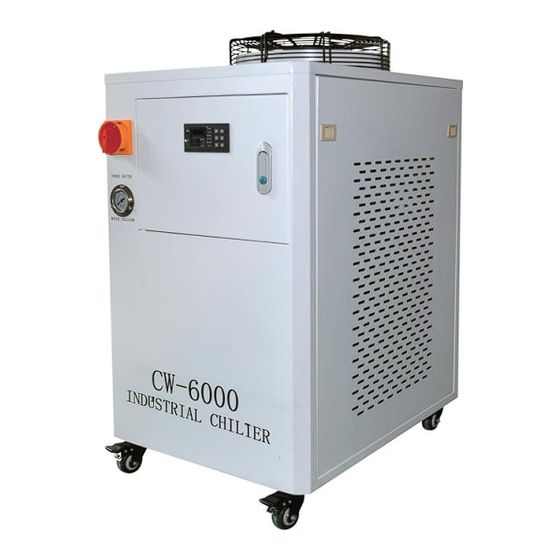

INDUSTRIAL WATER CHILLER
USER MANUAL
MODEL: CW-6000
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VEVOR CW-6000
Summary of Contents for VEVOR CW-6000
- Page 1 INDUSTRIAL WATER CHILLER USER MANUAL MODEL: CW-6000 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 3 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
- Page 4 Warning-To reduce the risk of injury, user must read instructions manual carefully. WARN 1. PLEASE MAKE SURE THAT THE POWER SUPPLY AND THE POWER OUTLET ARE IN GOOD CONTACT AND THE GROUNDING WIRE MUST BE FIRM! Although the average working current of the chiller is small, the instantaneous working current can sometimes reach 6~10 amperes (the instantaneous working current of the AC110V power supply model is possible up to 10~1 5 amperes) 2.
-
Page 5: Specifications
The circulating water of the water cooler must use a sealed container for normal use, such as laser tube cooling water. Unsealed containers cannot circulate, such as water basins, buckets cannot be used for circulating water cooling with water coolers. SPECIFICATIONS Model CW-6000 voltage AC220-240V AC120V frequency 50Hz... -
Page 6: Device Illustration
DEVICE ILLUSTRATION PROCEDURE - 4 -... - Page 7 Installing this industrial chiller is very simple. The first installation of a new machine can be carried out by following these steps: ①.OPEN THE PACKAGE TO CHECK IF THE MACHINE IS FIXED AND ALL NECESSARY ACCESSORIES ARE COMPLETE. ②.OPEN THE WATER SUPPLY INLET TO SUPPLY COOLING WATER (DON'T SPILL THE WATER OUT!).
-
Page 8: Display Panel And Buttons
work. The temperature controller will automatically control the working state of compressor solenoid valves, fans and other components according to the set control parameters. (4) Since the restart of the compressor and other components takes a long time, depending on different conditions, the time varies from a few seconds to a few minutes, so do not turn off the power frequently and turn it on again. - Page 9 rod-heating, intelligent mode-INT ctrl, constant temperature mode-CT ctrl, parameter setting-PARAM set, alarm output-ALM output, room temperature-room temp, start-up delay-ST delay). Under normal operation, the upper display window displays the normal water temperature, and the lower display window displays the set water temperature.
- Page 10 DIGIT KEYSTROKE FUNCTION DESCRIPTION OF THE OPERATION Press and hold the Enter key and the SET key, "99" will be displayed after three seconds, press the ▲▼ key to modify the password "XX" of the factory settings, press the SET key to enter the menu settings, Manufacturer you can modify the factory settings, and you can change SET+Enter...
-
Page 11: Menu Description
In the non-set state, press the ▽ key to display the Check room detection value of the room temperature sensor, and ▼ temperature resume the display of water temperature after 6 seconds (at this time, the room temp light is on, indicating that the upper window is displayed as room temperature) Press the SET button when the thermostat is working normally, if the thermostat is working in constant... -
Page 12: Controller Wiring Diagram
Heating back 0.1～5.0 Start-up alarm delay 0～30 minute Boot delay 10～300 second State transition delay 0～99 second -10.0～ Room temperature calibration 10.0 Water temperature -10.0～ temperature correction 10.0 The smaller the value System coefficient of inertia 0~40 the more accurate it is Compressor start-up protection 0～300 second... - Page 13 Note: ①.Strictly distinguish the wiring of power supply, relay output and sensor, and the relay should not be overloaded. ②.All wiring changes must be made with the power supply disconnected. ③.This controller is forbidden to be used in water or excessively humid environments, and is prohibited from being used in high temperatures, strong electromagnetic interference, and strong environments.
- Page 14 CONTROL THE OUTPUT FUNCTION 1. REFRIGERATION CONTROL: CHILLER REFRIGERANT HEATING ROD COMPRESSOR WORKING SOLENOID VALVE WORKING REMARK CONDITION CONDITION WORKING CONDITION CONDITION 100% full power refrigeration running Stop it refrigeration One-stage micro 40% power running Conduction Stop it refrigeration refrigeration 20% power Two-stage running...
-
Page 15: Water Temperature Setpoint
REFRIGERANT SOLENOID VALVE 1. When the compressor is working, when the temperature is reduced to (equal to, below) the set value of the water temperature, and the cut-off duration of the refrigerant solenoid valve has been greater than the time set by the state transition delay (A3), the refrigerant solenoid valve is turned on. - Page 16 3. ALARM CODE AND CONTROL LOGIC: CODE CONTENT ALARM CONDITIONS The room temperature is Room temperature > temperature ultra-high alarm value (F6 too high setting value) The water temperature is Water temperature> set temperature + refrigeration too high difference F2 + water temperature super high alarm F4 The water temperature is Water temperature<...
-
Page 17: Temperature Correction
key is pressed, the buzzer stops ringing. Alarm output, relay and other faults are automatically reset after they are removed. 1. KEY TONE There is a key prompt when the controller button is pressed, and a short tone prompt when each button is pressed. 2. - Page 18 Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN. EC REP: E-CrossStu GmbH Mainzer Landstr.69, 60329 Frankfurt am Main. UK REP: YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd.
